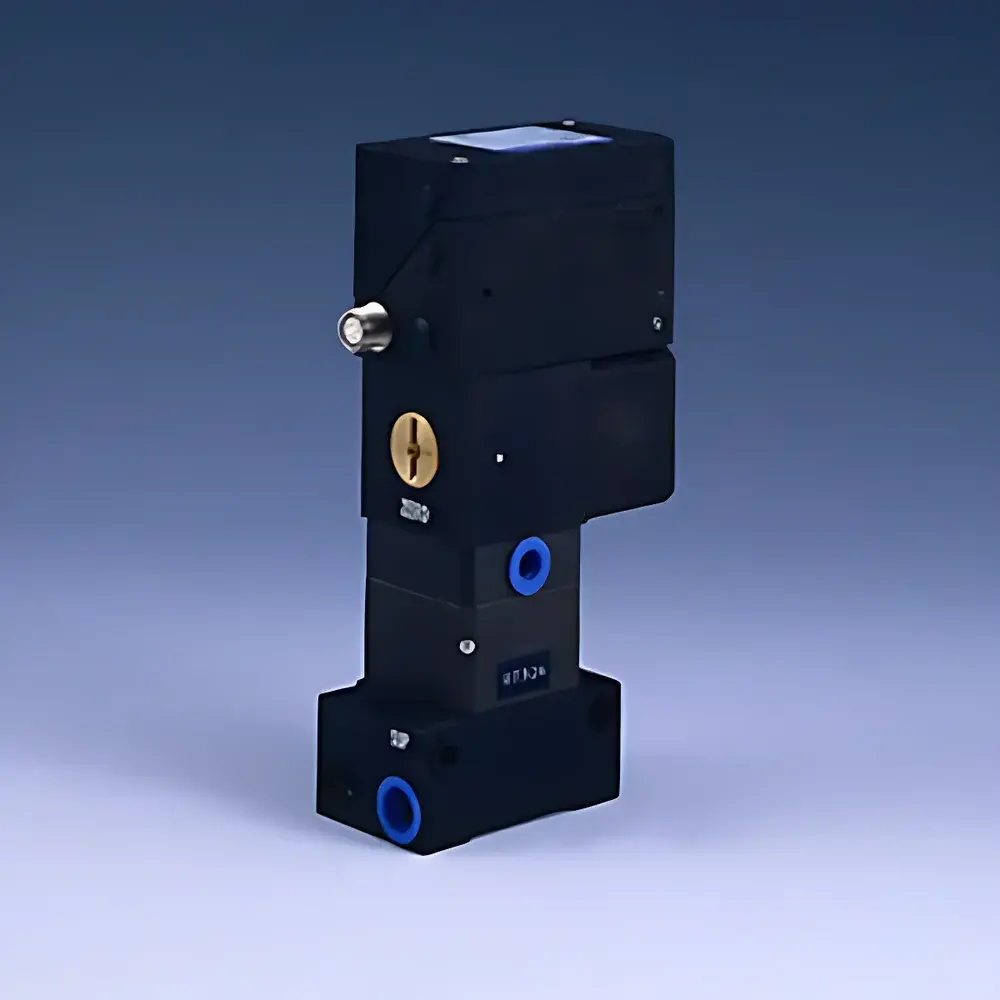

ASAHI Precision 735BB1 High-Accuracy Pneumatic Pressure Regulator with Integrated PID Controller and External Analog Sensor Interface

Overview

The ASAHI Precision 735BB1 is a high-accuracy, externally piloted pneumatic pressure regulator engineered for closed-loop process pressure stabilization in precision industrial automation, semiconductor tooling, analytical instrumentation, and laboratory gas delivery systems. Unlike conventional mechanical regulators, the 735BB1 employs a force-balance actuation mechanism combined with an embedded digital PID controller to actively suppress process pressure drift—enabling stable primary (upstream) pressure maintenance under dynamic load conditions. Its design eliminates reliance on internal air supply; instead, it operates via external pilot pressure, ensuring zero internal consumption during standby and minimizing thermal drift. The unit is calibrated for a 0–0.3 MPa (0–3 bar) setpoint range and delivers sub-50-ms transient response under no-load conditions—critical for applications requiring rapid pressure settling without overshoot or oscillation.

Key Features

• Integrated digital PID control architecture with real-time compensation for ambient temperature shifts, supply pressure fluctuations, and downstream flow variations
• Omnidirectional mounting capability—performance unaffected by installation orientation due to symmetrical diaphragm geometry and balanced force transmission
• Modular analog sensor interface supporting external 0–5 V, 0–10 V, or 4–20 mA inputs—including pressure, mass flow, and linear position transducers
• Low hysteresis (≤ ±0.05% FS) and high linearity (≤ ±0.3% FS, dependent on connected sensor accuracy) ensure repeatable setpoint fidelity across extended operational cycles
• Compact aluminum alloy (ADC12) valve body with NBR diaphragm and seals—compatible with dry, oil-free compressed air per ISO 8573-1 Class 4:2010 requirements
• Optional elastomer upgrades available: Viton® for elevated temperature resistance (–20 °C to +150 °C), PTFE-coated diaphragms for chemical inertness, and polyurethane seals for abrasion-prone environments

Sample Compatibility & Compliance

The 735BB1 is certified for use exclusively with clean, dry, oil-free compressed air (ISO 8573-1:2010 Class 4 or better). It is not rated for corrosive gases, flammable media, or liquids. As a component-level pressure control device—not a safety relief valve—it complies with JIS B 8609:2017 for pneumatic regulators and meets EMC immunity requirements per IEC 61000-4-2/4-3/4-4. While not independently CE-marked as a complete machine, it satisfies essential requirements of the EU Machinery Directive 2006/42/EC when integrated into compliant system architectures. For GMP-regulated environments (e.g., pharmaceutical gas distribution), its 24 V DC power interface and analog signal traceability support integration into FDA 21 CFR Part 11-compliant control networks when paired with audit-trail-capable SCADA or PLC systems.

Software & Data Management

The 735BB1 operates as a stand-alone analog control module and does not include onboard firmware update capability or native USB/Ethernet connectivity. However, its 0–5 V input interface is fully compatible with industry-standard data acquisition systems (e.g., National Instruments DAQmx, Keysight IO Libraries) and programmable logic controllers (Siemens S7, Rockwell CompactLogix). When integrated into validated systems, the analog setpoint and feedback signals support full electronic record retention, calibration history logging, and deviation alerting—meeting ALCOA+ principles for data integrity. Optional analog-to-digital signal conditioning modules (sold separately) enable direct connection to LabVIEW or MATLAB-based control loops for adaptive tuning and real-time performance analytics.

Applications

• Precision pressure control in vacuum chamber backfilling and purge sequences for semiconductor wafer processing tools
• Stabilized inlet pressure regulation for mass flow controllers (MFCs) and gas chromatography (GC) carrier gas manifolds
• Dynamic pressure hold in microfluidic assay platforms and MEMS-based sensor calibration rigs
• Primary pressure regulation in automated leak test fixtures where repeatability ≤0.1% FS is required over 10⁴ cycles
• Integration into ISO/IEC 17025-accredited calibration laboratories for pressure reference generation (traceable to JCSS standards)

FAQ

Is the 735BB1 suitable for use as a safety relief valve?
No. It is a precision pressure regulator—not a certified pressure relief device. It must be used downstream of an ASME- or PED-compliant safety valve in any pressurized system.
Can I use a 4–20 mA pressure transmitter with the 735BB1?
Yes. The analog input accepts configurable current or voltage signals. Specify “3” in the model suffix (e.g., 735BB3) for factory-configured 4–20 mA compatibility.
Does the unit require an external air supply for pilot operation?
Yes. A clean, regulated pilot pressure source (typically 0.4–0.7 MPa) must be supplied externally via the dedicated pilot port.
What is the maximum allowable backpressure at the outlet?
Backpressure must remain below the setpoint minus the inherent valve pressure drop (typically ~15 kPa at 10 L/min flow). Exceeding this threshold degrades regulation accuracy and may cause instability.
Is firmware or configuration software provided?
No. Configuration is performed solely via hardware jumper settings and external analog signal routing. No proprietary software or drivers are required.
