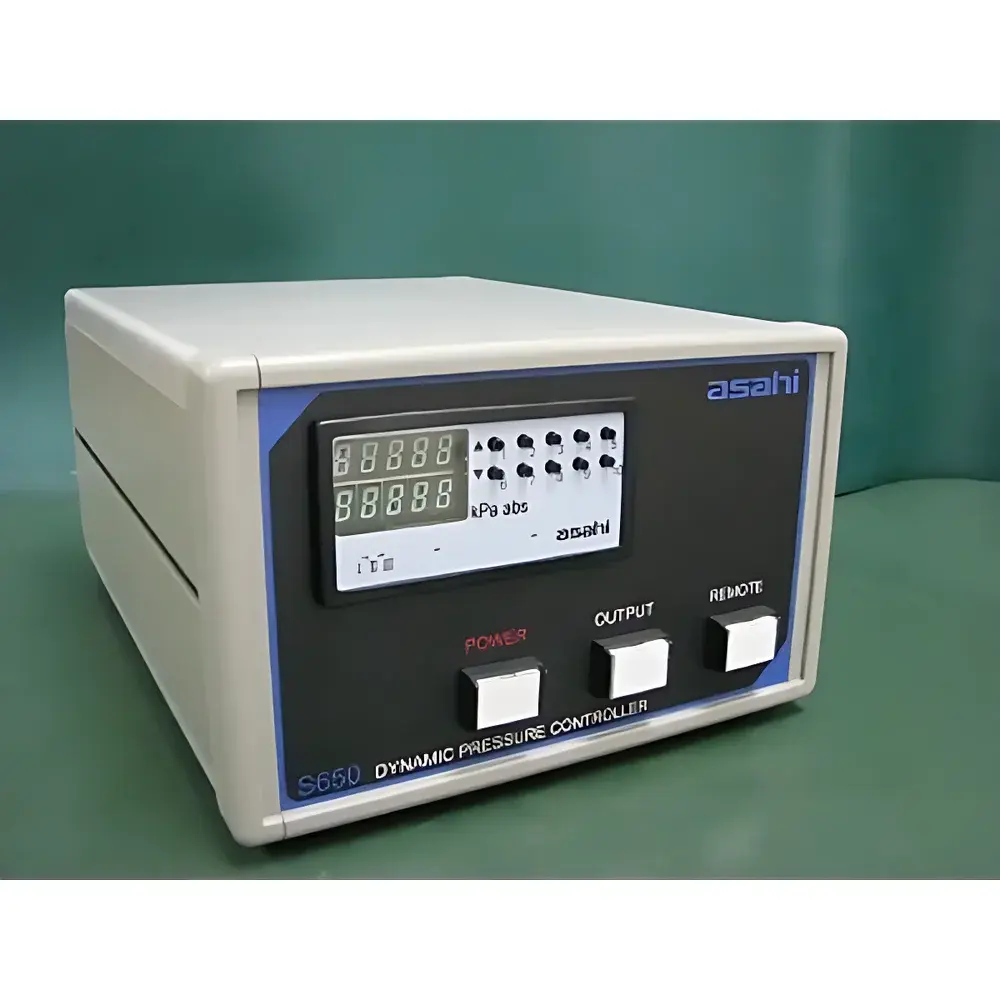

ASAHI Precision S650SML/S650SMH High-Accuracy Dual-Range Pressure Controller (Positive & Negative Pressure Capability)

Overview

The ASAHI Precision S650SML and S650SMH are high-accuracy, dual-range electro-pneumatic pressure controllers engineered for laboratory, calibration, and industrial process applications requiring stable, repeatable, and traceable pressure regulation across both positive and negative (vacuum) regimes. These instruments operate on a force-balanced control architecture, integrating a high-stability variable-capacitance pressure sensor with real-time PI (Proportional-Integral) feedback logic to maintain setpoint accuracy under dynamic load conditions. Unlike open-loop regulators, the S650 series actively monitors output pressure and continuously adjusts pneumatic actuation—ensuring minimal hysteresis, low drift, and high reproducibility. Designed and manufactured in Japan, each unit undergoes factory calibration against NIST-traceable standards, with full documentation available upon request. The controllers accept dry, oil-free compressed air as the supply medium and deliver precise secondary pressure independent of upstream fluctuations—making them suitable for use with mass flow controllers, transducer calibration rigs, leak test systems, and environmental simulation chambers.

Key Features

• Two calibrated models: S650SML (3.5–700 kPa range, 0.01 kPa resolution) and S650SMH (12.5–2500 kPa range, 0.1 kPa resolution) for application-specific optimization
• Force-balanced electrostatic capacitance sensing technology ensures long-term zero stability and minimal thermal drift (±0.018% FS/°C)
• Integrated 5-digit LED display showing both setpoint and real-time measured pressure simultaneously
• Local operation via intuitive 5-button keypad; remote analog control via 0–10 V DC input with galvanically isolated circuitry
• Robust mechanical design with Rc 1/4 (S650SML) or Rc 3/8 (S650SMH) NPT-compatible ports and optimized orifice sizing for laminar flow response
• Low power consumption (24 V DC internal logic, 100 V AC mains input) and compact footprint (280 × 210 × 133 mm) for benchtop or rack integration
• Full thermal stabilization within 30 minutes; operational envelope maintained between 5–40 °C ambient

Sample Compatibility & Compliance

The S650 series is compatible with clean, dry, non-corrosive gases—including nitrogen, argon, helium, and instrument-grade air—provided dew point remains below −20 °C and particulate content complies with ISO 8573-1 Class 4. It is not rated for use with reactive, toxic, or condensable media. Units conform to JIS B 7552 (Pressure Controllers), IEC 61000-6-2 (EMC Immunity), and IEC 61000-6-3 (EMC Emission) standards. While not intrinsically safe, the controller meets IP20 enclosure rating and includes ≥1 MΩ insulation resistance per IEC 61010-1 for functional safety in general-purpose lab environments. Documentation supports GLP-compliant validation protocols, including as-found/as-left calibration reports, uncertainty budgets, and traceability statements aligned with ISO/IEC 17025 requirements.

Software & Data Management

Although the S650 operates as a standalone analog controller without embedded digital communication interfaces (e.g., RS-485, Ethernet, or USB), its 0–10 V analog input/output architecture enables seamless integration into SCADA, PLC, or DAQ-based automation systems. Users may log pressure data using third-party acquisition hardware compliant with IEEE 1622 or NI-DAQmx drivers. For audit-ready workflows, the device supports manual recordkeeping of calibration events, setpoint changes, and environmental conditions—fully compatible with FDA 21 CFR Part 11–aligned electronic notebooks when paired with validated software platforms. Optional accessories include DIN-rail mounting kits and shielded analog signal cables to minimize noise coupling in electrically noisy facilities.

Applications

• Primary and secondary calibration of pressure transducers, gauges, and deadweight testers (DWTs) in metrology labs
• Stable bias pressure supply for MEMS sensor characterization and semiconductor packaging testing
• Controlled purge gas delivery in analytical instrumentation (e.g., GC carrier gas regulation, FTIR sample cell pressurization)
• Dynamic pressure stepping in accelerated life testing of valves, seals, and hydraulic components
• Vacuum-assisted material handling and precision dispensing systems requiring sub-kPa repeatability
• Environmental stress screening (ESS) chambers where rapid, accurate ramp-and-hold pressure profiles are required

FAQ

What is the maximum allowable supply pressure for the S650SML model?

The S650SML accepts a supply (primary) pressure of 800 ± 20 kPa. Exceeding this limit may compromise internal valve integrity and void calibration validity.
Can the S650 series be used for vacuum (negative pressure) generation?

Yes—the S650 controllers support regulated negative pressure output down to atmospheric reference (i.e., gauge vacuum), provided the supply line is connected to a vacuum source and the internal control algorithm is configured accordingly per the operator’s manual.
Is firmware update capability available?

No. The S650 series employs hardwired analog control logic with no microprocessor-based firmware; all performance parameters are defined by component-level tolerances and factory calibration.
Does ASAHI provide NIST-traceable calibration certificates?

Yes—certificates of calibration with measurement uncertainty, traceability statements, and as-found/as-left data are available as optional add-ons at time of order or through authorized service centers.
What maintenance is required to sustain specified accuracy?

Annual verification against a certified reference standard is recommended. Filter replacement (inlet particulate filter) every 12 months and visual inspection of O-rings and port threads are advised under continuous operation.
