ASD FSA (FieldSpec Assistant) Smart Handle

Overview

The ASD FSA (FieldSpec Assistant) Smart Handle is an intelligent, ergonomic field interface designed exclusively for seamless integration with ASD FieldSpec series portable spectroradiometers. Engineered to replace conventional laptop-based control systems, the FSA leverages modern mobile computing infrastructure—Android, iOS, Windows, and Huawei HarmonyOS—to deliver real-time remote operation, spectral data streaming, and synchronized metadata acquisition in outdoor and laboratory environments. Its core function is to enhance measurement fidelity through automated angular stabilization, spatial awareness of instrument field-of-view (FOV), and contextual data fusion—addressing critical sources of error in field spectroscopy including operator-induced tilt, misalignment during reference calibration, and uncorrelated environmental metadata. The device operates on a robust embedded architecture with integrated inertial measurement unit (IMU), GPS, ambient light sensor, temperature/humidity sensor, and dual-channel optical fiber coupling capability—making it a purpose-built field companion compliant with rigorous geospatial and spectral measurement protocols.

Key Features

• Mobile-first control architecture: Eliminates need for dedicated laptops or mounting trays; connects wirelessly to user-owned smartphones or tablets via cross-platform application.
• Auto-leveling gimbal system: Uses real-time IMU feedback to actively maintain vertical alignment between spectrometer optical axis and target surface—ensuring consistent 0° incidence angle per ASTM E275 and ISO 13406-2 recommendations for reflectance measurements.

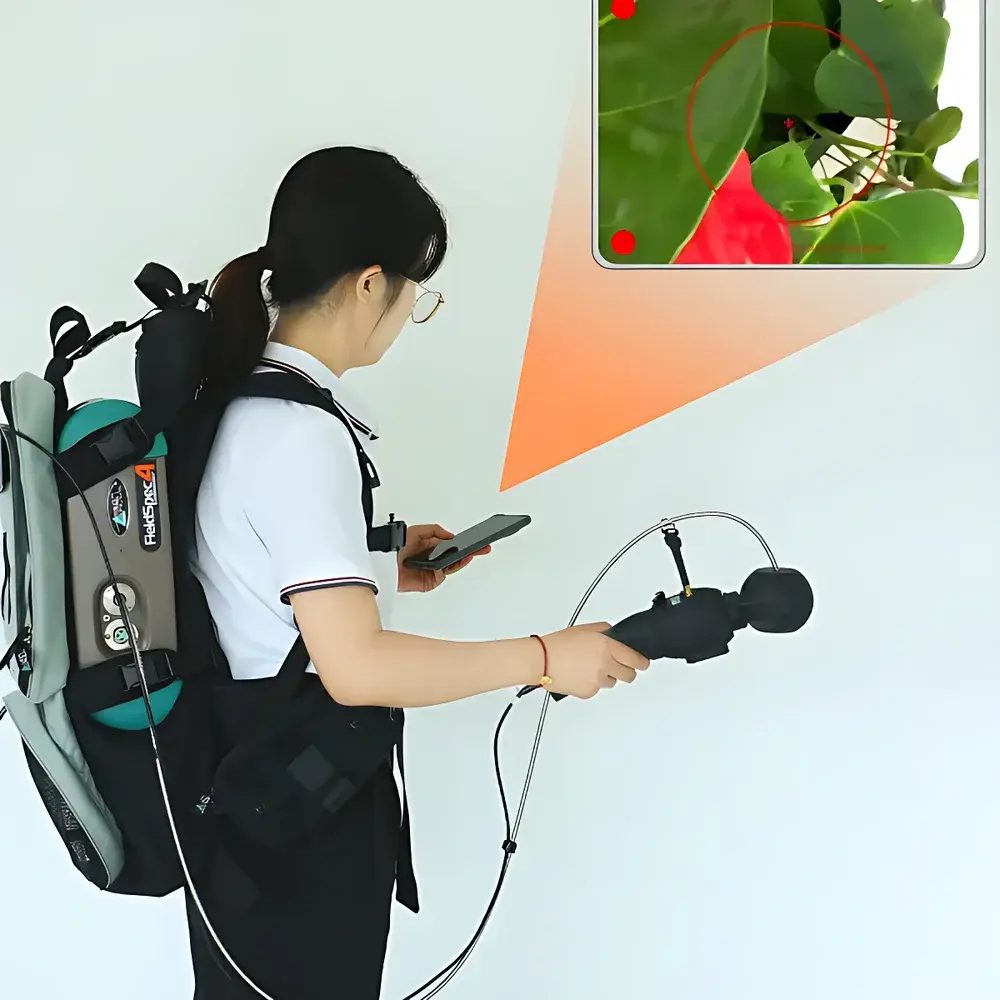

• Live FOV visualization: Projects real-time optical footprint overlay on mobile display, enabling precise targeting of calibration panels (e.g., Spectralon® white reference) and minimizing contamination from adjacent materials.
• Context-aware metadata capture: Synchronizes spectral acquisitions with geotagged imagery, GPS coordinates (WGS84, sub-3 m CEP), ambient illuminance (lux), air temperature (±0.5 °C), and relative humidity (±3% RH).
• Voice-assisted status feedback: Delivers audible notifications for trigger events, integration time confirmation, calibration success/failure, and battery status—critical under high-glare field conditions where visual screen monitoring is impractical.
• Dual-spectrometer support: Features two standardized fiber-optic clamping ports for concurrent operation of one ASD FieldSpec unit and one high-resolution spectrometer (e.g., SIF series), enabling multi-spectral correlation studies without hardware duplication.

Sample Compatibility & Compliance

The FSA Smart Handle is fully compatible with all ASD FieldSpec Pro, FieldSpec 4, and HandHeld 2 spectroradiometers operating across 350–2500 nm spectral ranges. It supports both contact and non-contact measurement configurations and complies with standard field spectroscopy workflows defined by NASA’s AVIRIS-NG calibration protocols, ESA’s FLEX mission pre-processing guidelines, and USGS Spectral Library documentation requirements. All timestamped spectral files are exported in ENVI-compatible BIL format with embedded EXIF and sidecar JSON metadata, ensuring traceability for GLP/GMP-aligned environmental monitoring, precision agriculture trials, and mineralogical survey applications requiring audit-ready data provenance.

Software & Data Management

The companion FSA Control App provides secure Bluetooth 5.0/USB-C connectivity and implements local encryption (AES-256) for all transmitted spectral and sensor data. Software logs include full audit trails—recording user ID, session start/end timestamps, firmware versions, GPS fix quality indicators, and IMU-derived tilt deviation metrics. Export options support direct upload to cloud platforms (AWS S3, Google Cloud Storage) or local network shares via SMB/FTP. The application meets FDA 21 CFR Part 11 requirements for electronic records and signatures when deployed in regulated agrochemical or pharmaceutical environmental testing scenarios, offering role-based access control and immutable log archiving.

Applications

• Field-based vegetation phenotyping and stress detection using narrowband NDVI, PRI, and MCARI indices.
• Soil organic carbon mapping through visible-near infrared (VNIR) and shortwave infrared (SWIR) spectral inversion models.
• Mineral identification and lithological mapping in geological prospecting campaigns.
• Calibration validation and inter-instrument comparison studies involving multiple spectrometers under identical illumination conditions.
• Urban material classification (roofing, pavement, façade materials) for thermal emissivity modeling and solar reflectance indexing (ASTM E1918).

FAQ

Is the FSA Smart Handle compatible with third-party spectrometers beyond ASD devices?
No—it is engineered specifically for ASD FieldSpec-series instruments and requires proprietary communication handshake protocols.
Does the FSA support differential GPS or RTK positioning?
It uses standard GNSS (GPS + GLONASS + Galileo) with SBAS augmentation; external RTK receivers may be connected via NMEA 0183 serial output but are not natively integrated.
Can spectral data be acquired without a mobile device connected?
No—the FSA lacks onboard storage or standalone processing capability; continuous mobile connection is required for all operational modes.
What is the maximum operating temperature range for field deployment?
The device is rated for continuous operation between –10 °C and +50 °C, with IP54-rated enclosure for dust and water splashing resistance.
How frequently is firmware updated, and how are updates delivered?
ASD releases quarterly firmware updates via the FSA Control App; updates require manual initiation and include versioned changelogs aligned with ISO/IEC 17025 traceability standards.
