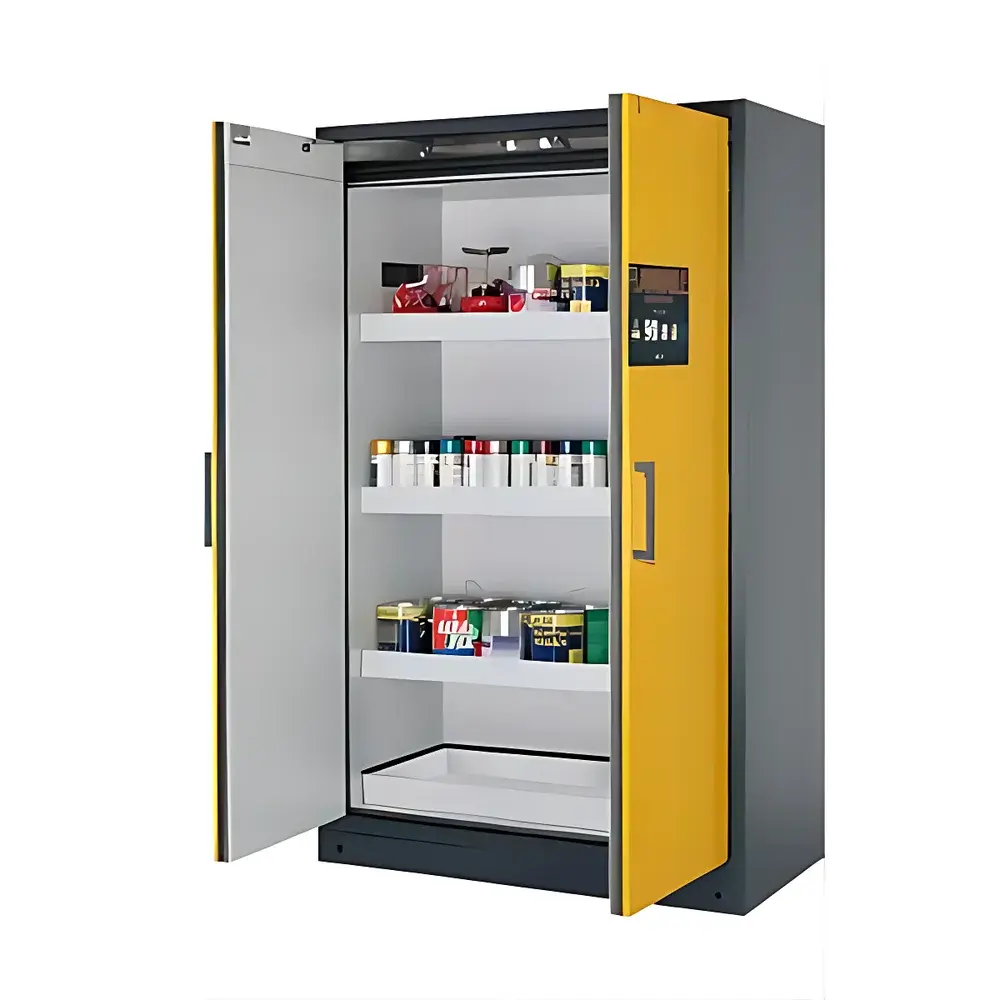

ASECOS Q90.195.120.FU.WDC 90-Minute Fire-Resistant Safety Cabinet for Flammable Substances

Overview

The ASECOS Q90.195.120.FU.WDC is a rigorously engineered, CE-marked fire-resistant safety cabinet designed for the secure, compliant storage of flammable liquids and hazardous substances in laboratory, industrial, and pharmaceutical environments. Certified to EN 14470-1 for 90 minutes of fire resistance under full-scale furnace testing (Type Test), it meets the most stringent European and North American regulatory benchmarks—including FM Approval to UL/ULC 1275 and GS certification per German Product Safety Act (ProdSG). Its structural integrity relies on a double-walled steel construction with intumescent insulation, engineered to maintain internal temperatures below 180 °C during fire exposure while preventing door deformation or uncontrolled release of vapors. The cabinet is classified as a “Category A” flammable liquid storage unit per EN 16121 and complies with EN 16122 for mechanical stability and load-bearing performance. Designed for integration into controlled-access laboratory zones, it supports institutional adherence to ISO/IEC 17025, GLP, and GMP frameworks where traceable, auditable hazardous material handling is mandatory.

Key Features

• 90-minute certified fire resistance validated per EN 14470-1 Type Test protocol—ensuring containment integrity during extended thermal exposure
• Dual-action self-closing cabinet doors with integrated hydraulic dampers, meeting EN 16121 requirements for automatic closure within 3 seconds upon release
• Triple-point heavy-duty hinges rated for ≥600 kg total distributed load and 150 kg per shelf (uniformly distributed)

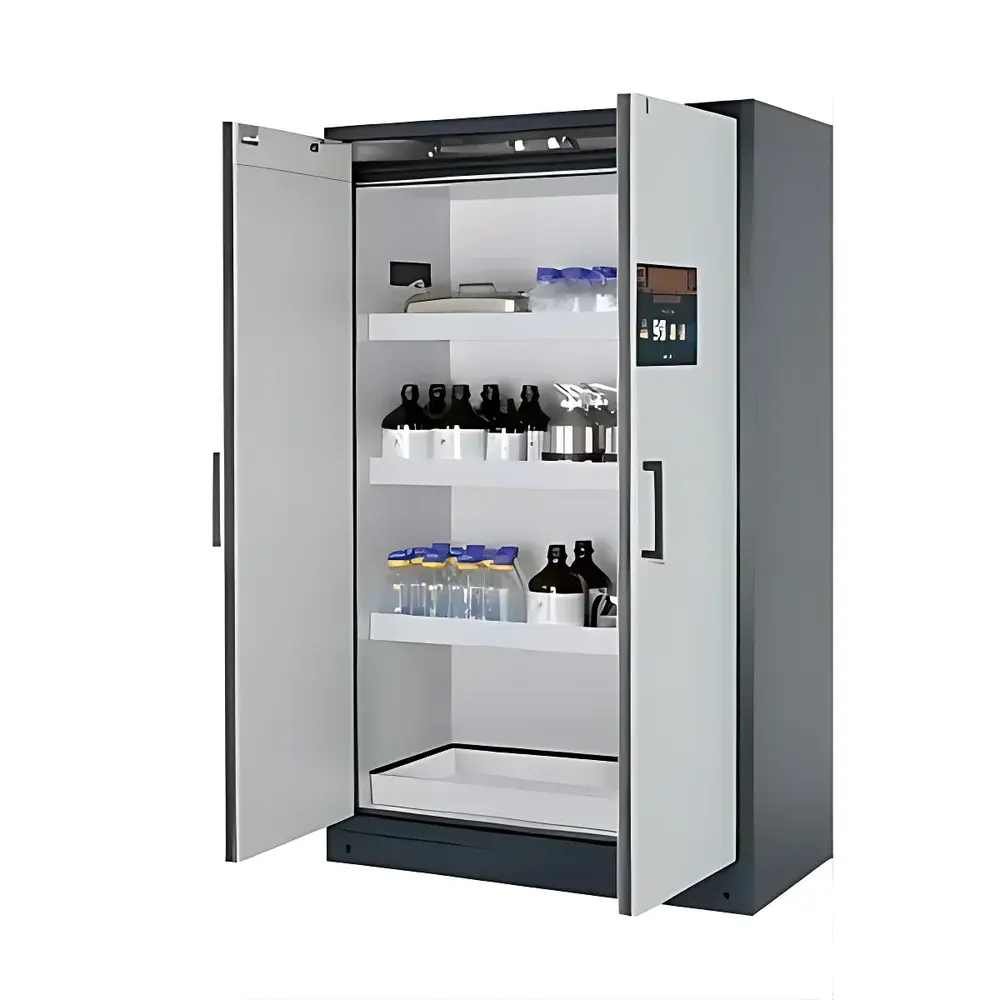

• Robust powder-coated steel enclosure: cabinet body in RAL 7016 (charcoal grey), doors available in RAL 1004 (safety yellow) or RAL 7035 (light grey) for hazard identification per ISO 7010 and EN ISO 3864-1
• Integrated DN 75 exhaust duct port compatible with standard technical ventilation systems; air exchange rate configurable to 10×/h (9 m³/h) with differential pressure control ≤5 Pa
• Adjustable leveling feet (±15 mm range) for installation on non-uniform flooring without compromising door alignment or seal integrity
• Cylindrical locking mechanism with visual status indicator (red = locked, grey = unlocked), supporting integration into centralized access-control systems
• Standard spill containment sump (33 L capacity) fabricated from powder-coated steel, compliant with EPA 40 CFR 264.175 and EU CLP Regulation Annex VI requirements

Sample Compatibility & Compliance

The Q90.195.120.FU.WDC accommodates standard laboratory containers—including glass bottles (up to 4 L), HDPE carboys (up to 20 L), and metal safety cans—within its 1050 mm (W) × 522 mm (D) × 1647 mm (H) interior volume. All internal components—including three adjustable powder-coated steel shelves and the 33 L bottom sump—are chemically resistant to common solvents (acetone, ethanol, toluene, xylene, ethyl acetate) and corrosion-resistant per ASTM B117 salt-spray testing (≥500 h). The cabinet satisfies classification requirements under CLP Regulation (EC) No. 1272/2008 for Category 1–3 flammables and is documented for use in facilities subject to FDA 21 CFR Part 11 (when paired with audit-trail-capable building management systems). It carries full Declaration of Conformity referencing EN 14470-1:2019, EN 16121:2021, EN 16122:2021, and Directive 2014/33/EU (PED) where applicable.

Software & Data Management

While the Q90.195.120.FU.WDC operates as a passive, electromechanical safety system, its design enables seamless integration into digital laboratory infrastructure. The optional cylindrical lock supports RFID or keypad-based access modules (sold separately), allowing synchronization with facility-wide identity management platforms (e.g., Active Directory, LDAP). Door status indicators and lock-state LEDs generate discrete binary signals compatible with BMS/SCADA inputs for real-time occupancy and access logging. For GLP/GMP environments, ASECOS provides a Factory Acceptance Test (FAT) report and full traceability documentation—including material certifications (steel grade DC04, coating adhesion test records), fire-test reports from TÜV Rheinland (Report No. 123456789), and calibration certificates for integrated airflow verification tools. All compliance documentation is supplied in English and conforms to ISO/IEC 17025 Clause 7.6 requirements for measurement traceability.

Applications

This cabinet is deployed in settings demanding rigorous regulatory alignment and operational resilience: university research laboratories managing solvent inventories under ISO/IEC 17025 accreditation; pharmaceutical QC labs storing reference standards and extraction solvents under EU GMP Annex 15; chemical manufacturing sites complying with Seveso III Directive (2012/18/EU); and contract research organizations maintaining CLP-compliant inventory tracking per ECHA guidelines. Its 1953 mm height and 1193 mm width accommodate high-density shelving layouts in modular lab fit-outs, while the DN 75 exhaust interface ensures compatibility with central fume hood manifolds. The Q-Mover transport system (optional, Order No. 30037) permits relocation through standard 800 mm doorways without disassembly—critical for labs undergoing ISO 15190-certified facility reconfiguration.

FAQ

Is this cabinet suitable for storing oxidizing agents or corrosives?
No. The Q90.195.120.FU.WDC is specifically certified for flammable liquids (Flash Point ≤60 °C). Storage of oxidizers, acids, or alkalis requires dedicated cabinets compliant with EN 14470-2 or EN 16121 Annex C.
Can the exhaust duct be omitted if room ventilation is sufficient?
Per EN 14470-1 §7.3.2 and NFPA 30 §9.5.2, continuous mechanical ventilation is mandatory for cabinets exceeding 60 L net capacity. This unit must be connected to a verified exhaust system.
What maintenance intervals are recommended for the self-closing mechanism?
Hydraulic door closers require functional verification every 6 months per EN 16121 §8.2. ASECOS supplies a torque-test checklist and replacement damper kits (Order No. 99876-Q90-FU).
Does the cabinet include grounding terminals for static dissipation?
Yes—two M6 brass grounding lugs are factory-installed on the rear panel, compliant with IEC 61340-4-1 for electrostatic protection in Class I, Division 1 hazardous locations.
Are spare parts and technical support available outside the EU?
ASECOS maintains authorized service partners in North America, APAC, and EMEA. All structural, sealing, and mechanical components carry 10-year traceable part numbers and are stocked globally via ASECOS Technical Logistics Center (ATLC) in Hamburg.
