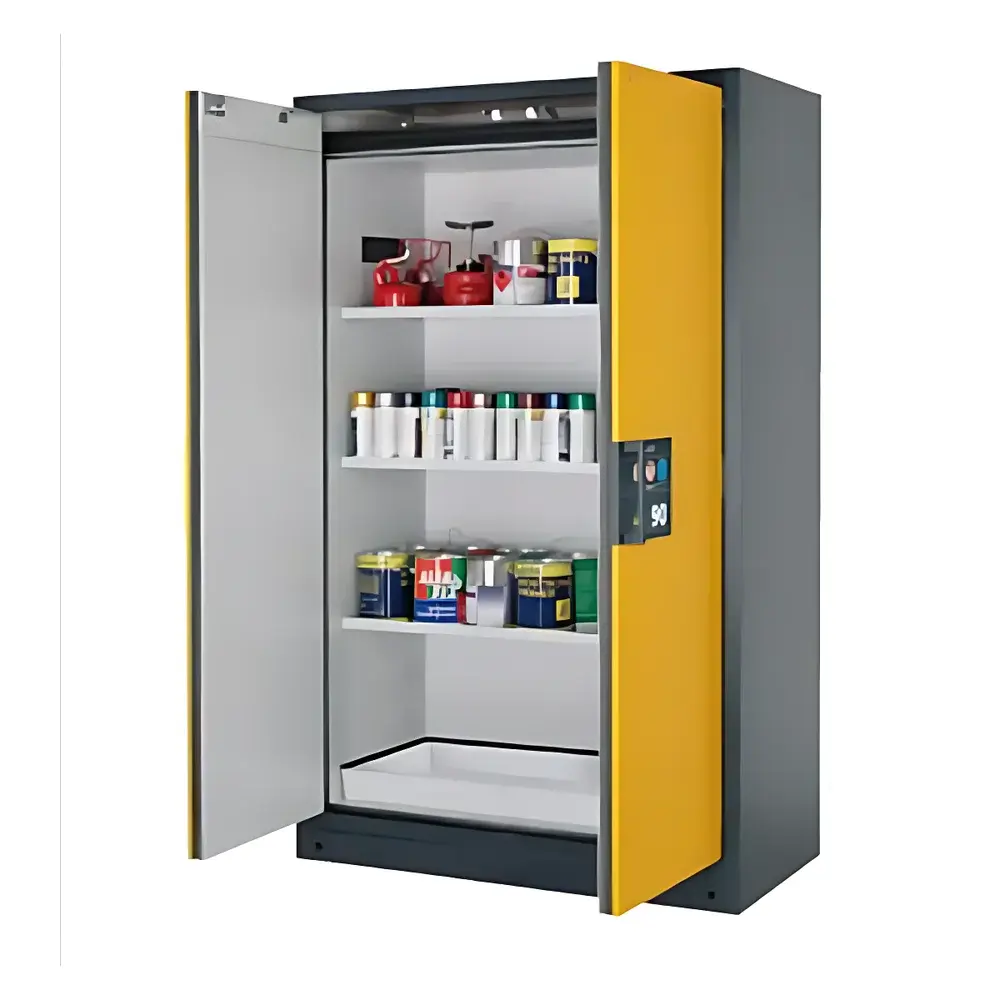

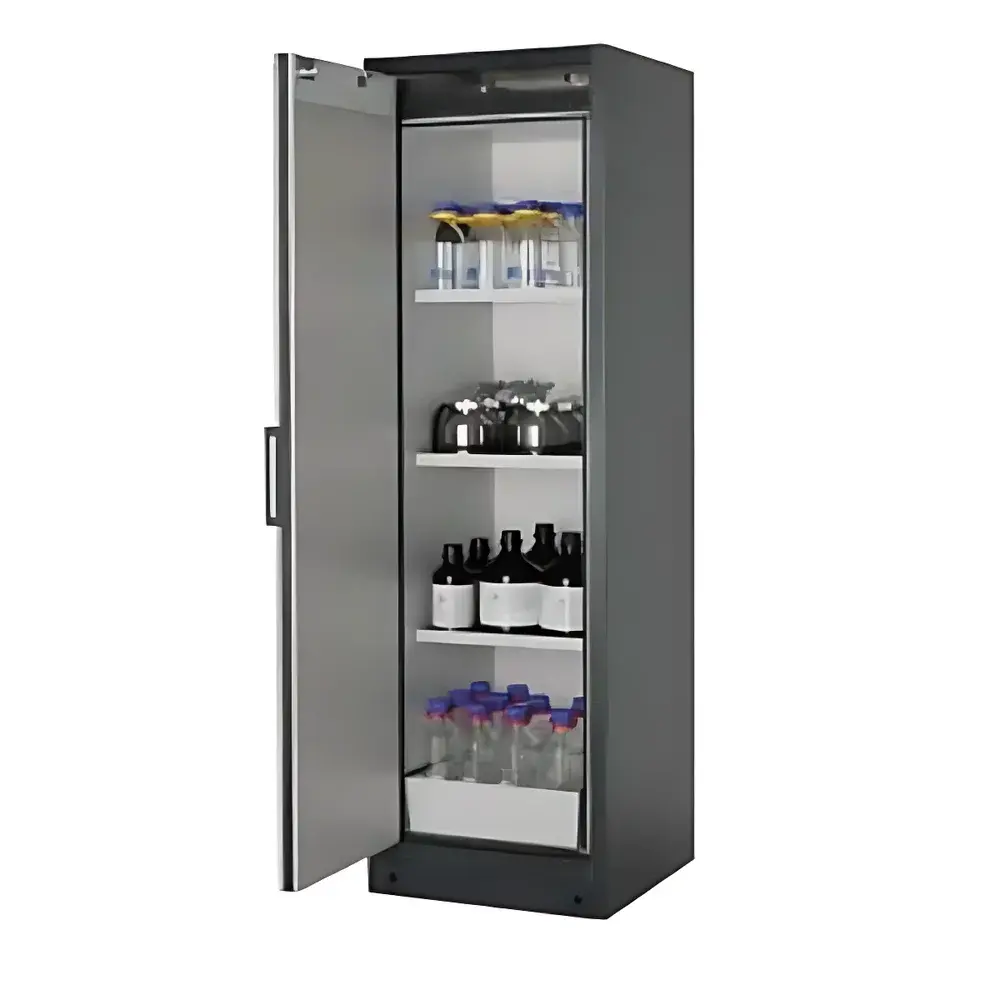

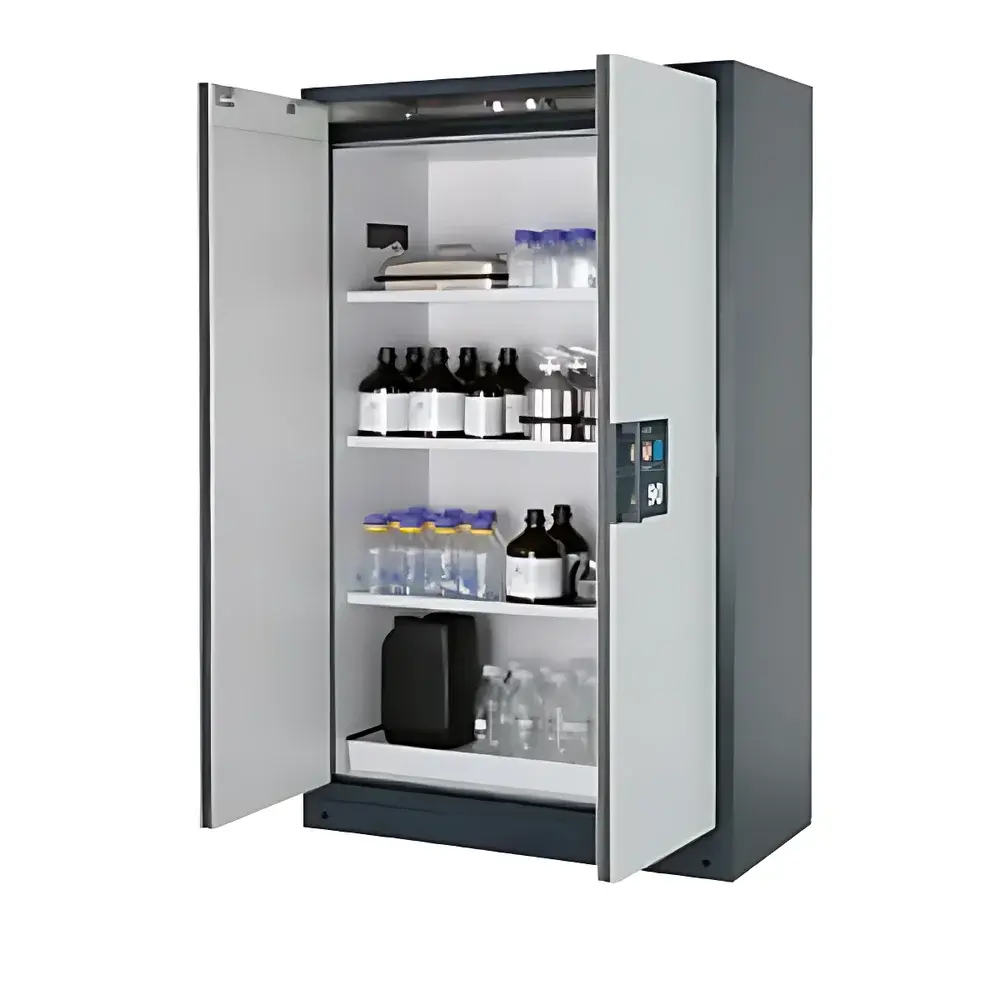

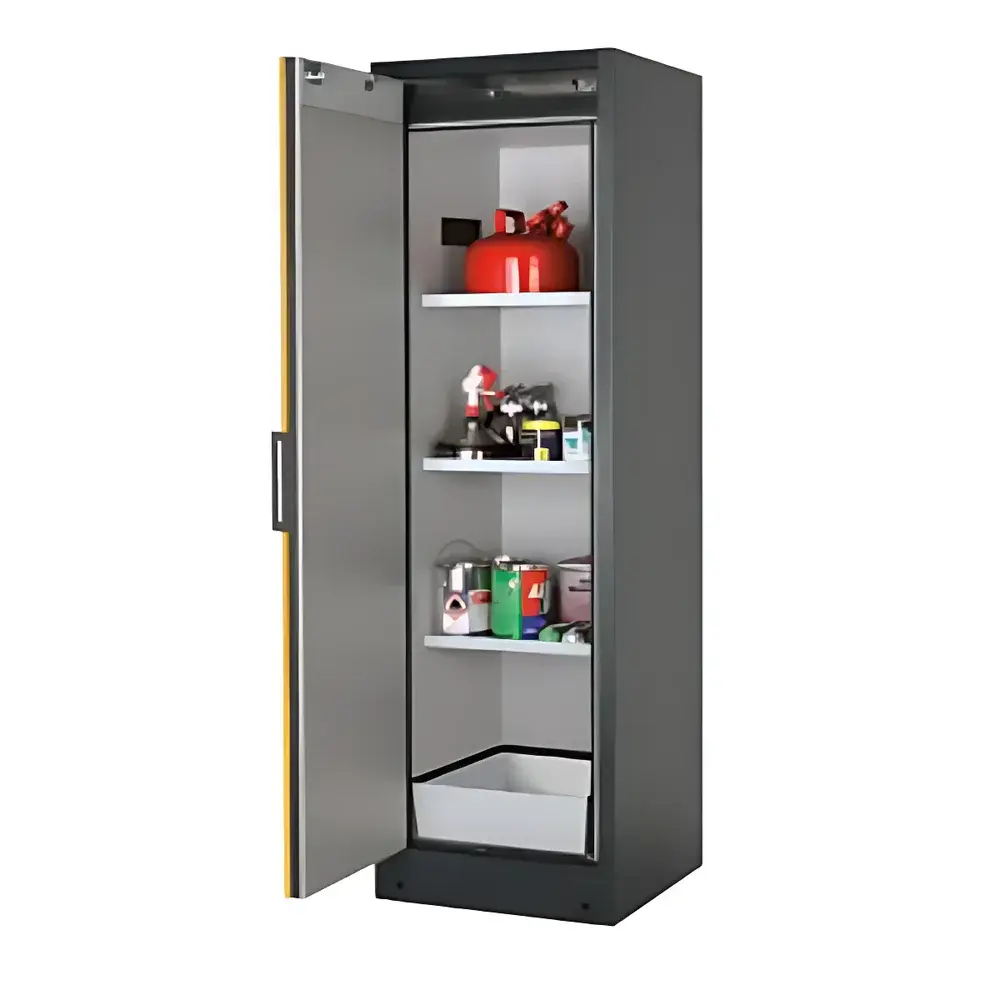

ASECOS Q90.195.120 & Q90.195.060 90-Minute Fire-Resistant Safety Cabinets (EN 14470-1 Compliant)

Overview

The ASECOS Q90.195.120 and Q90.195.060 are CE-marked, EN 14470-1 certified fire-resistant safety cabinets engineered for the secure, compliant storage of flammable liquids and hazardous substances in laboratory, industrial, and pharmaceutical environments. Designed and manufactured in Germany, these cabinets undergo full-scale furnace testing to verify structural integrity and thermal insulation performance under standardized fire exposure conditions — maintaining internal temperatures below 180 °C for a minimum of 90 minutes when subjected to the time–temperature curve specified in EN 14470-1. Their robust double-walled steel construction (with insulating mineral wool core), integrated self-closing mechanism activated by thermal release elements (typically triggered at ≈100 °C), and pressure-equalized ventilation system ensure passive protection during fire events while supporting routine operational safety. The cabinets comply with EN 16121 (for design and testing of safety cabinets) and EN 16122 (for labeling and user information), and are approved by CEGS (Central Authority for Dangerous Substances) for use in regulated facilities across the EU.

Key Features

• Fire resistance certified to EN 14470-1 for 90 minutes — verified via independent third-party type testing in accordance with harmonized European standards.
• Dual-layer steel cabinet body with non-combustible mineral wool insulation; outer skin RAL 7016 (charcoal grey), door options include RAL 1004 (warning yellow), RAL 7035 (light grey), or five additional RAL colors at no extra cost.
• Triple-point heavy-duty hinges enabling smooth, controlled door operation; doors remain stable at any open angle and close automatically during thermal activation.
• Integrated DN 75 air duct connection for direct coupling to central exhaust or local fume extraction systems; supports continuous air exchange at 10 air changes per hour (94 m³/h for Q90.195.120).
• Adjustable leveling feet accommodate uneven floor surfaces without compromising structural stability or fire barrier continuity.
• Standard equipment includes three powder-coated steel shelves (load capacity: 75 kg each, uniformly distributed) and a leak-tight sump tray (33 L or 22 L capacity) made from electrogalvanized, epoxy-powder-coated steel.
• Locking system compatible with centralized access control; features a cylinder lock with visual status indicator (red = locked, grey = unlocked) and optional integration into facility-wide security infrastructure.

Sample Compatibility & Compliance

These cabinets are intended for storage of Class I–III flammable liquids (flash point < 60 °C), including solvents such as acetone, ethanol, toluene, and xylene, as well as other hazardous chemicals requiring containment under fire-risk conditions. They meet the physical and functional requirements of Directive 2014/34/EU (ATEX) for use in non-hazardous zones adjacent to classified areas. All materials in contact with stored substances — including shelf coatings, sump linings, and gasketing — are chemically resistant and non-reactive toward common organic solvents. Documentation includes full test reports, Declaration of Conformity (DoC), and CEGS approval certificates. Installation complies with national occupational safety regulations (e.g., German TRGS 510, UK COSHH Regulations, and EU CLP Regulation (EC) No 1272/2008).

Software & Data Management

While the Q90 series is a mechanical, non-electronic safety cabinet, its design supports digital integration within modern laboratory infrastructure. Optional accessories — including RFID-enabled lock modules and IoT-ready environmental monitoring sensors (temperature, humidity, door-open duration) — can be retrofitted to enable audit-ready logging aligned with ISO/IEC 17025, GLP, and FDA 21 CFR Part 11 requirements. All standard documentation (user manuals, maintenance logs, fire test certificates) is provided in English and German, with version-controlled PDFs available via ASECOS’ secure customer portal. Traceability is ensured through unique serial numbering, batch-specific material certifications, and full supply-chain transparency down to raw steel mill origin.

Applications

• Research laboratories requiring long-term, code-compliant storage of flammable reagents in proximity to analytical instrumentation (e.g., GC, HPLC, NMR suites).
• Pharmaceutical QC/QA labs storing reference standards and solvent-based calibration solutions under GMP Annex 15 and ICH Q7 guidelines.
• Chemical manufacturing facilities managing intermediate stockpiles in production support zones.
• Hospital pharmacy departments handling alcohol-based disinfectants and anesthetic agents.
• Educational institutions implementing risk-based lab safety protocols per ANSI Z9.5 and NFPA 45 standards.

FAQ

Are these cabinets suitable for outdoor installation?

No. The Q90 series is designed exclusively for indoor use in climate-controlled environments (10–35 °C, ≤75% RH). Outdoor exposure compromises seal integrity, corrosion resistance, and thermal performance.
Can the sump tray be replaced or upgraded?

Yes. The standard sump is removable and replaceable with optional perforated inserts (H = 60 mm, RAL 7035) to accommodate irregular containers or improve vapor dispersion.
Is grounding included in the base configuration?

Yes. Each unit ships with a factory-installed grounding terminal (M6 screw) and copper bonding strap (2.5 mm²), compliant with IEC 61340-4-1 for electrostatic discharge (ESD) safety.
What transport options are available for moving the cabinet within a building?

The optional Q-Mover transport trolley (Order No. 30037) enables maneuvering through standard doorways (min. clear width 800 mm); it integrates with the built-in detachable transport base (entry height 90 mm, entry width 1120 mm / 526 mm).
Does ASECOS provide installation support or commissioning services?

ASECOS-certified partners offer on-site verification of fire barrier continuity, exhaust interface validation, and compliance documentation review — available upon request and subject to regional service coverage.
