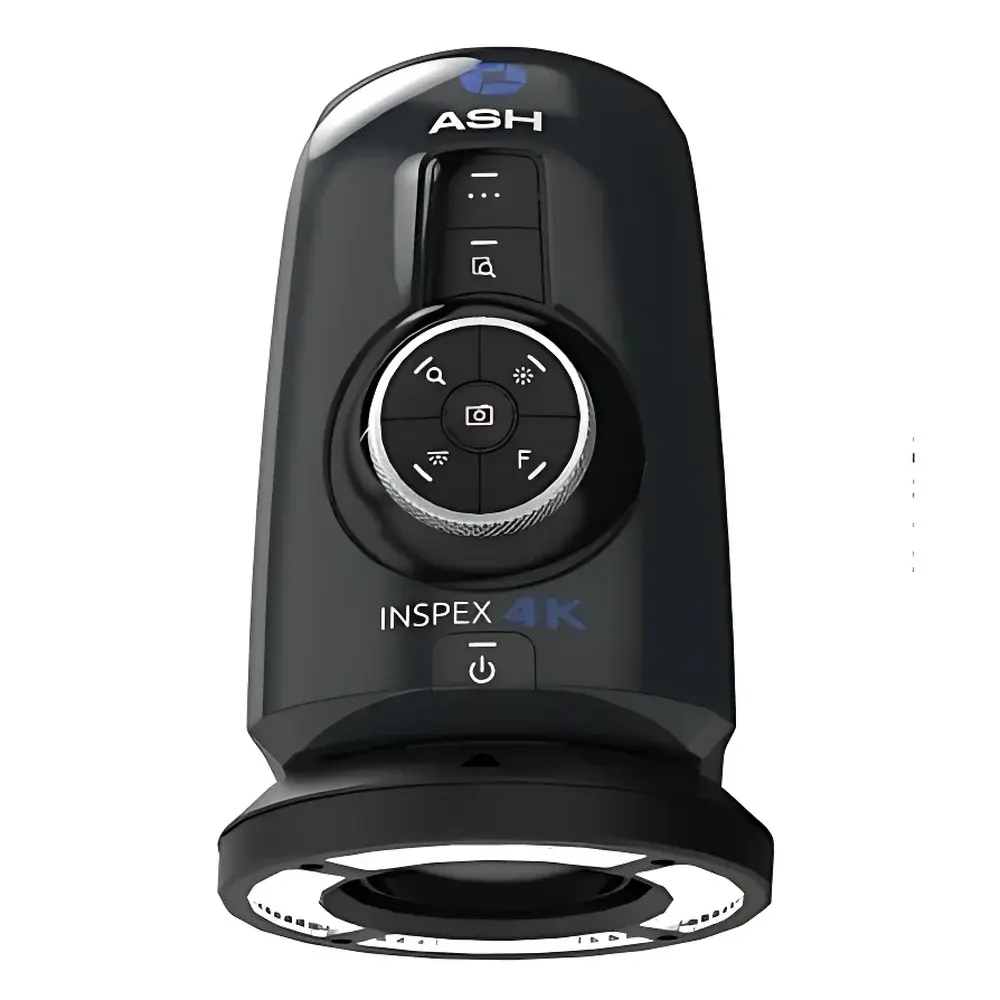

ASH TECHNOLOGIES 4K UHD Microscopic Image Analysis System

Overview

The ASH TECHNOLOGIES 4K UHD Microscopic Image Analysis System is an engineered solution for high-fidelity visual inspection and quantitative microstructural evaluation in precision manufacturing, quality assurance, and failure analysis laboratories. Built upon a dual-path optical architecture combining high-numerical-aperture optics with a native 4K UHD (3840 × 2160) CMOS imaging sensor, the system captures true-resolution microscopic detail without interpolation artifacts. Unlike legacy HD or Full HD systems—whose pixel density limits resolvability of sub-10 µm surface anomalies—the ASH-4K-MIAS delivers fourfold spatial sampling density, enabling reliable detection of micro-scratches, edge burrs, grain boundary discontinuities, and coating thickness variations down to the practical resolution limit governed by diffraction and optical magnification. The system operates on standard brightfield, darkfield, and oblique illumination modes, with optional polarized and differential interference contrast (DIC) compatibility via modular add-ons. Its core function is not merely image capture but metrologically traceable morphological assessment—supporting calibrated length, area, and profile measurements compliant with ISO 9276-2 and ASTM E112 for grain size analysis.

Key Features

• Native 4K UHD imaging sensor with 12-bit dynamic range and >60 dB signal-to-noise ratio at full frame rate (60 fps), ensuring fidelity across low-contrast and high-gradient specimens.
• 85× continuous optical zoom objective lens with parfocal design, maintaining focus across magnification ranges; combined with 170× digital zoom preserving geometric integrity via bilinear interpolation with edge-aware sharpening.
• Real-time low-latency image pipeline (<12 ms end-to-end latency from optical input to display output), minimizing motion blur during manual stage navigation or automated scanning sequences.
• Ergonomic workstation integration: height-adjustable articulating arm, tilt-swivel monitor mount, and tactile-optimized control panel designed per ISO 11228-1 guidelines for sustained visual task performance.
• Embedded color calibration engine compliant with CIE 1931 XYZ tristimulus standards, supporting consistent hue/saturation reproduction across multiple units and over time—critical for cross-lab comparability in regulated environments.

Sample Compatibility & Compliance

The ASH-4K-MIAS accommodates rigid and semi-rigid samples up to 200 mm × 150 mm × 75 mm (W × D × H) on its motorized XY stage (100 mm × 100 mm travel, ±0.5 µm repeatability). Transparent, reflective, and translucent specimens—including silicon wafers, PCB substrates, medical device polymers, and metallurgical cross-sections—are supported via configurable LED-based Köhler illumination with adjustable color temperature (4500–6500 K). System firmware and measurement algorithms are validated per ISO/IEC 17025:2017 requirements for testing laboratories. Data export formats (TIFF, PNG, CSV, XML) conform to ASTM E2912-22 for digital microscopy metadata tagging. Audit trail functionality meets FDA 21 CFR Part 11 criteria for electronic records and signatures when paired with ASH’s optional SecureLog™ software module.

Software & Data Management

ASH VisionSuite™ v4.2 is the embedded application platform, offering calibrated measurement tools (line, angle, radius, particle count/distribution), multi-layer annotation, and batch-report generation with customizable templates. All image metadata—including timestamp, magnification, illumination settings, operator ID, and calibration certificate reference—is embedded in EXIF and XMP headers. Raw image buffers are stored in lossless TIFF format; processed outputs support DICOM-SR export for integration into enterprise LIMS or QMS platforms. Version-controlled firmware updates are delivered via secure HTTPS channel with SHA-256 signature verification. Data retention policies, role-based access control (RBAC), and encrypted local storage align with ISO 27001 Annex A.8.2.3 for information classification and handling.

Applications

• Electronics: Solder joint void analysis, solder mask alignment verification, and fine-pitch BGA inspection per IPC-A-610 Class 3 acceptance criteria.
• Medical Devices: Surface roughness assessment of implant-grade titanium alloys (ASTM F2129), polymer particulate contamination screening (USP ), and catheter lumen integrity validation.
• Aerospace: Coating delamination mapping on turbine blade thermal barrier coatings (TBCs), fatigue crack tip morphology characterization per ASTM E647.
• Automotive: Gear tooth flank inspection for micropitting (ISO 6336-1), paint film thickness uniformity quantification, and adhesive bond line continuity analysis.
• Academic Research: In situ microstructural evolution monitoring during tensile testing (with optional environmental chamber interface), and phase identification in multiphase alloys via contrast-enhanced segmentation.

FAQ

Is the 4K resolution interpolated or native?
The ASH-4K-MIAS employs a native 4K UHD CMOS sensor with no hardware binning or software upscaling—pixel pitch and optical MTF are matched to preserve Nyquist-limited spatial resolution.
Does the system support automated focus stacking?
Yes—Z-axis motorized focus control with programmable step size (0.1–5.0 µm) enables depth-of-field extension via focus stacking; output stacks are exported as TIFF series or fused single-plane images.
Can measurement data be exported to statistical process control (SPC) software?
All quantitative results (e.g., defect area, edge deviation, particle count) are exportable in CSV/Excel format with column headers mapped to common SPC field definitions (e.g., “Measurement_ID”, “Operator”, “Timestamp”, “Value”, “USL”, “LSL”).
What calibration standards are included?
Each unit ships with NIST-traceable stage calibration slide (10 µm pitch grating) and intensity uniformity reference target, accompanied by calibration certificate valid for 12 months.
Is remote diagnostics supported?
ASH RemoteAssist™ provides encrypted VNC-based session initiation with opt-in consent logging, enabling Tier-2 technical support to diagnose firmware, driver, or configuration issues without accessing user data.
