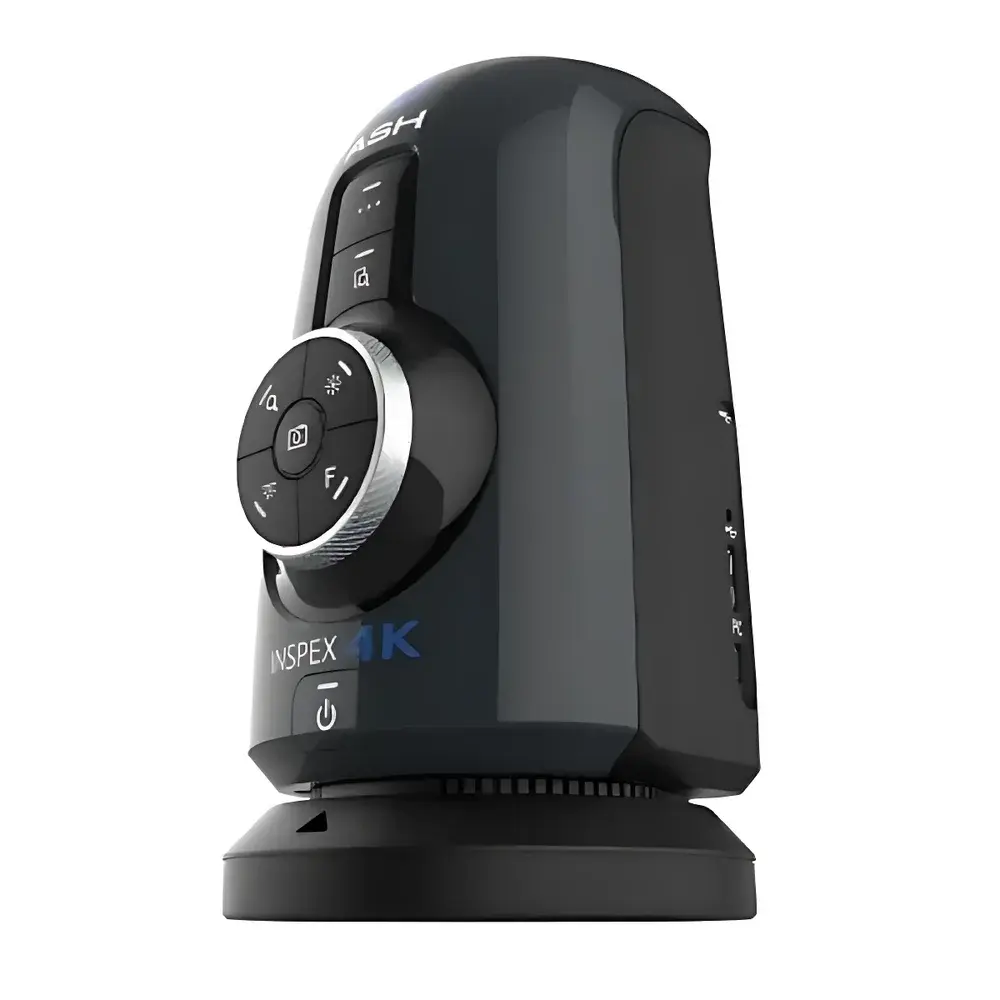

ASH Technologies Inspex 4K Ultra-High-Definition Digital Microscopic Inspection System
| Brand | ASH TECHNOLOGIES |
|---|---|
| Origin | Ireland |
| Model | Inspex 4K |
| Resolution | 3840 × 2160 (4K UHD) |
| Optical Zoom | 85× |
| Digital Zoom | 170× |
| Color Depth | 10-bit |
| Video Latency | <30 ms |
| Ergonomic Stand Configuration | Adjustable articulating arm with dual-axis tilt and height lock |
Overview
The ASH Technologies Inspex 4K Ultra-High-Definition Digital Microscopic Inspection System is an industrial-grade digital microscopy platform engineered for precision surface inspection, defect characterization, and quality assurance in electronics manufacturing, precision machining, PCB assembly, and medical device production. Unlike conventional optical microscopes reliant on eyepiece observation, the Inspex 4K employs a high-sensitivity CMOS image sensor coupled with a telecentric optical path to deliver distortion-free, quantitative 4K UHD (3840 × 2160) real-time video imaging at up to 60 fps. Its measurement architecture is based on calibrated pixel-to-micron mapping, enabling traceable dimensional analysis without physical stage encoders—ideal for rapid visual verification where metrological rigor complements visual fidelity. Designed for integration into ISO 9001-certified production lines and GLP-compliant laboratory workflows, the system operates as a standalone inspection node or as a component within automated AOI (Automated Optical Inspection) frameworks.
Key Features
- True 4K UHD imaging capability with native 3840 × 2160 resolution and 10-bit color depth, delivering enhanced contrast differentiation for subtle surface anomalies including micro-scratches, solder voids, coating inconsistencies, and particle contamination.
- Optical zoom range of 85× with continuous manual or motorized control, preserving signal-to-noise ratio across magnification; extended 170× digital zoom with real-time interpolation and edge-preserving sharpening algorithms.
- Sub-30 ms end-to-end video latency—optimized firmware stack and USB 3.2 Gen 1 interface ensure synchronization between operator input and display output, critical for dynamic focus tracking during manual inspection.
- Ergonomically engineered modular stand featuring dual-axis tilt (±30°), vertical height adjustment (250 mm travel), and vibration-damped base—reducing musculoskeletal strain during extended shift-based operation per ISO 11228-1 guidelines.
- Integrated LED illumination system with adjustable ring-light intensity, coaxial bright-field, and optional polarized/dark-field modules—supporting multi-modal contrast enhancement without hardware reconfiguration.
Sample Compatibility & Compliance
The Inspex 4K accommodates flat, curved, and irregularly shaped specimens up to 300 mm × 300 mm footprint and 150 mm maximum height, with working distance ranging from 45 mm to 120 mm depending on objective configuration. It supports non-contact inspection of fragile substrates (e.g., silicon wafers, OLED panels, thin-film sensors) and thermally sensitive components. The system complies with IEC 61000-6-3 (EMC emission limits), IEC 61000-6-2 (immunity), and meets CE marking requirements under the EU Machinery Directive 2006/42/EC. All firmware and calibration routines are version-controlled and support audit trails required under FDA 21 CFR Part 11 for electronic records in regulated environments.
Software & Data Management
ASH’s proprietary MicroVision Studio v4.2 software provides intuitive point-and-click interface for annotation, measurement (distance, area, angle, radius), image stitching, and report generation in PDF/XLSX formats. Calibration files are digitally signed and stored with SHA-256 hash verification. Software supports DICOM export for cross-platform archival and integrates with enterprise MES via RESTful API for inspection result logging. Audit trail functionality logs user ID, timestamp, parameter changes, and image export events—enabling full traceability aligned with ISO/IEC 17025 clause 7.10 and GLP Principle 5.
Applications
- Visual inspection of solder joints (IPC-A-610 Class 2/3), BGA interconnects, and wire bond integrity in semiconductor packaging.
- Surface finish evaluation of machined aerospace components per ASTM E2099 and ISO 4287.
- Contamination analysis on cleanroom-assembled medical devices, including fiber identification and particulate sizing per USP .
- Failure analysis of lithium-ion battery electrode coatings, separator defects, and tab weld morphology.
- Educational use in materials science labs for comparative microstructural analysis of polymers, composites, and metallurgical cross-sections.
FAQ
Does the Inspex 4K support calibration traceability to national standards?
Yes—ASH provides NIST-traceable calibration certificates for magnification accuracy and spatial resolution, issued by an ILAC-MRA accredited laboratory.
Can the system be integrated into a factory-wide data collection network?
Yes—MicroVision Studio supports OPC UA and MQTT protocols for seamless interoperability with SCADA, PLC, and cloud-based analytics platforms.
Is remote software update and diagnostics available?
Yes—firmware updates and diagnostic logs can be performed over secure TLS 1.2 connection with role-based access control.
What is the recommended maintenance interval for optical alignment verification?
ASH recommends quarterly verification using the included calibration target set; annual recalibration is advised for applications requiring ISO/IEC 17025 compliance.
Are custom illumination configurations available for specialized sample types?
Yes—ASH offers application-specific illumination kits including UV-enhanced, multi-angle oblique, and structured light projection modules upon request.
