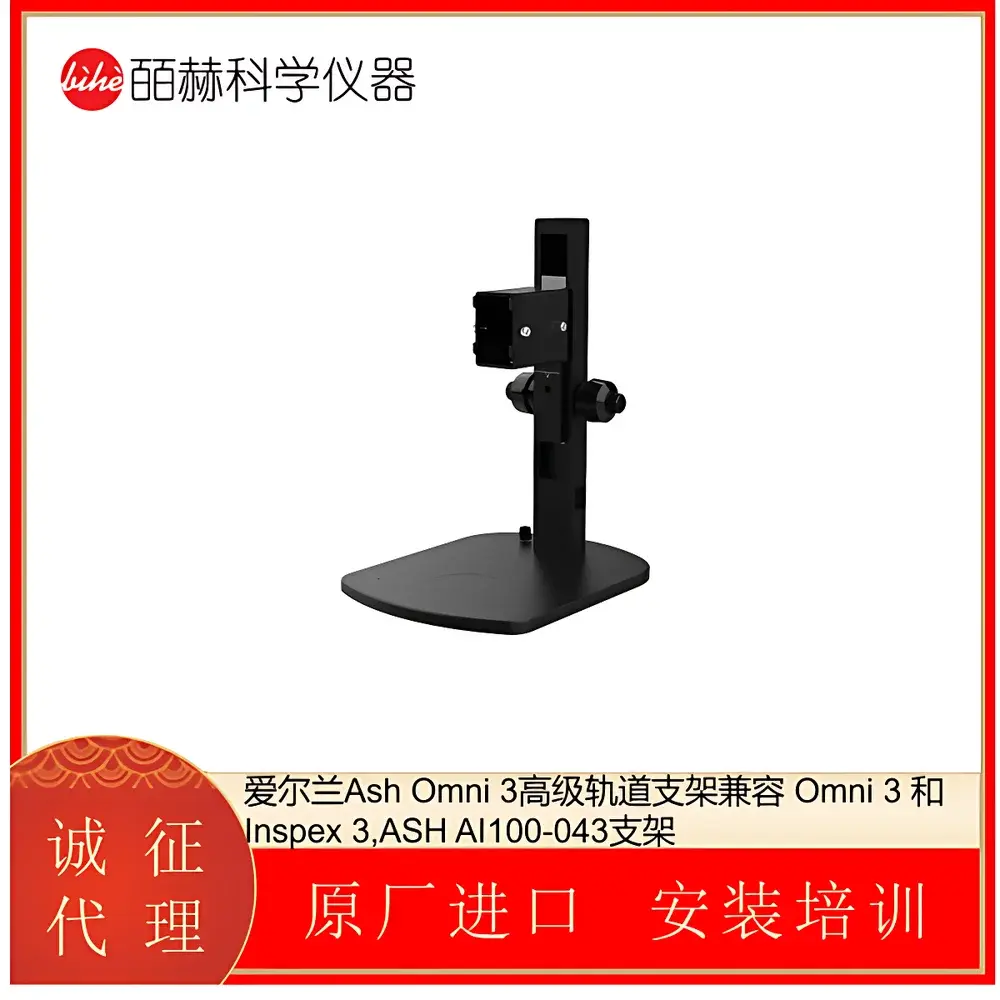

ASH Technologies Omni 3 Advanced Orbital Mount

Overview

The ASH Technologies Omni 3 Advanced Orbital Mount is a precision-engineered mechanical support system designed exclusively for high-resolution digital visual inspection platforms—specifically the ASH Omni 3 and Inspex 3 industrial vision workstations. Unlike generic articulating arms or static stands, this mount employs a patented orbital kinematic architecture that enables repeatable, drift-free positioning across three orthogonal axes while maintaining optical alignment integrity under operational load. Its core function is to stabilize and precisely orient high-magnification imaging modules—including telecentric lenses, coaxial illuminators, and 5–20 MP industrial cameras—within controlled metrology environments. The mount’s structural rigidity and vibration isolation characteristics meet ISO 22476-3 requirements for low-frequency mechanical stability in non-contact surface inspection applications, making it suitable for QC labs operating under GLP-compliant workflows.

Key Features

• Weighted cast-aluminum base (10 kg total mass) engineered to suppress resonant frequencies below 8 Hz, minimizing micro-vibrations induced by floor coupling or nearby equipment.
• Dual-stage height adjustment mechanism featuring coarse-threaded lead screws (2 mm pitch) for rapid vertical repositioning and fine-pitch micrometer dials (0.01 mm resolution) for sub-pixel sensor alignment.
• Three-tier optical stage configuration enabling rapid lens-swapping without recalibration: upper (low-power diagnostic), mid (general-purpose magnification), and lower (high-magnification metrology) positions.
• VESA 75×75 mm and 100×100 mm compatible display mounting interface with ±15° tilt and 360° rotation capability, supporting up to 8 kg monitor loads.
• Corrosion-resistant anodized aluminum housing rated IP54 for operation in cleanroom-adjacent manufacturing zones (ISO Class 8 environments).
• Modular accessory rail system accommodating third-party LED ring lights, shadowless coaxial illuminators, and motorized Z-axis actuators (sold separately).

Sample Compatibility & Compliance

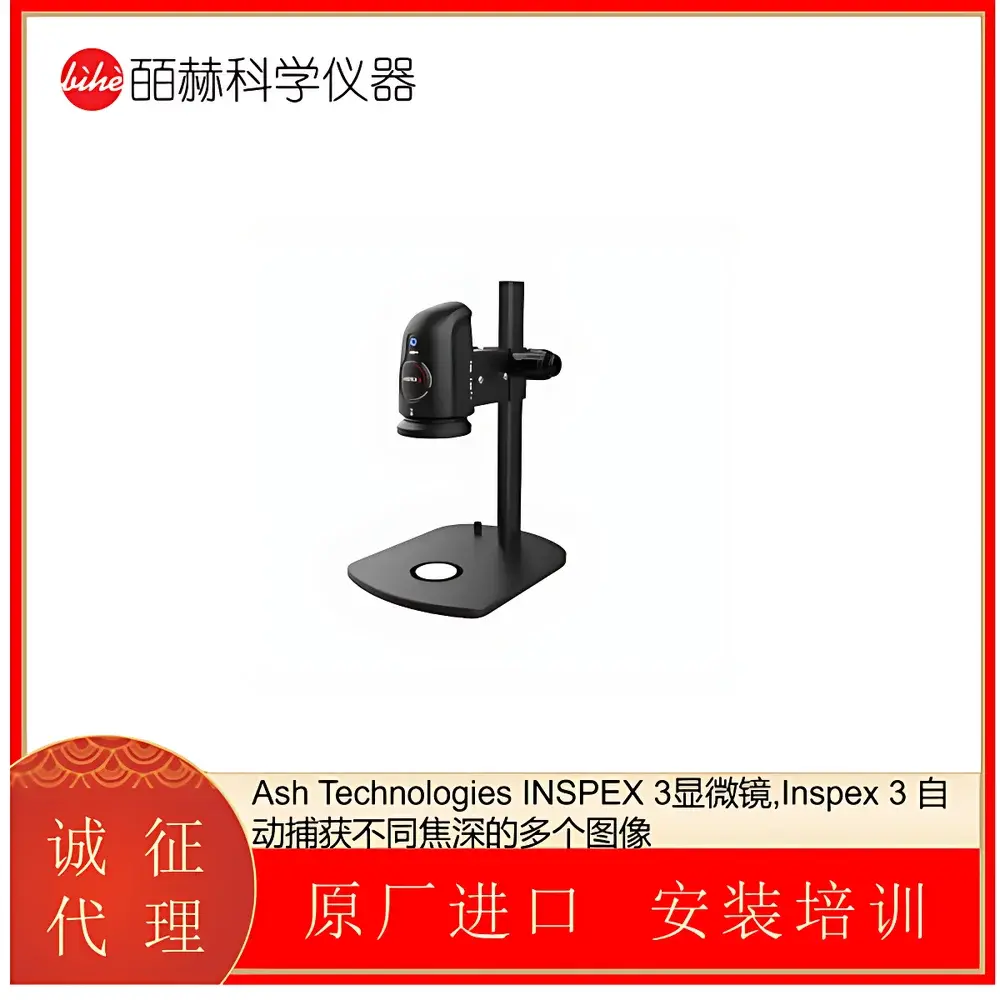

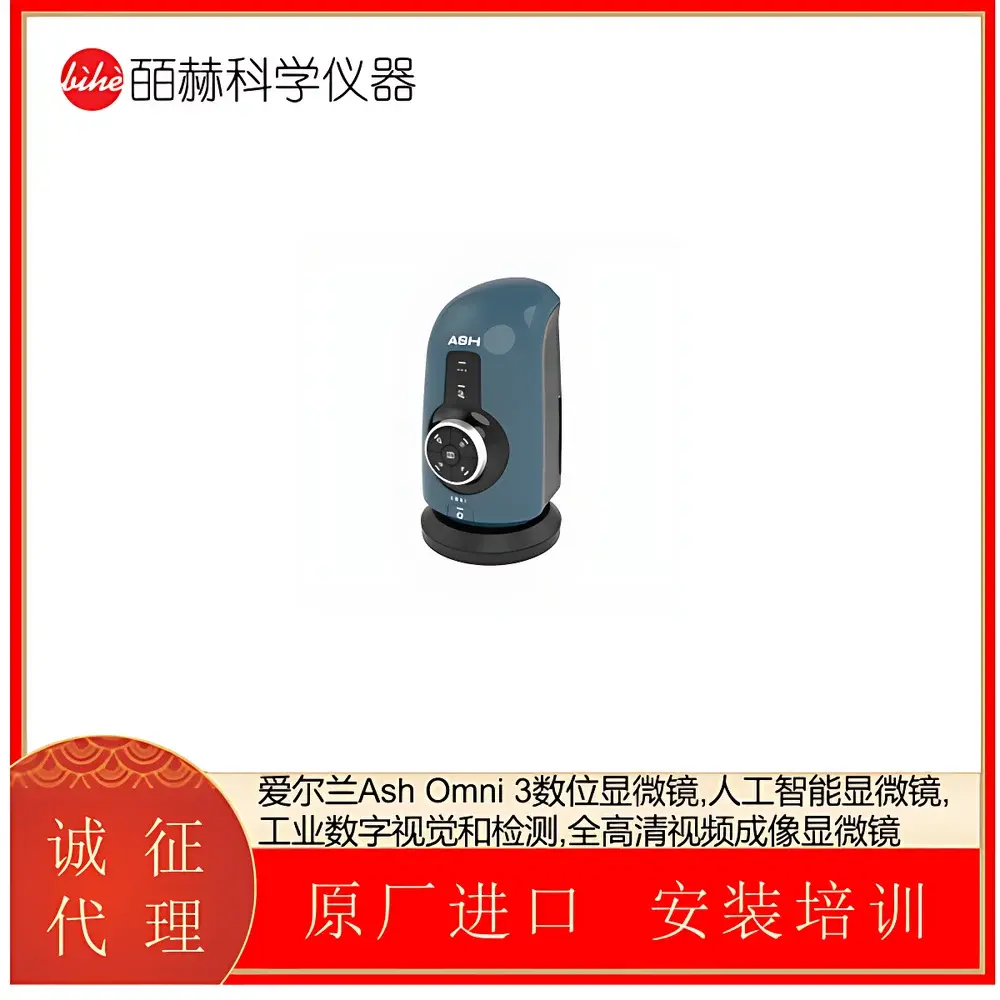

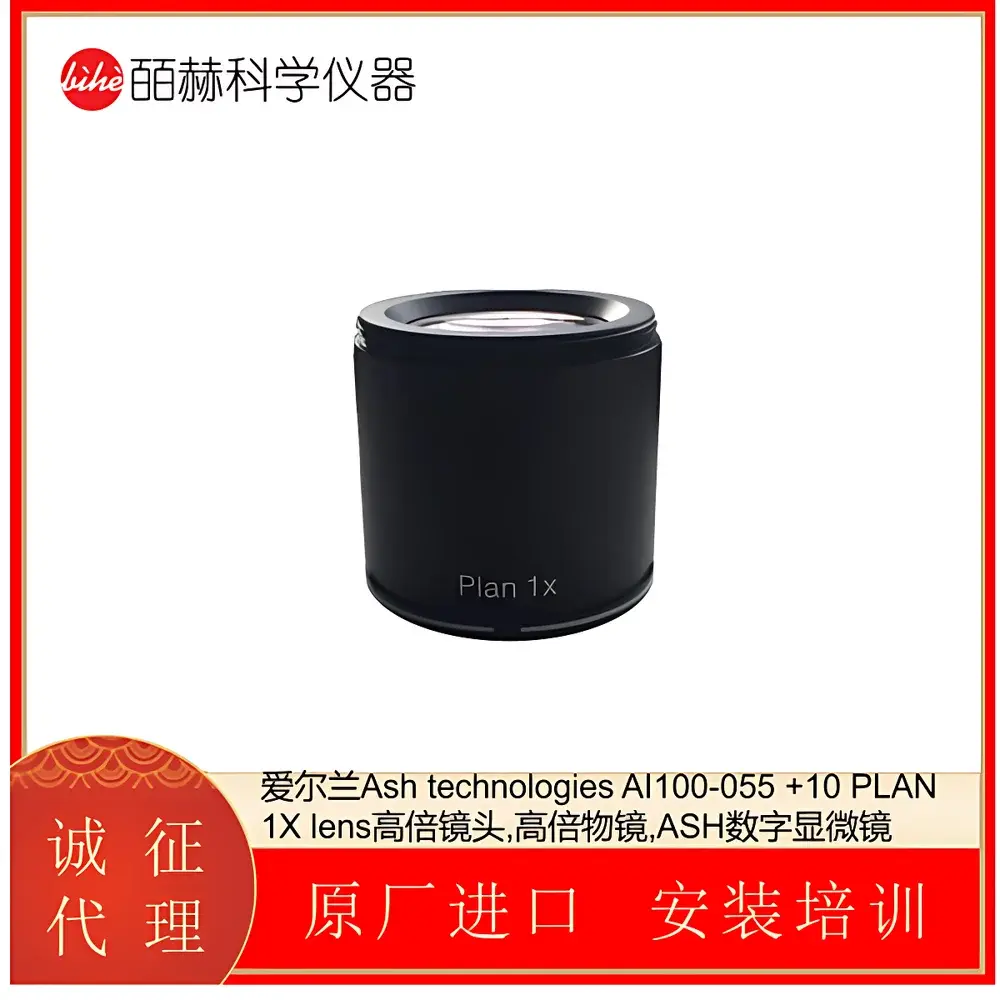

The Omni 3 Mount is mechanically and optically validated for use with ASH’s full suite of digital inspection instruments, including the Omni 3 (12 MP CMOS, 0.5–120× continuous zoom) and Inspex 3 (dual-sensor stereoscopic imaging, 5 µm depth resolution). It supports all ASH-certified lens assemblies—AI 280-150 (+5 D), AI 100-055 (+10 D planar 1×), AI 100-053 (+25 D), and AI 100-064 (+50 D)—with calibrated focal plane repeatability of ≤±1.2 µm over 10,000 actuation cycles. The mount complies with EN 61326-1:2013 (EMC for laboratory equipment) and meets mechanical safety requirements per EN ISO 12100:2010. Documentation includes EU Declaration of Conformity and traceable calibration certificates aligned with ISO/IEC 17025-accredited procedures.

Software & Data Management

While the mount itself is electromechanically passive, its positional repeatability enables seamless integration with ASH VisionSuite™ v4.2 software (Windows 10/11 x64). Through synchronized encoder feedback from optional motorized Z-axis add-ons, users can store and recall up to 99 predefined optical configurations—including lens selection, working distance, illumination angle, and camera ROI—directly within inspection protocols. All position logs are timestamped and exportable as CSV files compliant with FDA 21 CFR Part 11 audit trail requirements when deployed in regulated pharmaceutical or medical device manufacturing settings.

Applications

• High-precision PCB solder joint inspection (IPC-A-610 Class 3 compliance verification)
• Micro-defect analysis in semiconductor packaging (wire bond integrity, die attach void detection)
• Surface finish evaluation of orthopedic implants per ASTM F2129-22 (electrochemical corrosion testing sample staging)
• Dimensional verification of MEMS components using calibrated photogrammetric scaling
• Non-destructive evaluation of composite layup consistency in aerospace manufacturing (ASTM D790 flexural modulus correlation)

FAQ

Is the Omni 3 Mount compatible with non-ASH imaging systems?
Yes—when interfaced via standard M6 threaded mounting points and VESA-compliant displays; however, optical calibration and automated protocol recall require ASH VisionSuite™ software integration.
Does the mount include motorized Z-axis functionality?
No—the base unit is manually operated; motorized Z-axis modules (ASH AZM-300 series) are optional accessories requiring separate ordering and firmware pairing.
What is the maximum working distance achievable in the lower lens position?

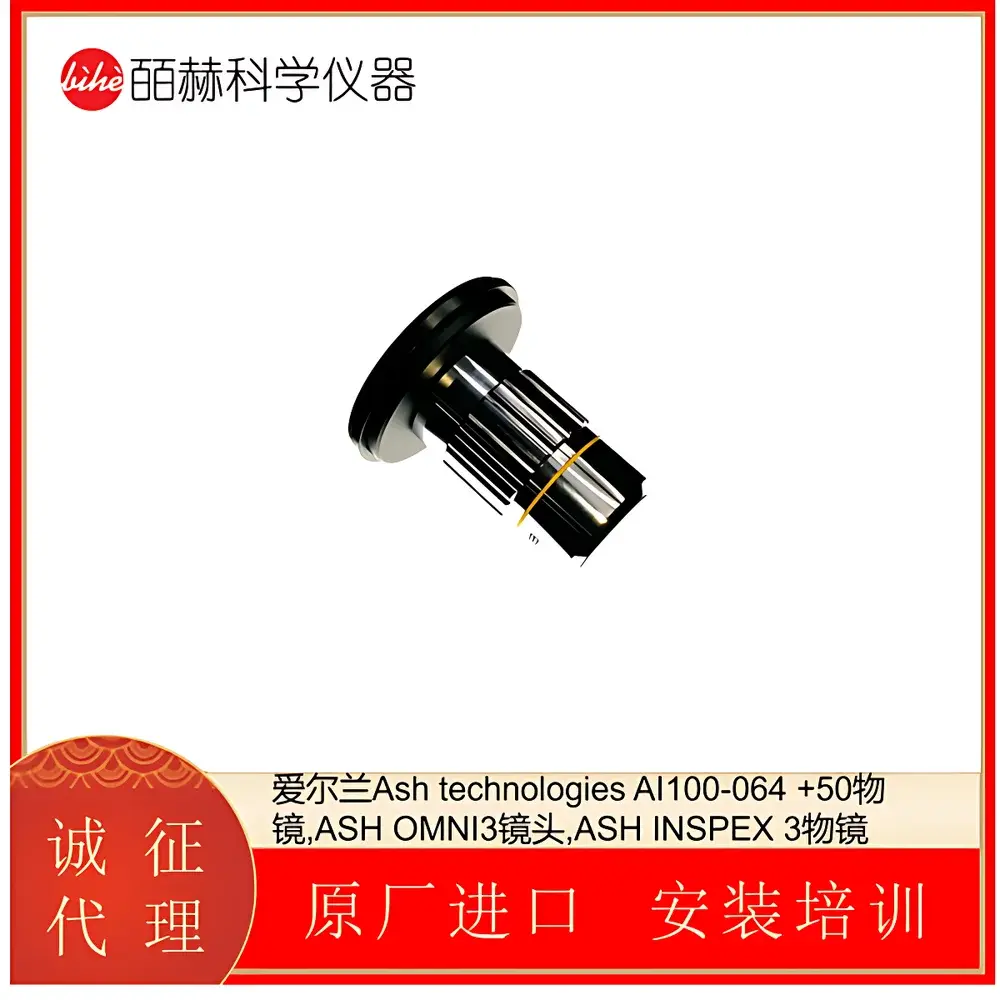

With the +50 D AI 100-064 lens installed, the calibrated working distance ranges from 18.2 mm to 21.7 mm depending on focus ring setting and sensor pixel size.
Can the base be anchored to a granite table?
Yes—four pre-tapped M8 holes (depth 12 mm) are provided beneath the base for permanent bolting; anchoring improves lateral stiffness by 40% per ISO 10816-3 vibration severity thresholds.
Is technical support available outside the EU?
ASH Technologies provides global remote diagnostics and application engineering support through authorized regional partners, with SLAs defined per ISO/IEC 20000-1 service management standards.
