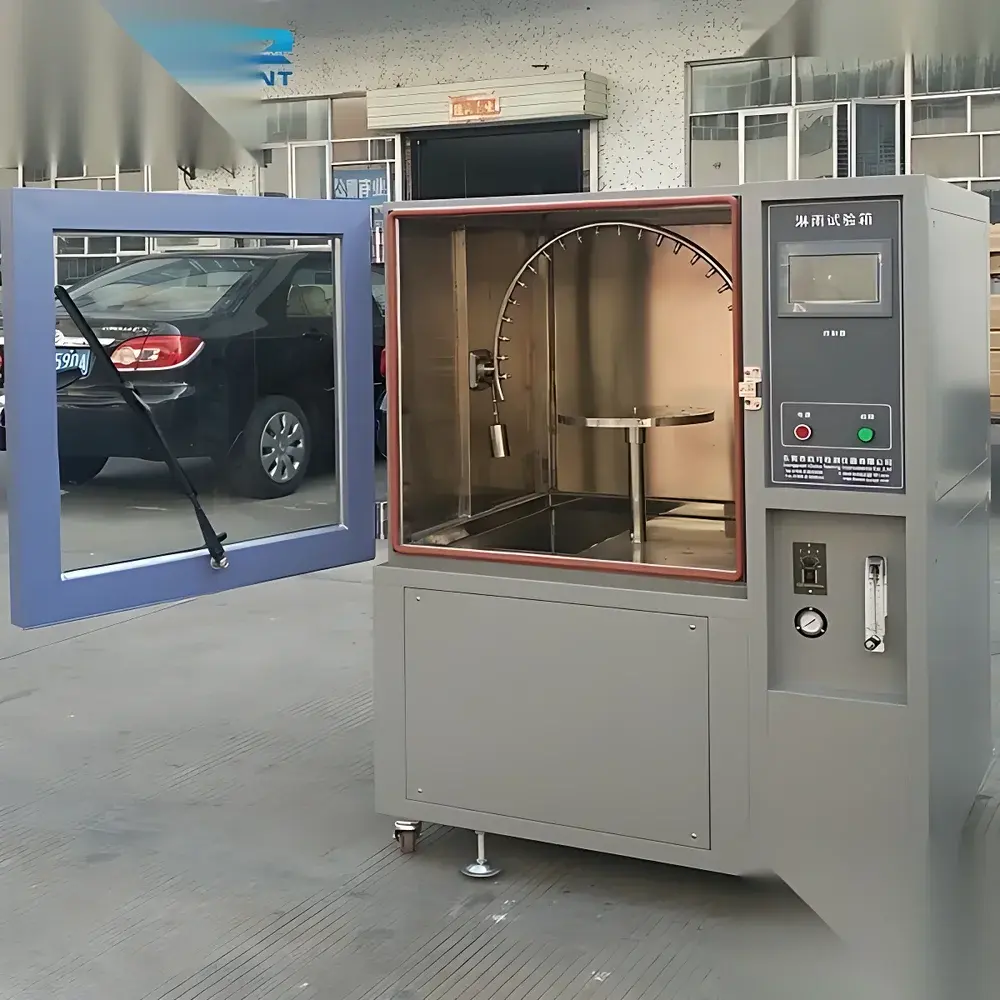

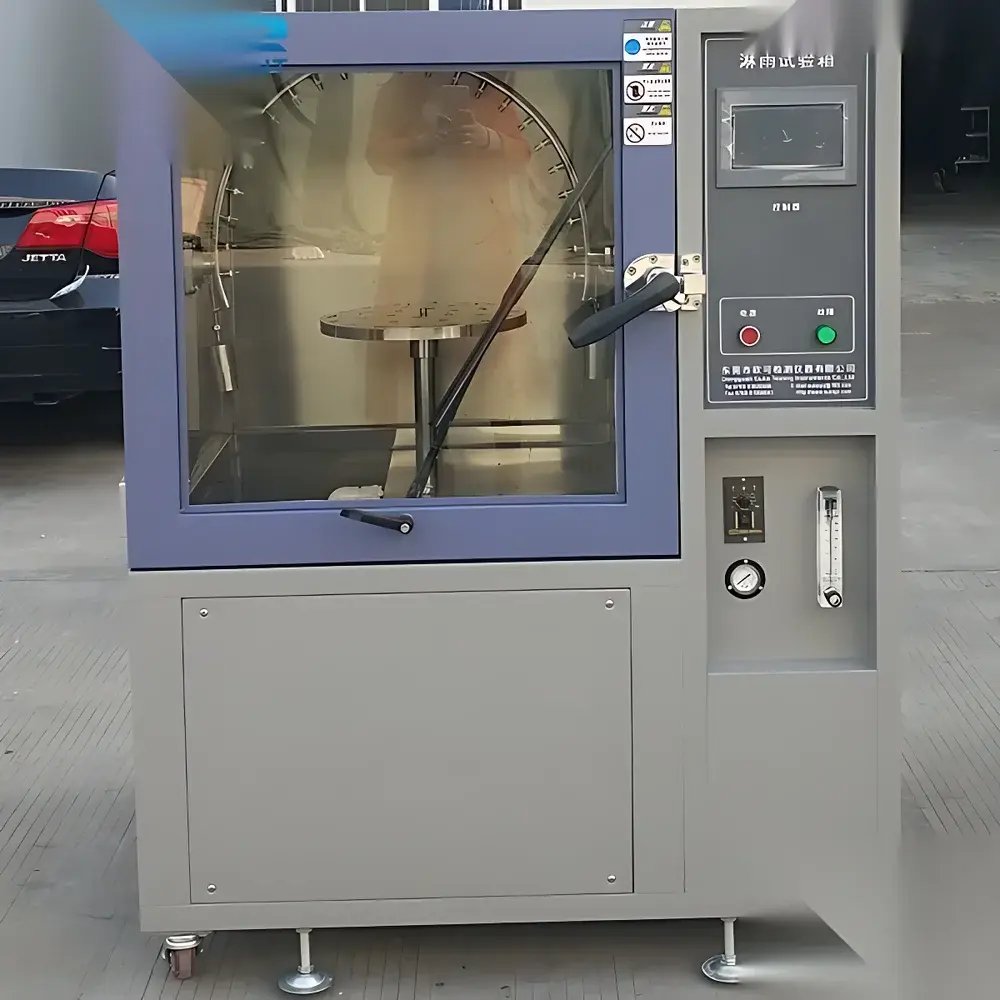

ASL Rain Test Chamber for Automotive Components

Overview

The ASL Rain Test Chamber for Automotive Components is an engineered environmental test system designed to evaluate the water ingress resistance of automotive parts—including lighting assemblies, sensors, ECUs, connectors, infotainment housings, and exterior trim—under controlled simulated rainfall conditions. Based on the hydrodynamic principles of calibrated spray nozzles, directional water jets, and programmable exposure durations, the chamber replicates real-world rain exposure scenarios defined in international standards such as ISO 20653:2013 (Road vehicles — Degrees of protection provided by enclosures against intrusion of water — IP code) and SAE J2799. It supports standardized IPX3 (oscillating tube) and IPX4 (splashing water from any direction) testing protocols, enabling objective pass/fail assessment of enclosure integrity under dynamic wetting conditions. The chamber operates within a defined ambient envelope (2–55 °C, ≤85 % RH) and requires stable 3-phase industrial power supply (AC 380 V ±10%, 50 Hz), making it suitable for integration into Tier 1 supplier QC labs, OEM validation centers, and independent component certification facilities.

Key Features

• IPX3/IPX4-compliant spray system with adjustable oscillation angle (±60°) and regulated flow rate (10 ±5 % L/min per nozzle)
• Stainless steel interior chamber with sloped floor and integrated drainage channel for complete wastewater evacuation
• Programmable test duration (1–999 minutes) and automatic cycle termination with audible/visual alert
• Integrated water level sensor and dry-run protection for submersible pump to prevent motor damage
• Removable, cleanable stainless steel spray manifold with quick-connect fittings for routine maintenance
• Ground-fault circuit interrupter (GFCI) protected power distribution and dedicated grounding terminal compliant with IEC 61000-6-3
• Front-access service panel for pump, filter, and solenoid valve inspection without disassembly

Sample Compatibility & Compliance

The chamber accommodates samples up to 1200 mm (W) × 1000 mm (D) × 1200 mm (H), with optional turntable support for rotational testing of asymmetric components. All wetted surfaces contact only deionized or filtered tap water; no chemical additives are permitted. The system is validated for conformance to ISO 20653:2013 Annex B (IPX3/IPX4 test methods), aligning with automotive OEM-specific requirements (e.g., VW 80101, GMW 3172, Ford CETP 00.00-L-467). It does not perform IPX5–IPX6 (high-pressure jet) or IPX7/IPX8 (immersion) tests. Calibration documentation includes traceable flow verification using certified rotameters and angular positioning verification via digital protractor. Routine operational qualification (OQ) follows GLP-aligned checklists covering nozzle alignment, pressure stability, and drain time verification.

Software & Data Management

This model operates via front-panel push-button interface with LED status indicators—no embedded software or PC connectivity. All test parameters (duration, start/stop time, operator ID) are manually logged in a paper-based test record per ISO/IEC 17025 clause 7.7. For laboratories requiring electronic records, integration with external SCADA or LIMS platforms is achievable via dry-contact relay outputs (start, stop, fault) and analog 4–20 mA water flow monitoring signal. Audit trails are maintained through dated, signed hardcopy logs stored for minimum 5 years in accordance with automotive APQP document retention guidelines. No data encryption, user role management, or 21 CFR Part 11 compliance is implemented natively.

Applications

• Validation of headlamp and taillamp housing seals against condensation-induced short circuits
• Functional testing of radar and camera lens covers under sustained low-angle rainfall simulation
• Verification of waterproofing integrity for battery management system (BMS) enclosures in EV platforms
• Pre-certification screening of HVAC control modules prior to third-party IP rating lab submission
• Root cause analysis of field returns attributed to water intrusion at connector grommets or cable entry points
• Supplier audit readiness testing aligned with IATF 16949 clause 8.5.1.1 (Control of production and service provision)

FAQ

What water quality is required for operation?
Only clean, filtered tap water or deionized water (conductivity < 10 µS/cm) must be used. Hard water or chlorinated municipal supplies require pre-filtration to prevent nozzle clogging and scaling.
How often should the spray nozzles be cleaned?
Nozzles must be inspected and ultrasonically cleaned every 50 operating hours or before each qualification test series, per maintenance log requirement.
Can this chamber be used for non-automotive applications?
While mechanically capable of testing other enclosures, its calibration and validation are specific to ISO 20653-defined automotive test profiles; non-automotive use requires full requalification per applicable standard (e.g., IEC 60529).
Is the chamber compatible with continuous unmanned operation?
No. Per safety protocol, the unit requires operator presence during test execution due to absence of remote monitoring, automated fault recovery, or emergency shutoff interlocks.
What documentation is supplied with shipment?
Factory calibration certificate (flow rate and oscillation angle), electrical safety test report (IEC 61010-1), installation & commissioning checklist, and preventive maintenance logbook.
