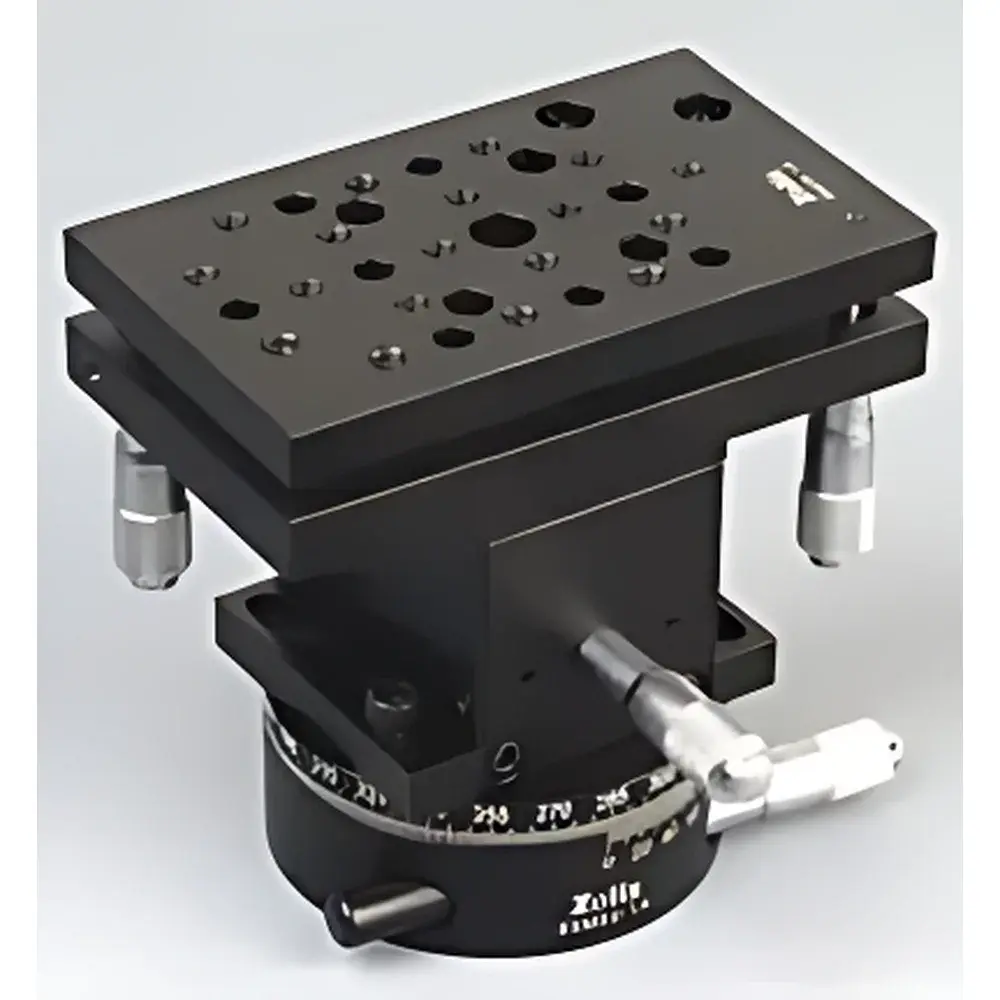

ASMV5-TR Four-Axis Precision Translation and Tip-Tilt Stage by ZOLIX

Overview

The ASMV5-TR Four-Axis Precision Translation and Tip-Tilt Stage is an engineered optical positioning solution designed for high-stability alignment tasks in laser beam steering, interferometry, fiber coupling, and multi-axis optomechanical prototyping. Unlike conventional single- or dual-axis translation stages, the ASMV5-TR integrates independent control over vertical displacement (Z-axis) and three rotational degrees of freedom (θx, θy, θz), enabling full spatial orientation correction of optical components without requiring stacked or cascaded stage configurations. Its kinematic architecture is based on a monolithic base platform with precision-ground dovetail guides and differential micrometer drives, minimizing parasitic motion and hysteresis. The stage operates via manual actuation using calibrated knurled knobs with 10 µm per division resolution on the Z-axis and 0.01° graduations for angular adjustments—consistent with ISO 10110–7 surface alignment tolerancing requirements for optical component mounting.

Key Features

• Four-degree-of-freedom adjustment: Independent Z-axis linear translation (5 mm range) plus tip (θx), tilt (θy), and yaw (θz) rotations—enabling complete collimation and pointing vector correction.
• Modular integration design: Engineered to accept standardized accessories including the TSMT5-1A dual-axis tip-tilt stage (for fine θx/θy tuning), RSM82-1A 360° continuous rotary stage (for azimuthal alignment), and TSMV5-1A vertical lift stage (for coarse Z pre-positioning).
• Mechanical stability: Base plate constructed from stress-relieved 6061-T6 aluminum alloy with black anodized finish; all adjustment screws utilize phosphor bronze bushings and stainless steel leadscrews to ensure long-term repeatability under thermal cycling (operating range: 15–30 °C).
• Mounting compatibility: Features standard M4 and M6 tapped holes on all functional surfaces, conforming to Thorlabs, Newport, and Standa mounting hole patterns for seamless integration into existing optical tables and breadboards.
• No backlash design: Differential drive mechanism on θx and θy axes eliminates mechanical play, supporting sub-arcminute angular reproducibility after repeated repositioning cycles.

Sample Compatibility & Compliance

The ASMV5-TR accommodates optical elements up to Ø50 mm diameter and 200 g mass when centered on the stage’s effective rotation center. It supports standard lens mounts (e.g., SM1, RMS), mirror cells, fiber collimators, and photodetector housings. While not certified to specific international standards as a standalone device, its mechanical construction adheres to dimensional tolerances specified in ISO 9001:2015 manufacturing protocols. When integrated into larger systems undergoing GLP or GMP validation (e.g., optical metrology workstations), the stage’s traceable adjustment scales and non-magnetic material composition facilitate documentation of positional uncertainty budgets per ISO/IEC 17025 Annex A.3.

Software & Data Management

The ASMV5-TR is a manually operated mechanical stage with no embedded electronics, motorization, or digital interface. As such, it does not require firmware, drivers, or proprietary software. All position settings are recorded physically via engraved scale rings and vernier indicators—ensuring full auditability in regulated environments where electronic logging may introduce validation overhead. Users integrating the stage into automated systems may pair it with third-party motorized actuators (e.g., stepper-driven micrometers) and control via LabVIEW, Python (PyVISA), or MATLAB using standard RS-232 or USB-to-serial protocols—but such configurations fall outside the scope of ZOLIX’s factory calibration and warranty coverage.

Applications

• Laser cavity alignment: Precise iterative optimization of resonator mirror angles (θx, θy) and output coupler height (Z) to maximize TEM₀₀ mode stability.
• Fiber-to-waveguide coupling: Simultaneous adjustment of lateral offset, angular divergence, and axial gap distance to achieve insertion loss < 0.5 dB in silicon photonics packaging.
• Interferometric reference arm setup: Co-alignment of retroreflectors across pitch/yaw while maintaining fixed path length via Z-compensation—critical for white-light or phase-shifting interferometers.
• Multi-spectral imaging system calibration: Repeatability testing of filter wheel angular registration and detector plane orthogonality using calibrated autocollimators.
• Education and research labs: Teaching tool for spatial degrees-of-freedom decomposition, coordinate frame transformations, and error budget analysis in undergraduate optics laboratories.

FAQ

Is the ASMV5-TR compatible with vacuum environments?
No—the stage uses lubricated brass-on-steel leadscrews and elastomeric dust caps unsuitable for UHV or HV applications. For vacuum-compatible alternatives, consult ZOLIX’s UVM-series ultra-high-vacuum translation stages.
Can θz (yaw) rotation be locked independently while adjusting θx and θy?
Yes—the yaw adjustment ring features a dedicated locking screw that decouples rotational stiffness without affecting tip/tilt axis preload.
What is the maximum load capacity at full ±5° tilt?
At ±5° angular deflection, the recommended maximum payload remains 150 g to maintain ≤2 arcsec angular drift over 24 hours under ambient lab conditions.
Does ZOLIX provide calibration certificates for individual units?
Calibration certificates are available upon request at additional cost and include measurement uncertainty budgets per ISO/IEC 17025 for Z-travel linearity and angular scale fidelity.
Are replacement micrometer dials or adjustment knobs available as spare parts?
Yes—all mechanical subcomponents—including graduated dials, knob inserts, and lead screw assemblies—are listed in ZOLIX’s official spare parts catalog (SPC-ASMV5-TR Rev. 2.1).
