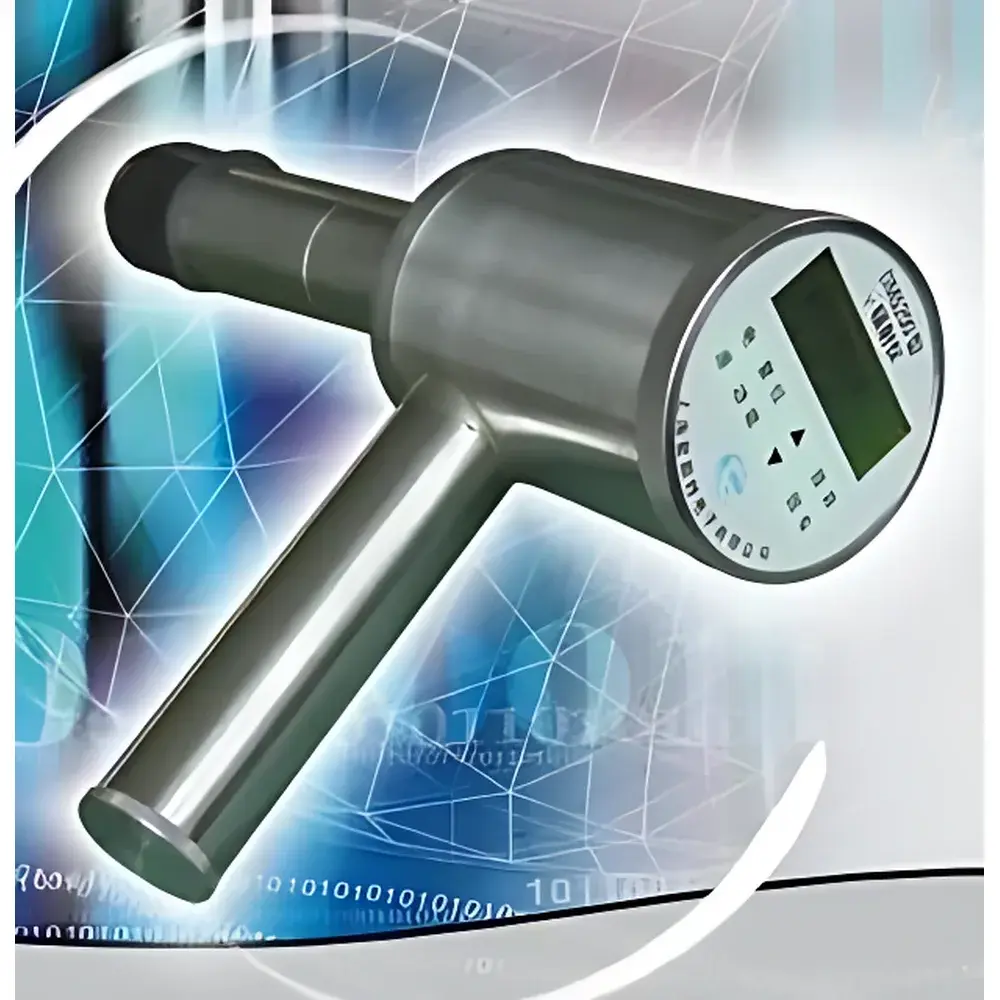

AST DM5200 Intelligent χ-γ Radiation Dose Rate Meter

Overview

The AST DM5200 Intelligent χ-γ Radiation Dose Rate Meter is a portable, field-deployable instrument engineered for precise and reliable measurement of ambient photon radiation dose rates in the energy range of 0.048 MeV to 3.00 MeV. Based on scintillation detection using a thallium-doped sodium iodide [NaI(Tl)] crystal coupled to a low-noise photomultiplier tube and digital pulse processing electronics, the DM5200 operates on the principle of energy-integrated photon fluence-to-dose conversion, calibrated against traceable ¹³⁷Cs reference sources. Its design prioritizes metrological integrity in real-world environmental and occupational settings—where consistent response across heterogeneous photon spectra is critical for regulatory compliance and risk-informed decision-making. The instrument meets fundamental performance criteria aligned with IEC 60846-1:2014 (Radiation protection instrumentation – Ambient and/or directional dose equivalent (rate) meters and/or monitors for beta, X and gamma radiation), and supports routine verification under national calibration protocols applicable to radiation protection survey instruments.

Key Features

• High-sensitivity NaI(Tl) scintillation detector optimized for low-dose-rate environments (down to 0.01 µSv/h), delivering stable count statistics even during short integration intervals.
• Digitally stabilized energy compensation algorithm ensures ≤±20% deviation from reference response across the specified energy range (0.048–3.00 MeV), minimizing spectral dependence errors typical of uncompensated GM or Si-based detectors.
• Adjustable measurement integration time (1 s to 60 s in 1 s steps), enabling trade-offs between temporal resolution and statistical uncertainty based on operational requirements.
• Four user-configurable alarm thresholds (0.25, 2.5, 10, and 20 µSv/h) with audible and visual alerts—critical for rapid identification of elevated fields during site surveys or transport inspections.
• Integrated battery voltage monitoring with on-screen warning and audible alert when supply drops below operational threshold—ensuring data continuity and preventing undetected measurement drift due to power sag.
• Intuitive Chinese-language interface displayed on a high-contrast dot-matrix LCD; tactile touch keypad enables glove-compatible operation in industrial or emergency response conditions.
• Compact ergonomic housing (330 × 230 × 90 mm, 1.5 kg) designed for extended handheld use and compatibility with standard survey tripods or mounting brackets.

Sample Compatibility & Compliance

The DM5200 is intended for direct measurement of ambient dose equivalent rate H*(10) in air, without sample preparation. It is suitable for scanning surfaces, bulk materials (e.g., construction aggregates, scrap metal, ceramics), cargo containers, medical waste packages, and shielding integrity verification. While not a laboratory-grade spectrometer, its calibrated response satisfies screening-level requirements under ISO 28218:2019 (Radiation protection — Guidance on measurements for assessment of effective dose to members of the public) and supports initial assessments prior to confirmatory gamma spectrometry. Device firmware and calibration records are structured to support GLP-aligned documentation practices; however, full 21 CFR Part 11 compliance requires external audit-trail logging via connected PC software (not embedded).

Software & Data Management

The DM5200 operates as a standalone meter with no onboard data storage or USB/Bluetooth connectivity. All measurement results—including timestamp, integration time, selected alarm level, and instantaneous dose rate—are displayed in real time and retained only in volatile memory until power-off. For archival or reporting purposes, users must manually record values or integrate the device into broader environmental monitoring workflows using third-party logging systems. Calibration certificates include traceability to CNAS-accredited primary standards (e.g., NIM, Beijing), with annual recalibration recommended per ISO/IEC 17025:2017 clause 7.7.2.

Applications

• Regulatory screening of imported/exported commodities for NORM (Naturally Occurring Radioactive Material) contamination.
• Routine radiological surveys of building materials (e.g., granite, fly ash concrete) per national radon precursor guidelines.
• Pre-shipment verification of low-activity medical isotopes (e.g., ⁹⁹mTc, ¹⁸F) packaging integrity and transport compliance.
• Emergency response triage in radiological incidents involving orphan sources or lost industrial gauges.
• Baseline environmental monitoring around nuclear medicine departments, research reactors, and decommissioning sites.
• Verification of shielding effectiveness in radiotherapy bunkers and PET facility corridors.

FAQ

What radiation types does the DM5200 detect?
The instrument responds to X-ray and gamma-ray photons within 0.048–3.00 MeV. It is not sensitive to alpha, beta, or neutron radiation.
Is energy compensation verified per IEC 60846?
Yes—the factory calibration includes multi-point energy response testing against ²⁴¹Am, ¹³³Ba, ¹³⁷Cs, and ⁶⁰Co sources, with reported deviations conforming to IEC 60846-1:2014 Annex B tolerances.
Can the unit display dose rate in µR/h?
Yes—users may toggle between µSv/h (SI unit, default) and µR/h via the configuration menu.
What is the minimum measurable dose rate with 15-second integration?
At 95% confidence level and 15 s integration, the lower limit of detection (LLD) is 0.01 µSv/h, assuming background subtraction and optimal detector orientation.
Does the device support external data export?
No—the DM5200 has no serial, USB, or wireless interface; data capture requires manual transcription or external video/audio logging.
