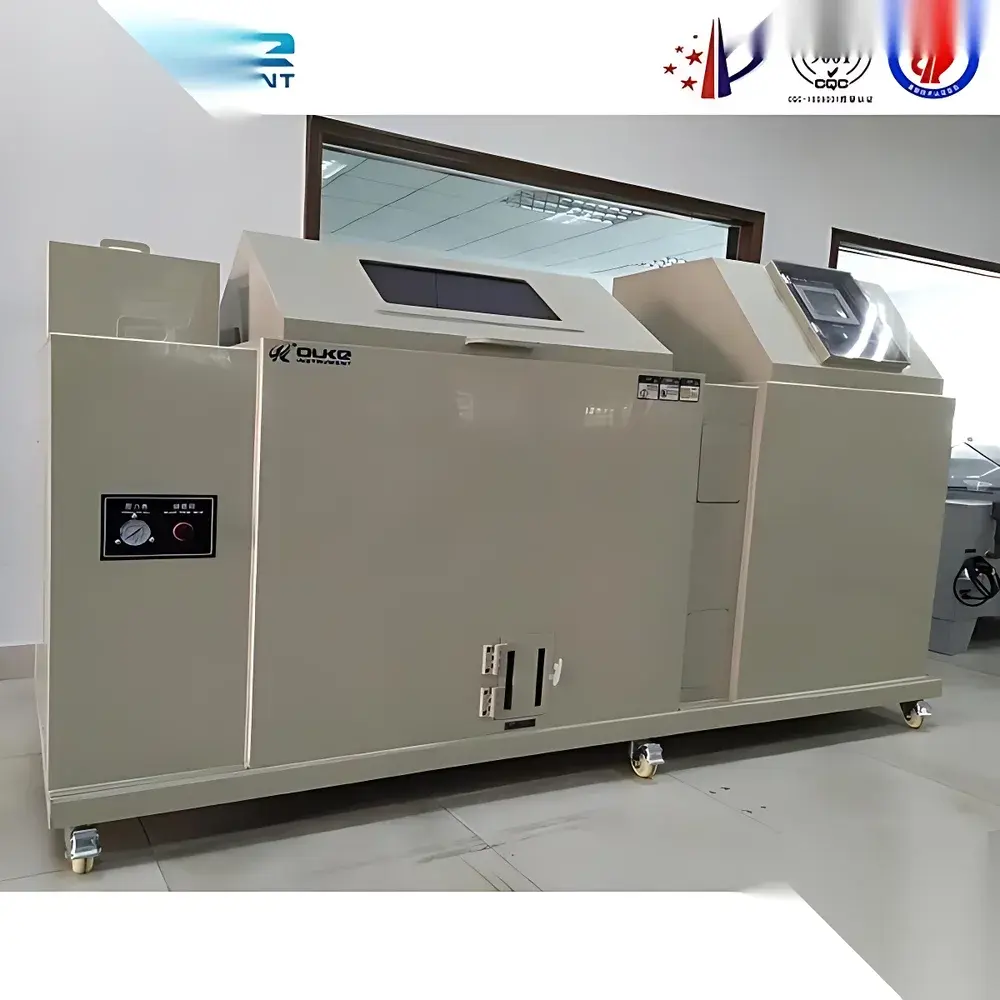

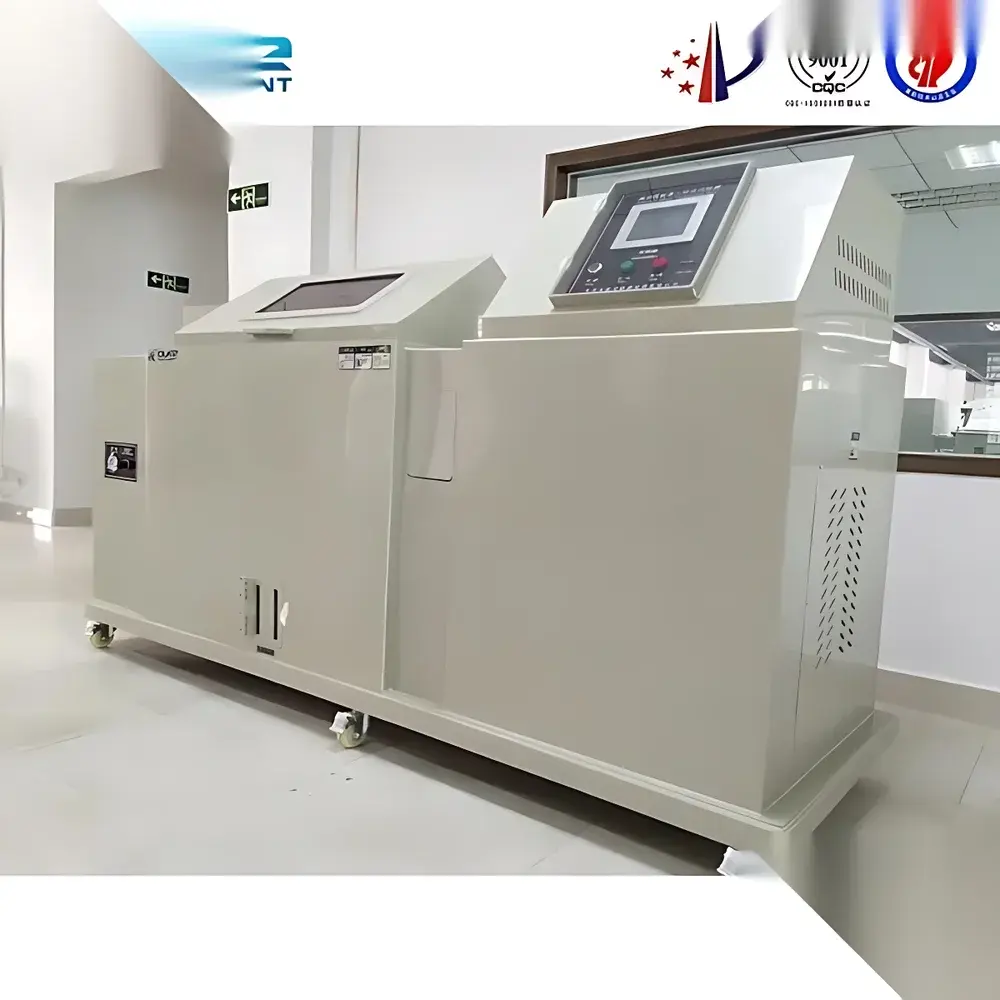

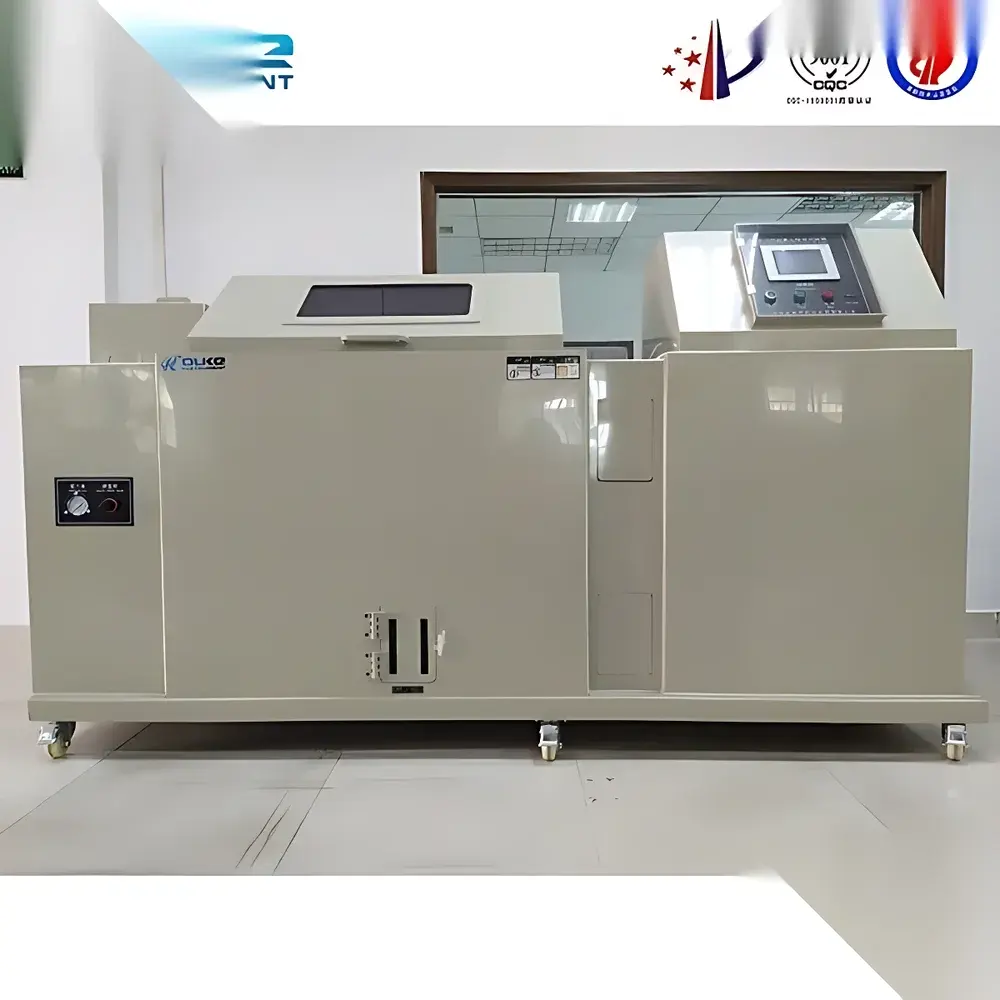

ASTM-Compliant Salt Spray Test Chamber for Lighting Fixture Corrosion Testing
| Brand | OEM / Custom-Built |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Price | USD 12,500 (FOB) |
| Chamber Material | Imported PVC or FRP (Fiberglass-Reinforced Plastic) |
| Saturated Air Tank | SUS316L Stainless Steel, 1.2 mm Thickness |
| Viewing Window | 8–10 mm Acrylic (PMMA), Impact-Resistant |
| Test Temperature Range | 35°C ±1°C (NSS), 50°C ±1°C (ACSS) |
| Saturated Tank Temp | 47°C ±1°C (NSS), 63°C ±1°C (ACSS) |
| Temperature Uniformity | ≤±2°C |
| Temperature Stability | ≤±0.5°C |
| Spray Rate | 1–2 mL/80 cm²/h (avg. over 16 h) |
| Air Pressure Supply | 1 kg/cm² (two-stage regulation) |
| Control System | Dual PID Digital Controllers (Test Chamber & Saturated Tank), 0.1 s–99.99 h Timer, 0–9999 h Accumulated Time Meter |
| Safety Features | Overload Protection, Over-Temperature Cut-off, Auto-Termination on Time Expiry |
Overview
The ASTM-Compliant Salt Spray Test Chamber for Lighting Fixture Corrosion Testing is a purpose-engineered environmental test system designed to evaluate the corrosion resistance of luminaires and associated metal/plastic components under accelerated saline atmospheric conditions. It operates on the principle of continuous or cyclic salt fog generation via air-pressure-driven atomization—adhering strictly to internationally recognized test standards including ASTM B117, ISO 9227, IEC 60068-2-11, and JIS Z2371. Unlike generic salt spray chambers, this unit integrates structural and thermal specifications tailored to lighting industry requirements: extended exposure cycles, non-reactive chamber materials compatible with high-lumen-output fixture geometries, and precise thermal management across both test chamber and saturated air reservoir. Its dual-temperature control architecture ensures stable, repeatable test environments critical for comparative analysis of surface coatings, anodized aluminum housings, stainless steel fasteners, and polycarbonate lenses used in outdoor, marine, and industrial-grade lighting systems.
Key Features
- Chamber construction from imported high-impact, heat-resistant PVC (up to 80°C) or corrosion-proof fiberglass-reinforced plastic (FRP), ensuring long-term dimensional stability and chemical inertness during prolonged NaCl exposure.
- Saturated air tank fabricated from SUS316L stainless steel (1.2 mm thickness), offering superior resistance to chloride-induced pitting and stress corrosion cracking—essential for maintaining pressure integrity and thermal insulation over >5,000-hour operational life.
- 8–10 mm thick optical-grade acrylic viewing window, certified for impact resistance (per ISO 179-1), enabling real-time visual monitoring without compromising chamber seal integrity or operator safety.
- Patented Bernoulli-effect spray nozzle system made from borosilicate glass, rated for ≥4,500 hours of uninterrupted operation; delivers uniform droplet distribution (1–2 mL/80 cm²/h, measured per ASTM B117 Annex A1) with adjustable spray angle and flow rate.
- Dual independent PID digital controllers—one for chamber temperature (0–99.9°C, ±0.5°C accuracy), one for saturated air tank (0–99.9°C, ±0.5°C)—with auto-tuning capability and integrated data logging interface.
- Two-stage regulated air supply system (1 kg/cm² nominal) with moisture and oil filtration, meeting ISO 8573-1 Class 2:2:2 requirements for clean, dry compressed air essential to prevent nozzle clogging and crystallization artifacts.
Sample Compatibility & Compliance
This chamber accommodates full-assembly lighting fixtures up to 1,200 mm × 800 mm × 800 mm (W×D×H), with configurable internal rack supports and non-conductive mounting fixtures to prevent galvanic coupling during testing. All wetted surfaces are non-metallic or passivated stainless steel, eliminating cross-contamination risks between test specimens. The system is fully compliant with ASTM B117 (Neutral Salt Spray), ASTM G85 Annex A2 (Acetic Acid Salt Spray – ACSS), ISO 9227 (corrosion testing in artificial atmospheres), and IEC 60529 IPXx compatibility validation protocols. Calibration traceability follows ISO/IEC 17025 guidelines, and temperature uniformity verification reports are provided with each shipment. Optional upgrades include GLP-compliant audit trails, 21 CFR Part 11–enabled electronic signatures, and automated calibration certificate generation.
Software & Data Management
The embedded controller supports RS-485 Modbus RTU and optional Ethernet TCP/IP connectivity for integration into centralized lab management platforms (e.g., LabWare LIMS, Siemens Desigo CC). Real-time temperature and timer data are timestamped and exportable in CSV or XML format. Optional PC-based software provides graphical trend analysis, alarm history logs, deviation alerts (exceeding ±1.0°C or ±5% spray rate), and PDF report generation compliant with ISO/IEC 17025 documentation requirements. All firmware updates are digitally signed and version-controlled; configuration changes are logged with user ID, timestamp, and parameter delta values—supporting full audit readiness for ISO 9001, IATF 16949, or FDA-regulated quality systems.
Applications
- Evaluation of anti-corrosion performance of LED driver enclosures, heat sinks, and mounting brackets exposed to coastal or de-icing salt environments.
- Validation of conformal coating integrity on printed circuit boards (PCBs) used in streetlight and tunnel lighting systems.
- Comparative assessment of surface treatments—including electrophoretic deposition (EDP), powder coating, and chromate conversion—on aluminum extrusions per MIL-DTL-5541.
- Pre-certification testing for UL 1598, EN 60598-1, and DLC Qualified Products List (QPL) corrosion resistance requirements.
- Accelerated aging studies supporting MTTF (Mean Time to Failure) modeling for outdoor lighting assets in infrastructure projects.
FAQ
What standards does this chamber support out-of-the-box?
It natively complies with ASTM B117, ISO 9227, IEC 60068-2-11, and JIS Z2371. Optional firmware modules enable ACSS (ASTM G85 Annex A2) and CASS (ASTM G85 Annex A3) test modes.
Can the chamber accommodate oversized luminaires with integrated solar panels or battery packs?
Yes—customizable interior configurations, including removable shelves and insulated cable feedthroughs (IP67-rated), allow testing of complete smart lighting systems with active electronics.
Is the saturated air tank pressure-rated and certified?
The SUS316L tank is hydrostatically tested to 2.5 bar and supplied with CE PED 2014/68/EU conformity documentation.
How is spray uniformity verified and maintained?
A 16-point collection array (per ASTM B117 Figure 2) is included for quarterly verification; nozzle alignment and air pressure calibration are documented in the maintenance logbook.
Does the system support remote monitoring and alarm notification?
With optional Ethernet module, email/SMS alerts (via SMTP/HTTP API) trigger on temperature deviation, power loss, or timer expiry—configurable through web interface.
