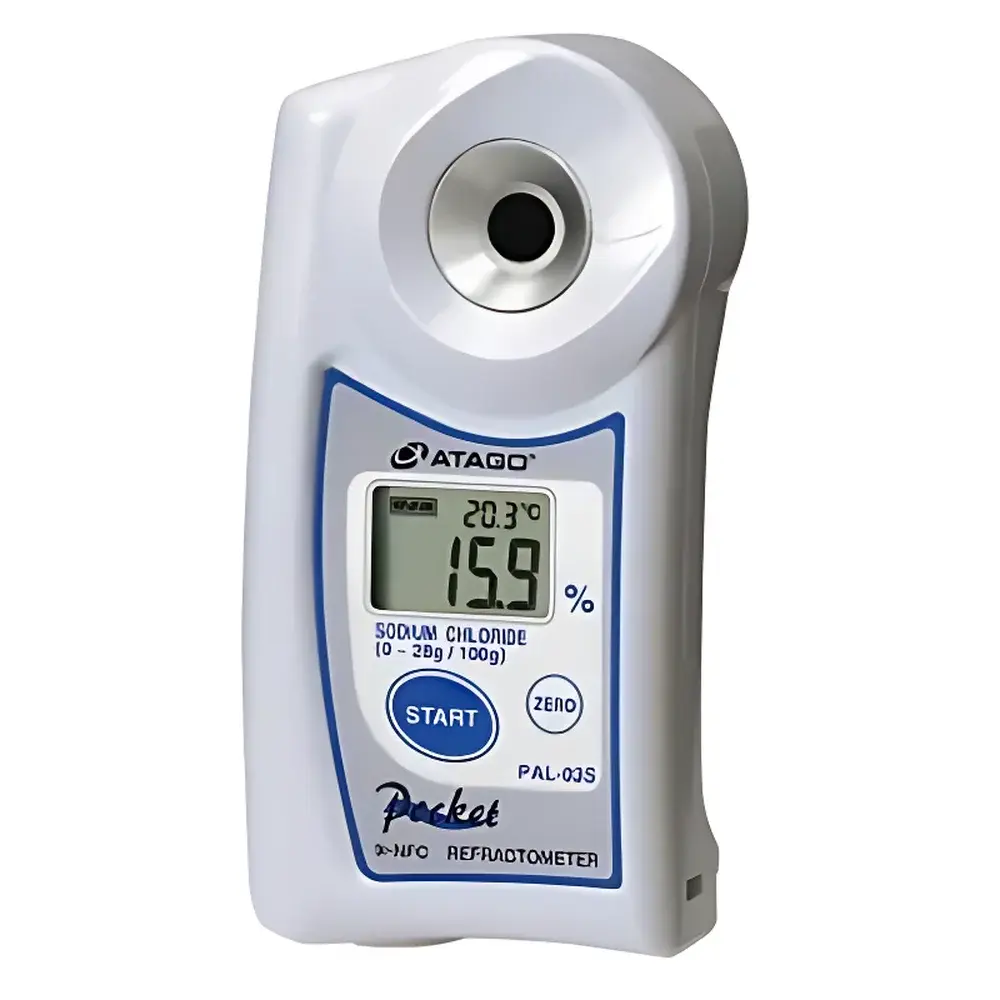

ATAGO PAL-03S Portable Sodium Chloride Deicing Solution Refractometer
| Brand | ATAGO |
|---|---|
| Origin | Japan |
| Model | PAL-03S (g/100g) |
| Measurement Range | 0.0–28.0% NaCl (w/w) |
| Accuracy | ±0.2% NaCl |
| Resolution | 0.1% NaCl |
| Temperature Compensation | Automatic (ATC), 10–40°C |
| Power Supply | 2 × AAA batteries |
| IP Rating | IP65 |
| Dimensions | 5.5 × 3.1 × 10.9 cm |
| Weight | 100 g (instrument only) |
Overview
The ATAGO PAL-03S Portable Sodium Chloride Deicing Solution Refractometer is a field-deployable optical instrument engineered for rapid, on-site quantification of sodium chloride concentration in aqueous deicing solutions. It operates on the principle of critical-angle refractometry: incident light passes through a prism-sample interface, and the resulting refraction angle—directly correlated to solution density and solute concentration—is converted into a calibrated mass fraction reading (g/100g, equivalent to % w/w). Unlike conductivity-based or titration methods, refractometry requires no reagents, generates no waste, and delivers results in under three seconds with minimal operator training. Designed specifically for winter road maintenance operations, the PAL-03S enables real-time verification of brine preparation consistency, ensuring compliance with municipal anti-icing specifications while minimizing over-application and environmental chloride loading.
Key Features
- Optical measurement system with high-stability Abbe-type prism and LED illumination source, delivering stable readings across ambient temperature fluctuations
- Automatic Temperature Compensation (ATC) across 10–40°C, eliminating manual correction and supporting use in unheated field environments
- Rugged, IP65-rated housing resistant to dust ingress and water jets—suitable for outdoor deployment in snow, slush, and road-salt spray conditions
- Compact form factor (5.5 × 3.1 × 10.9 cm) and lightweight design (100 g) for one-handed operation and integration into mobile inspection workflows
- High-resolution digital display with 0.1% NaCl resolution and ±0.2% full-scale accuracy traceable to NIST-traceable calibration standards
- Battery-powered operation using two standard AAA cells, enabling >10,000 measurements per set without external power infrastructure
Sample Compatibility & Compliance
The PAL-03S is validated exclusively for homogeneous aqueous sodium chloride solutions, including pre-wetted solid deicers, liquid brines, and meltwater runoff samples. It is not suitable for mixed-salt formulations (e.g., CaCl₂–NaCl blends), viscous additives, or suspensions containing undissolved solids or particulates. Measurements conform to ASTM D1141-98 (Standard Practice for the Preparation of Substitute Ocean Water) as a reference method for salinity validation, and support internal quality control protocols aligned with AASHTO TP 102 (Standard Test Method for Determining Freezing Point Depression of Deicing Chemicals). While not a regulatory testing device per se, its repeatability (<0.1% RSD, n=10) meets GLP-aligned field verification requirements for DOT winter maintenance programs.
Software & Data Management
The PAL-03S is a standalone, non-data-logging instrument—intentionally designed for simplicity, speed, and operational robustness in harsh field conditions. No firmware updates, Bluetooth connectivity, or proprietary software are required or supported. All calibration and verification procedures are performed manually using certified NaCl reference standards (e.g., 5.0%, 15.0%, and 25.0% w/w solutions). Calibration verification intervals are recommended every 25 measurements or at shift change in continuous-use scenarios. Documentation of calibration status, operator ID, and measurement timestamps must be maintained externally per agency-specific QA/QC recordkeeping policies (e.g., FHWA MUTCD Appendix B or state DOT inspection logs).
Applications
- Verification of brine tank mixing ratios prior to application on highways, bridges, and airport runways
- On-the-spot assessment of residual deicer concentration in catch basins and stormwater retention ponds
- Field calibration checks of inline conductivity sensors used in automated brine dispensing systems
- Quality assurance sampling during bulk NaCl procurement and storage facility audits
- Educational demonstrations of colligative properties (freezing point depression) in civil engineering and environmental science curricula
- Supporting ISO 14001-compliant chloride management plans by enabling quantitative tracking of deicer usage intensity
FAQ
Can the PAL-03S measure calcium chloride or magnesium chloride solutions?
No. The scale is factory-calibrated solely for sodium chloride in water. Using it with other salts introduces systematic bias due to differing partial molar refractions and density-concentration relationships.
Is cleaning required between samples?
Yes. Wipe the prism surface with lint-free tissue and distilled water after each measurement to prevent cross-contamination and crystallization residue buildup.
Does ATC compensate for sample temperature or ambient temperature?
The ATC sensor measures the prism temperature, which equilibrates rapidly with the sample via direct contact—ensuring compensation reflects actual sample thermal state, not ambient air temperature.
What is the minimum sample volume required?
Approximately 0.3 mL is sufficient to fully cover the prism surface; excess fluid does not improve accuracy and may cause leakage into the instrument housing.
Is the PAL-03S compliant with FDA 21 CFR Part 11 or ISO/IEC 17025?
No. It is a field verification tool, not a regulated analytical instrument. Its use falls outside formal metrological accreditation scopes but supports documented QA processes under ISO 9001 Clause 8.5.2.
