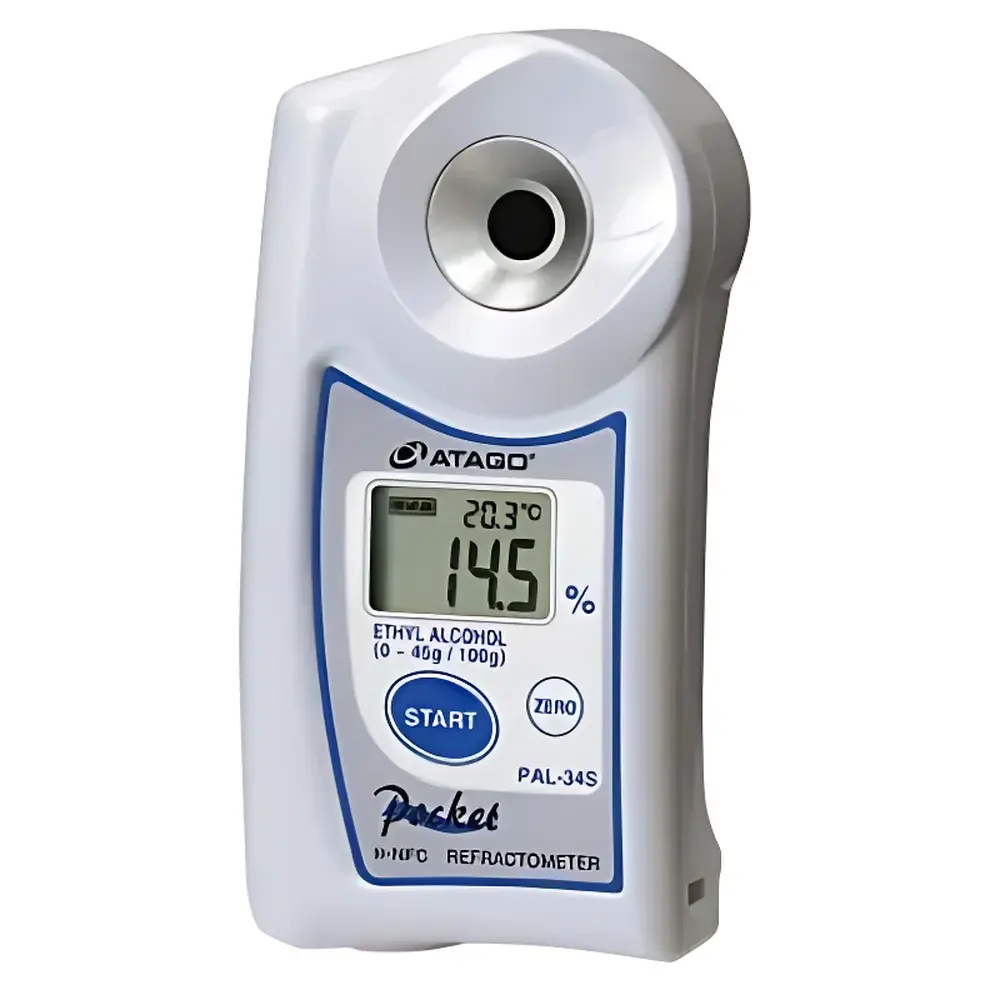

ATAGO PAL-34S Digital Handheld Ethanol Refractometer

Overview

The ATAGO PAL-34S Digital Handheld Ethanol Refractometer is a precision optical instrument engineered for rapid, on-site quantification of ethanol concentration in aqueous solutions—primarily used in chemical manufacturing, quality control laboratories, and industrial hygiene applications. It operates on the principle of critical-angle refractometry: light passing through a sample–prism interface undergoes total internal reflection at an angle dependent on the solution’s refractive index, which correlates directly with ethanol mass fraction (g/100g) under controlled temperature conditions. Equipped with ATAGO’s proprietary Automatic Temperature Compensation (ATC) system spanning 10–35°C, the PAL-34S eliminates manual correction for ambient thermal drift—a key requirement for field-deployable consistency across variable environmental conditions. Unlike benchtop Abbe refractometers or densitometric alternatives, this handheld unit delivers calibrated ethanol readings without requiring solvent calibration curves or external reference standards for routine use within its specified range.

Key Features

• Direct digital readout of ethanol concentration in % (w/w, g/100g) with 0.5% resolution and ±1.0% accuracy across the full 0.0–45.0% measurement span
• Integrated ATC optics compensating for sample temperature fluctuations between 10°C and 35°C, ensuring stable output without user intervention
• Rugged, compact housing rated IP65—dust-tight and protected against low-pressure water jets—enabling reliable operation in production floors, warehouses, and outdoor sampling points
• Low-power design powered by two standard AAA batteries, supporting continuous operation for over 10,000 measurements per set (typical usage)
• Ergonomic form factor (5.5 × 3.1 × 10.9 cm; 100 g) optimized for one-handed operation and extended field use without fatigue
• No moving parts or consumables—optical path sealed during manufacture; prism surface requires only routine cleaning with lens tissue and ethanol-free solvent

Sample Compatibility & Compliance

The PAL-34S is validated for homogeneous, non-viscous, non-opaque aqueous ethanol solutions—including denatured alcohol blends, fermentation intermediates, and industrial solvent preparations. It is not suitable for samples containing suspended solids, high concentrations of glycerol or ethylene glycol, or strongly colored dyes that absorb visible light in the 589 nm sodium-D spectral band. While the instrument itself does not carry CE marking for medical device classification, its measurement methodology aligns with ASTM D1152 (Standard Test Method for Methanol in Ethanol) and ISO 3696 (Water for Analytical Laboratory Use), where refractometric screening serves as a preliminary verification step prior to GC or titrimetric confirmation. The absence of active temperature control (i.e., no Peltier or thermostat) means it complies with general-purpose industrial instrumentation standards rather than GLP-regulated analytical platforms requiring audit trails or 21 CFR Part 11 compliance.

Software & Data Management

The PAL-34S is a standalone, embedded-system device with no onboard data logging, Bluetooth connectivity, or PC interface. All measurements are displayed in real time on a high-contrast LCD screen and retained only visually—consistent with its design intent as a rapid pass/fail or in-process verification tool. For traceable documentation, users must manually record results alongside batch identifiers, operator ID, and environmental notes. When integrated into broader QC workflows, the PAL-34S commonly feeds into LIMS or paper-based SOPs where refractometric ethanol checks are defined as Level-1 screening criteria—e.g., pre-distillation verification in bioethanol plants or post-dilution validation in disinfectant formulation lines.

Applications

• On-line verification of ethanol concentration in pharmaceutical excipient dilutions prior to sterile filtration
• Field testing of fuel-grade ethanol blends (E10–E40) at distribution terminals
• Process monitoring during alcoholic beverage fortification (e.g., liqueurs, bitters) where sugar interference is minimal
• Quality assurance of technical ethanol used in electronics cleaning, where residual water content must remain below 5%
• Routine checks of hand sanitizer formulations to confirm compliance with WHO-recommended 75–80% v/v ethanol equivalence (via correlation to w/w scale)
• Environmental health & safety (EHS) assessments of solvent spill residues in laboratory containment zones

FAQ

Does the PAL-34S require factory recalibration after battery replacement?
No. The optical calibration is fixed at manufacture and unaffected by power cycling. Only physical damage to the prism or prolonged exposure to abrasive solvents warrants service recalibration.
Can it measure isopropanol or methanol concentration?
No. Its scale is specifically calibrated for ethanol–water binary systems. Isopropanol and methanol exhibit different refractive index–concentration relationships and will yield inaccurate readings.
Is the ATC function compatible with chilled or heated samples outside 10–35°C?
No. Measurements taken below 10°C or above 35°C fall outside ATC compensation limits and introduce uncorrected systematic error; users should equilibrate samples to the ATC range before analysis.
How often should the prism surface be cleaned?
After every 5–10 measurements when handling viscous or particulate-laden samples; otherwise, cleaning is required only between different sample lots to prevent cross-contamination.
Does IP65 rating permit submersion or steam sterilization?
No. IP65 confirms protection against dust ingress and water projected from a nozzle at 30 kPa pressure—not immersion, high-pressure washdown, or autoclaving. Sterilization is not supported.
