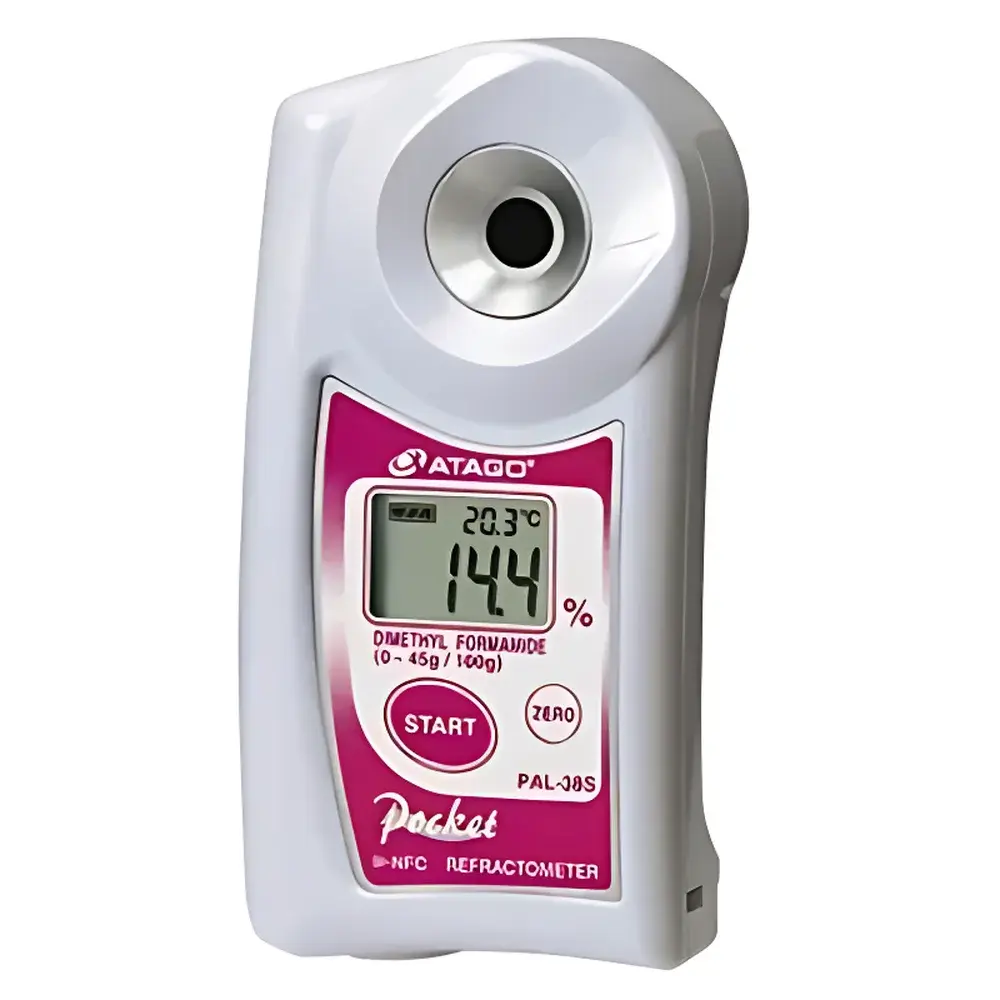

ATAGO PAL-38S DMF Concentration Refractometer

Overview

The ATAGO PAL-38S DMF Concentration Refractometer is a precision handheld optical instrument engineered for rapid, field-deployable quantification of dimethylformamide (DMF) concentration in industrial solvent streams. It operates on the principle of Abbe refractometry—measuring the refractive index of liquid samples at 589 nm (sodium D-line wavelength) and converting it to mass concentration (%) via a pre-calibrated polynomial algorithm specific to the DMF–water binary system. Designed for real-time process monitoring in demanding manufacturing environments—including synthetic leather (PU), pharmaceutical intermediate synthesis, and polymer coating production—the PAL-38S delivers traceable, repeatable measurements without requiring sample dilution or laboratory infrastructure. Its solid-state optical path, sapphire prism surface, and sealed optical chamber ensure long-term stability against chemical exposure and mechanical shock.

Key Features

• Automatic Temperature Compensation (ATC) across 10–40°C, eliminating manual correction and ensuring measurement integrity under variable ambient conditions.
• Digital LCD display with 0.2% resolution and immediate readout (<2 seconds per measurement), supporting high-throughput QC workflows.
• IP65-rated enclosure—dust-tight and protected against low-pressure water jets—enabling reliable operation in humid, solvent-laden production floors or warehouse loading bays.
• Sapphire-coated measuring prism offering exceptional resistance to abrasion and chemical attack from aggressive organic solvents such as DMF, NMP, and THF.
• Low-power design powered by two standard AAA batteries (typical service life >10,000 measurements), minimizing operational downtime and logistical dependency.
• Compact ergonomic form factor (5.5 × 3.1 × 10.9 cm; 100 g) optimized for one-handed use and integration into glove-box or fume-hood workflows.

Sample Compatibility & Compliance

The PAL-38S is validated for aqueous–organic mixtures where DMF is the primary volatile component. It is suitable for direct measurement of raw DMF solvent, recovered DMF distillates, and process stream samples containing ≤5% non-volatile residues (e.g., residual polyurethane oligomers, stabilizers). It is not intended for highly viscous, suspended, or strongly colored solutions that scatter incident light beyond the instrument’s optical tolerance. While the device itself does not carry CE marking for medical device use, its measurement methodology aligns with ASTM D1218 (Standard Test Method for Refractive Index of Hydrocarbon Liquids) and supports internal quality control protocols compliant with ISO 9001:2015 and ICH Q7 guidelines for active pharmaceutical ingredient (API) manufacturing. Calibration verification is performed using certified DMF reference standards traceable to NIST SRM equivalents.

Software & Data Management

The PAL-38S is a standalone instrument with no onboard data logging or USB connectivity. However, its consistent output format and stable calibration enable seamless integration into structured paper-based or electronic batch record systems. Users routinely document results manually into LIMS or MES platforms using standardized SOP templates. For enterprises requiring audit-ready traceability, the instrument supports periodic calibration verification logs—including date, operator ID, reference standard lot number, and observed deviation—fully compatible with FDA 21 CFR Part 11–aligned electronic record practices when paired with validated documentation procedures. ATAGO provides NIST-traceable calibration certificates upon request for GMP-regulated facilities.

Applications

• Real-time verification of incoming DMF solvent purity (≥99.9% w/w) prior to resin dissolution in PU leather production lines.
• In-process monitoring of DMF recovery efficiency during vacuum distillation cycles in chemical recycling units.
• Final product release testing of DMF-based coating formulations to ensure batch-to-batch consistency within ±0.4% tolerance.
• Field inspection of solvent shipments at receiving docks to detect adulteration or moisture ingress before warehouse storage.
• Supporting DOE (Design of Experiments) studies in R&D labs where DMF concentration directly influences reaction kinetics and polymer morphology.

FAQ

Does the PAL-38S require recalibration between samples?
No—its optical system is drift-compensated and requires only periodic verification (e.g., daily or per shift) using a certified DMF standard solution.
Can it measure DMF mixed with other solvents like toluene or acetone?
No—the calibration is specific to the DMF–water system. Multi-solvent blends introduce refractive index interference and invalidate the concentration conversion algorithm.
Is the prism surface resistant to DMF etching over repeated use?
Yes—the sapphire coating exhibits negligible wear after >5,000 routine measurements under typical industrial handling conditions.
What is the minimum sample volume required?
Only 0.3 mL is needed to fully cover the prism surface, minimizing material waste during high-value solvent testing.
How does ATC function without external temperature sensors?
An integrated thermistor embedded adjacent to the prism measures sample temperature in real time and applies proprietary compensation coefficients derived from empirical DMF refractive index vs. temperature curves.
