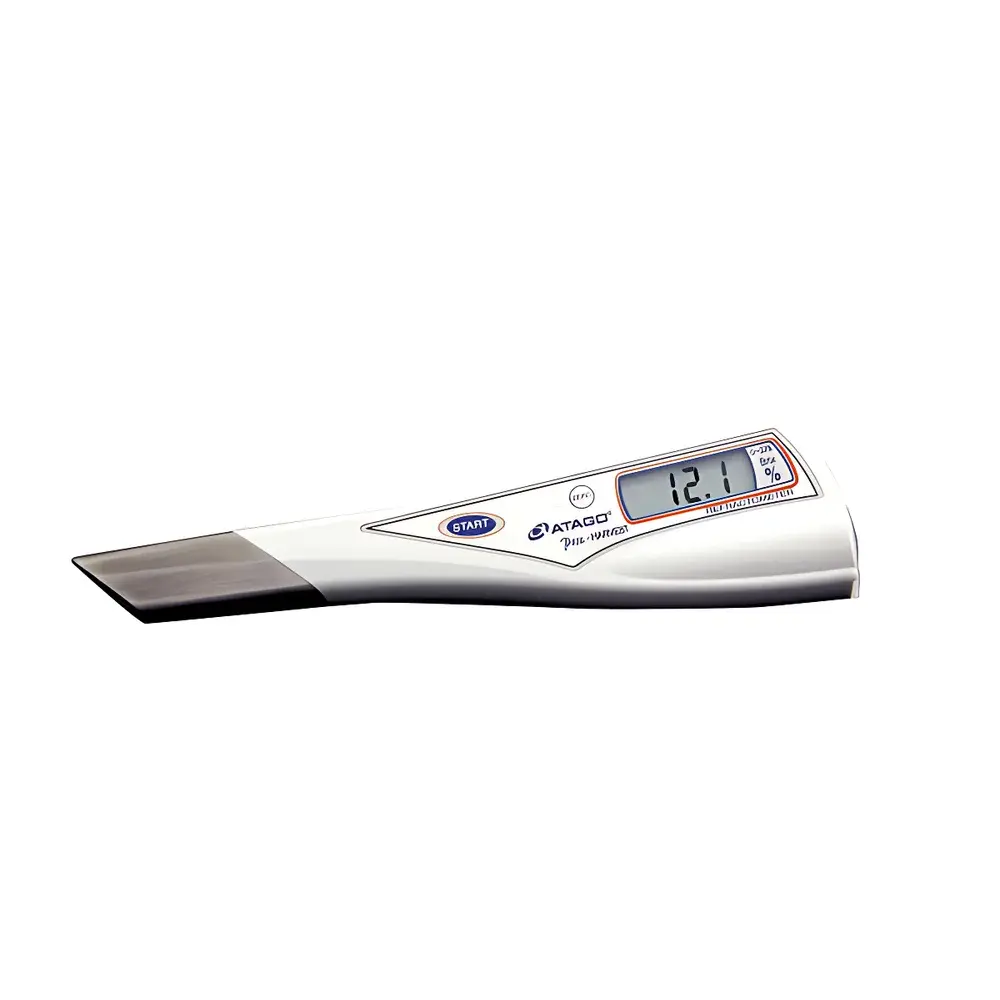

ATAGO PEN-harvest Digital Brix Refractometer for Bovine Colostrum Quality Assessment

Overview

The ATAGO PEN-harvest is a precision-engineered handheld digital refractometer specifically designed for rapid, field-deployable assessment of bovine colostrum quality on dairy farms and veterinary clinics. It operates on the principle of total internal reflection: when light passes through a colostrum sample, dissolved solids—primarily immunoglobulins (IgG), lactose, and other proteins—alter the refractive index proportionally. The instrument converts this optical property into a Brix (% w/w sucrose equivalent) reading, which correlates empirically with IgG concentration in fresh bovine colostrum. Unlike specific immunoassays or ELISA-based methods, the PEN-harvest delivers immediate, non-destructive, reagent-free results without requiring laboratory infrastructure. Its optical architecture adheres to ISO 2173:2003 (fruit juice and related products) and ASTM D1218-19 (refractive index measurement), with validation studies confirming strong linear correlation (r² > 0.92) between Brix values and IgG concentrations (mg/mL) in colostrum collected within 6 hours post-parturition.

Key Features

• Single-hand operation with intuitive START button activation — no pipettes, droppers, or calibration fluids required
• Real-time continuous measurement mode enables dynamic monitoring during sample homogenization
• Automatic temperature compensation (ATC) across 10–100°C ensures consistent accuracy regardless of ambient or sample temperature fluctuations
• IP65-rated housing (IP67 for optical prism) provides dust-tight and water-jet resistant protection suitable for barn, parlor, and transport environments
• Minimal sample requirement of only 0.3 mL allows efficient use of limited colostrum volumes
• 2-second measurement cycle supports high-throughput screening of multiple dams per milking shift
• Robust optical path design minimizes drift and maintains long-term repeatability under repeated farm-use conditions

Sample Compatibility & Compliance

The PEN-harvest is validated for use with raw, unprocessed bovine colostrum collected within 0–24 hours post-calving. It is not intended for pasteurized, frozen-thawed, or pooled samples unless site-specific correlation curves are established. While the device reports Brix (%), its clinical utility stems from peer-reviewed, field-validated conversion thresholds: ≥22% Brix indicates IgG ≥50 mg/mL (adequate passive transfer); ≤19.9% Brix corresponds to IgG <25 mg/mL (high risk of failure of passive transfer, FPT). These cut-offs align with recommendations from the American Association of Bovine Practitioners (AABP) and the National Mastitis Council (NMC). The instrument complies with IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity), and meets CE marking requirements for portable optical instrumentation. Data output conforms to GLP-aligned documentation practices when paired with optional RE-34801 charger logging functionality.

Software & Data Management

The PEN-harvest operates as a standalone analog-digital hybrid system with no embedded memory or Bluetooth/Wi-Fi connectivity. All measurements are displayed in real time on a high-contrast LCD screen with automatic backlighting. For traceability in regulated environments (e.g., USDA-certified organic dairies or GMP-aligned calf-raising operations), users may manually record readings alongside dam ID, calving date, and feeding time. Optional accessories—including the RE-34801 USB charging dock and RE-39410 protective carry case—support integration into structured herd health protocols. While the device itself does not generate audit trails, its consistent performance enables compliance with FDA 21 CFR Part 11 when used within documented SOPs that include operator training logs, daily verification checks using certified sucrose standards (e.g., NIST-traceable 10% and 25% Brix solutions), and periodic recalibration by authorized ATAGO service centers.

Applications

• Routine pre-feeding colostrum screening to prioritize high-quality batches for first feedings
• Validation of colostrum replacer formulations prior to commercial distribution
• On-farm evaluation of colostrum management protocols (e.g., timing of collection, storage conditions, thawing methods)
• Field diagnostics during outbreak investigations involving neonatal diarrhea or septicemia
• Educational use in veterinary schools and extension programs demonstrating passive immunity principles
• Quality assurance in contract heifer-raising facilities subject to third-party welfare audits (e.g., FARM Animal Care Program)

FAQ

Does the PEN-harvest measure IgG directly?
No. It measures total solids via refractive index and reports Brix (%). IgG concentration is inferred using empirically derived correlations validated for fresh bovine colostrum.
Can it be used on frozen-thawed colostrum?
Not without site-specific revalidation. Freezing alters colloidal structure and may decouple Brix–IgG correlation; fresh samples are strongly recommended.
What is the minimum sample temperature for reliable measurement?
The instrument compensates automatically between 10–100°C, but optimal correlation with IgG occurs at 20–25°C sample temperature per NMC guidelines.
How often should verification checks be performed?
Before each use shift, using a certified 10% Brix standard; full recalibration is recommended annually or after 5,000 measurements.
Is cleaning required between samples?
Yes. Wipe the prism surface with lens tissue and distilled water after each measurement to prevent cross-contamination and residue buildup.
