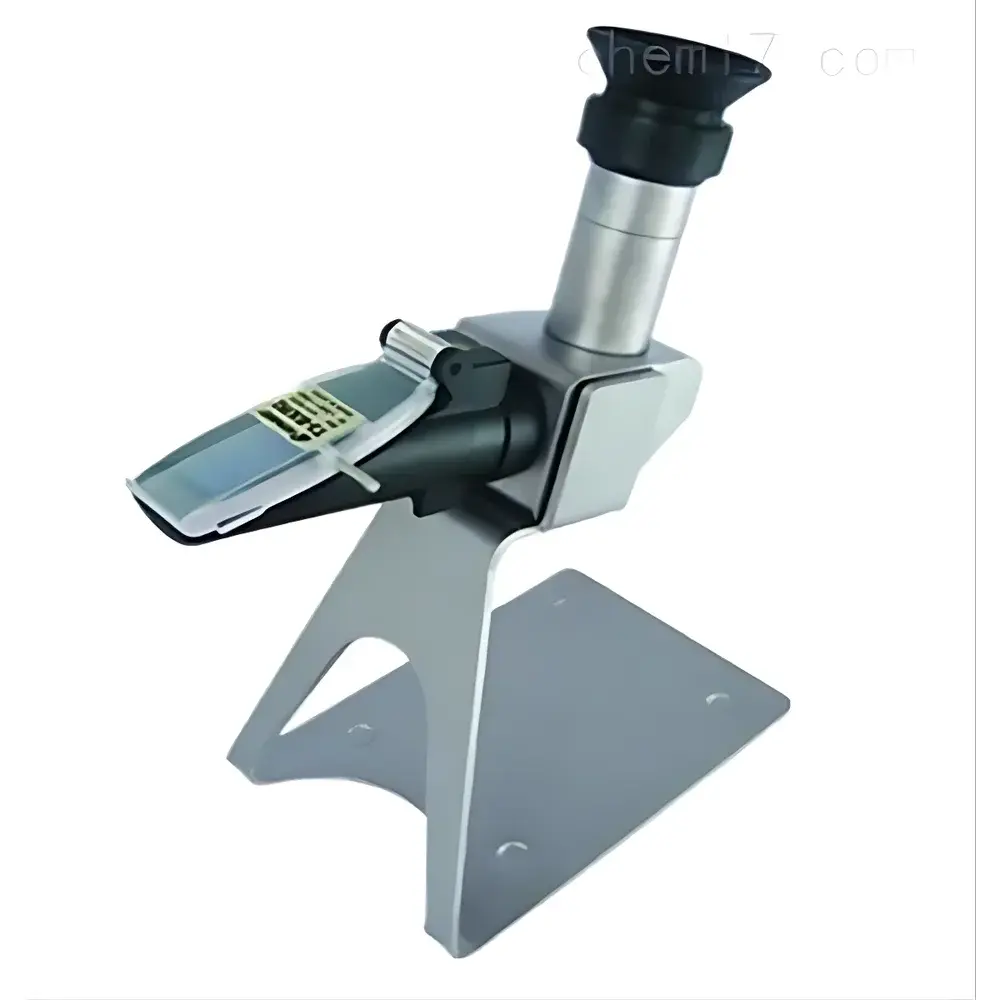

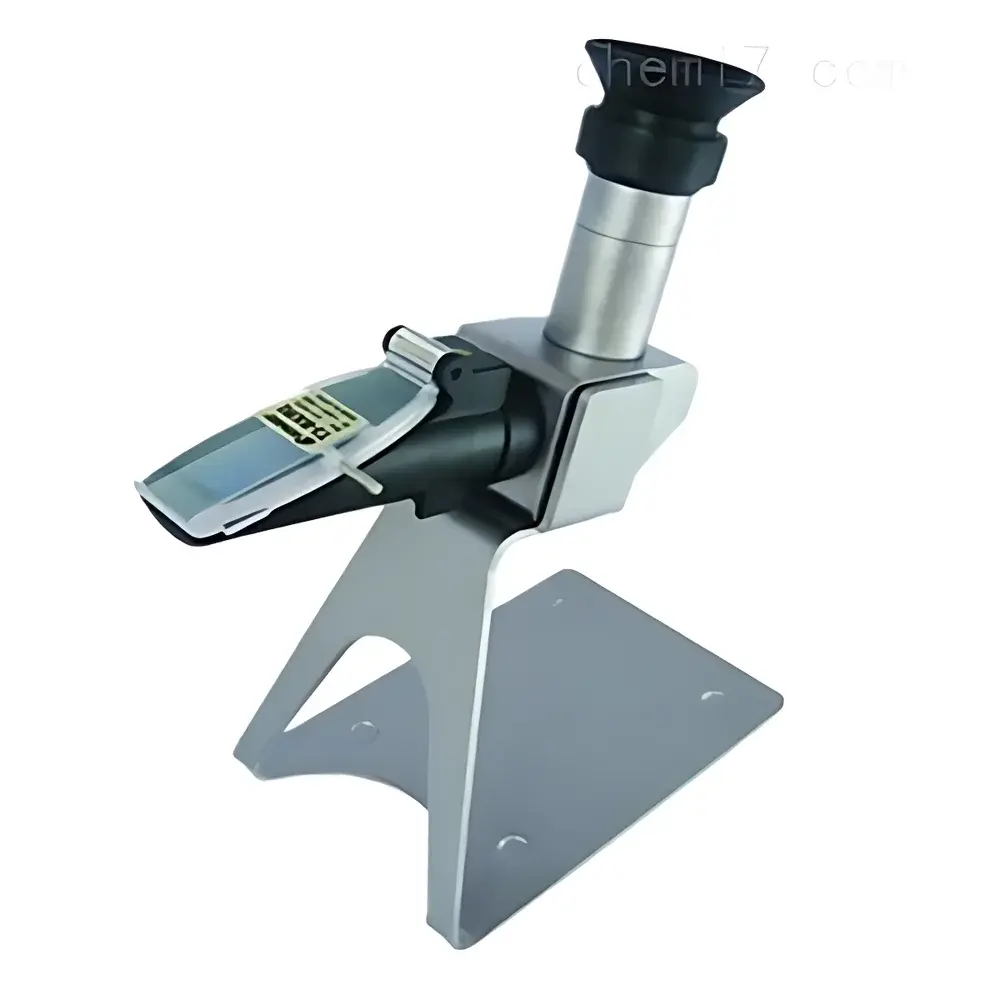

ATAGO T3-RX/RI Benchtop Digital Refractometer

Overview

The ATAGO T3-RX/RI Benchtop Digital Refractometer is a compact, precision optical instrument engineered for reliable measurement of refractive index (RI) and Brix concentration in liquid samples. Based on the fundamental principle of total internal reflection at the prism–sample interface, the device determines RI by detecting the critical angle shift induced by sample composition. This optical method provides rapid, non-destructive, and operator-independent quantification—eliminating manual handling typical of handheld units. Designed specifically for laboratory and quality control environments where reproducibility and ergonomic consistency are essential, the T3-RX/RI operates as a fixed-position benchtop unit with integrated temperature control to minimize thermal drift and ensure measurement stability per ISO 21748 and ASTM D1218 standards.

Key Features

• Fixed benchtop configuration eliminates hand-held variability and improves inter-operator repeatability
• Integrated Peltier-based temperature control system maintains sample prism at user-selectable setpoints (typically 20 °C or 25 °C), conforming to standard test conditions defined in USP and AOAC Official Methods
• Dual-scale digital display simultaneously shows Brix (%) and refractive index (RI) with resolution of 0.2% Brix and 0.0005 RI units
• Ergonomic optical path design positions eyepiece and sample stage at optimal viewing distance, reducing operator fatigue during extended use
• Spring-loaded daylight plate with integrated handle ensures consistent sample coverage and light shielding—critical for ambient-light-insensitive measurements
• Stainless-steel sample prism and corrosion-resistant housing support long-term reliability in QC labs handling aqueous, acidic, or mildly alcoholic solutions

Sample Compatibility & Compliance

The T3-RX/RI is validated for use with clear, low-viscosity liquids including sucrose solutions, fruit juices, soft drinks, pharmaceutical syrups, coolant concentrates, and battery electrolytes. It is not intended for opaque, highly viscous, or particulate-laden samples without prior filtration. The instrument complies with general requirements for optical metrology equipment under JIS K 0064 and supports GLP documentation workflows through traceable calibration using certified NIST-traceable sucrose standards (e.g., 5.0%, 10.0%, and 15.0% w/w). Its stable mechanical architecture and temperature-regulated prism meet the environmental robustness expectations outlined in ISO/IEC 17025 accredited laboratories.

Software & Data Management

While the T3-RX/RI operates as a standalone instrument with no embedded data logging or USB connectivity, its analog/digital hybrid architecture enables seamless integration into existing LIMS or ELN systems via optional RS-232 output (available on select firmware versions). Users may connect the unit to external PCs using ATAGO’s proprietary communication protocol for automated result capture, timestamped reporting, and audit trail generation—supporting FDA 21 CFR Part 11 compliance when paired with validated software and access-controlled user accounts. Calibration records, measurement history, and temperature logs can be manually archived in accordance with internal SOPs for GMP and ISO 9001 audits.

Applications

• Quality assurance of incoming raw materials (e.g., sugar syrups, glycerin, propylene glycol)
• In-process monitoring of beverage blending consistency in food & beverage manufacturing
• Concentration verification of antifreeze coolants and industrial cleaning agents
• Stability testing of ophthalmic and oral liquid dosage forms in pharmaceutical development
• Educational demonstration of optical dispersion principles and solution thermodynamics in university chemistry labs

FAQ

Does the T3-RX/RI require periodic recalibration?

Yes—calibration should be performed before each analytical session using distilled water (RI = 1.3330 at 20 °C) and a certified sucrose standard, following ATAGO’s documented procedure.
Can the instrument measure samples below 0 °C or above 40 °C?

No—the built-in temperature control operates within a regulated range of 10–40 °C; measurements outside this span require external thermostatic control and are not covered by factory specifications.
Is the prism surface resistant to ethanol or acetone?

The sapphire-coated glass prism exhibits high resistance to ethanol and dilute acetone, but prolonged exposure to strong organic solvents is discouraged; cleaning must follow ATAGO-recommended protocols using lens tissue and mild isopropanol.
What is the minimum sample volume required?

Approximately 0.3 mL is sufficient to fully cover the prism surface; excess volume is contained by the sample stage geometry and does not affect measurement accuracy.
How does the T3-RX/RI differ from ATAGO’s PAL series handheld refractometers?

Unlike PAL models, the T3-RX/RI removes operator-dependent positioning and thermal influence from hand contact, delivering higher inter-day reproducibility and compliance readiness for regulated environments.
