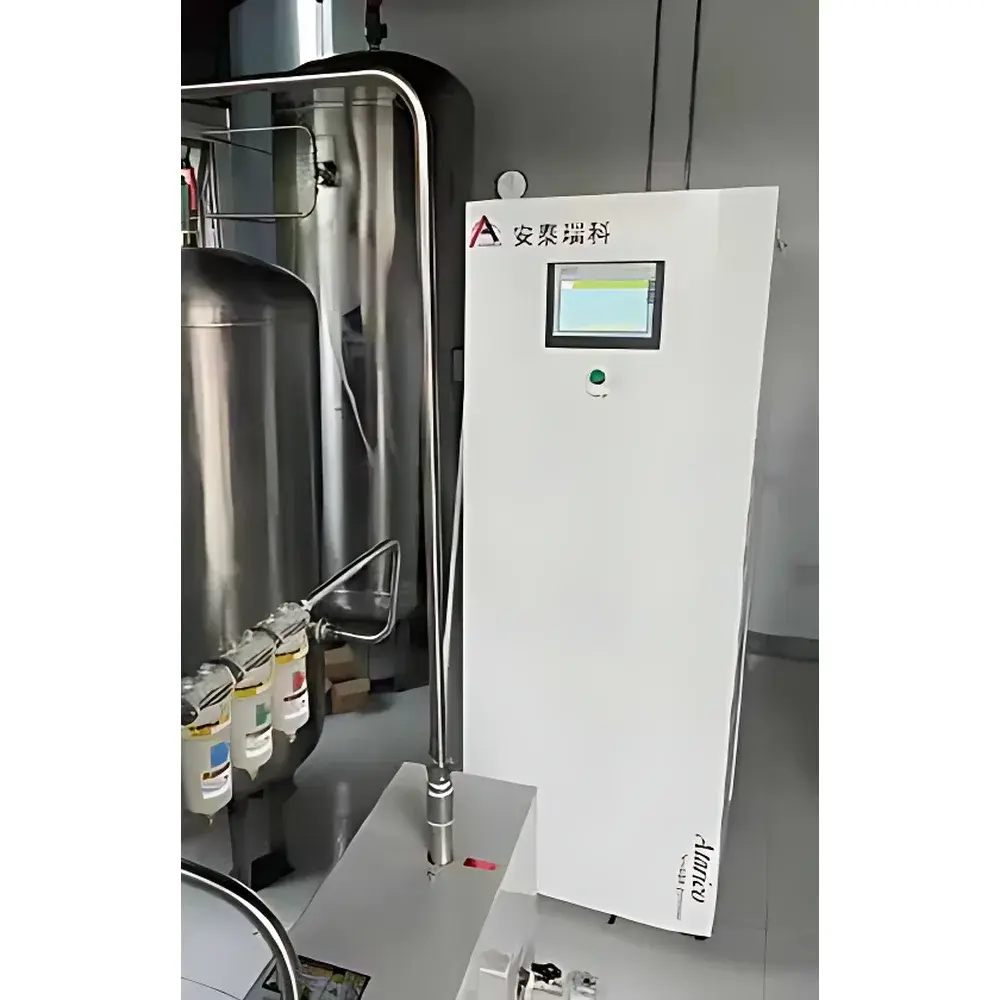

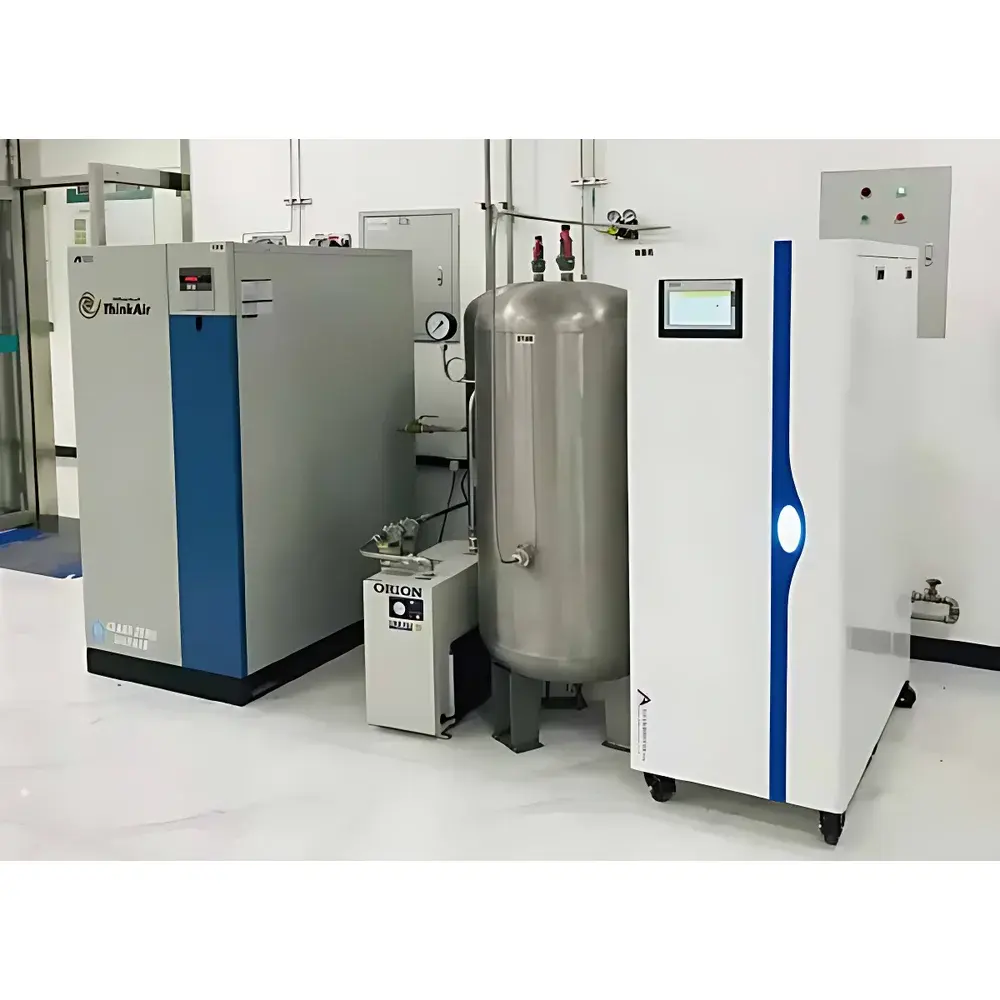

ATARICO AGS-D120 Customizable Nitrogen Generator System

Overview

The ATARICO AGS-D120 is a modular, user-configurable nitrogen generator engineered for laboratories and analytical facilities requiring precise, reliable, and scalable on-site nitrogen supply. It employs Pressure Swing Adsorption (PSA) technology with high-efficiency carbon molecular sieve (CMS) beds to separate nitrogen from compressed ambient air. Unlike fixed-output gas cylinders or generic generators, the AGS-D120 serves as the foundational unit of ATARICO’s customizable gas station architecture—designed to integrate seamlessly with diverse analytical workflows including LC-MS, GC-MS, FTIR, UV-Vis spectrometry, nitrogen blow-down evaporators, and inert atmosphere glove boxes. Its core design prioritizes operational stability under variable load conditions, minimal maintenance intervention, and long-term CMS bed longevity through optimized cycle timing and pressure management.

Key Features

• Modular scalability: The AGS-D120 is configurable as a standalone unit or as part of a multi-unit gas station supporting total flow outputs up to 20,000 L/min—enabling deployment across single-instrument labs and large-scale GLP-compliant testing centers.
• Wide purity range: Delivers nitrogen at 99.0% to 99.995% purity (v/v), validated via built-in electrochemical oxygen sensor and optional paramagnetic or laser-based analyzers—meeting ISO 8573-1 Class 2:2:2 (for oil-free, particle-free, moisture-controlled gas) when paired with appropriate filtration and drying modules.
• Intelligent process control: Equipped with an industrial-grade 7-inch capacitive touchscreen HMI featuring multi-level password protection, real-time monitoring of inlet pressure, CMS bed differential pressure, O₂ residual concentration, dew point (if equipped), and compressor runtime. All parameters are logged with timestamped audit trails compliant with FDA 21 CFR Part 11 requirements when integrated with ATARICO’s optional software package.
• Energy-optimized operation: Adaptive compressor control adjusts motor speed and duty cycle in response to real-time demand—reducing energy consumption by up to 35% compared to fixed-speed systems during partial-load operation. Supports integration with building management systems (BMS) via Modbus RTU/TCP.
• Comprehensive service framework: Includes factory-engineered site assessment, gas distribution schematic design, certified installation (per ISO 8573-7 and CGA G-4.1 guidelines), commissioning verification, and optional annual preventive maintenance contracts covering CMS regeneration validation, filter replacement, leak integrity testing, and firmware updates.

Sample Compatibility & Compliance

The AGS-D120 is compatible with all major laboratory instrumentation requiring instrument-grade nitrogen, including but not limited to Waters, Thermo Fisher, Agilent, Shimadzu, and PerkinElmer mass spectrometers; gas chromatographs; nitrogen-assisted sample preparation systems; and optical spectroscopy platforms. Its output meets ASTM D6349 (Standard Practice for Determining Purity of Gaseous Nitrogen), USP (Nitrogen for Pharmaceutical Use), and ISO 8573-1:2010 Class 2 (compressed air quality) when configured with coalescing pre-filters, activated carbon post-filters, and refrigerated or desiccant dryers. Optional trace moisture and hydrocarbon monitors enable continuous compliance verification for regulated environments operating under GMP/GLP protocols.

Software & Data Management

ATARICO’s proprietary GasLink™ Control Suite (v3.2+) provides remote monitoring, alarm escalation (SMS/email), historical trend analysis, predictive CMS life estimation, and exportable CSV/Excel reports for internal QA audits. Data encryption (AES-256), role-based access control, electronic signatures, and full audit trail logging satisfy 21 CFR Part 11 Annex 11 requirements. Integration with LabVantage, STARLIMS, and Thermo SampleManager is supported via RESTful API or OPC UA interface.

Applications

• LC-MS and GC-MS mobile phase and collision gas supply
• Nitrogen purge and blanking in FTIR, Raman, and XRD systems
• Sample concentration via nitrogen blow-down (evaporative concentrators)
• Inert atmosphere maintenance in synthesis reactors and glove boxes
• Carrier and shielding gas in thermal analysis (TGA/DSC) and elemental analyzers
• Reference gas generation for calibration standards in environmental and clinical labs

FAQ

What is the expected service life of the carbon molecular sieve (CMS) under normal operating conditions?
CMS lifespan is typically 5–8 years when operated within specified pressure, temperature, and humidity limits and maintained per ATARICO’s recommended filter replacement schedule.
Can the AGS-D120 be integrated into an existing lab gas distribution network?
Yes—custom manifold interfaces, stainless steel 316L piping layouts, and pressure-reducing valve banks are designed during the pre-installation engineering phase.
Is dew point monitoring included as standard?
Dew point sensing is optional and available in ranges from –40 °C to –80 °C (ISO 8573-1 Class 2–4), selected based on downstream instrument sensitivity requirements.
Does ATARICO provide validation documentation (IQ/OQ/PQ)?
Yes—fully documented qualification packages aligned with ASTM E2500 and EU Annex 15 are available upon request and executed by certified field engineers.
How does the system handle sudden demand spikes, such as simultaneous startup of multiple LC-MS instruments?
The AGS-D120 incorporates buffer tank sizing and adaptive PSA cycle modulation to maintain stable outlet pressure and purity during transient loads—verified during factory performance testing per ISO 8573-1 Annex B.
