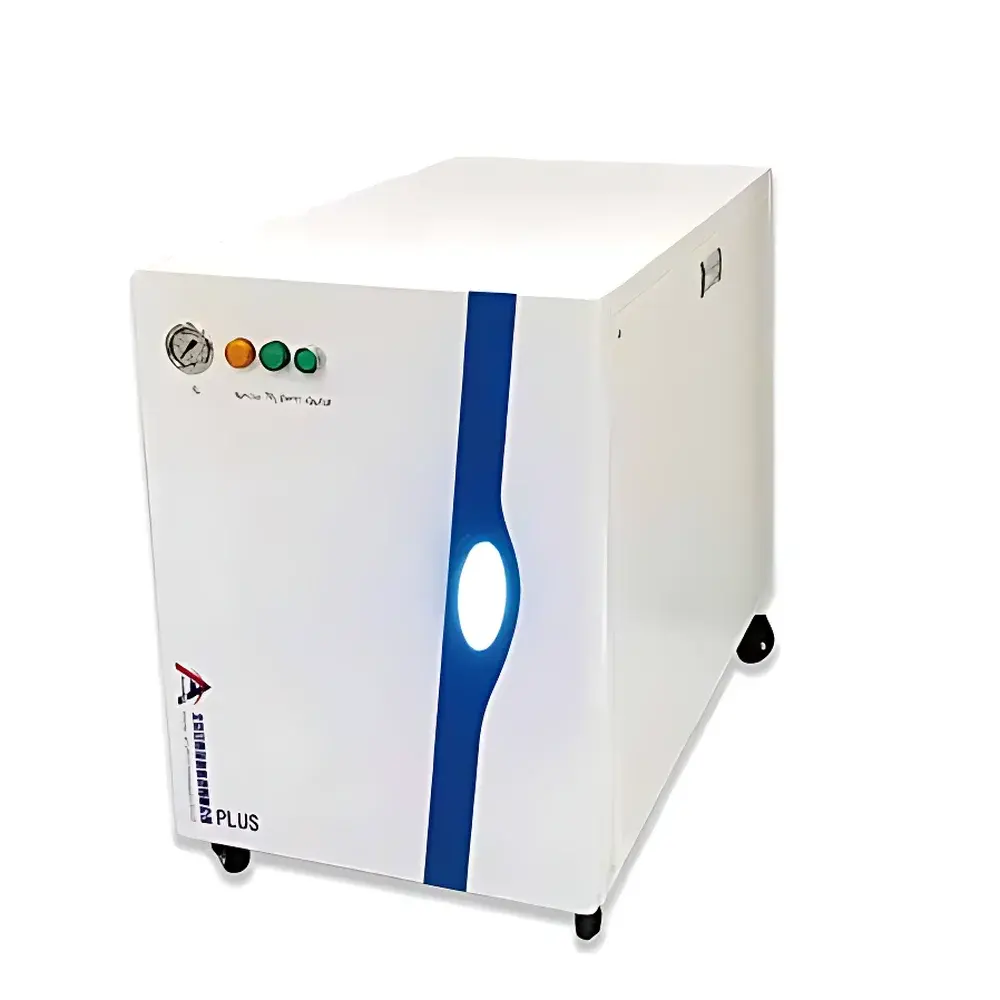

ATARICO ATEN-P601 Advanced PSA Nitrogen Generator with Integrated Dry Air Supply

Overview

The ATARICO ATEN-P601 is an engineered dual-gas laboratory nitrogen generator designed specifically for high-demand LC-MS, GC-MS, and other analytical instrumentation requiring both high-purity nitrogen and instrument-grade dry air. It employs a robust, multi-chamber pressure swing adsorption (PSA) architecture utilizing high-efficiency zeolite molecular sieve beds to separate nitrogen from compressed ambient air. Unlike membrane-based systems, the ATEN-P601 achieves superior adsorption efficiency—25–40% higher per unit flow—due to optimized bed geometry, precise cycle timing, and thermal isolation of the integrated oil-free scroll compressor. This design minimizes heat transfer to the adsorption columns, ensuring consistent purity output across variable load conditions and extending molecular sieve service life beyond 20,000 operational hours. The system delivers nitrogen at adjustable purity (95–99.5%) and maintains a certified dew point of −40 °C to −45 °C, meeting ISO 8573-1 Class 2.2.1 requirements for compressed gas quality in analytical laboratories.

Key Features

• Integrated dual-gas architecture: Simultaneous on-demand generation of nitrogen (50 L/min @ 101 psi) and dry air (50 L/min @ 101 psi), eliminating need for separate air compressors or desiccant dryers.
• Multi-cavity thermal management: Compressor, adsorption towers, and air-drying modules are physically isolated to suppress cross-thermal interference—reducing noise to 56 dB(A) and extending component longevity.
• Full PLC-based process control: Multi-point temperature monitoring, real-time pressure regulation, auto-cycle optimization, and built-in leakage detection ensure stable operation and compliance with IEC 61000-6-2/6-4 EMC standards.
• Energy-optimized PSA sequencing: Adaptive valve timing and staged depressurization reduce power consumption by up to 18% compared to conventional PSA units of equivalent capacity—supporting institutional carbon reduction goals and lowering TCO.
• Modular quick-connect interface: Standardized 6 mm push-to-connect nitrogen outlet and 10 mm condensate drain port simplify integration into existing lab gas networks; no tools required for installation.

Sample Compatibility & Compliance

The ATEN-P601 is validated for continuous operation with electrospray ionization (ESI), atmospheric pressure chemical ionization (APCI), and electron ionization (EI) sources. Its nitrogen stream meets ASTM D6352–22 specifications for residual oxygen (< 50 ppm) and moisture content (≤ 1 ppmv H₂O), satisfying critical requirements for LC-MS mobile phase sparging, GC carrier gas, and instrument purge applications. All internal wetted parts conform to USP Class VI biocompatibility standards. The system supports GLP/GMP workflows through optional audit-trail logging (via RS-485/Modbus RTU) and complies with FDA 21 CFR Part 11 when paired with validated third-party data acquisition software. CE marking (2014/30/EU, 2014/35/EU) and RoHS 2011/65/EU certification are factory-installed.

Software & Data Management

While the ATEN-P601 operates as a standalone plug-and-play unit, it includes a standard RS-485 serial interface compatible with Modbus RTU protocol for remote status monitoring (pressure, purity estimate, temperature, runtime hours, alarm codes). Optional Ethernet gateway modules enable integration into LabVantage, STARLIMS, or custom SCADA environments. All operational parameters—including cycle count, cumulative runtime, and compressor duty cycles—are stored in non-volatile memory for maintenance planning and regulatory review. No proprietary software license is required for basic operation or diagnostics.

Applications

• LC-MS nitrogen supply for ESI/APCI source gas, nebulizer gas, and curtain gas—eliminating cylinder logistics and purity drift.
• Dry air provision for pneumatic sample introduction systems, autosampler purge lines, and optical chamber purging in ICP-MS and TOF instruments.
• GC carrier gas (for non-MS detectors) and detector make-up gas where ultra-low moisture and hydrocarbon content are essential.
• Blank preparation and solvent evaporation in QA/QC labs requiring inert, particle-free atmosphere.
• Long-term unattended operation in 24/7 core facilities, including academic mass spectrometry centers and contract research organizations (CROs).

FAQ

Does the ATEN-P601 require external cooling or ventilation?

No. The multi-chamber thermal isolation design enables safe operation in standard lab environments (5–35 °C, ≤80% RH) without auxiliary cooling. Maintain ≥30 cm clearance around rear and top panels for natural convection.

How often does the molecular sieve require replacement?

Under typical lab usage (8–12 hrs/day), the zeolite beds are rated for ≥5 years or 20,000 operating hours—subject to inlet air quality. Annual preventive maintenance includes coalescing filter replacement and dew point verification.

Can nitrogen purity be adjusted in real time during operation?

Yes. Purity is continuously tunable via front-panel keypad or Modbus command (95–99.5%). Flow rate automatically adjusts to maintain set purity per ISO 8573-1 mass balance principles.

Is the dry air output oil-free and particle-free?

Yes. Integrated coalescing + activated carbon + desiccant filtration ensures ≤0.01 µm particulates, zero oil aerosols, and dew point ≤−40 °C—meeting ISO 8573-1 Class 2.2.1 for instrument air.

What safety certifications does the unit carry?

CE (EMC Directive 2014/30/EU, LVD Directive 2014/35/EU), RoHS 2011/65/EU, and factory-certified IP20 ingress protection. Electrical safety conforms to IEC 61010-1:2010 Ed.3 for laboratory equipment.
