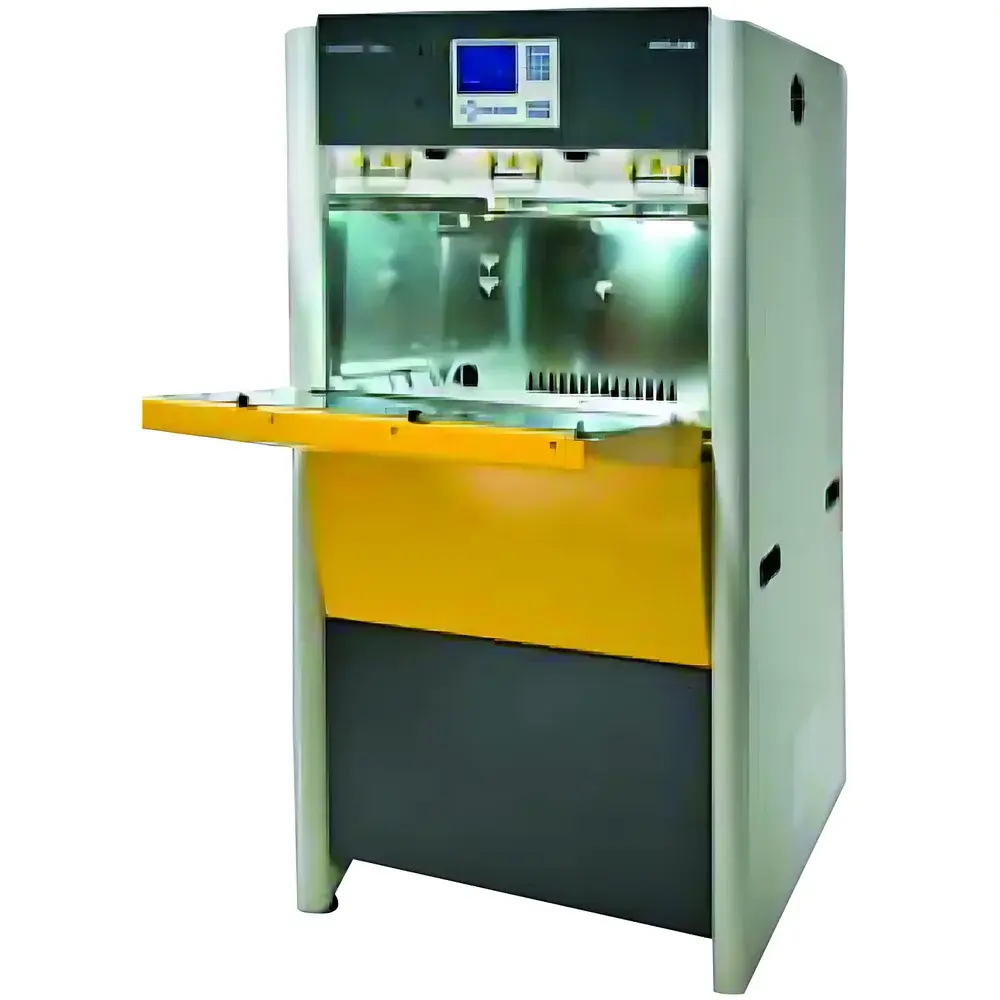

Atlas SUNTEST XXL+ ST Xenon Arc Weathering Test Chamber

Overview

The Atlas SUNTEST XXL+ ST is a high-capacity, air-cooled xenon arc weathering test chamber engineered for accelerated exposure testing of automotive interior and exterior materials under controlled spectral irradiance, temperature, and humidity conditions. It operates on the principle of xenon arc radiation simulation—reproducing full-spectrum sunlight (290–800 nm) with precise spectral filtering to match standardized daylight or window-filtered irradiance profiles. Its core function is to accelerate photodegradation, thermal aging, and moisture-induced degradation mechanisms in polymers, coatings, textiles, and composites—enabling predictive lifetime assessment per internationally recognized automotive durability protocols. Designed specifically for compliance with SAE J2412 (interior) and SAE J2527 (exterior), the instrument delivers reproducible, traceable, and auditable exposure conditions essential for R&D validation, supplier qualification, and regulatory submission workflows in Tier-1 and OEM environments.

Key Features

• Large-format horizontal exposure plane (740 × 368 mm, 2925 cm²) optimized for 3D automotive components—including door panels, dashboards, trim, and lighting housings—without requiring sample repositioning.
• Triple 1700 W air-cooled xenon lamps with integrated aluminum reflectors, quartz IR-reflective filters, and modular filter slots enabling rapid configuration for daylight (ISO 4892-2 A), window-glass (SAE J2527), or extended UV (280 nm cut-off) spectra.
• Independent dual-temperature control: simultaneous regulation of Chamber Temperature (CHT) and Black Standard Temperature (BST), with programmable differential setpoints to emulate real-world thermal gradients across material surfaces.
• High-uniformity irradiance distribution (±15% across exposure area per ISO 4892-2 Annex B), eliminating manual sample rotation and ensuring statistical validity of comparative aging studies.
• Integrated ultrasonic humidification system with 60 L internal reservoir and condensate management, supporting dynamic RH control during light/dark cycles per SAE J2412/J2527 humidity profiles.
• Front-and-rear spray nozzles with 5° tilted test plane and gravity-assisted drainage—enabling realistic wet/dry cycling without external plumbing or manual intervention.
• 7-inch industrial-grade touchscreen interface with 13 language options, preloaded SAE J2412/J2527 test templates, and intuitive parameter mapping for irradiance (300–400 nm or 340 nm), BST, CHT, and humidity tolerances.

Sample Compatibility & Compliance

The SUNTEST XXL+ ST accommodates flat specimens up to 740 × 368 mm and complex 3D parts via its perforated sliding sample tray (79 × 37 cm) with 30 × 25 mm access ports—allowing integration of external thermocouples, spectral radiometers, or surface hygrometers directly into the exposure field. All operational parameters—including irradiance setpoint, BST/CHT ramp rates, spray timing, and humidity dwell—are fully programmable per test stage (up to 12 stages per method, 10 methods stored internally). The system complies with SAE J2412 (Interior Materials—Accelerated Exposure Using Controlled Irradiance Xenon-Arc Equipment), SAE J2527 (Exterior Materials—Accelerated Exposure Using Controlled Irradiance Xenon-Arc Equipment), ISO 4892-2 (Plastics—Methods of Exposure to Laboratory Light Sources—Xenon-Arc), and ASTM G155 (Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials). Calibration traceability is supported via SunCal BB 300–400 sensors (NIST-traceable irradiance and BST calibration), meeting GLP/GMP documentation requirements for audit-ready test records.

Software & Data Management

Internal data logging captures all real-time parameters—including irradiance, BST, CHT, RH, lamp voltage/current, and spray status—at user-defined intervals (1 s to 60 min resolution). Logged data is stored on an embedded flash memory chip and exportable via SD card or Ethernet connection using standard CSV or XML formats. Optional XenoTouch software extends functionality with three certified modules: “Remote” enables secure off-site test initiation, parameter adjustment, and status monitoring via HTTPS; “Email Service” triggers automated alerts upon test completion, fault detection, or deviation from tolerance bands; “Online Monitoring” provides live dashboard visualization of all sensor outputs, historical trend overlays, and alarm history—fully compatible with enterprise LIMS and MES platforms. All software modules comply with FDA 21 CFR Part 11 requirements for electronic records and signatures, including audit trails, user role-based access control, and immutable data archiving.

Applications

This instrument serves as a primary tool for material qualification in global automotive supply chains. Typical applications include: evaluating UV stability of polypropylene (PP) and thermoplastic olefin (TPO) interior trims under SAE J2412; assessing gloss retention and color shift in polyurethane (PU) dashboards and PVC instrument panels; validating weather resistance of ABS, PC/ABS blends, and painted aluminum grilles per SAE J2527; screening anti-UV additives in elastomeric seals and gaskets; and supporting accelerated corrosion testing of coated fasteners and brackets in combined UV/humidity/spray environments. Its large exposure area and 3D compatibility also support aerospace interior composites (per ASTM D4329), architectural sealants (ASTM C1135), and solar module encapsulants (IEC 61215-2 MQT03).

FAQ

What standards does the SUNTEST XXL+ ST support out-of-the-box?
Preconfigured test methods include SAE J2412, SAE J2527, ISO 4892-2 Cycle 1A and 1B, and ASTM G155 Method A. Custom protocols can be programmed using the built-in editor.
Can the chamber operate without active humidity control?
Yes—humidity can be disabled or set to open-loop mode; ultrasonic humidification is optional per test requirement.
Is lamp spectral output calibrated and traceable?
Yes—each lamp/filter combination is characterized using NIST-traceable SunCal BB 300–400 sensors; calibration certificates are provided with each sensor and updated annually per ISO/IEC 17025 guidelines.
How is safety ensured during extended unattended operation?
The system includes hardware interlocks for lamp overtemperature, water level, spray pressure, and door position, plus software-based fault detection with automatic shutdown and event logging.
What network security protocols are implemented for remote access?
XenoTouch uses TLS 1.2 encryption, OAuth 2.0 authentication, and configurable firewall rules; all remote sessions generate timestamped audit entries compliant with ISO 27001 information security controls.
