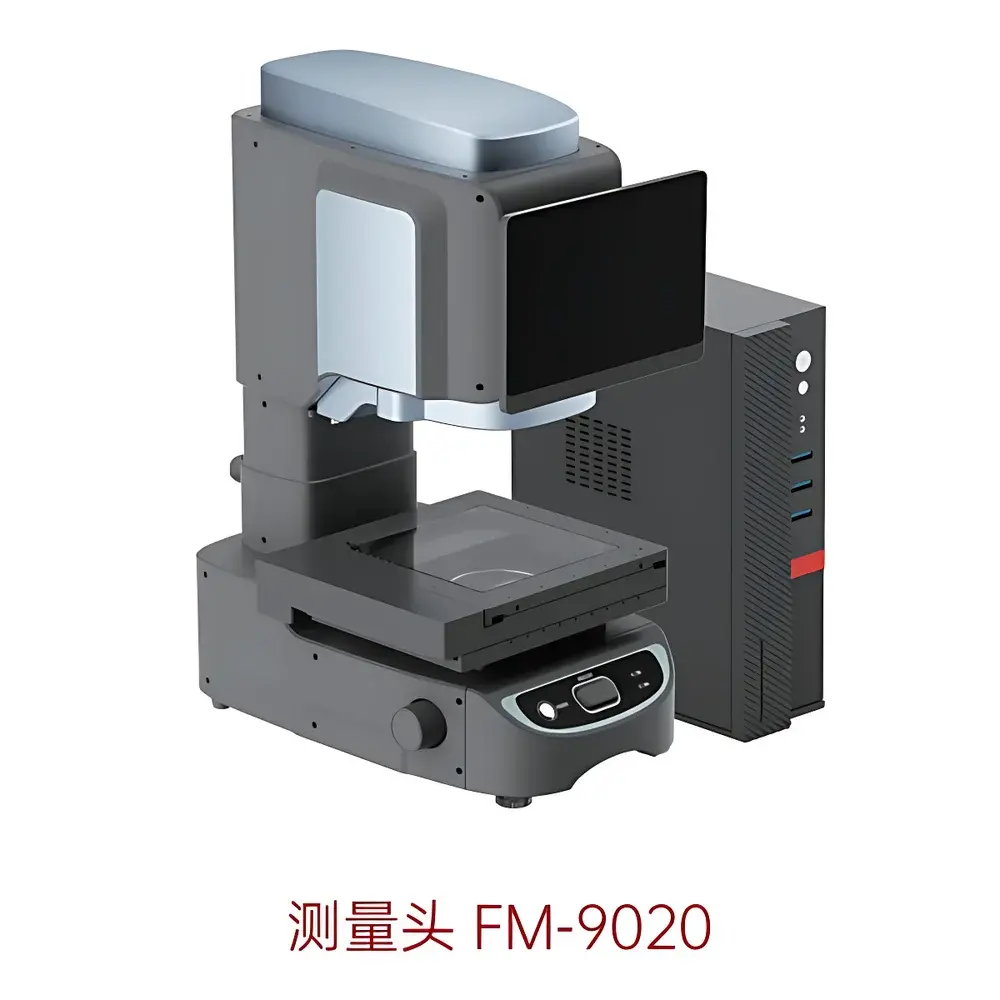

Atometrics FM-9020 Flash Measurement System – High-Precision One-Touch Image Metrology Instrument

Overview

The Atometrics FM-9020 Flash Measurement System is an advanced one-touch image metrology instrument engineered for high-throughput, high-reproducibility geometric inspection of precision mechanical components. Based on telecentric optical imaging and sub-pixel edge detection algorithms, the system eliminates manual intervention in focusing, lighting adjustment, and feature point selection—core sources of operator-dependent variability in conventional 2D vision measurement systems. Unlike traditional projection-based or stereo-microscope setups requiring part alignment to a datum, the FM-9020 enables arbitrary placement of parts within its field of view, with automated global preview, real-time multi-part recognition, and full-field calibration ensuring consistent metrological traceability across the entire imaging plane. Its dual-telecentric lens architecture—featuring high numerical aperture (NA) and ultra-low distortion (<0.01%)—ensures uniform magnification and minimal perspective error from edge to center, enabling true metrological-grade measurements without Z-axis dependency.

Key Features

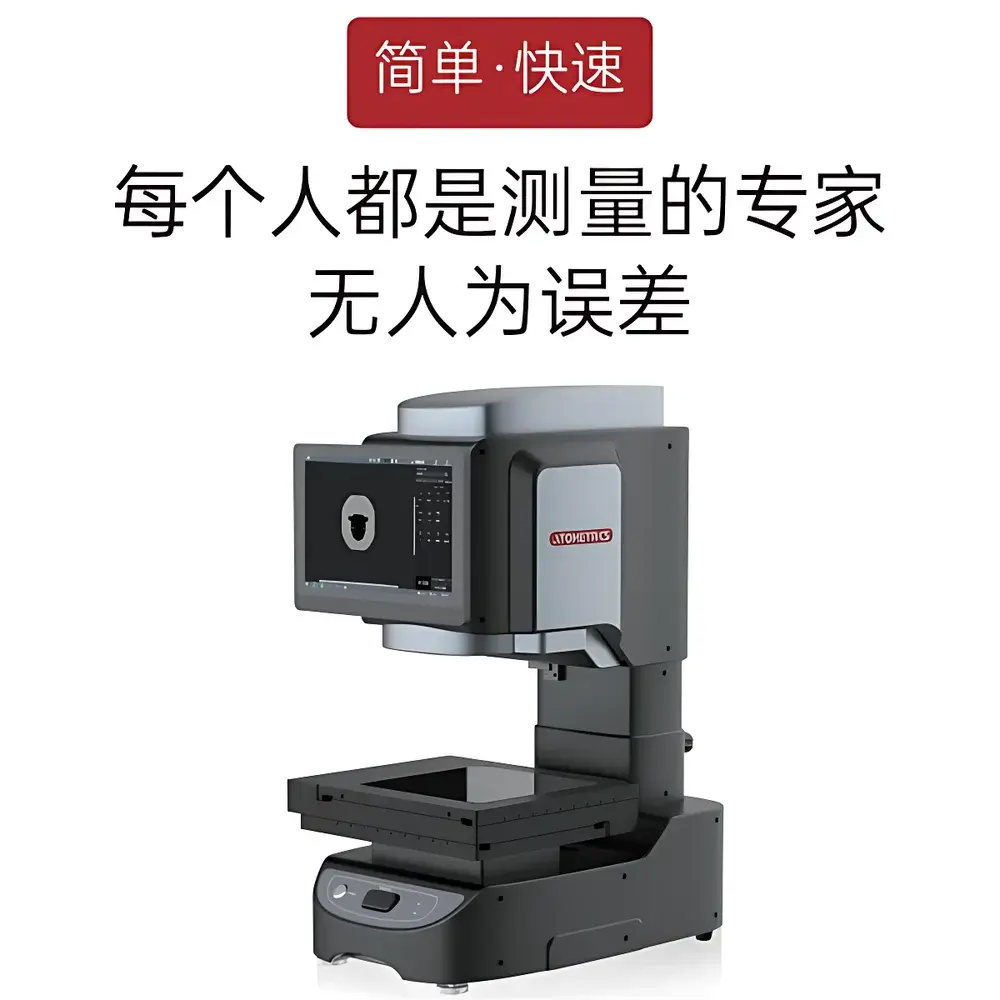

• Fully automated operation: One-button initiation triggers auto-focus, adaptive illumination control (transmission + ring + profile + slit ring), and intelligent edge acquisition—no operator training required.

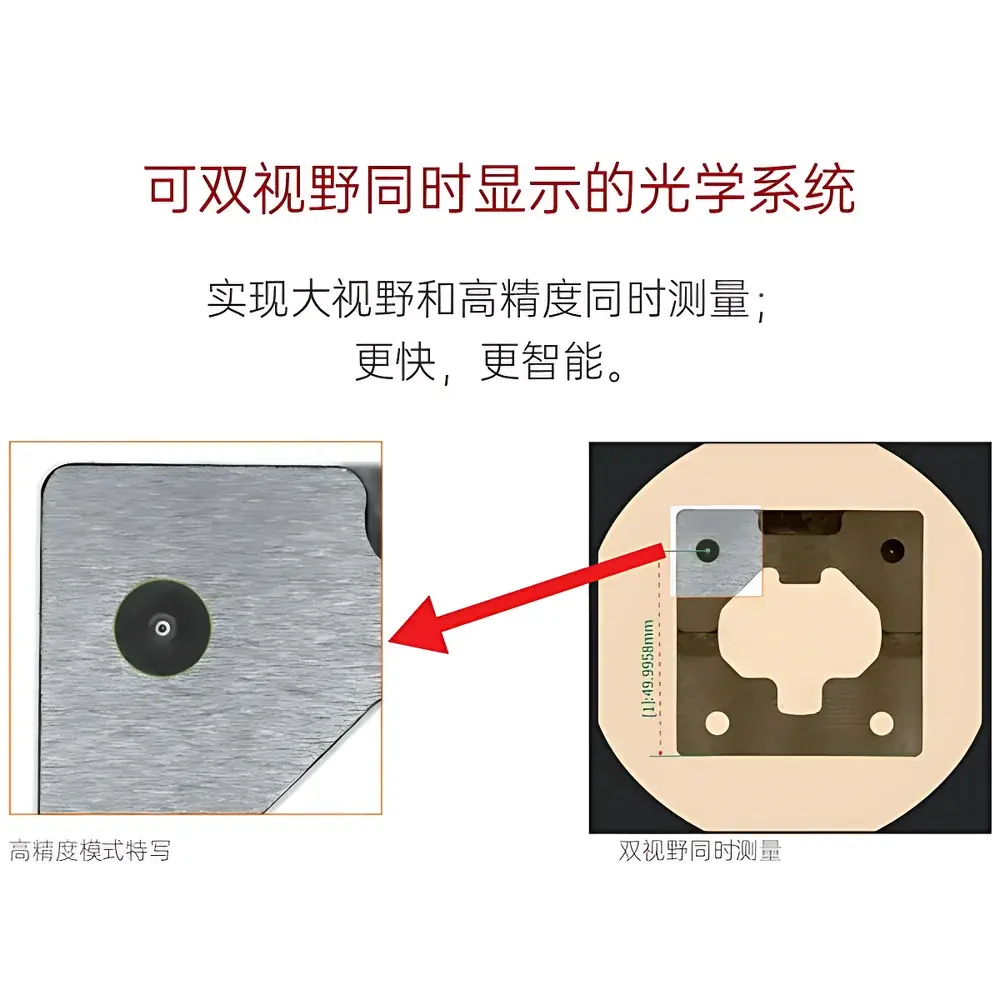

• Dual-field optical system: Simultaneous wide-field overview and high-magnification detail imaging enables rapid part localization followed by sub-micron dimensional verification—reducing cycle time by up to 65% versus sequential zoom workflows.
• Sub-pixel edge detection engine: Proprietary algorithm subdivides each camera pixel into 200 discrete interpolation points (0.005-pixel resolution), combined with robust edge-fitting and outlier suppression to reject burrs, surface noise, and machining artifacts.

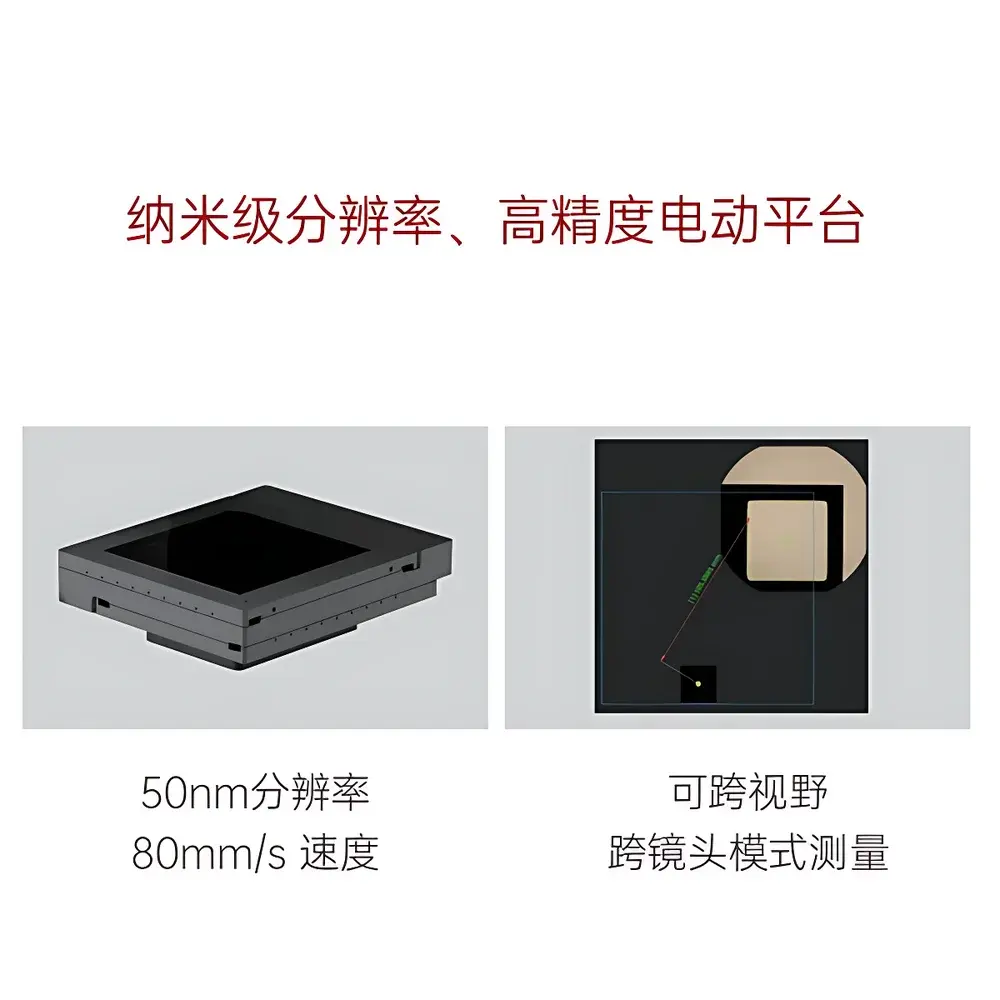

• Nanometer-grade motion control: Motorized XY stage with 50 nm encoder resolution and 80 mm/s maximum speed supports cross-field, multi-lens, and multi-part measurement sequences with programmable path optimization.
• Telecentric optics certified for metrology: Dual telecentric lens design (object- and image-space telecentricity) ensures zero parallax error and <0.01% geometric distortion across full FOV—validated per ISO 10360-7 Annex B for vision-based CMMs.

Sample Compatibility & Compliance

The FM-9020 accommodates a broad range of industrial parts including stamped metal components, CNC-turned shafts, powder metallurgy sintered parts, injection-molded plastic housings, die-cut gaskets, and precision machined fixtures. Parts are placed freely on the glass stage without fixturing or reference alignment. The system complies with ISO 15530-3 (calibration using calibrated workpieces), ISO 10360-7 (performance verification of vision measuring systems), and supports audit-ready documentation aligned with GLP and GMP requirements. All measurement data logs include timestamped operator ID, environmental metadata (ambient temperature recorded via optional sensor), and full traceability to NIST-traceable calibration artifacts.

Software & Data Management

The embedded Atometrics VisionMetro™ software provides intuitive programming via drag-and-drop feature templates or CAD-based auto-teach functionality. Each measurement routine stores full optical parameters (exposure time, LED intensity per channel, focus position), stage coordinates, and raw image buffers. Export formats include CSV, PDF reports with GD&T annotations, and XML for MES/SPC integration. Audit trail functionality meets FDA 21 CFR Part 11 requirements—including electronic signatures, immutable log files, and role-based access control. Optional network licensing enables centralized license management across multiple FM-9020 units in distributed manufacturing cells.

Applications

The FM-9020 delivers validated performance in high-volume quality control environments where repeatability, throughput, and operator independence are critical. Typical use cases include first-article inspection of automotive stampings (e.g., bracket hole position, flange width), in-process verification of medical device components (e.g., catheter hub concentricity, stent strut thickness), final QA of consumer electronics connectors (pitch, coplanarity, solder mask opening), and statistical process control of aerospace fasteners (thread root diameter, chamfer angle). Its ability to measure >30 features across 5–10 identical parts in under 8 seconds makes it suitable for inline deployment adjacent to CNC cells or press lines.

FAQ

Does the FM-9020 require part fixturing or manual alignment before measurement?
No. The system uses intelligent global preview and automatic part count detection to locate and segment all placed parts within the field of view—eliminating the need for jigs, datums, or manual positioning.
How is measurement uncertainty verified and maintained over time?
Uncertainty is validated using certified gauge blocks and step gauges per ISO 15530-3. The system performs daily self-calibration routines referencing built-in thermal-stable ceramic calibration targets; results are logged and exportable for internal audit.
Can the FM-9020 integrate with existing factory automation infrastructure?
Yes. It supports Ethernet/IP, Modbus TCP, and OPC UA protocols for bidirectional communication with PLCs and MES platforms. Trigger signals can initiate measurement cycles from external sensors or conveyors.
Is the sub-pixel edge detection algorithm validated against international standards?
Yes. Algorithm performance was independently verified per VDI/VDE 2634 Part 2 (optical 3D measuring systems) using calibrated edge targets, confirming effective resolution beyond native pixel pitch and repeatability of ±0.3 µm at 95% confidence.
What maintenance is required for long-term accuracy retention?
Annual recalibration by Atometrics-certified service engineers is recommended. No user-serviceable optical or mechanical components exist—the system’s sealed optical path and frictionless linear stages minimize drift and contamination-related degradation.
