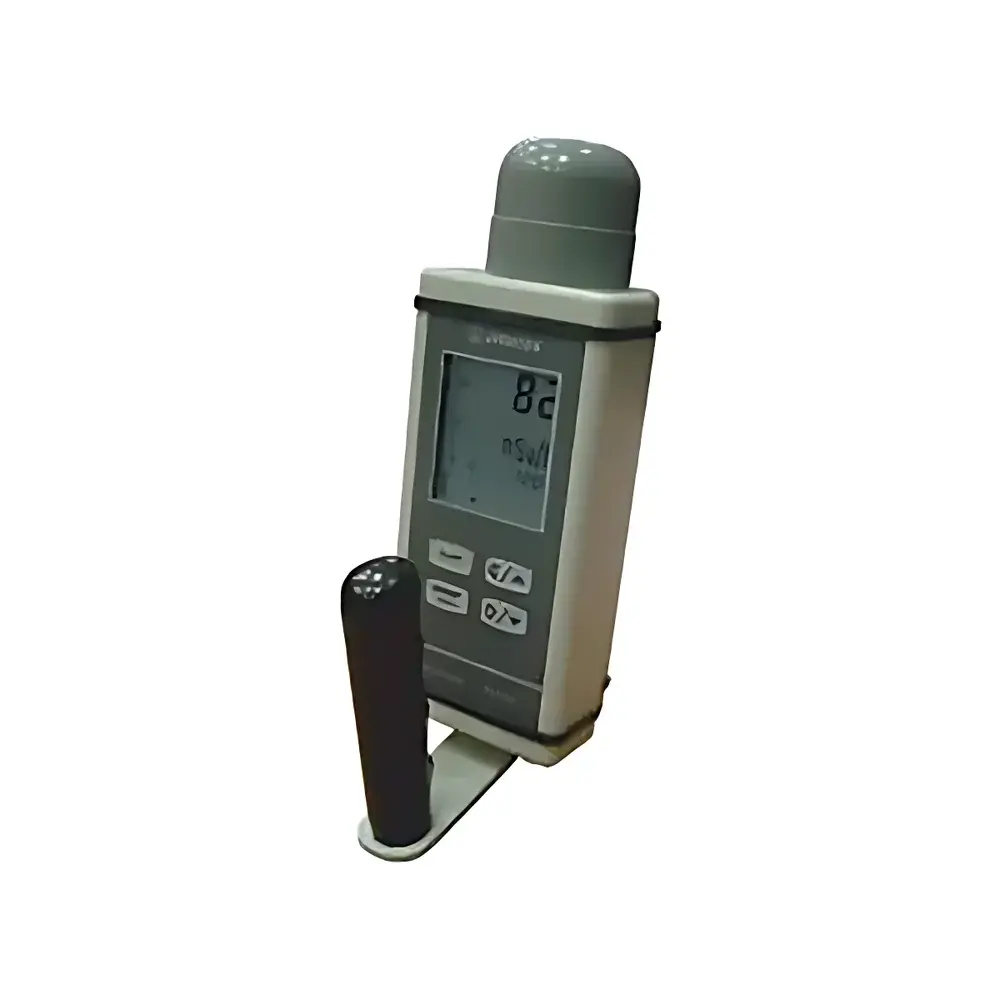

ATOMTEX AT1121 Portable X- and γ-Ray Radiation Detector

Overview

The ATOMTEX AT1121 is a portable, microprocessor-controlled radiation detector engineered for reliable measurement of ambient dose equivalent H*(10) from X-ray and gamma-ray fields under continuous, short-term, and pulse exposure conditions. Designed in accordance with IEC 60846-1:2014 and compliant with CISPR 22:1997 (EMC) and IEC 61000-4-2/4-3 standards, the instrument employs a plastic scintillation detector doped with heavy metal compounds (30 × 15 mm active volume), delivering rapid response and broad spectral sensitivity across 15 keV to 10 MeV. Its pulse detection capability—optimized for transient events as brief as 10 ns (in compatible configurations)—supports applications in radiological emergency response, industrial radiography, and medical physics QA where time-resolved dose assessment is critical. Unlike reference-source-dependent instruments, the AT1121 integrates an internal LED-based stabilization system that ensures long-term calibration integrity without periodic recalibration against radioactive check sources.

Key Features

• Triple-mode operation: continuous, short-term (≥30 ms), and pulse radiation detection (via firmware-compatible variants)
• Integrated LED-based detector stability monitoring—eliminates need for external reference sources during field use
• Adjustable alarm thresholds via front-panel keypad; simultaneous audible and visual alerts upon exceedance
• Backlit LCD display with real-time H*(10) rate, accumulated dose, and operational status indicators
• Three power options: rechargeable 6 V battery (≥12 h runtime), AC 220 V adapter, or external DC 12 V supply
• Ruggedized housing rated IP54 for dust and water resistance, enabling deployment in demanding outdoor or industrial environments
• Onboard memory stores up to 100 measurement records with timestamp and dose-rate metadata
• RS-232 serial interface (300–19200 baud) for data export and remote configuration using included PC software

Sample Compatibility & Compliance

The AT1121 detects ionizing photons across diagnostic and industrial energy ranges—including low-energy X-rays (15 keV), ¹³⁷Cs (662 keV), and high-energy gamma rays up to 10 MeV—with energy response deviations of ±35% (15–60 keV), ±25% (60 keV–3 MeV), and ±50% (3–10 MeV) relative to ¹³⁷Cs. It also exhibits measurable sensitivity to beta radiation (3 × 10⁻⁷ μSv·h⁻¹·Bq⁻¹) and responds to bremsstrahlung fields. The instrument meets requirements for environmental monitoring per ISO 4037-3 and supports routine QA in nuclear medicine departments operating under EURATOM Directive 2013/59 and national transpositions. Its design facilitates GLP-aligned recordkeeping through timestamped internal storage and traceable serial data export—critical for audit readiness in regulated facilities.

Software & Data Management

The AT1121 interfaces with Windows-based configuration and analysis software via standard RS-232. Users can download stored measurements, configure alarm thresholds, adjust display units (nSv/h, µSv/h, mSv/h), and generate CSV-formatted reports for integration into LIMS or regulatory documentation systems. All data transfers include embedded device ID, measurement timestamps, and instrument firmware version—ensuring full traceability. While not natively 21 CFR Part 11 compliant, the software architecture supports manual audit trails and user-access logs when deployed within validated IT environments meeting GMP/GLP documentation standards.

Applications

• Radiation safety surveys in hospitals (X-ray rooms, PET/CT suites, brachytherapy control areas)
• Emergency response to orphan source incidents or transportation accidents involving radioactive materials
• Field verification of shielding integrity in nuclear power plant auxiliary buildings and research reactor facilities
• Non-destructive testing (NDT) site monitoring during industrial gamma radiography operations
• Environmental baseline studies near decommissioned nuclear sites or uranium processing facilities
• Educational laboratories requiring robust, maintenance-free detectors for hands-on radiation physics instruction

FAQ

Does the AT1121 require periodic calibration with a radioactive source?
No. Its built-in LED stabilization system continuously monitors detector gain drift, enabling stable long-term performance without reliance on external reference sources.
Can the AT1121 measure beta radiation quantitatively?
Yes—it provides qualitative detection and relative sensitivity to beta emitters, but quantitative dose estimation requires energy-specific correction factors applied post-measurement.
What is the minimum detectable pulse duration for radiation bursts?
The base AT1121 model supports short-term exposures ≥30 ms; pulse detection down to 10 ns is available only in AT1123/AT1123A variants.
Is the device suitable for outdoor use in extreme temperatures?
It operates reliably from −30 °C to +40 °C (AT1121/AT1123) or +50 °C (AT1121A/AT1123A), making it appropriate for arctic or desert field deployments.
How is data integrity ensured during transfer to a computer?
Each measurement record includes checksum-verified timestamps, device serial number, and firmware version—supporting forensic traceability in regulatory submissions.
