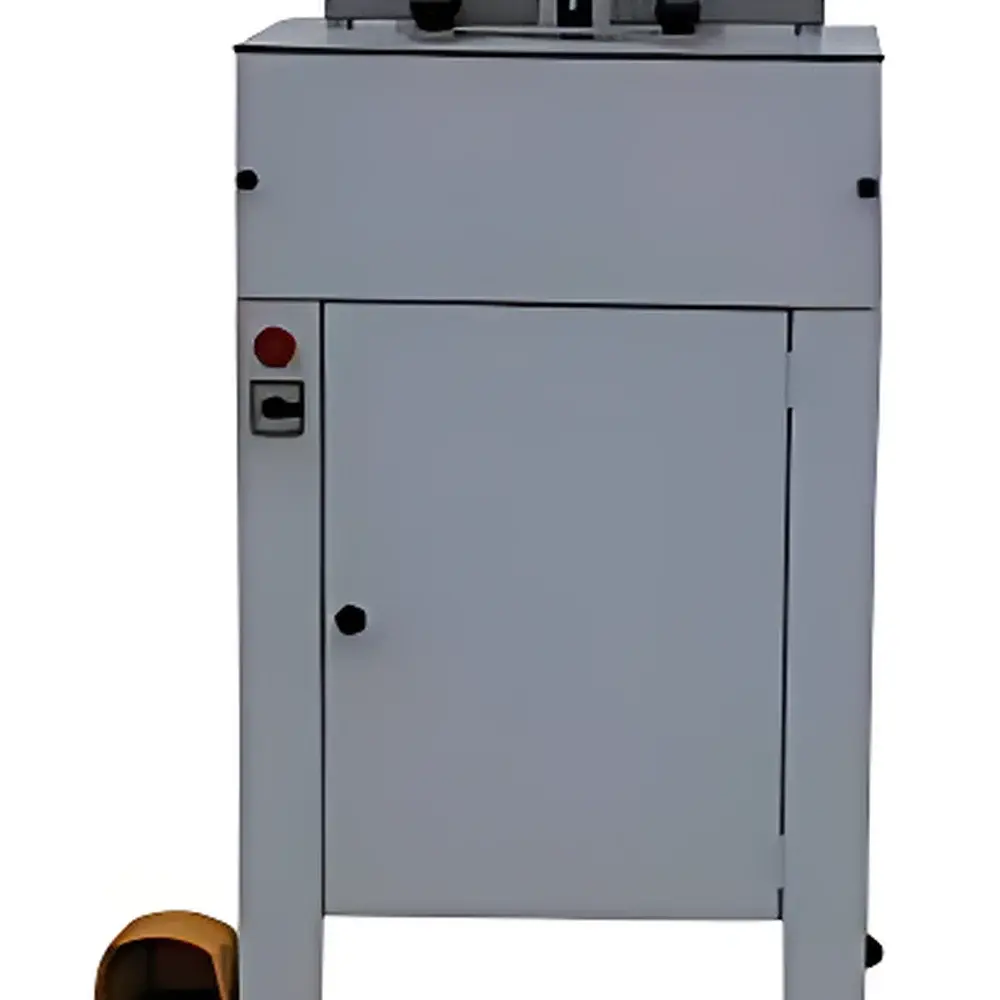

ATSFAAR mach32 Universal Sample Preparation Machine for Rubber & Plastics

Overview

The ATSFAAR mach32 Universal Sample Preparation Machine is an engineered solution designed specifically for precision sample conditioning in rubber, thermoplastic, and cross-linked polymer testing laboratories. It operates on a high-torque, brushless DC motor platform delivering stable rotational speeds up to 24,000 rpm—optimized for clean, burr-free sectioning of rigid, brittle, or highly viscous polymeric specimens without thermal degradation or microstructural distortion. Unlike conventional milling or sawing systems, the mach32 employs a controlled rotary cutting principle with dynamically balanced tooling to preserve geometric fidelity—critical when preparing curved PE or PVC pipe sections where retention of original bend radius is mandated by ISO 37, ASTM D412, or EN 60811-501 test protocols. Its floor-standing architecture integrates mechanical stability with ergonomic operator access, minimizing vibration-induced dimensional drift during high-speed material removal.

Key Features

• High-speed precision spindle system with electronic speed regulation and real-time RPM feedback for consistent cut quality across heterogeneous materials (e.g., filled EPDM, reinforced PVC, glass-fiber composites)
• Tungsten carbide cutting tool (Ø8 mm × 35 mm) certified to ISO 513 for hardness ≥1,500 HV and wear resistance under repetitive load cycles
• Maximum specimen thickness capacity of 32 mm accommodates full-section pipe wall sampling per ASTM D2122 and ISO 13950 requirements
• Integrated chip extraction system with HEPA-filtered vacuum path prevents airborne particulate dispersion and maintains Class 10,000 cleanroom compatibility
• Foot-actuated safety switch compliant with EN ISO 13850, enabling hands-free operation while enforcing two-hand control logic during setup and feed
• Modular template holder accepting interchangeable ISO/ASTM/DIN-standard dies—including dumbbell Type I–V (ISO 37), strip (ASTM D638), and ring-shaped (ISO 2285) configurations

Sample Compatibility & Compliance

The mach32 supports standardized specimen geometries required for tensile, tear, hardness, and aging evaluations across elastomeric and thermoplastic matrices. It reliably processes vulcanized rubber compounds (NR, SBR, CR), rigid PVC formulations, HDPE/LLDPE pipes, and halogen-free flame-retardant cables. All template sets conform to dimensional tolerances specified in ISO 23529:2021 (Rubber—General procedures for preparing test pieces) and ASTM D3182 (Standard Practice for Rubber—Materials, Equipment, and Procedures). The machine’s mechanical repeatability (±0.05 mm positional accuracy over 10,000 cycles) satisfies GLP documentation requirements for method validation and inter-laboratory reproducibility studies.

Software & Data Management

While the mach32 operates as a standalone electromechanical system, its operational parameters—including tool rotation count, cumulative runtime, and maintenance intervals—are logged via embedded non-volatile memory. Optional RS-485 interface enables integration into LIMS environments (e.g., LabWare, Thermo Fisher SampleManager) for audit-trail generation aligned with FDA 21 CFR Part 11 requirements. Firmware updates support traceable calibration event logging, and all template usage history is timestamped and user-ID tagged to fulfill ISO/IEC 17025 clause 7.7 (Control of equipment records).

Applications

• Preparation of dumbbell- and ring-shaped specimens from extruded rubber profiles and cured hoses
• Cross-sectional slicing of PE/PVC pressure pipes preserving native curvature for ring stiffness evaluation (ISO 1167, ASTM D1598)
• Generation of uniform-thickness plaques from injection-molded thermoplastics for melt flow index (MFI) pre-conditioning
• Sectioning of aged or weathered cable sheathing for crack propagation analysis per IEC 60811-508
• Production of standardized test coupons for dynamic mechanical analysis (DMA) and thermogravimetric (TGA) sample loading

FAQ

Is the mach32 compatible with non-circular polymer profiles such as flat belts or gaskets?
Yes—the adjustable clamping vise and low-profile template base accommodate specimens with cross-sectional heights up to 32 mm and widths up to 120 mm, provided lateral rigidity meets minimum flexural modulus thresholds (>100 MPa).
Can tungsten carbide tools be re-sharpened in-house?
No—carbide inserts are single-use per ISO 513 recommendations due to metallurgical integrity loss during grinding; replacement kits include factory-certified edge geometry verification reports.
Does the integrated chip extractor meet OSHA PEL standards for respirable crystalline silica?
Yes—the system achieves ≥99.97% particle capture efficiency for sub-10 µm aerosols when operated at nominal vacuum pressure (−2.5 kPa), validated per NIOSH Method 7602.
What documentation is supplied for IQ/OQ qualification?
Factory-issued Installation Qualification (IQ) protocol, Operational Qualification (OQ) test scripts, and as-delivered performance certificates—including motor speed linearity, positional repeatability, and vacuum flow rate verification—are included with each unit.
