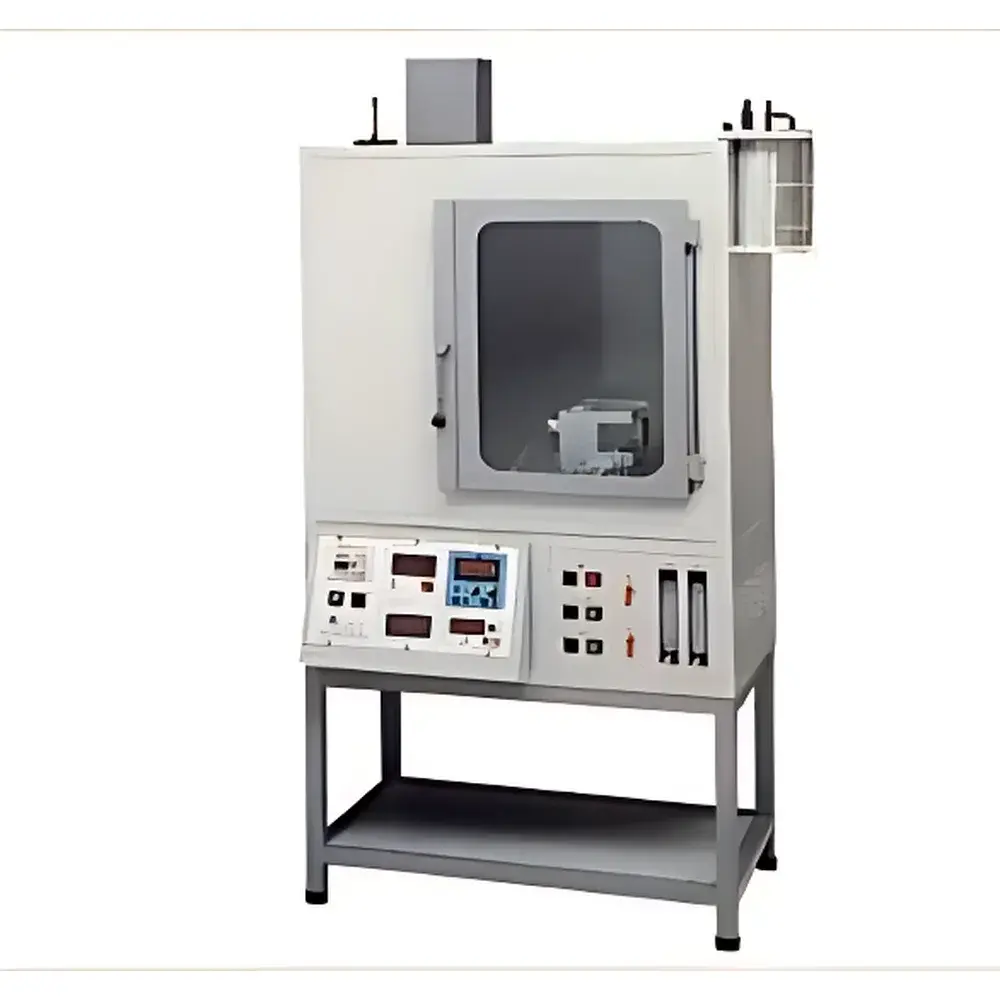

ATSFAAR Smoke Density Chamber Model SC-610

Overview

The ATSFAAR Smoke Density Chamber Model SC-610 is a rigorously engineered test apparatus designed for quantitative assessment of specific optical density (Ds) generated during the combustion or thermal decomposition of solid polymeric materials under controlled radiant and/or flaming exposure conditions. It operates on the fundamental principle of light attenuation—measuring the reduction in intensity of a collimated visible-light beam (center wavelength 550 nm) as it passes through smoke-laden air within a defined volumetric chamber. The resulting optical density is calculated per ASTM E662 Section 7.3 as Ds = log₁₀(I₀/I), where I₀ is incident light intensity and I is transmitted intensity. This metric directly correlates with smoke obscuration potential, a critical fire safety parameter for interior finishes, cable jacketing, transportation composites, and building insulation materials. The SC-610 conforms to internationally recognized fire-test standards including ASTM E662 (Standard Test Method for Specific Optical Density of Smoke Generated by Solid Materials), NFPA 258-T, BS 6401, and ATS 1000.001—ensuring data compatibility for regulatory submissions, product certification (e.g., UL 94, EN 45545-2), and material qualification under ISO/IEC 17025-accredited laboratories.

Key Features

• Corrosion-resistant stainless-steel chamber construction (914 × 610 × 614 mm internal volume) with quartz observation windows and sealed optical path alignment
• Programmable radiant heat source: 900 W electric furnace with closed-loop irradiance control (range: 0–2.5 W/cm²), calibrated traceably to NIST-traceable radiometers
• Dual-mode combustion capability: independent operation of radiant exposure (non-flaming pyrolysis) and multi-flame burner (propane/air mixture), each with mass-flow-controlled gas delivery and thermocouple-monitored flame temperature
• Three-axis motorized sample positioning system enabling precise, repeatable insertion of specimens (up to 100 × 100 mm) into designated exposure zones without manual intervention
• Servo-actuated exhaust damper regulated via differential pressure feedback, maintaining stable chamber pressure (±5 Pa) throughout dynamic smoke generation phases
• Digital control panel with preloaded test profiles, real-time display of irradiance, chamber temperature, optical transmission (%T), and calculated Ds values

Sample Compatibility & Compliance

The SC-610 accommodates rigid and semi-rigid plastic specimens up to 100 × 100 × 25 mm, including thermoplastics (e.g., PVC, PE, ABS), thermosets (e.g., phenolics, epoxies), elastomers, and fiber-reinforced composites. Specimen mounting follows ASTM E662 Annex A1 protocols for edge support and orientation. All mechanical, thermal, and photometric subsystems are validated against the metrological requirements of ISO/IEC 17025:2017 Clause 6.4 (Equipment) and ASTM E662 Appendix X1 (Verification Procedures). Test reports generated by the system include full traceability to calibration certificates for light source, thermocouples, flowmeters, and pressure transducers—supporting GLP compliance and FDA 21 CFR Part 11 audit readiness when paired with optional electronic signature modules.

Software & Data Management

The integrated PC-based acquisition suite (SC-DATA v3.2) captures synchronized time-series data at 10 Hz resolution from photodetectors, thermocouples, pressure sensors, and flow controllers. It computes and plots Ds(t) curves in real time, applies ASTM E662-defined smoothing algorithms, and exports standardized reports compliant with ASTM E662 Section 11 and ISO 5659-2 Annex B. Data files are stored in encrypted .hdf5 format with embedded metadata (operator ID, calibration status, environmental conditions), supporting version-controlled archiving and electronic record retention. Optional add-ons include automated report generation for UL, FM Global, and CE marking dossiers, plus API integration with LIMS platforms via RESTful endpoints.

Applications

• Fire performance qualification of automotive interior components (dashboards, seat foams, wiring harnesses) per SAE J1350 and ISO 3795
• Smoke toxicity screening of aerospace cabin materials under FAR 25.853(a) and EN 45545-2 R1/R4
• Regulatory submission support for building codes (IBC Chapter 8, NFPA 101) requiring ASTM E662-compliant smoke density data
• R&D evaluation of halogen-free flame retardants, intumescent additives, and nanocomposite formulations
• Comparative benchmarking of smoke generation kinetics across polymer families under identical radiant flux conditions

FAQ

What standards does the SC-610 fully support out-of-the-box?
ASTM E662 (2023 edition), NFPA 258-T, BS 6401, and ATS 1000.001—including all mandatory verification checks, calibration intervals, and procedural sequences specified in each standard.
Can the chamber be used for both flaming and non-flaming smoke tests?
Yes. The system supports independent radiant-only (pyrolytic) mode per ASTM E662 Section 6.1 and combined radiant + piloted flame mode per Section 6.2, with automatic interlock logic preventing unsafe configuration combinations.
Is third-party calibration documentation included with shipment?
Each unit ships with a full NIST-traceable calibration certificate package covering optical path alignment, radiant flux uniformity mapping, thermocouple accuracy (±0.5 °C), and photodetector linearity (R² > 0.9999 over 0–100% T range).
How is data integrity ensured for regulatory audits?
SC-DATA v3.2 implements role-based access control, immutable audit trails (including operator actions, parameter changes, and report exports), and electronic signatures compliant with 21 CFR Part 11 Subpart C when configured with PKI authentication.
What maintenance is required between tests?
Post-test cleaning consists of chamber wipe-down with ethanol, quartz window polishing, and filter replacement in the exhaust train—documented via built-in maintenance log with timestamped entries and technician ID capture.
