Attocube attoCMC Compact Cryogenic Thermostat for Single-Photon Detection

Overview

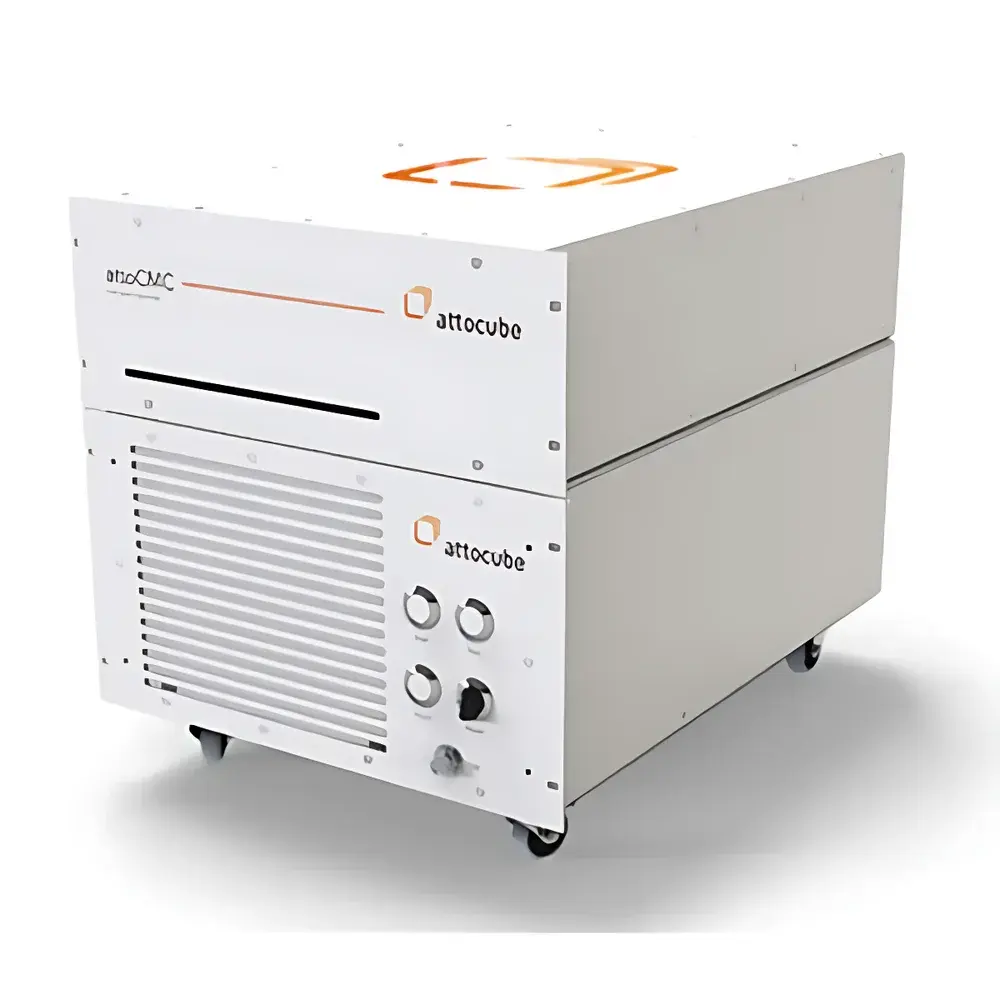

The Attocube attoCMC is a fully integrated, turnkey cryogenic thermostat engineered specifically for single-photon detection applications in quantum information science. Operating on the principle of pulse-tube cryocooler technology—enhanced by Attocube’s proprietary IGLU compressor platform—the attoCMC achieves stable base temperatures down to 2.3 K without liquid cryogens or external chiller infrastructure. Its design eliminates dependence on liquid helium or complex water-cooling loops, making it suitable for deployment in standard laboratory environments with standard single-phase AC power (230 V, 50/60 Hz). Unlike conventional dilution refrigerators or wet cryostats, the attoCMC delivers sub-3 K thermal stability within a compact, vibration-isolated mechanical architecture optimized for optical and electronic alignment integrity—critical for high-efficiency photon counting, superconducting nanowire single-photon detectors (SNSPDs), and quantum dot spectroscopy.

Key Features

• Turnkey operation: Fully automated cooldown sequence initiated via software interface; reaches <3 K from ambient in under 12 hours.
• Air-cooled IGLU compressor: Eliminates need for chilled water or external cooling circuits; total system heat rejection <1 kW.
• High mechanical stability: Optimized cold head suspension and low-vibration pulse-tube design ensure sub-micron positional stability—essential for fiber-coupled SNSPDs and confocal quantum optics setups.

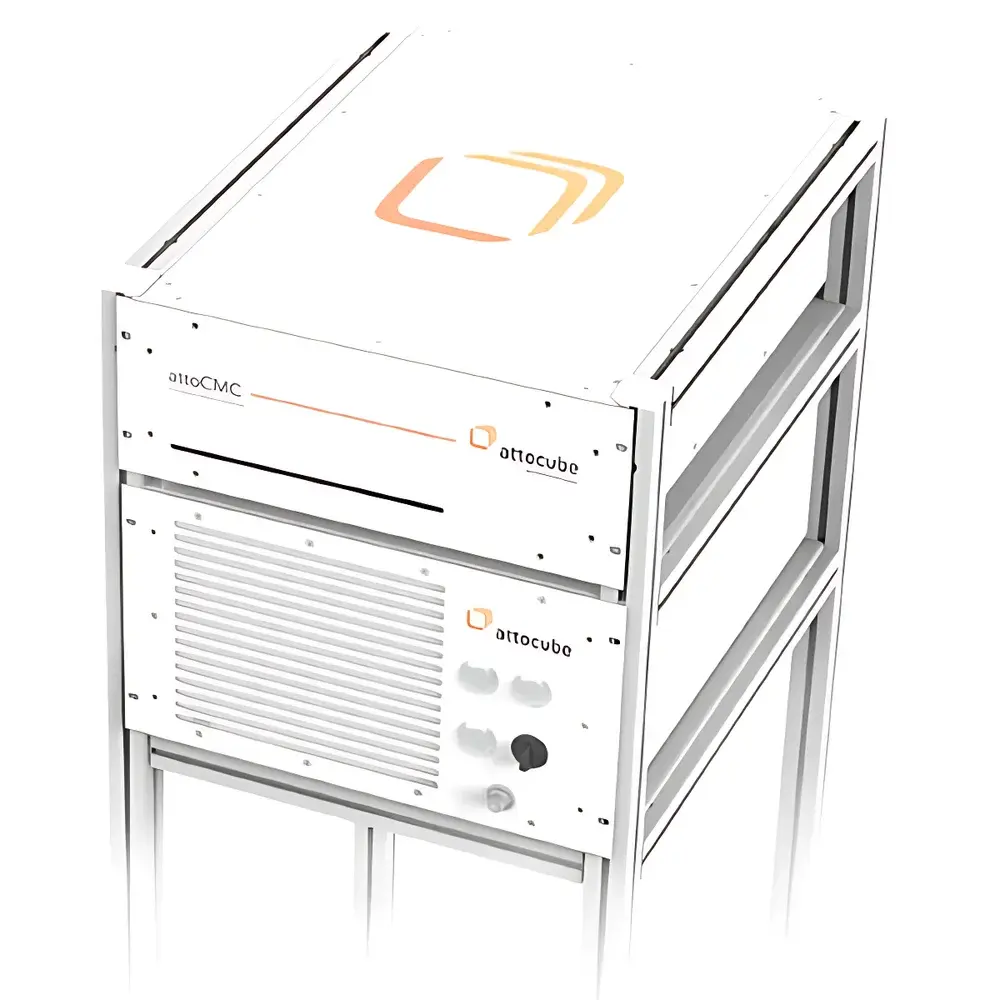

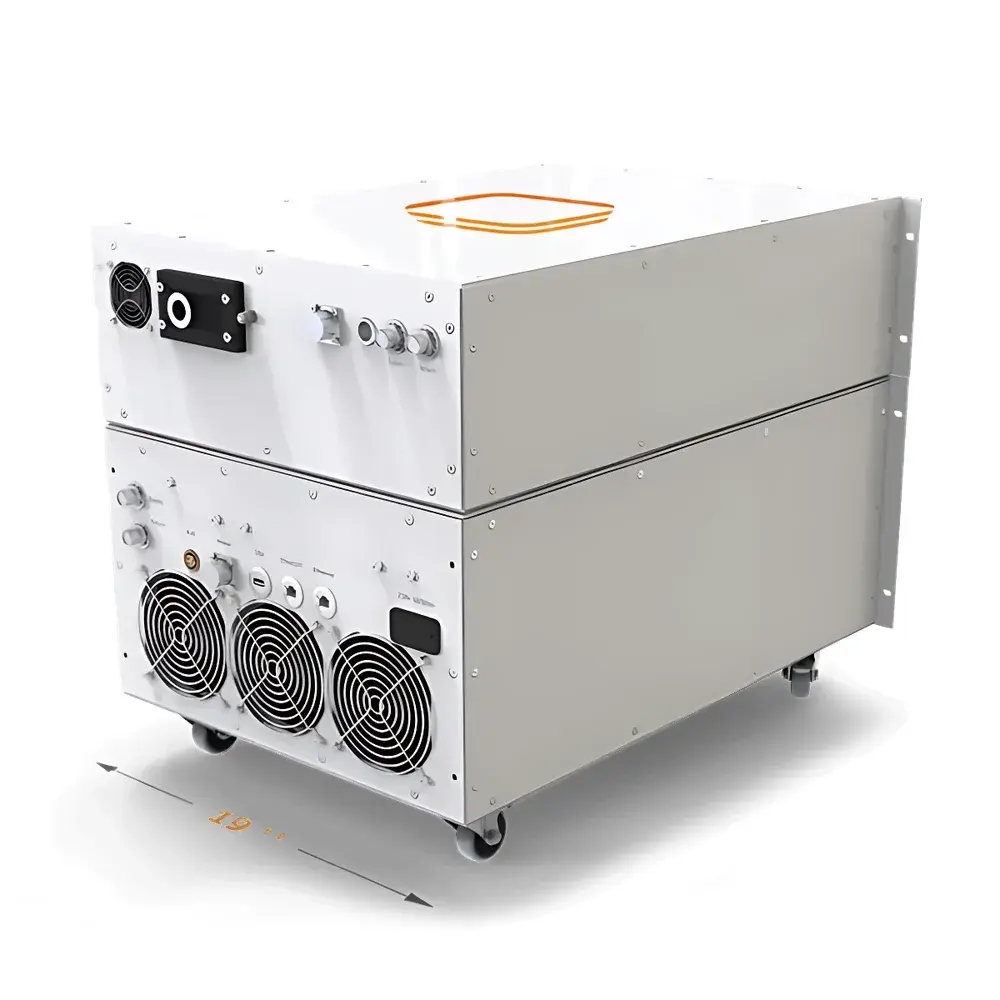

• Rack-mountable form factor: 19″ EIA-compliant footprint enables seamless integration into modular quantum instrumentation racks.
• Modular electrical feedthroughs: Standard configuration includes six low-noise, hermetic SMA/SHV feedthroughs; optional upgrade to twelve channels supports multi-channel detector arrays or gate-tunable quantum devices.
• Remote controllability: Full Ethernet-based control (TCP/IP) with SCPI command set; compatible with LabVIEW, Python, and MATLAB APIs for automated experiment orchestration.

Sample Compatibility & Compliance

The attoCMC accommodates standard optical and electronic sample mounts—including printed circuit boards, chip carriers, and fiber-pigtailed detector packages—via its vertically oriented cold stage with 45 mm clear aperture. The vacuum space features sliding access for rapid sample exchange without full system venting. All materials comply with RoHS and REACH directives. Thermal performance adheres to ISO 21647:2021 (cryogenic equipment—performance testing protocols), and electromagnetic compatibility meets EN 61326-1:2013 for laboratory use. For regulated environments, the embedded controller supports audit-trail logging and user-access-level management—facilitating alignment with GLP and GMP documentation requirements where applicable.

Software & Data Management

The attoCMC is operated through Attocube’s attoDRY Control Suite—a cross-platform application supporting Windows, Linux, and macOS. The suite provides real-time monitoring of temperature gradients (stage, cold head, compressor), pressure diagnostics, and cooldown history graphs. All operational parameters are timestamped and exportable in CSV or HDF5 format. Firmware updates are delivered over secure HTTPS, and the system supports TLS 1.2 encryption for remote sessions. For compliance-sensitive deployments, optional 21 CFR Part 11–compatible electronic signature modules and configurable data retention policies are available upon request.

Applications

• Single-photon detection using superconducting nanowire detectors (SNSPDs) requiring stable sub-3 K operation.
• Quantum communication testbeds: integration with wavelength-division multiplexed QKD systems and time-bin encoding platforms.
• Cryogenic characterization of solid-state qubits (e.g., spin defects in diamond, semiconductor quantum dots).
• Low-temperature photoluminescence and resonance fluorescence spectroscopy of nanophotonic structures.
• On-chip quantum optics experiments requiring co-integration with microwave control lines and optical fibers.
• Industrial R&D labs transitioning quantum prototypes from liquid-helium-dependent benchtop setups to scalable, maintenance-light infrastructure.

FAQ

Does the attoCMC require liquid cryogens or external water cooling?
No. It operates entirely with air-cooled IGLU compressor technology and standard wall outlet power.
Can the system be installed in a standard office or lab room without dedicated HVAC?
Yes—its total heat load is <1 kW, and ambient operating conditions are specified for 15–30 °C with ≤70% non-condensing humidity.
Is the cold stage accessible for custom sample mounting?

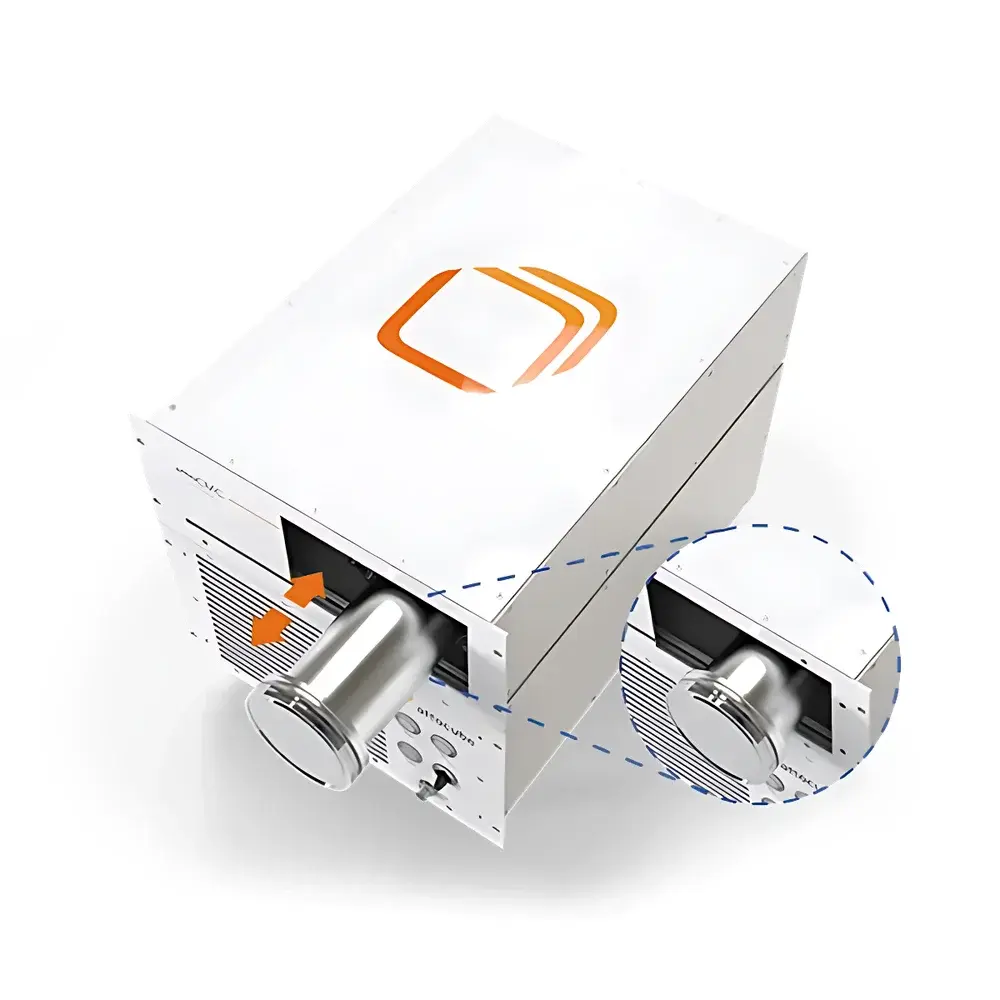

Yes. A motorized sliding vacuum chamber allows tool-free access to the cold plate while maintaining base temperature stability.
What level of temperature stability is achieved at 2.5 K?
Temperature fluctuations are ≤±10 mK over 24 hours under steady-state conditions, verified per ISO 21647 Annex B.
Are calibration certificates traceable to national standards included?
Yes—NIST-traceable temperature sensor calibration (PT100 and Cernox™) is provided with each unit, including as-installed uncertainty budgets.
Is third-party software integration supported?
Yes—open SCPI command set, TCP/IP interface, and documented Python bindings enable integration with custom automation frameworks and DAQ ecosystems.
