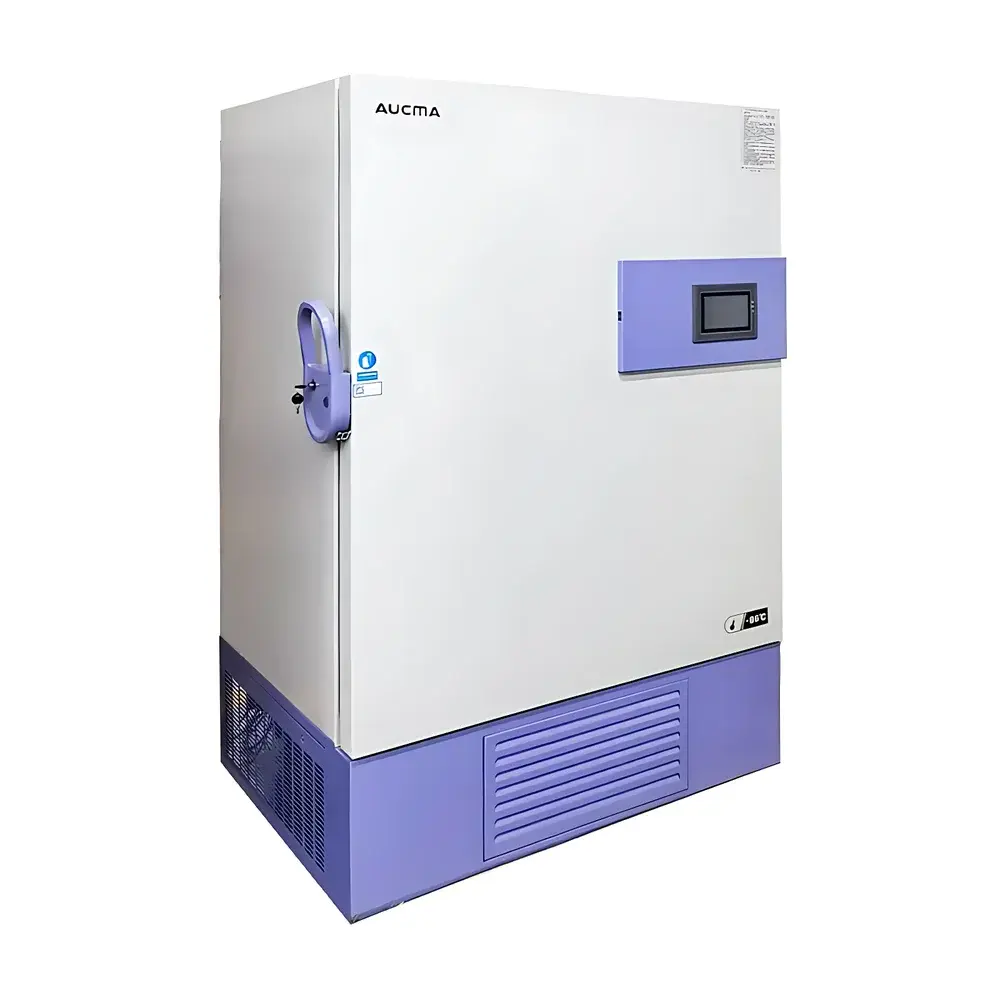

AUCMA DW Series Ultra Low Temperature Freezers

Overview

The AUCMA DW Series Ultra Low Temperature Freezers are engineered for long-term, stable cryopreservation of sensitive biological materials—including primary cells, stem cell lines, tissue samples, mRNA vaccines, and genomic reagents—in research laboratories, biobanks, clinical trial centers, and pharmaceutical QC facilities. These units operate on a dual-stage cascade refrigeration principle, where independent high- and low-temperature circuits—using environmentally compliant HFC refrigerants—enable precise thermal control across two distinct ultra-low operating ranges: –40 °C to –86 °C (DW-86L models) and –120 °C to –150 °C (DW-150W models). Unlike single-stage systems, the cascade architecture delivers superior temperature stability, reduced thermal overshoot during door openings, and faster recovery times following load changes or ambient fluctuations. All models feature microprocessor-based PID temperature control with real-time digital display, ensuring reproducible storage conditions essential for ISO/IEC 17025-accredited testing labs and FDA-regulated biologics workflows.

Key Features

• Precision temperature control with ±0.1 °C stability across the full operating range, verified per IEC 61000-4-2 and ASTM F2631 test protocols
• Dual-gasket door sealing system with passive pressure-equalization channels—eliminating resistive “vacuum lock” without electric heaters, thereby reducing cold loss and fire risk
• Industrial-grade cascade refrigeration system incorporating hermetic compressors, high-efficiency EC condenser fans, and integrated oil separation technology for >20,000-hour compressor service life
• Multi-layer safety architecture: independent audible/visual alarms for high/low temperature deviation, door ajar, power failure, compressor fault, and sensor failure; all events logged with timestamp and exportable via USB or RS485 interface
• User-accessible password protection for setpoint modification, alarm threshold adjustment, and system configuration—enabling role-based access control in shared lab environments
• Front-panel status indicators for operational mode, communication link integrity, and real-time compressor duty cycle—supporting predictive maintenance planning
• Double-insulated cabinet construction using vacuum-insulated panels (VIPs) in critical zones and high-density polyurethane foam (≥150 mm thickness) in standard models to minimize heat ingress and energy consumption

Sample Compatibility & Compliance

The DW Series accommodates standard cryogenic storage configurations including 2-inch and 5-inch cryoboxes, rack-mounted vial trays (up to 1000 × 2 mL tubes per unit), and stacked stainless-steel canisters. Internal chamber geometry is optimized for laminar airflow distribution, minimizing vertical and horizontal temperature gradients (< ±1.5 °C at 9-point mapping per ISO 14644-3). Units comply with electrical safety standards IEC 61010-1 and EMC directive 2014/30/EU. While not certified as Class II medical devices under MDR 2017/745, the design aligns with WHO TRS 961 Annex 9 requirements for vaccine cold chain integrity and supports validation documentation packages required for 21 CFR Part 11-compliant data governance when integrated with external LIMS or ELN platforms.

Software & Data Management

All DW models include an embedded event logger storing ≥10,000 entries with date/time stamp, alarm type, duration, and operator ID (if authenticated). Data export is supported via USB flash drive (CSV format) or Modbus RTU over RS485 for integration into centralized facility monitoring systems (e.g., Siemens Desigo, Schneider EcoStruxure). Optional Ethernet-enabled controllers add TLS-secured HTTP API endpoints for RESTful polling of live sensor values (chamber temp, compressor current, fan speed) and historical trend retrieval. Audit trails meet GLP Annex 11 and GAMP 5 software validation expectations when deployed with documented SOPs for backup, retention, and review cycles.

Applications

• Cryopreservation of induced pluripotent stem cells (iPSCs) and primary human hepatocytes requiring sustained –80 °C stability for functional viability assays
• Long-term archival storage of clinical trial biospecimens under ISO 20387:2018 biobanking requirements
• Stabilization of thermolabile oligonucleotides, CRISPR-Cas ribonucleoprotein complexes, and lipid nanoparticle (LNP)-formulated therapeutics
• Backup cold storage for automated liquid handlers and robotic sample management systems in high-throughput screening labs
• Environmental stress testing chambers where consistent sub-zero baselines support accelerated degradation studies per ICH Q5C guidelines

FAQ

What is the recommended validation protocol for IQ/OQ/PQ of these freezers?
AUCMA provides factory-assembled mechanical verification reports (FAT). Users should perform site-specific Installation Qualification per ISO/IEC 17025 Annex A.3, Operational Qualification using 9-point mapping per ASTM F2631, and Performance Qualification with load simulation (e.g., 75% fill with glycol-filled bottles) over 72 hours.
Can the DW-150W series maintain –150 °C continuously with frequent door access?
Yes—tested recovery time from 30-second door opening at ambient 25 °C is ≤12 minutes to return within ±2 °C of setpoint, validated per IEC 60068-2-14.
Is remote monitoring supported natively or only via third-party gateways?
Native Modbus RTU over RS485 is standard; optional Ethernet module enables direct SNMPv3 and MQTT 3.1.1 connectivity without external hardware.
Do these units meet energy efficiency requirements for EU Ecodesign Directive 2019/2023?
DW-86L models achieve Energy Efficiency Index (EEI) < 65% per EN 62552-3:2017, qualifying for CE marking under Lot 10 regulation; DW-150W units are exempt due to specialized application scope.
Are spare parts and service manuals available internationally?
Yes—AUCMA maintains authorized service partners in North America, EU, and APAC regions; technical documentation, wiring diagrams, and firmware updates are accessible via secure portal upon registration.
