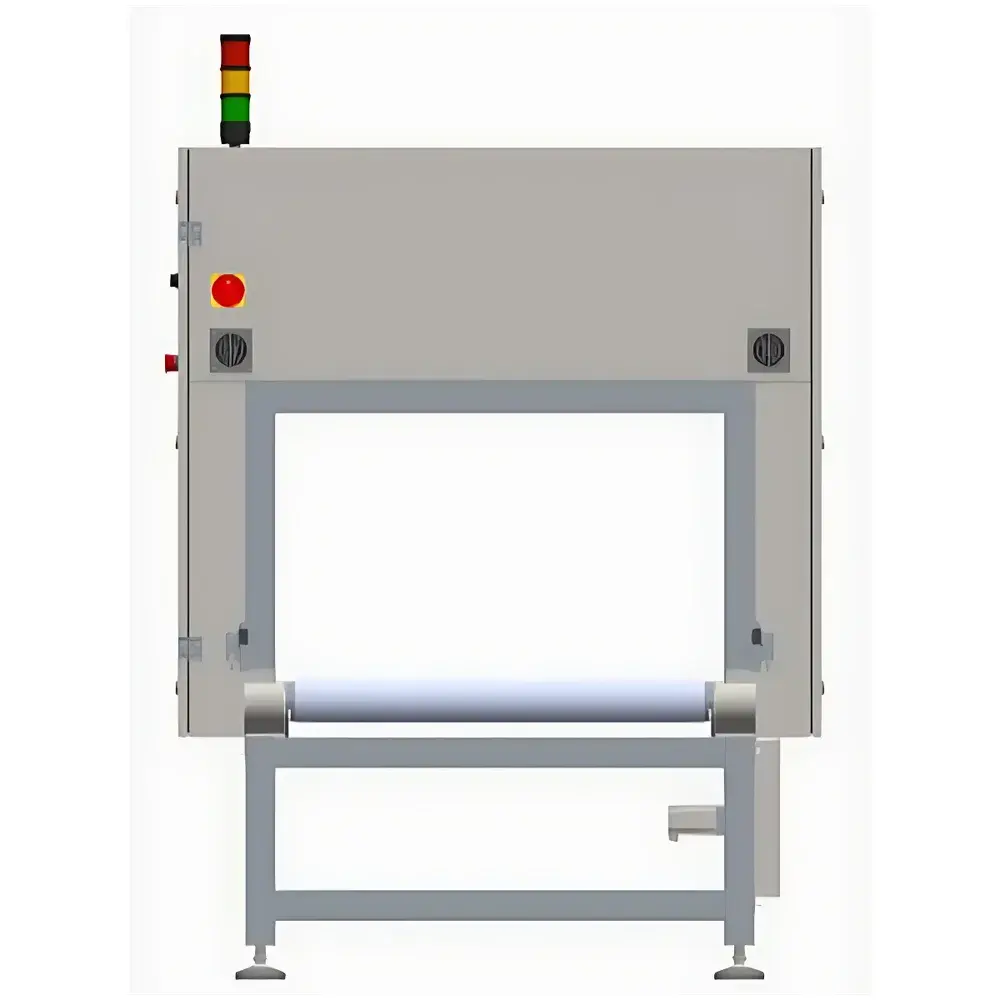

Auniontech THz Cigarette Pack Integrity Imaging System

Overview

The Auniontech THz Cigarette Pack Integrity Imaging System is a purpose-built industrial terahertz (THz) spectroscopic imaging platform engineered for non-destructive, real-time quality assurance of sealed cigarette cartons in high-speed packaging lines. Operating in the 0.1–3.0 THz frequency range, the system leverages the unique material penetration and spectral fingerprinting capabilities of pulsed or continuous-wave THz radiation to probe internal structural integrity without ionizing exposure or physical contact. Unlike X-ray or near-infrared methods, THz waves exhibit strong sensitivity to dielectric contrast between paperboard, foil laminates, adhesive layers, and tobacco rods—enabling reliable discrimination of missing cigarettes (“missing stick” defects), misaligned packs, seal delamination, and foreign object inclusion. The system integrates time-domain spectroscopy (TDS) or frequency-modulated continuous-wave (FMCW) architecture—depending on configuration—to acquire both amplitude and phase-resolved transmission/reflection data, which are reconstructed into high-contrast 2D/3D volumetric images with sub-millimeter spatial resolution.

Key Features

• Real-time inline inspection at production line speeds up to 600 cartons per minute, synchronized via encoder-triggered acquisition
• Non-contact, non-ionizing measurement compatible with ISO 13485-certified cleanroom environments and GMP-compliant tobacco manufacturing facilities
• Dual-mode imaging: transmission mode for full-carton density mapping; reflection mode for top-layer seal integrity verification
• Embedded AI inference engine trained on >50,000 labeled carton scans, supporting automated defect classification (e.g., “single-stick missing”, “double-stick missing”, “crushed pack”) with ≥99.2% precision under controlled lighting and humidity conditions
• Pixel-level defect localization using U-Net-based semantic segmentation, enabling precise coordinate output for downstream robotic rejection systems
• Modular optical path design with motorized stage calibration and auto-alignment routines to maintain beam stability across thermal drift (±0.5°C ambient fluctuation)
• Compliance-ready audit trail generation: timestamped image metadata, raw THz waveform logs, and operator action logs stored in encrypted SQLite database per FDA 21 CFR Part 11 requirements

Sample Compatibility & Compliance

The system accommodates standard commercial cigarette cartons (e.g., 10×20×8 cm folded cardboard with aluminum foil lining) and supports variable pack configurations including soft packs, hard packs, and blister-sealed variants. It has been validated per ASTM E2927-21 (Standard Practice for Terahertz Imaging of Nonmetallic Materials) and meets electromagnetic compatibility (EMC) requirements under EN 61326-1:2013. All software modules adhere to IEC 62304 Class B medical device software lifecycle standards—reflecting the rigorous validation framework applied during development for regulated industrial use. No sample preparation, vacuum chambers, or cryogenic cooling is required; operation is certified for ambient factory environments (15–35°C, 30–70% RH, non-condensing).

Software & Data Management

The proprietary AunionVision™ 4.2 software suite provides a unified interface for system control, image reconstruction, AI model deployment, and statistical process control (SPC). Raw THz waveforms are processed using FFT-based deconvolution and Wiener filtering to suppress noise while preserving edge fidelity. Reconstructed cross-sectional slices are exported in DICOM 3.0 format for integration with existing MES/QMS platforms (e.g., Siemens Opcenter, Rockwell FactoryTalk). Audit logs include user login events, parameter changes, calibration cycles, and AI confidence scores—all traceable to individual carton IDs via integrated barcode/OCR linkage. Data retention policies support configurable archiving (local SSD + optional NAS backup) aligned with ISO/IEC 27001 information security controls.

Applications

• Automated detection of missing-cigarette defects in final-packaged cartons prior to palletization
• Quantitative assessment of inner foil layer continuity and heat-seal bond strength through THz reflectivity gradient analysis
• Verification of tamper-evident seal integrity post-casing and shrink-wrapping
• Root-cause analysis of packaging line anomalies via retrospective THz image clustering (e.g., identifying intermittent feeder misalignment)
• Support for product changeover validation: rapid retraining of AI models using transfer learning on minimal new-sample datasets (<200 images per variant)
• Integration into Industry 4.0 digital twin frameworks via OPC UA server interface for predictive maintenance modeling

FAQ

What regulatory standards does this system meet for use in tobacco manufacturing?
It complies with ASTM E2927-21, EN 61326-1:2013, and supports documentation requirements for ISO 9001:2015 and GMP Annex 11 compliance.
Can the system distinguish between a missing cigarette and a compressed tobacco rod?
Yes—spectral signature analysis in the 0.8–1.5 THz band enables differentiation based on dielectric loss tangent and refractive index contrast.
Is offline training of custom AI models supported?
Yes—AunionVision™ includes a secure offline training module compliant with GDPR and China’s PIPL data sovereignty requirements.
What is the typical installation footprint and integration timeline?
The standard configuration occupies ≤1.2 m² floor space and integrates within 5 working days, including mechanical mounting, optical alignment, and PLC handshake validation.
Does the system require periodic recalibration?
An automated daily self-calibration routine verifies laser timing jitter, detector responsivity, and reference mirror position; full metrological recalibration is recommended every 12 months by Auniontech-certified engineers.
