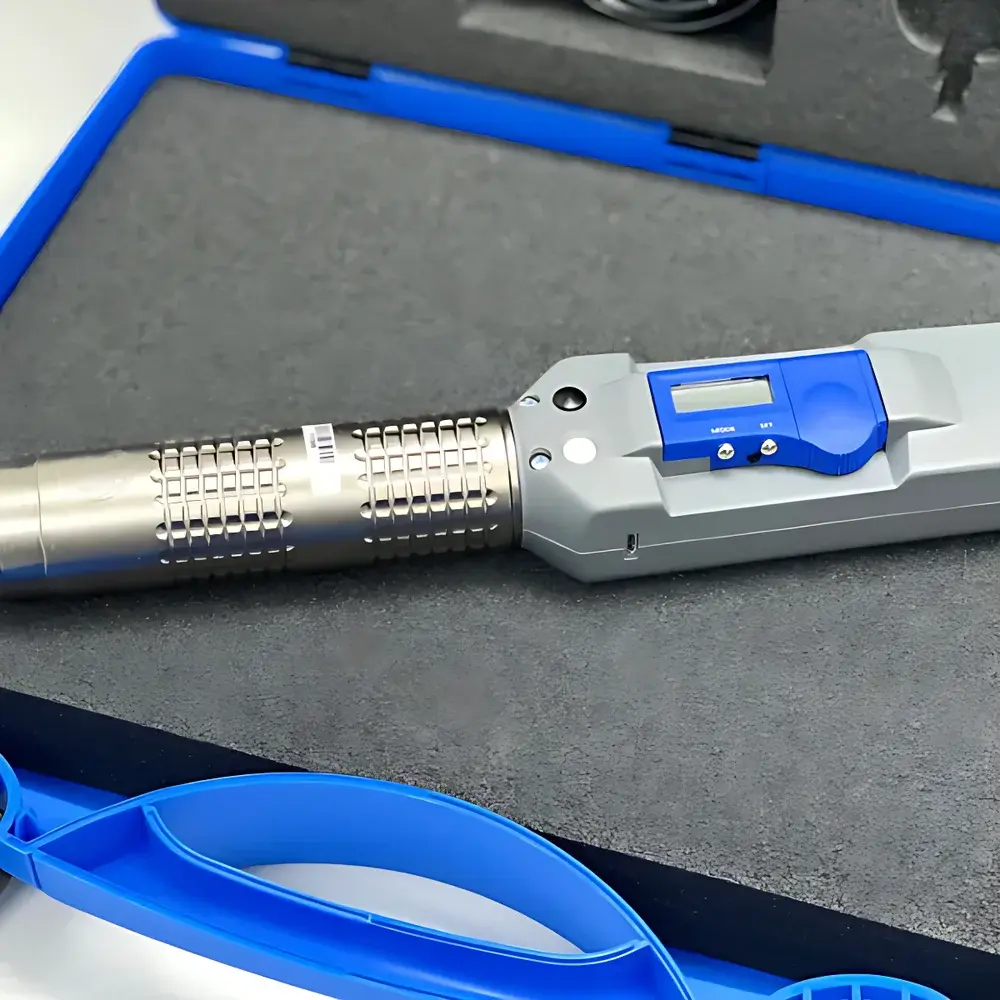

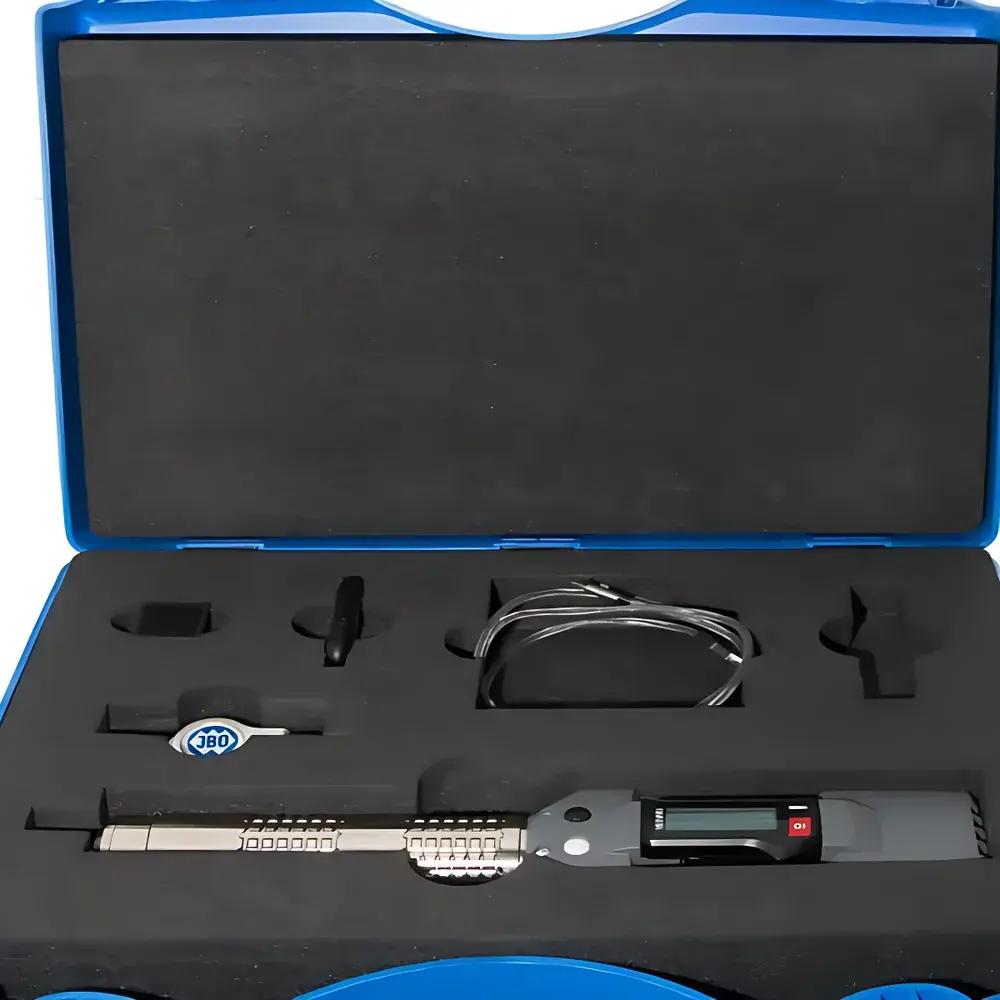

Automatic Thread Depth Gauge – JBO Model 0002

Overview

The JBO Model 0002 Automatic Thread Depth Gauge is an engineered metrology solution designed for high-precision, repeatable measurement of thread depth in production and quality assurance environments. Unlike conventional manual thread depth gauges, this instrument employs a motor-driven, constant-torque probing mechanism grounded in controlled axial displacement physics—ensuring consistent contact force regardless of operator technique or thread geometry. It operates on the principle of calibrated linear displacement sensing, where a hardened, DLC-coated probe advances axially into the threaded feature until mechanical or programmable end-stop conditions are met (e.g., bottom-of-hole detection in through-holes). The integrated high-resolution linear encoder delivers 0.01 mm positional resolution across its full 50 mm measurement range, enabling traceable depth assessment compliant with ISO 9001 and ISO/IEC 17025–accredited calibration practices. Designed and manufactured in Germany, the device reflects JBO’s decades-long specialization in thread metrology—serving Tier-1 automotive, aerospace, and precision machining OEMs requiring deterministic, auditable thread verification.

Key Features

• Simultaneous dual-parameter evaluation: measures both thread depth and effective pitch diameter within a single insertion cycle, reducing total inspection time by up to 50% versus sequential manual methods.
• Programmable constant-torque drive system: torque setpoint adjustable via front-panel interface; eliminates variability from human-applied force and ensures compliance with ISO 1502 (thread gauging) and DIN EN ISO 10587 (torque-controlled fastener verification) requirements.
• Configurable operational modes: supports right-hand and left-hand thread detection, programmable stop logic (including through-hole auto-stop), and user-defined lockout settings to prevent unauthorized parameter changes.

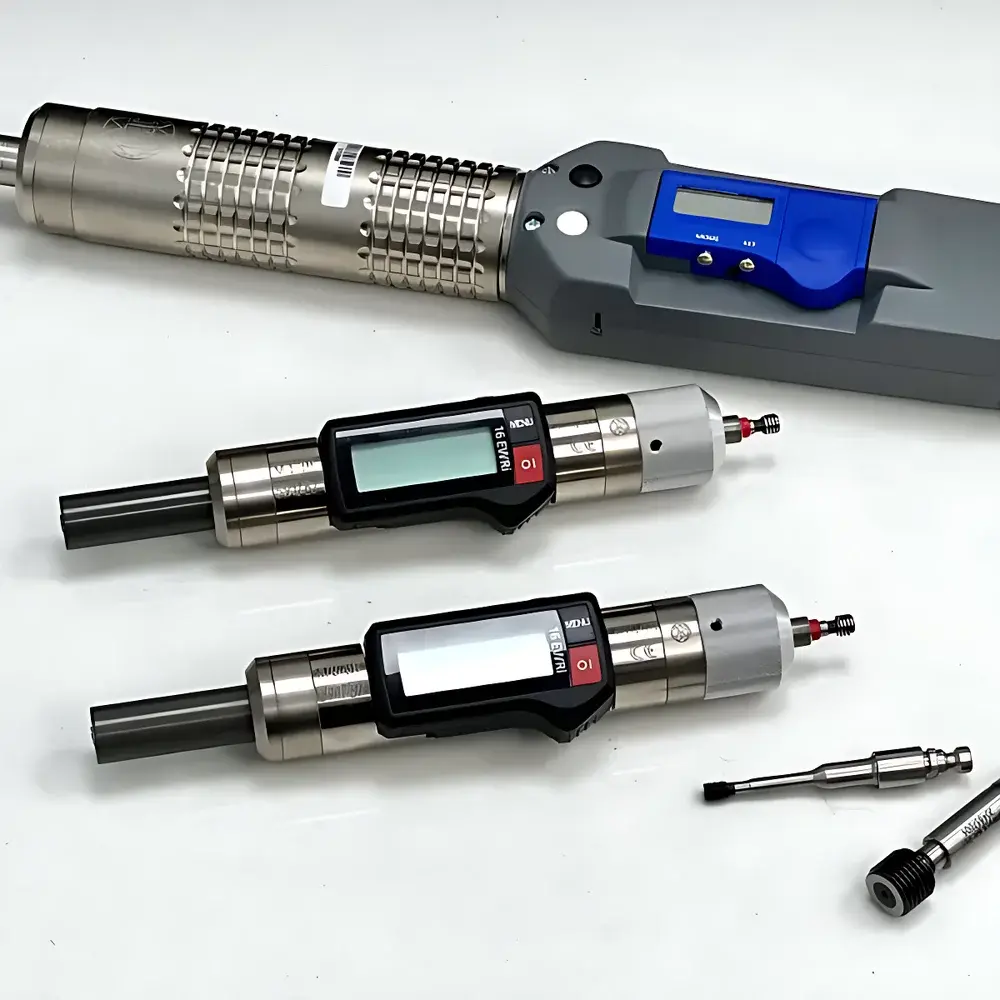

• Modular probe-and-sleeve architecture: enables rapid mechanical interchange of calibrated probes and guide sleeves to accommodate M3–M64 metric and UNC/UNF 6–120 thread series without recalibration.
• DLC (Diamond-Like Carbon)-coated probe tip: provides surface hardness exceeding HV 0.05 > 5000, minimizing wear-induced drift during high-cycle production use and extending calibration interval stability.
• Integrated digital readout with eMCW wireless transmission: real-time depth values displayed on high-contrast LCD; data streamed via electromagnetic coupling (eMCW) to host systems using optional i-stick USB receiver—compatible with Windows-based SPC software and MES integration frameworks.

Sample Compatibility & Compliance

The Model 0002 is validated for internal and external thread geometries conforming to ISO 68-1, ISO 261, ASME B1.1, and DIN 13 standards. It accommodates standard and custom thread forms—including metric, unified, Whitworth, and trapezoidal profiles—with depth measurement capability spanning 1.5 mm to 50 mm (extendable per customer specification). All mechanical components comply with RoHS 2011/65/EU and REACH (EC 1907/2006) directives. The gauge’s metrological performance is traceable to PTB (Physikalisch-Technische Bundesanstalt) reference standards, and its operation supports GLP/GMP documentation workflows through audit-trail-capable data logging when paired with certified SPC platforms.

Software & Data Management

While the device operates autonomously via onboard firmware, it interfaces seamlessly with JBO’s optional ThreadData Manager v3.2 software suite (Windows 10/11, 64-bit). This application enables automated data capture, statistical process control charting (X̄–R, Cp/Cpk), batch reporting per ISO 10012, and export to CSV, XML, or PDF formats. Wireless eMCW transmission meets FCC Part 15 and CE RED Directive requirements, and data integrity is preserved via timestamped records with operator ID tagging—supporting FDA 21 CFR Part 11 compliance when deployed with validated electronic signature modules.

Applications

• Final inspection of machined engine blocks, transmission housings, and hydraulic manifolds where thread depth tolerance ≤ ±0.05 mm is critical.
• In-process verification during CNC tapping operations—integrated into shop-floor feedback loops for adaptive tool compensation.
• Supplier quality audits requiring objective, non-subjective thread acceptance criteria aligned with AIAG CQI-15 guidelines.
• R&D validation of new thread designs, including fine-pitch or high-lead-angle geometries where manual depth gaging introduces unacceptable uncertainty.
• Calibration lab use as a reference comparator for verifying thread plug gauges and setting masters per ISO 7500-1.

FAQ

Is calibration certification included with the instrument?
Yes—each unit ships with a factory calibration certificate traceable to national standards, valid for 12 months under normal operating conditions.
Can the probe be replaced in-house without sending the unit back to service?
Yes—the modular probe/sleeve assembly is field-replaceable using standard hex tools; replacement probes are supplied with individual calibration offsets.
Does the wireless transmission meet industrial cybersecurity requirements?
eMCW is a short-range, low-power, non-networked physical layer protocol—it does not use Wi-Fi, Bluetooth, or IP stacks, eliminating common attack vectors and ensuring electromagnetic compatibility in noisy shop-floor environments.
What thread standards are pre-programmed into the device firmware?
Default configurations cover ISO Metric (M), Unified National (UNC/UNF), and ISO Tr60x9; additional thread forms can be loaded via firmware update using JBO’s authorized configuration utility.
Is the device suitable for measuring blind holes with tapered bottoms?
Yes—the constant-torque mode combined with programmable travel limit allows reliable detection of functional thread depth even in non-flat-bottomed features, provided minimum engagement length exceeds three full threads.
