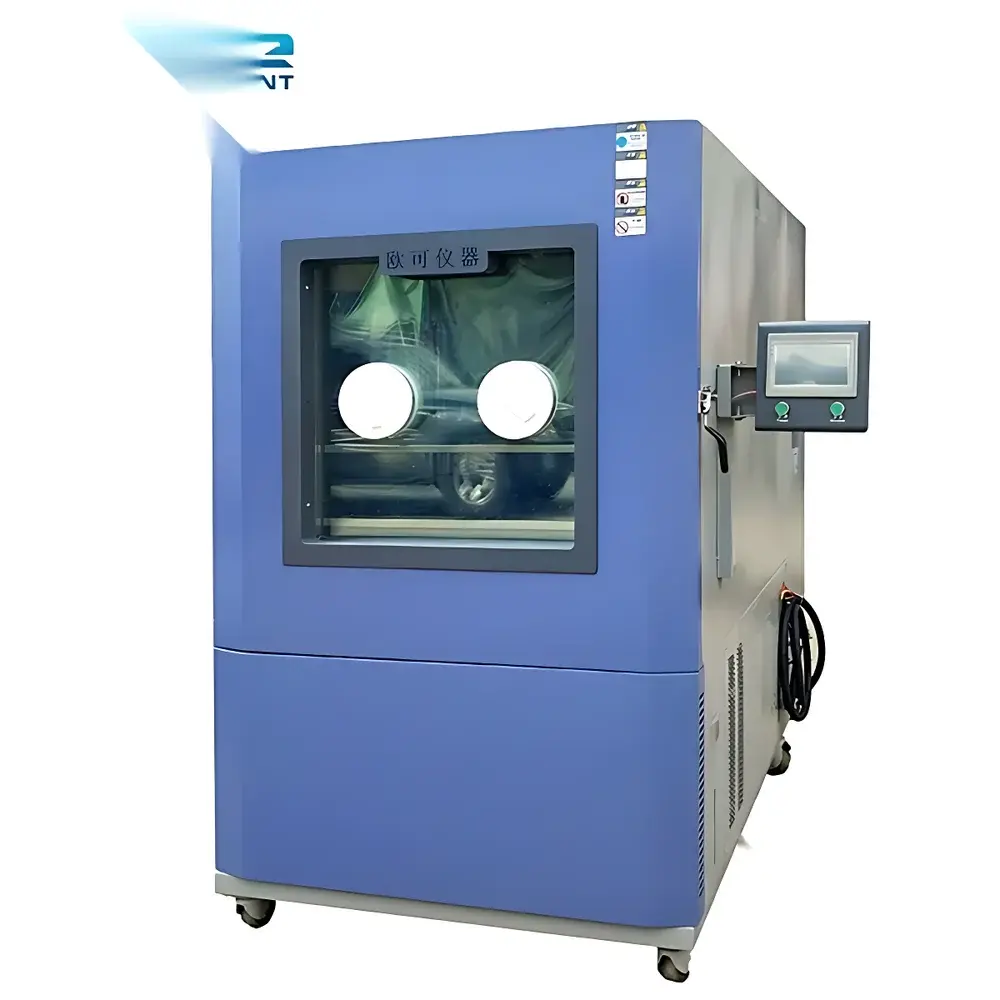

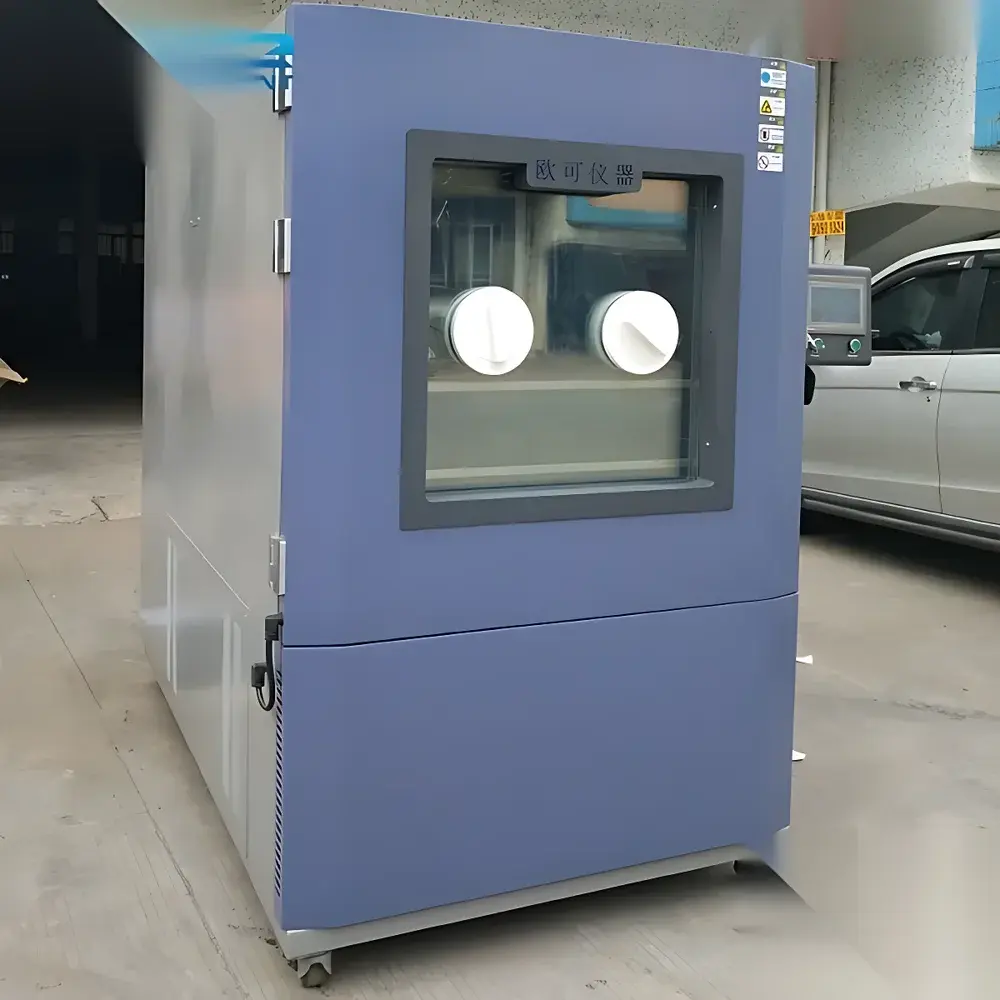

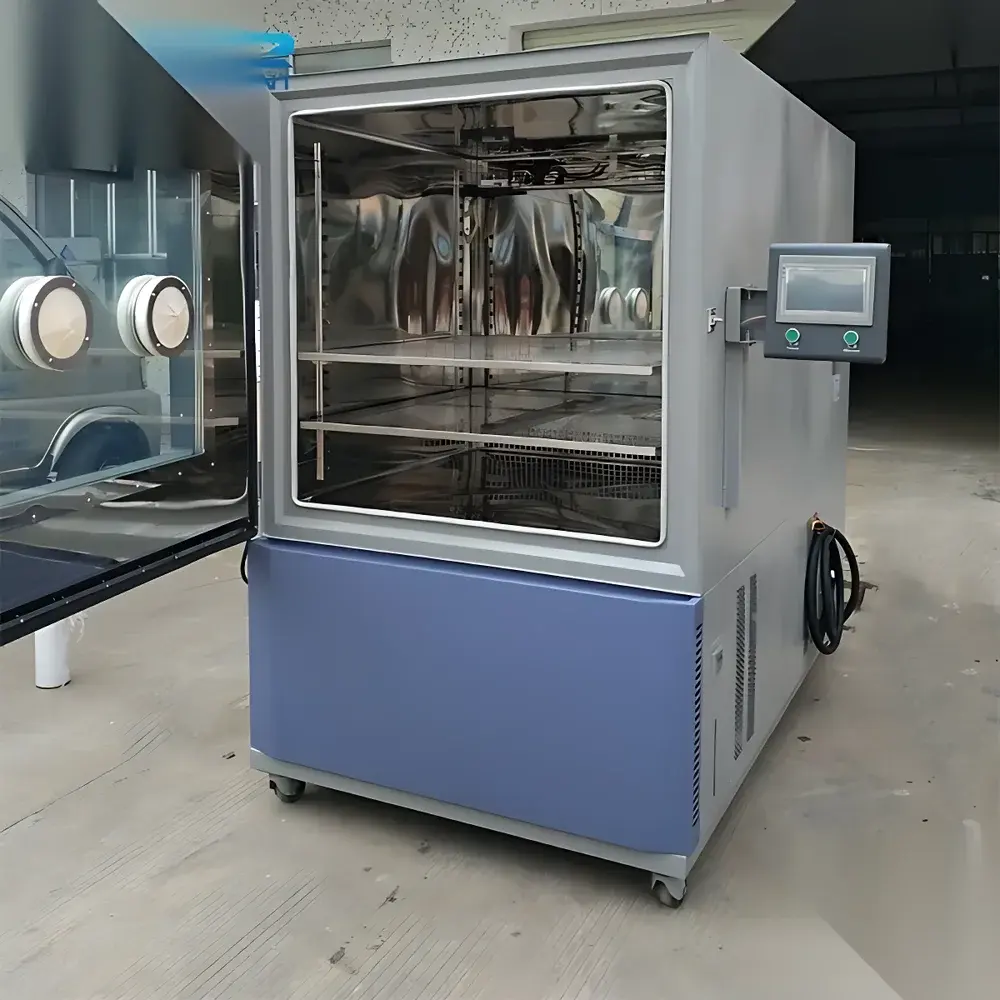

Automotive-Grade Temperature and Humidity Controlled Environmental Test Chamber
| Brand | OEM / Custom-Branded |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Pricing | USD 2,650 (FOB ex-factory, subject to configuration and certification requirements) |
Overview
The Automotive-Grade Temperature and Humidity Controlled Environmental Test Chamber is a precision-engineered environmental simulation system designed specifically for validation testing of automotive components, electronic control units (ECUs), infotainment modules, battery management systems (BMS), and interior trim materials under rigorously controlled thermal and hygrothermal stress conditions. Based on the principle of balanced temperature and humidity control (BTHC), the chamber employs a dual-loop PID-controlled SSR-driven heating/humidification system coupled with a high-efficiency refrigeration circuit—ensuring dynamic equilibrium between thermal/humidity input and chamber load dissipation. This architecture enables stable, repeatable operation across wide climatic ranges (typically −40 °C to +150 °C; 10–98% RH), critical for replicating real-world vehicle operating environments—from desert heat soak to arctic cold start cycles—and supporting accelerated life testing per industry-defined stress profiles.
Key Features
- Robust safety architecture: Integrated dry-run protection for steam humidifiers, independent overtemperature cutoffs (dual-stage), low-water-level detection, compressor overload/overheat/overcurrent monitoring, high-pressure refrigerant switch, molded-case circuit breaker, and earth-leakage circuit interrupter (ELCI)
- Advanced BTHC control logic: Proportional-integral-derivative (PID) regulation of solid-state relays (SSR) ensures precise matching of heating/humidification output to thermal/humidity losses—enabling long-duration stability without drift
- Optimized refrigeration design: Full capillary tube-based expansion system with automatic capacity modulation—eliminating mechanical expansion valve hysteresis and delivering faster, smoother, and more uniform temperature transitions than conventional thermostatic expansion valve (TXV) configurations
- Ergonomic industrial enclosure: Seamless arc-shaped stainless steel exterior with anti-reflective flat-handle door mechanism; front-access service panels; optional custom external dimensions per client footprint requirements
- Wide operational envelope: Validated performance at ambient conditions of 25 °C ±6 °C, no-load; cooling water supply requirement: 10–28 °C inlet temperature, 0.1–0.3 MPa pressure
Sample Compatibility & Compliance
The chamber accommodates automotive test specimens up to standard ISO 16750-4 and SAE J2380-compliant dimensions—including ECUs, sensors, lighting assemblies, HVAC ducting, and polymer-based interior substrates. It fully supports environmental stress screening (ESS) protocols defined in MIL-STD-2164A, GJB 1032–90, and GJB 234–5.1.6. All thermal and humidity performance data comply with GB/T 2423.1–2023 (IEC 60068-2-1 Ed.4.0), GB/T 2423.2–2023 (IEC 60068-2-2 Ed.4.0), and IEC 60068-2-30 for damp heat cyclic testing. Optional factory calibration documentation meets ISO/IEC 17025 traceability requirements when paired with accredited third-party verification.
Software & Data Management
Equipped with an industrial-grade touchscreen controller featuring multi-segment programmable ramp-soak profiles, real-time trend logging (≥30-day internal memory), USB export capability, and RS485 Modbus RTU interface for SCADA integration. Optional Ethernet-enabled firmware supports remote monitoring, alarm notification via SMTP/SNMP, and audit-trail generation compliant with FDA 21 CFR Part 11 Annex 11 principles—enabling full traceability of setpoints, deviations, operator actions, and event timestamps for GLP/GMP-regulated automotive Tier-1 supplier qualification processes.
Applications
- Thermal cycling validation of ADAS radar housings and camera lens assemblies under condensation-prone conditions
- Humidity-induced corrosion testing of aluminum chassis brackets and copper-alloy connectors
- Long-term reliability assessment of lithium-ion battery packs under combined high-humidity/high-temperature storage (e.g., 85 °C/85% RH)
- Material compatibility testing of polyurethane foams, PVC trims, and adhesives per ISO 16750-4 Clause 6.3
- Pre-conditioning of ECU prototypes prior to EMC immunity testing per CISPR 25 and ISO 11452 series
FAQ
What does “air average temperature change rate” mean in technical specifications?
It refers to the arithmetic mean of instantaneous air temperature readings measured at multiple standardized sensor locations within the working volume—not the surface or core temperature of the test specimen. This metric reflects chamber responsiveness under standardized no-load conditions per IEC 60068-3-5.
Can the chamber be configured for extended low-humidity operation below 10% RH?
Yes—optional desiccant-assisted dehumidification modules are available to achieve ≤5% RH at temperatures ≥25 °C, validated per ISO 16750-4 Annex C.
Is the controller compliant with FDA 21 CFR Part 11 for pharmaceutical co-development projects?
The base controller supports user access levels and basic event logging; full Part 11 compliance requires the optional Ethernet module with electronic signature, audit trail, and secure authentication firmware—validated per internal IQ/OQ protocols.
How is cooling water temperature critical to chamber performance?
Refrigeration system condensing efficiency directly depends on coolant inlet temperature and flow stability. Operation outside 10–28 °C range may cause high-head pressure faults, reduced cooling capacity, or compressor shutdown—per ASHRAE Guideline 33-2022.
Are calibration certificates included with shipment?
A factory-as-built temperature/humidity uniformity report is provided. NIST-traceable calibration certificates (per ISO/IEC 17025) are available as a value-added service upon request.
