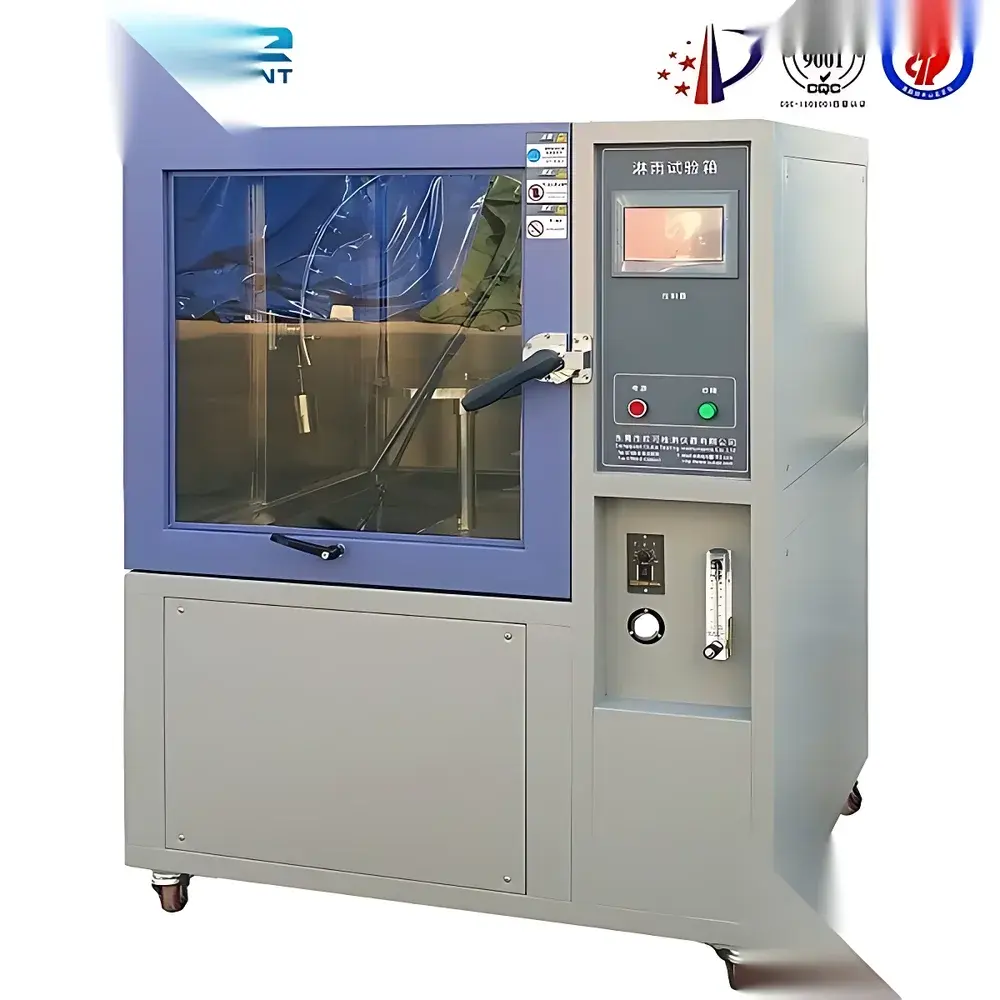

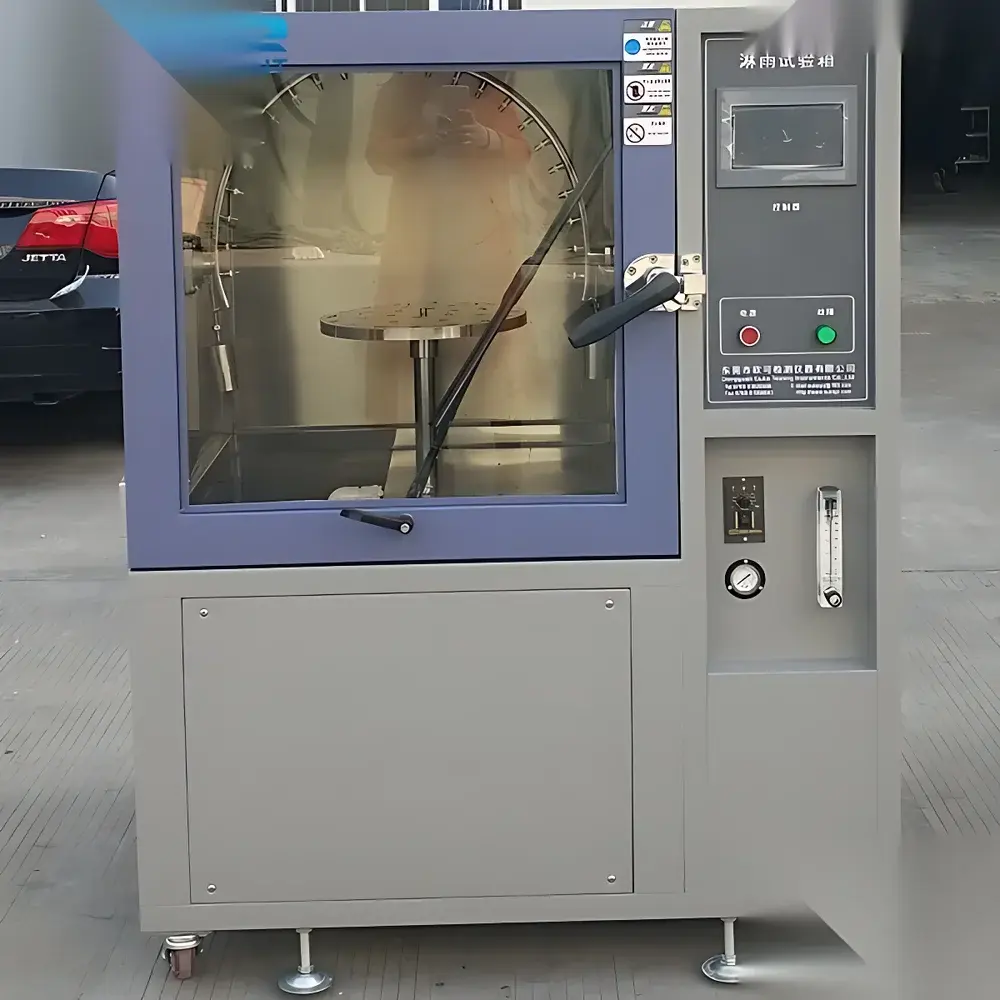

Automotive Rain Resistance Test Chamber – LS-1000 Model

Overview

The Automotive Rain Resistance Test Chamber (Model LS-1000) is an engineered environmental simulation system designed to evaluate the ingress protection (IP) performance of automotive components, electronic enclosures, lighting assemblies, sensor housings, and other sealed systems under controlled rain exposure conditions. Based on the principle of calibrated water impingement—employing precisely spaced nozzles, regulated pressure, and programmable mechanical motion—the chamber replicates standardized rainfall profiles including dripping, light showering, heavy splashing, and directional spray. Its architecture adheres to the physical test logic defined in IEC 60529-derived national standards (GB/T 4208–2008 for IPX1–IPX6 classification), while also satisfying the dynamic rain exposure requirements specified in GB/T 10485–2007 (“Road vehicles — Environmental conditions and testing for electrical and electronic equipment — Rain resistance”). Unlike generic water exposure cabinets, the LS-1000 integrates synchronized motion control (oscillating spray arm + rotating turntable) to ensure uniform angular coverage and reproducible impact geometry across complex 3D geometries.

Key Features

• Modular stainless-steel chamber frame constructed from reinforced channel steel with brushed stainless cladding—designed for long-term corrosion resistance and structural rigidity during extended wet-cycle operation.
• Dual-configurable spray ring assembly with selectable radii (400 mm or 500 mm), enabling compliance with both narrow-angle (e.g., IPX3 simulated rain) and wide-spectrum (e.g., IPX5/6 jetting) test configurations.
• High-precision nozzle array: 18-gauge stainless steel nozzles (φ0.4 mm orifice) spaced at exact 50 mm intervals along the circumferential ring—ensuring consistent droplet size distribution and laminar-to-turbulent transition characteristics per ISO 8502-3 guidance.
• Programmable oscillation drive: Frequency-controlled servo mechanism delivering stable, repeatable angular sweep across ±45°, ±60°, ±90°, or ±180° ranges—each angle verified via encoder feedback and traceable to internal calibration logs.
• Variable-speed turntable (1 rpm standard; optional 0.1–5 rpm continuous adjustment) with centering fixture interface—supports rotational symmetry testing per GB/T 4942.2–1993 Annex A for rotating enclosures.
• Integrated water management subsystem: Closed-loop reservoir (≥120 L capacity), multi-stage filtration (5 µm particulate + activated carbon), stainless steel booster pump (max. 3.5 bar), and digital flow meter (±1.5% FS accuracy) for real-time volumetric regulation.
• Full-visibility observation port: 12 mm thick tempered safety glass with anti-fog coating and UV-stabilized gasketing—enabling uninterrupted visual inspection without compromising chamber integrity.

Sample Compatibility & Compliance

The LS-1000 accommodates samples up to 100 cm in any linear dimension (diagonal clearance ≤ 141 cm), making it suitable for full-size headlamps, ECUs, battery junction boxes, ADAS sensor modules, and instrument cluster assemblies. It supports static and dynamic IP rating validation per GB/T 4208–2008 (equivalent to IEC 60529), including IPX1 (vertical drip), IPX3 (oscillating 60° spray), IPX4 (360° splash), IPX5 (12.5 mm nozzle, 12.5 L/min @ 30 kPa), and IPX6 (6.3 mm nozzle, 100 L/min @ 100 kPa). Test execution follows documented procedures aligned with GLP principles: all parameter setpoints (angle, duration, flow rate, pressure) are logged with timestamp and operator ID; audit trails are exportable in CSV format. While not FDA 21 CFR Part 11-certified out-of-the-box, the controller firmware supports optional electronic signature modules for regulated automotive Tier-1 supplier environments requiring 21 CFR Part 11 or ISO 13485-aligned validation.

Software & Data Management

The embedded control interface runs a deterministic real-time OS with dual redundancy: primary operation via 7-inch resistive touchscreen HMI, secondary via isolated Ethernet port supporting Modbus TCP for SCADA integration. All test programs—including multi-step sequences (e.g., 10 min IPX3 → 5 min pause → 15 min IPX6)—are stored in non-volatile memory with versioned backup. Data logging records flow rate (L/min), pressure (kPa), elapsed time, oscillation position (°), turntable RPM, and thermal status (motor winding temp) at 1-second intervals. Export formats include .csv (for Excel analysis) and .pdf test reports with embedded digital signatures (when enabled). Firmware updates are performed via secure USB key with SHA-256 hash verification.

Applications

• Validation of exterior lighting IP ratings prior to ECE R112 or SAE J575 certification.
• Functional endurance testing of radar and camera housings under cyclic rain loading (e.g., 500 h @ IPX5 equivalent).
• Verification of connector sealing integrity for high-voltage battery systems per ISO 16750-4.
• Development-stage evaluation of gasket compression set and sealant adhesion loss after accelerated wet-dry cycling.
• Root-cause analysis of condensation ingress in infotainment control units exposed to thermal shock + rain simulation.
• Supplier qualification testing per OEM-specific standards (e.g., GMW3172, Ford ES-XW7T-1A278-AC, VW 80101).

FAQ

Does the LS-1000 meet international IP rating test requirements beyond Chinese GB standards?
Yes—it implements the mechanical and hydraulic parameters required for IPX1 through IPX6 per IEC 60529, with traceable nozzle geometry, flow calibration, and angular motion fidelity.
Can test parameters be validated and requalified internally?
Yes—calibration templates for flow rate, oscillation angle, and turntable speed are provided; users may perform routine verification using NIST-traceable flow meters and digital protractors.
Is remote monitoring supported?
Standard Ethernet connectivity enables real-time parameter readout and alarm notification via SNMP or custom HTTP API endpoints.
What maintenance intervals are recommended?
Nozzle inspection every 200 operational hours; filter replacement every 500 hours; full system calibration annually or after 2,000 test cycles.
Are spare parts and technical documentation available in English?
Yes—full English-language service manuals, spare parts catalogs (including nozzle kits, O-rings, and controller PCBs), and firmware update archives are supplied with each unit.
