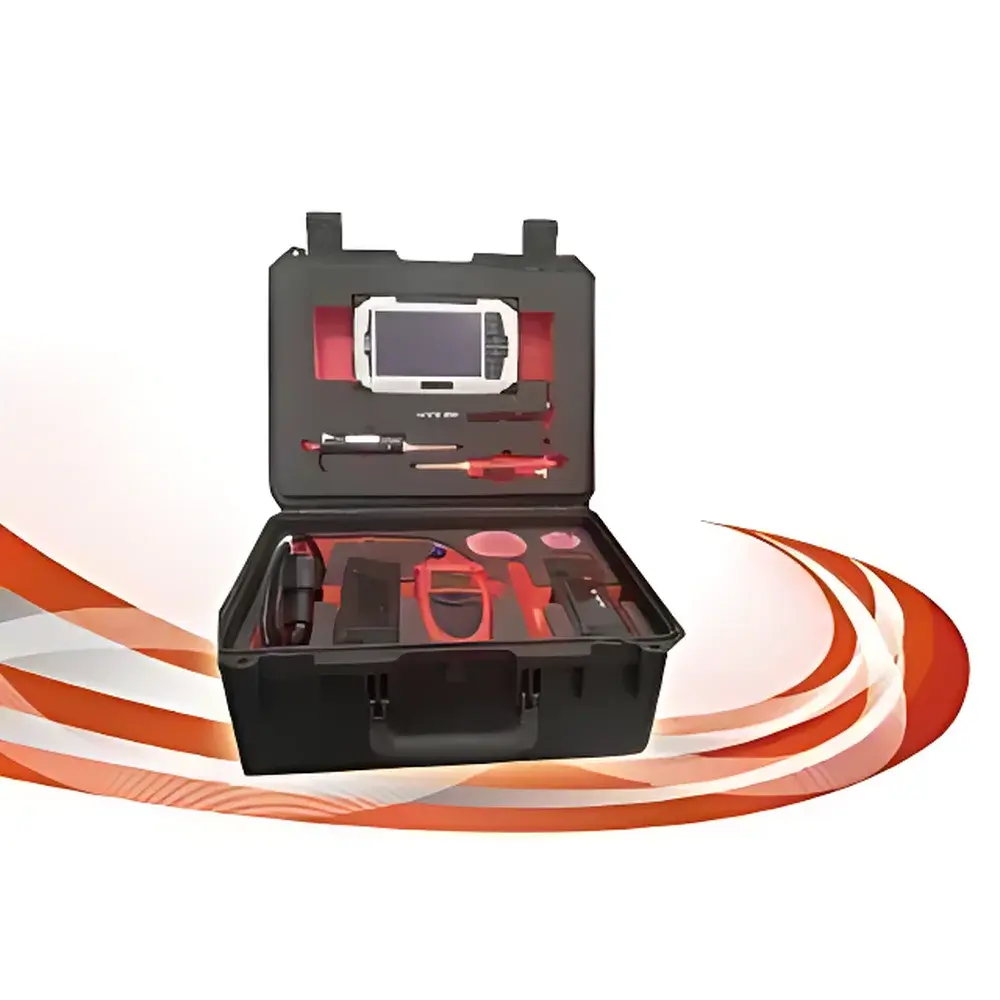

AVVOR 8000 HM-3 Portable Anodic Stripping Voltammetry (ASV) Heavy Metals Analyzer for Water Quality Testing

Overview

The AVVOR 8000 HM-3 is a field-deployable, laboratory-grade anodic stripping voltammetry (ASV) analyzer engineered for quantitative determination of trace heavy metals—including lead (Pb), cadmium (Cd), copper (Cu), zinc (Zn), arsenic (As), and mercury (Hg)—in natural waters, wastewater, drinking water, and surface runoff. Unlike optical or colorimetric screening tools, the AVVOR 8000 HM-3 applies electrochemical principles rooted in controlled potential deposition and subsequent oxidative stripping under rigorously calibrated hydrodynamic conditions. Its core measurement architecture conforms to the fundamental thermodynamic and kinetic framework of ASV as defined in ASTM D3559 and EPA Method 7000B, ensuring metrological traceability to NIST-traceable standard solutions. Designed for regulatory-grade field deployment, it bridges the performance gap between benchtop ICP-MS systems and low-sensitivity immunoassays—delivering sub-part-per-trillion detection capability without requiring inert gas purging, acid digestion, or centralized lab infrastructure.

Key Features

• Rugged IP67-rated enclosure with fully sealed internal electronics, enabling operation in rain, dust, high humidity, or splashed environments—validated per IEC 60529 standards.
• Integrated Windows-based tablet PC with AVVOR ASV Suite v3.2 preinstalled, supporting real-time voltammogram acquisition, peak integration, background subtraction, and multi-point standard addition (MPA) calculations.
• Five modular, hot-swappable sensor cartridges—each containing a glassy carbon working electrode, Ag/AgCl reference electrode, platinum counter electrode, Pt temperature probe, and embedded magnetic stirrer—ensuring consistent mass transport control across variable sample viscosities and temperatures.
• Onboard power management with dual-mode battery (6 h continuous runtime) and seamless AC/DC/automotive input switching—enabling uninterrupted operation during extended site surveys or emergency response deployments.
• Full wireless telemetry via Wi-Fi 5 (802.11ac) and embedded 4G LTE modem (GSM/UMTS/LTE-FDD bands), permitting remote firmware updates, cloud-based data synchronization, and live technical support escalation without physical access.
• Manual peak height adjustment and derivative-based peak identification algorithms—critical for resolving overlapping signals in complex matrices (e.g., seawater, industrial effluent) where automated deconvolution fails.

Sample Compatibility & Compliance

The AVVOR 8000 HM-3 accepts untreated, filtered (0.45 µm membrane), or acid-preserved (1% HNO₃) aqueous samples ranging from pH 2–9. It demonstrates robust interference rejection against common anions (Cl⁻, SO₄²⁻, NO₃⁻) and cations (Ca²⁺, Mg²⁺, Na⁺) at environmentally relevant concentrations (<100 mg/L). All analytical protocols are aligned with ISO 8692 (freshwater toxicity testing), USP / (elemental impurities in pharmaceuticals), and EPA Method 7000B (anodic stripping voltammetry for metals). Data integrity meets FDA 21 CFR Part 11 requirements through time-stamped audit trails, role-based user authentication, and cryptographic hash verification of raw voltammograms and processed results.

Software & Data Management

AVVOR ASV Suite v3.2 provides full GLP-compliant workflow management: method setup (pulse amplitude, deposition time, scan rate), real-time visualization of current vs. potential curves, automatic baseline correction using polynomial fitting, linear regression of calibration curves (r² ≥ 0.999), and concentration back-calculation via MPA or single-point standardization. Raw data (.asv binary format), processed reports (.pdf/.xlsx), and metadata (operator ID, GPS coordinates, ambient temperature, electrode ID) are stored locally and optionally synced to secure AWS S3 buckets. Exported datasets include full uncertainty propagation per GUM (Guide to the Expression of Uncertainty in Measurement) guidelines.

Applications

• Regulatory compliance monitoring for drinking water utilities (WHO, EU Directive 98/83/EC, US EPA Lead and Copper Rule).
• Environmental site assessment of brownfield soils and groundwater plumes.
• Wastewater treatment plant influent/effluent QC per ISO 10523 and EN 27888.
• Field validation of remediation effectiveness following soil washing or electrokinetic extraction.
• Academic research on metal speciation kinetics in estuarine and freshwater ecosystems.
• Emergency response during industrial spills or mining tailings breaches—providing actionable data within minutes rather than days.

FAQ

What metals can the AVVOR 8000 HM-3 quantify simultaneously?
It quantifies up to six metals per run (Pb, Cd, Cu, Zn, As, Hg) using sequential or simultaneous ASV waveforms, depending on electrode configuration and matrix complexity.
Does it require sample digestion or pre-concentration?
No—direct analysis of filtered aqueous samples is supported; however, for ultra-trace levels (<0.5 ppb) in high-salinity matrices, optional in-field electrochemical pre-concentration (120 s deposition) is available.
How is calibration verified in the field?
Each sensor module includes a built-in certified reference electrode and NIST-traceable check standard vial; daily calibration verification is performed automatically before first use and after every 10 samples.
Can historical methods be reprocessed with updated algorithms?
Yes—raw voltammogram files retain all original acquisition parameters, allowing retrospective reprocessing with newer baseline correction models or peak-fitting routines without re-running samples.
Is training and method validation support included?
AVVOR provides ISO/IEC 17025-aligned validation documentation, on-site operator certification workshops, and remote application engineering support—valid for the instrument’s operational lifetime.
