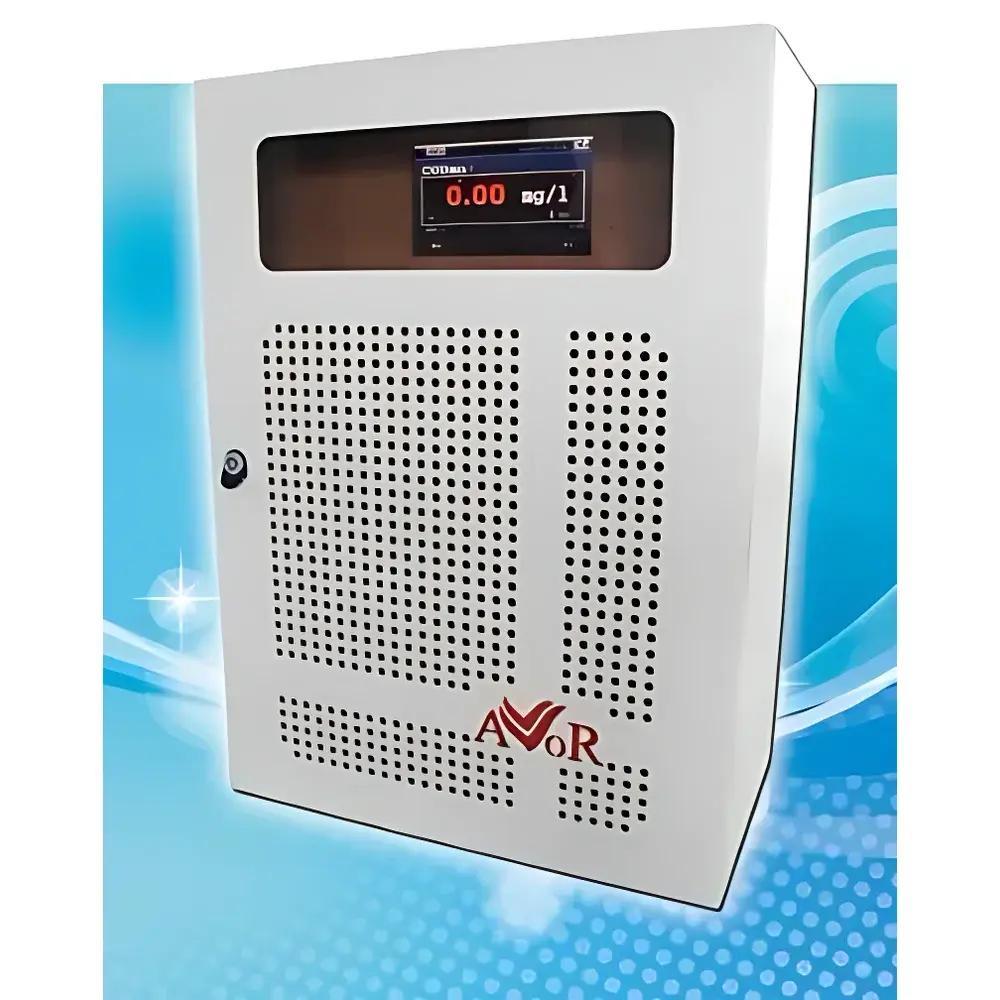

AVVOR 9000-1 Permanganate Index (CODMn) Analyzer – Online ORP-Based Titration System

Overview

The AVVOR 9000-1 Permanganate Index (COD_Mn) Analyzer is an online, fully automated system engineered for continuous or scheduled monitoring of the permanganate index in natural and treated water matrices. It implements the standardized high-temperature oxidation–redox titration method defined in GB 11892–1989 and HJ/T 100–2003, adapted for unattended operation in environmental monitoring stations, drinking water plants, and surface water quality surveillance networks. Unlike colorimetric or spectrophotometric surrogates, this instrument performs true chemical titration: a fixed volume of acidified potassium permanganate solution is added to the sample, heated to 97 °C for 30 minutes to oxidize organic and inorganic reductants; residual permanganate is then back-titrated with sodium oxalate, followed by a reverse titration with standardized KMnO₄. The endpoint is determined not visually—but electrochemically—via real-time monitoring of the oxidation–reduction potential (ORP) signal. A sharp, reproducible inflection in the ORP curve corresponds precisely to the stoichiometric equivalence point, enabling robust, operator-independent quantification without reliance on subjective color interpretation.

Key Features

• ORP-based endpoint detection eliminates inter-operator variability and ensures consistent endpoint recognition across diverse water matrices, including low-color or turbid samples where visual endpoint judgment fails.
• Isolated micro-peristaltic pumps deliver both sample and reagents with high volumetric precision; pre-heating cycle (2 min) stabilizes pump performance prior to analytical sequence initiation.
• No routine ORP electrode calibration required—dynamic algorithm adapts to baseline drift and electrode aging; electrode replacement does not necessitate recalibration or manual slope adjustment.
• Modular fluidic architecture minimizes cross-contamination risk and simplifies maintenance—only three consumable components require periodic replacement: pump tubing, ORP sensor, and digestion coil.
• Embedded parameter auto-tuning adjusts heating duration, reagent dosing volumes, and titration step size based on historical data and real-time ORP response kinetics.
• Compliant with GLP data integrity requirements: full audit trail, time-stamped event logs, user-access controls, and non-editable raw ORP vs. time datasets stored onboard.

Sample Compatibility & Compliance

The AVVOR 9000-1 is validated for use with potable water, groundwater, and unpolluted surface water (e.g., rivers, lakes, reservoirs) containing chloride concentrations ≤300 mg/L. It is explicitly not intended for industrial wastewater or high-COD effluents where chloride interference, suspended solids >50 mg/L, or strong reducing agents (e.g., Fe²⁺, NO₂⁻) may compromise stoichiometric accuracy. Method equivalence is demonstrated against reference manual procedures per GB 11892–1989, with documented recovery rates of 96–103% for certified reference materials (CRMs) traceable to NIM (China National Institute of Metrology). Data output conforms to ISO/IEC 17025 reporting conventions and supports export in CSV and XML formats compatible with LIMS integration.

Software & Data Management

The embedded firmware (v4.2+) provides web-based configuration via HTTPS-secured interface, supporting remote diagnostics, method scheduling, and firmware updates over Ethernet or optional 4G LTE. All raw ORP traces, temperature profiles, pump actuation timestamps, and final calculated COD_Mn values are stored locally for ≥180 days. Data export includes metadata fields compliant with EPA STORET and EU WISE Water Framework Directive reporting templates. Audit trails meet FDA 21 CFR Part 11 requirements for electronic records and signatures when configured with user authentication and digital certificate binding.

Applications

• Continuous compliance monitoring at drinking water intake points and distribution system entry points.
• Seasonal trend analysis of organic load in protected watersheds and source water reservoirs.
• Validation of coagulation/flocculation efficiency in conventional treatment plants.
• Supporting ISO 5667-3 field sampling protocols by providing rapid screening data prior to lab confirmation.
• Integration into national water quality information systems (e.g., China’s National Surface Water Monitoring Network) via Modbus TCP or MQTT protocol gateways.

FAQ

What water matrices are suitable for analysis with the AVVOR 9000-1?
Potable water, groundwater, and low-to-moderate organic surface water with chloride ≤300 mg/L and turbidity <50 NTU.
Does the instrument require daily calibration?
No—ORP electrode calibration is not required for routine operation; only periodic verification using standard redox buffer solutions (e.g., quinhydrone at pH 4.0) is recommended every 30 days.
Can the measurement range be extended beyond 5 mg/L?
Yes—optional range modules support 0–20, 0–50, or 0–100 mg/L configurations, implemented via programmable reagent dilution and adaptive titration control logic.
How is data integrity ensured during power interruption?
Non-volatile memory retains all active method parameters, calibration history, and last 24 hours of raw sensor data; system resumes analysis from last completed step upon power restoration.
Is the analyzer compatible with third-party SCADA platforms?
Yes—Modbus RTU (RS-485), Modbus TCP (Ethernet), and MQTT v3.1.1 interfaces are supported out-of-the-box for seamless integration into industrial automation environments.
