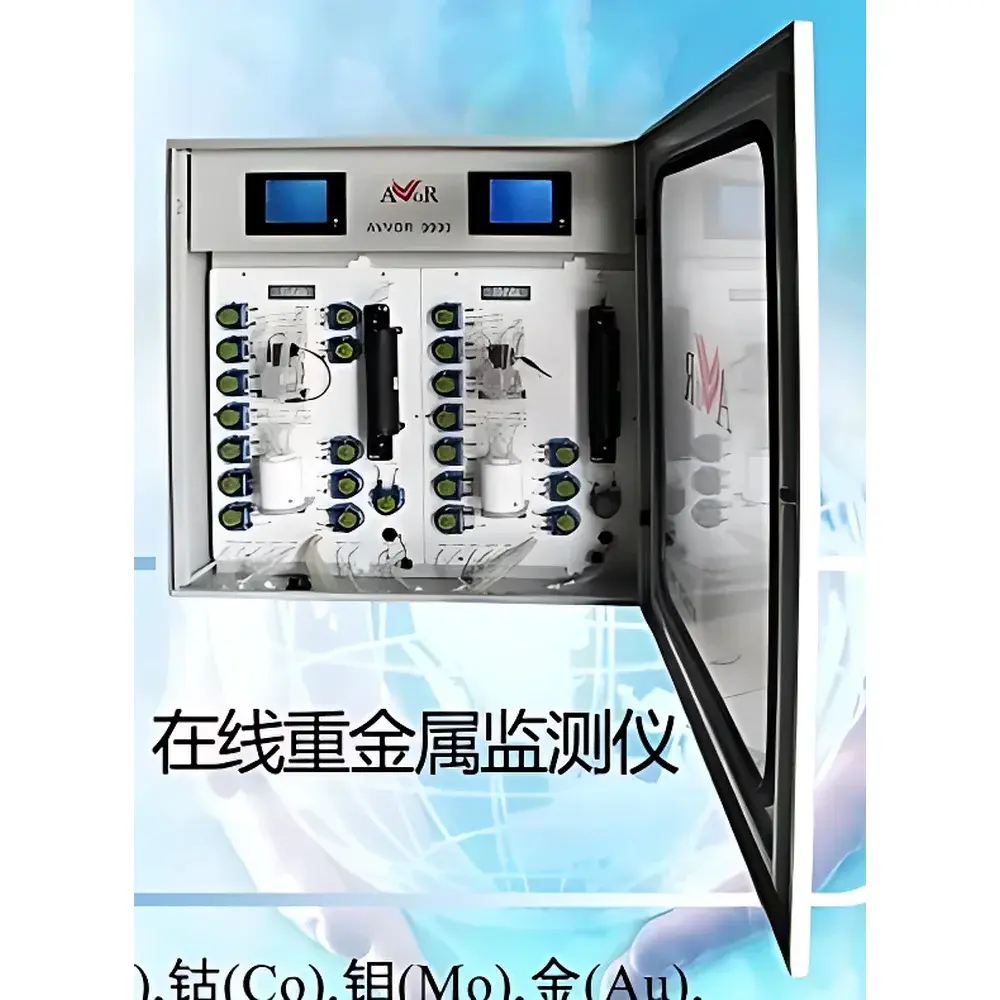

AVVOR 9000 Online Heavy Metal Analyzer

Overview

The AVVOR 9000 Online Heavy Metal Analyzer is an electrochemical process analyzer engineered for continuous, real-time quantification of trace heavy metal ions in aqueous matrices. It employs standardized anodic stripping voltammetry (ASV), a mature and internationally recognized electroanalytical technique referenced in ASTM D3559, ISO 11969, and EPA Method 7063. In ASV, target metal ions are first preconcentrated onto a working electrode via controlled electrolysis under optimized deposition potential and time; following a quiescent period, a linear or staircase potential sweep is applied to oxidize (strip) the accumulated metals, generating characteristic current peaks whose magnitude correlates directly with concentration. This principle delivers high sensitivity (sub-ppb detection limits for key analytes), selectivity across multi-element profiles, and robustness against common matrix interferences—particularly when coupled with integrated sample conditioning (e.g., UV digestion, pH adjustment, and organic removal filtration). Designed for unattended operation in demanding environmental and industrial settings, the AVVOR 9000 meets the functional requirements of ISO/IEC 17025-accredited laboratories and supports regulatory compliance frameworks including EU Water Framework Directive (WFD) monitoring, US Clean Water Act effluent guidelines, and WHO drinking water quality standards.

Key Features

• Modular architecture supporting up to two independent analytical modules per instrument chassis—enabling flexible configuration for site-specific monitoring needs.
• Multi-analyte capability: Each module accommodates one working electrode (Au, Hg-film, Bi-film, or bare carbon), permitting simultaneous quantification of up to five heavy metals per module.
• Dedicated electrode–analyte pairing: Gold electrodes for As, Hg, Se; mercury-film electrodes for Zn, Cd, Pb, Cu, Mn, Sb, Tl, Fe, Ni, Sn; bismuth-film electrodes for Cr, Co, Mo; and specialized configurations for Au, Ag, Pd, Cr(VI), and U.
• Integrated sample pretreatment system—including optional UV oxidation, membrane filtration, and pH stabilization—to minimize organic fouling and enhance measurement reproducibility.
• Industrial-grade I/O: Eight configurable 4–20 mA analog outputs, RS-485 (Modbus RTU) and RS-232 serial interfaces for SCADA integration, PLC communication, and remote diagnostics.
• Automated operational routines: Scheduled self-calibration, fault detection with event logging, power/failure recovery protocols, and IP65-rated sealed enclosure with humidity control.

Sample Compatibility & Compliance

The AVVOR 9000 is validated for direct analysis of raw and treated water streams without manual dilution or derivatization. Compatible matrices include municipal wastewater effluents, industrial process liquors (e.g., plating baths, mining leachates), surface water (rivers, lakes), groundwater, potable water, and seawater (with salinity compensation enabled). All measurement protocols adhere to Good Laboratory Practice (GLP) data integrity requirements, including full audit trail functionality, user-access controls, and electronic signature support compliant with FDA 21 CFR Part 11. System validation documentation aligns with ISO 8466-1 for calibration curve linearity and ISO 5725 for precision assessment.

Software & Data Management

The embedded firmware and optional PC-based AVVOR Control Suite provide comprehensive data lifecycle management. Real-time chromatogram visualization, peak integration with baseline correction, and automated interference flagging are standard. Data export supports CSV, PDF report generation, and OPC UA server integration. Historical datasets are timestamped, version-controlled, and stored with cryptographic hashing to ensure immutability. Remote firmware updates, parameter configuration push, and diagnostic telemetry are supported over Ethernet or LTE (optional). Audit logs record all user actions, calibration events, and hardware status changes—retained for ≥18 months per internal retention policy.

Applications

• Continuous compliance monitoring at wastewater treatment plant outfalls per NPDES permit requirements.
• Early-warning detection of heavy metal leaching in landfill leachate collection systems.
• In-process control of electroplating bath chemistry to maintain coating quality and reduce hazardous waste generation.
• Drinking water safety surveillance at intake points and distribution nodes, especially near legacy industrial zones.
• Environmental impact assessment (EIA) studies for mining, smelting, and battery manufacturing facilities.
• Research-grade speciation studies when paired with optional Cr(VI)/Cr(III) selective modules and kinetic profiling modes.

FAQ

What electrochemical method does the AVVOR 9000 use?

Anodic stripping voltammetry (ASV), performed using disposable or regenerable solid-state working electrodes.
Can the instrument measure hexavalent chromium (Cr(VI)) separately from total chromium?

Yes—via dedicated Cr(VI)-specific electrode chemistry and optimized deposition/stripping potentials, enabling selective quantification without offline speciation.
Is remote calibration and maintenance possible?

Yes—through secure web interface or Modbus TCP, allowing full parameter configuration, calibration certificate upload, and diagnostic log retrieval without on-site technician presence.
How does the system handle high-salinity samples like seawater?

Built-in conductivity compensation algorithms and electrode surface renewal cycles mitigate chloride interference; optional silver/silver-chloride reference electrode stabilization further enhances accuracy.
Does the AVVOR 9000 support regulatory reporting formats?

Yes—automated generation of EPA Form 3320-1 equivalent reports, ISO 14001 environmental KPI dashboards, and customizable XML exports for national water quality databases.
