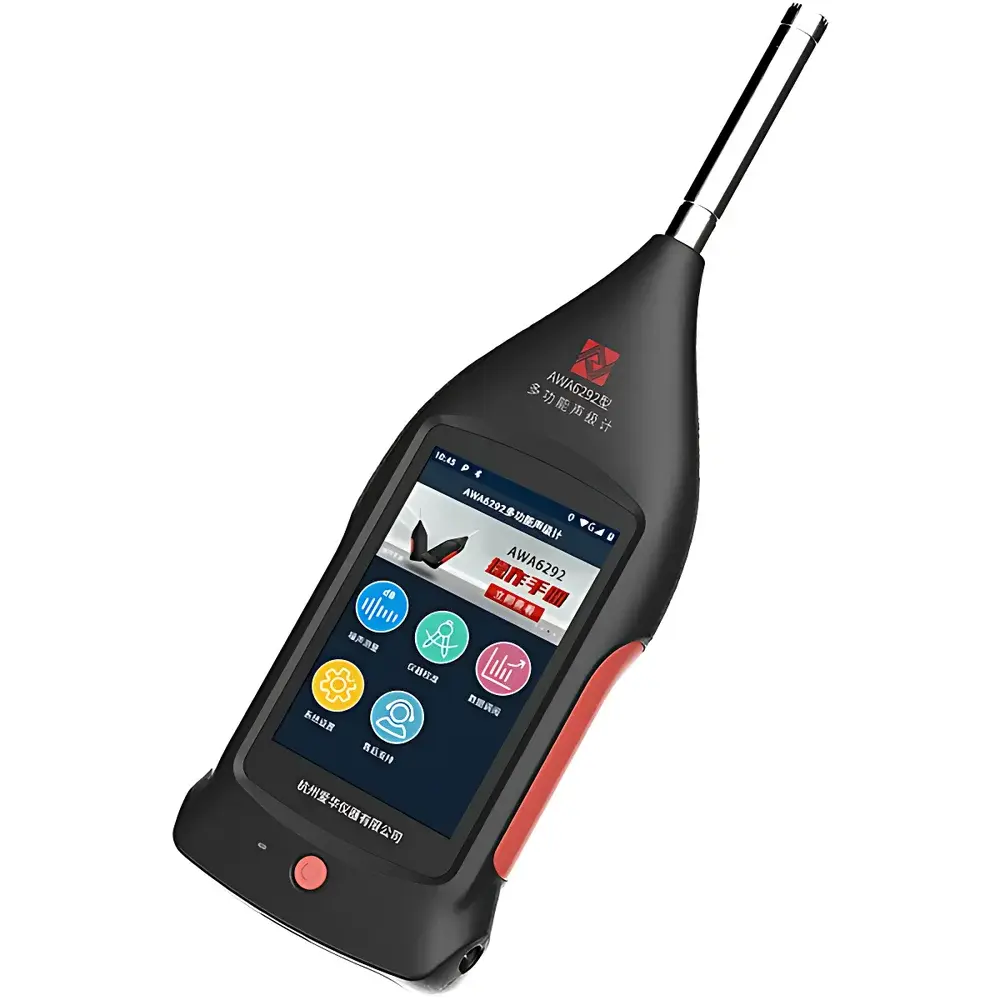

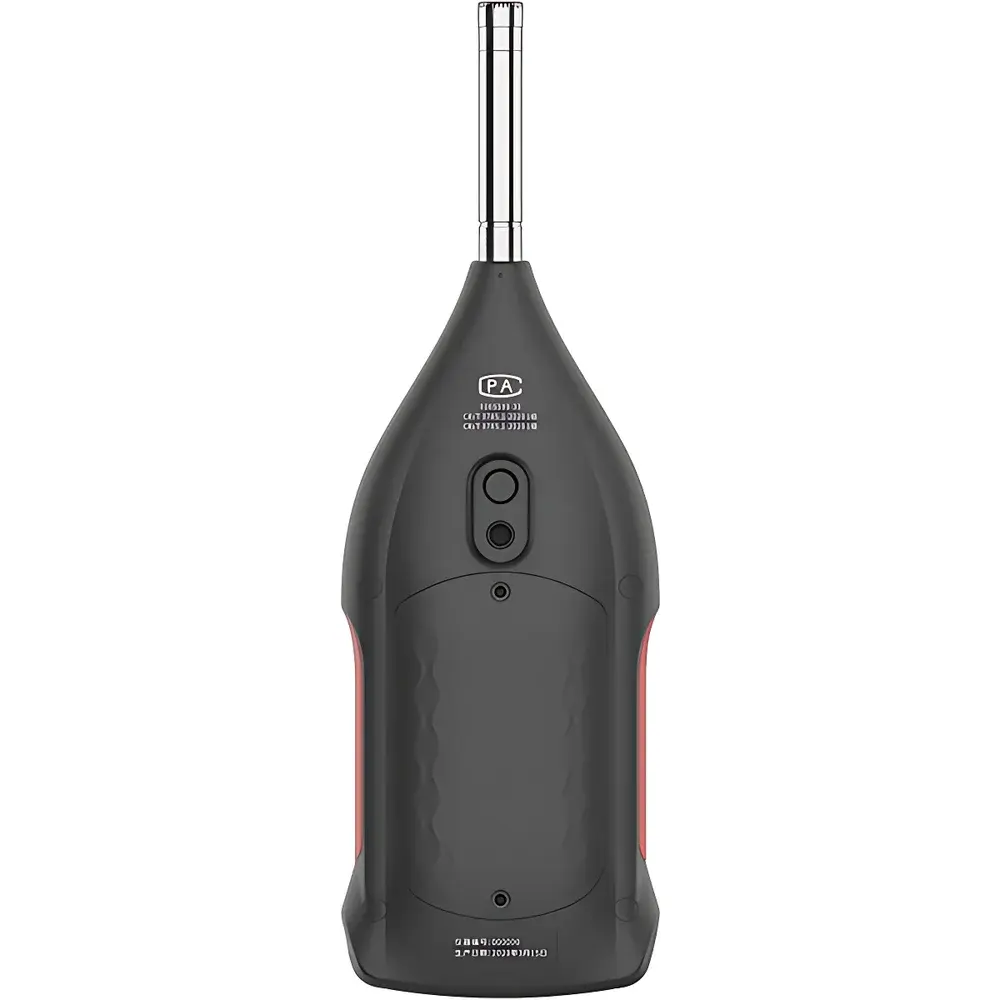

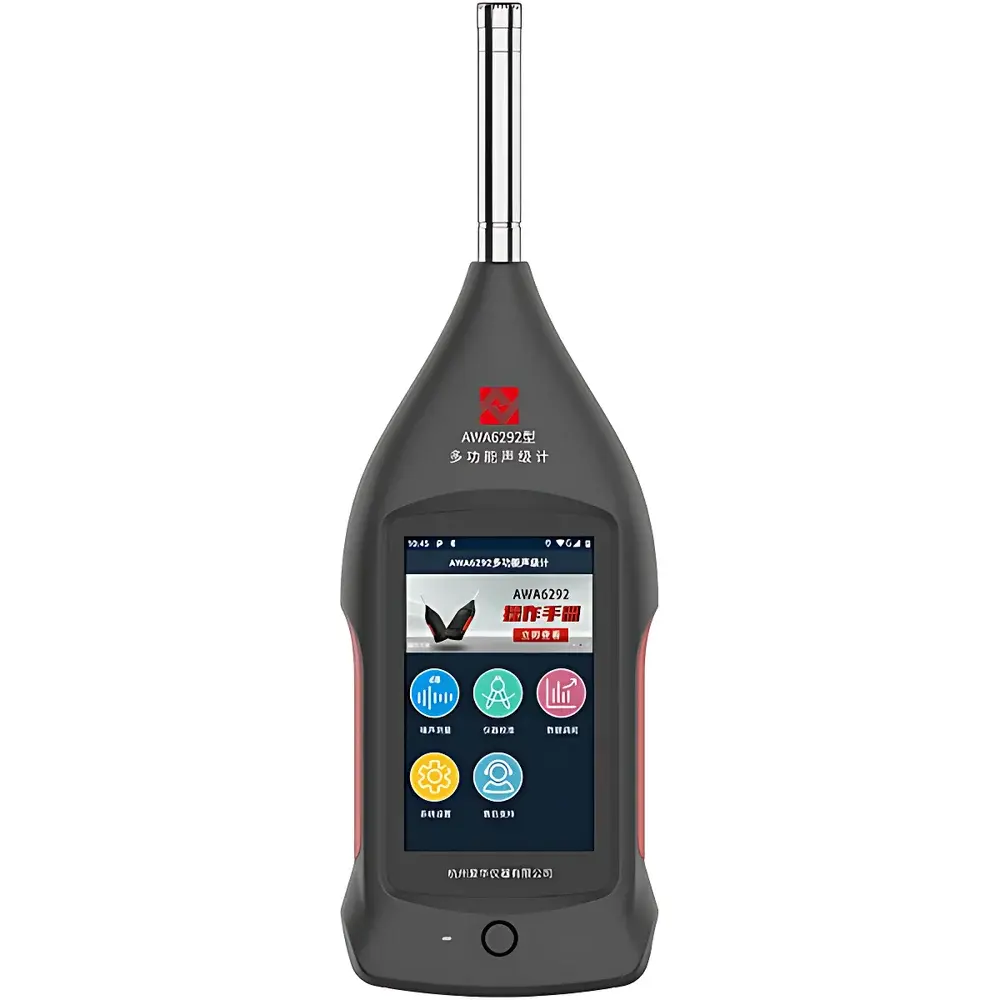

AWA AWA6292 Advanced Class 1 Sound Level Meter with Real-Time Octave Analysis, 24-Hour Monitoring & Cloud-Ready Connectivity
| Brand | AWA |
|---|---|
| Model | AWA6292 |
| Accuracy Class | IEC 61672-1:2013 Class 1 |
| Frequency Range | 10 Hz – 20 kHz |
| Measurement Range | 20 dB(A) – 143 dB(A) |
| Display | 4.3" capacitive touchscreen |
| Data Storage | 16 GB internal + microSD slot (up to 64 GB) |
| Environmental Rating | IP65 (instrument body, excluding microphone) |
| Operating Temperature | −20 °C to +60 °C |
| Battery | 10,000 mAh Li-ion (20 W fast charge, ≥24 h runtime per full charge) |

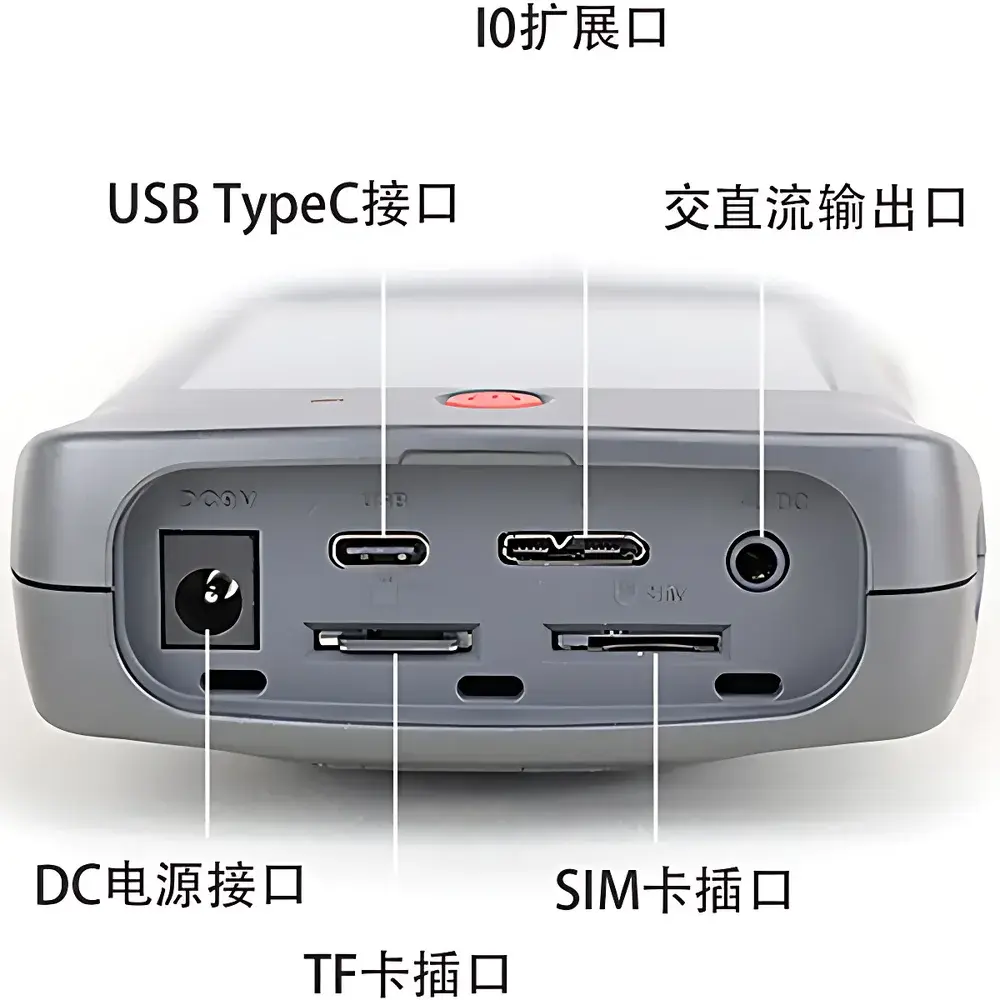

| Connectivity | 4G LTE, Wi-Fi 802.11 b/g/n, Bluetooth 5.0, USB-C, RS-232 serial |
| Compliance | GB/T 3785.1–2010, IEC 61672-1:2013, GB/T 3241–2010, IEC 61260-1:2014 |
Overview
The AWA AWA6292 Advanced Class 1 Sound Level Meter is a precision-engineered acoustic measurement instrument designed for regulatory-compliant noise assessment across industrial, environmental, occupational, aviation, and architectural acoustics applications. Built upon real-time digital signal processing (DSP) architecture and dual-core ARM-based firmware, it delivers simultaneous parallel time-weighting (Fast, Slow, Impulse) and frequency-weighting (A, C, Z), enabling concurrent evaluation of multiple standardized metrics without compromise in temporal or spectral resolution. Its core transduction system employs a pre-polarized ½″ condenser microphone compliant with IEC 61094-4, coupled with low-noise, high-stability front-end electronics calibrated traceably to national metrological standards. The instrument adheres strictly to IEC 61672-1:2013 Class 1 performance requirements—including linearity, frequency response tolerance, and temperature stability—ensuring data integrity for submissions to environmental agencies, occupational safety audits (e.g., OSHA 1910.95, EU Directive 2003/10/EC), and ISO 14001-certified monitoring programs.
Key Features
- Real-time parallel computation of up to 9 simultaneous metrics—including LAeq,T, LAmax, LAmin, LAX,N (N = 5, 10, 50, 90, 95), SEL, LApeak, and statistical standard deviation—without time-slicing or interpolation artifacts.
- Integrated 1/1-octave and 1/3-octave band analysis per IEC 61260-1:2014 Class 1, supporting noise source identification, spectral fingerprinting, and hearing conservation program validation.
- Onboard FFT engine (up to 65,536-point resolution) for narrowband spectral diagnostics, resonance detection, and tonality assessment in machinery health monitoring.
- 24-hour autonomous environmental noise logging with GPS geotagging, sunrise/sunset-triggered event segmentation, and automatic duty-cycle reporting aligned with ISO 1996-2:2017 Annex B.
- Ruggedized industrial housing (ABS+PC polymer blend) rated IP65 (excluding microphone capsule), tested per IEC 60529 for dust-tightness and water-jet resistance—suitable for outdoor deployment in harsh manufacturing or airport perimeters.
- Secure data pipeline: AES-256 encryption for stored measurements; TLS 1.2–secured cloud upload via integrated 4G LTE module; audit-ready metadata including calibration history, operator ID, and firmware version.
Sample Compatibility & Compliance
The AWA6292 supports interchangeable microphone cartridges (including optional ¼″ and ½″ variants) and integrates seamlessly with external calibrators (e.g., AWA6221B) traceable to NIM (China National Institute of Metrology). It satisfies the metrological and procedural requirements of multiple international frameworks: IEC 61672-1:2013 Class 1 for sound level meters; IEC 61260-1:2014 Class 1 for octave-band filters; ISO 1996-1:2016 and ISO 1996-2:2017 for environmental noise description; ISO 3744:2010 and ISO 3746:2010 for industrial equipment noise emission testing; and ANSI S1.4-2014 Type 1 equivalency. All firmware and calibration coefficients are digitally signed and version-controlled, supporting GLP/GMP-aligned documentation workflows and FDA 21 CFR Part 11 compliance when deployed with validated cloud platforms.
Software & Data Management
The instrument ships with AWA 6292 PC Suite v4.2—a Windows-based desktop application enabling offline configuration, spectral visualization, report generation (PDF/CSV/XLSX), and batch calibration verification. Raw time-history data (100 kHz sampling rate) and processed metrics are exportable with embedded timestamps, GPS coordinates, and sensor status flags. Cloud synchronization via AWA Cloud Platform provides role-based access control, automated alerting (e.g., threshold exceedance), long-term trend analytics, and multi-site comparative dashboards—all accessible via web browser or iOS/Android mobile app. Audit trails log every configuration change, data export, and remote firmware update with user attribution and ISO 8601 timestamps.
Applications
- Industrial noise mapping and machinery compliance verification against ISO 11201–11204 series standards.
- Environmental impact assessments (EIA) for construction, wind farms, and transportation infrastructure per ISO 1996-2 and local regulatory thresholds.
- Occupational health and safety monitoring in factories, power plants, and logistics centers—supporting OSHA PEL/REL calculations and hearing conservation recordkeeping.
- Airport community noise monitoring under ICAO Annex 16 Volume I Chapter 10, including Lden, Lnight, and event-based aircraft noise classification.
- Architectural acoustics characterization: RT60 (reverberation time), STI (speech transmission index), and early decay time (EDT) in concert halls, classrooms, and healthcare facilities.
- Product development labs performing pass/fail acoustic testing on consumer electronics, HVAC units, and automotive components per CISPR, SAE J1131, or ISO 362-3.
FAQ
Does the AWA6292 meet international Class 1 certification requirements for regulatory submissions?
Yes. It is fully compliant with IEC 61672-1:2013 Class 1 and carries factory calibration certificates traceable to national metrology institutes.
Can the device perform real-time 1/3-octave analysis while logging 24-hour LAeq data?
Yes—its dual-DSP architecture enables true parallel processing of broadband metrics, octave bands, and time-history recording without latency or data loss.
Is GPS location data embedded in exported measurement files?
Yes. Each measurement record includes WGS84 latitude/longitude, altitude, and UTC timestamp; geotagging is configurable per session or globally disabled for security-sensitive deployments.
What is the maximum continuous operating time on a single charge?
With typical measurement load (LAeq + 1/1 OCT + GPS active), battery life exceeds 24 hours. Fast charging (20 W) restores 100% capacity in ≤120 minutes.
How is data integrity ensured during wireless transmission to the cloud platform?
All payloads are encrypted end-to-end using AES-256; TLS 1.2 handshake authenticates both client and server; failed uploads auto-requeue with exponential backoff and checksum validation upon receipt.
