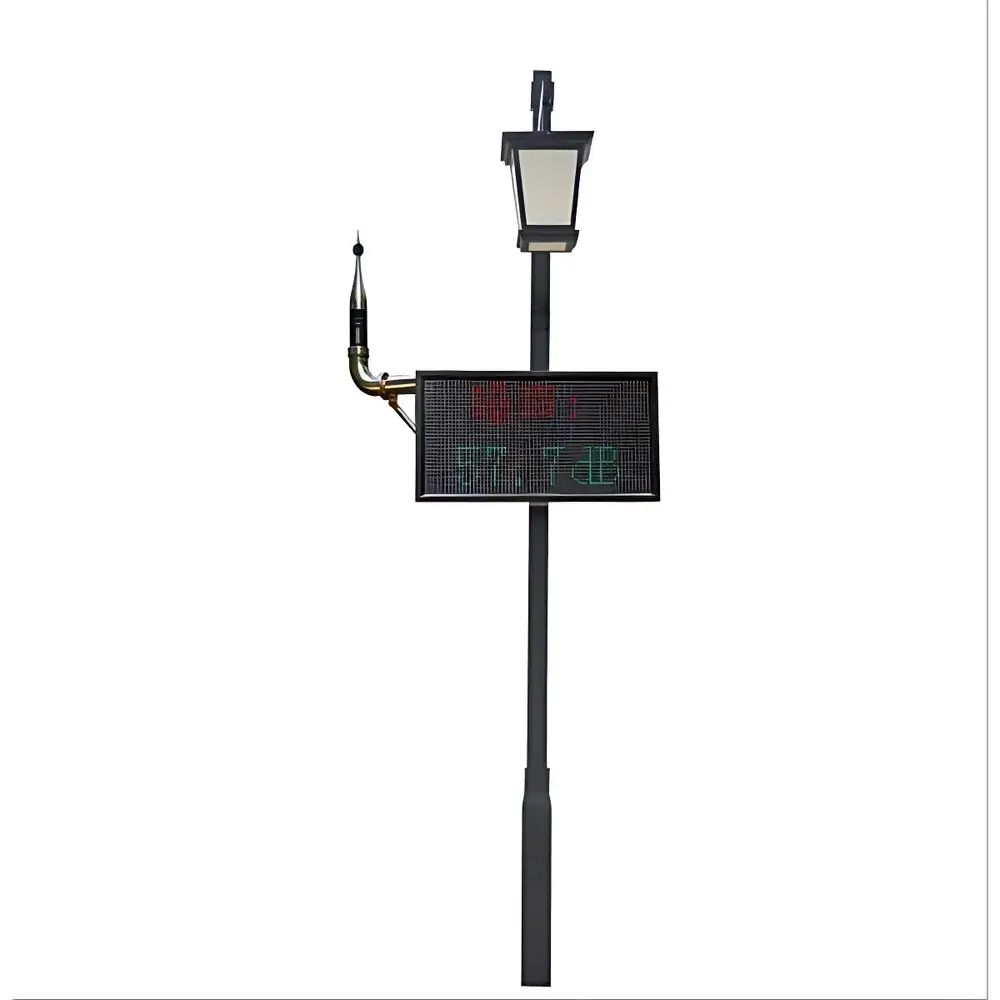

AWA2000 Noise Monitoring System

Overview

The AWA2000 Noise Monitoring System is a field-deployable, Class 1 compliant environmental noise monitoring solution engineered for continuous, unattended operation in outdoor urban and semi-rural settings. It implements precision acoustic measurement based on the principles of sound pressure level (SPL) quantification using electret condenser microphones calibrated traceably to national metrological standards. The system conforms strictly to GB/T 3785.1—2023 and IEC 61672-1:2013 Class 1 specifications—ensuring metrological equivalence with internationally recognized reference instruments used in regulatory compliance, environmental impact assessment, and long-term noise mapping studies. Designed for fixed-site deployment without civil construction requirements, the AWA2000 integrates signal conditioning, real-time digital signal processing (DSP), embedded statistical analysis, and dual-path telemetry into a single ruggedized enclosure suitable for permanent installation in residential neighborhoods, public plazas, parks, and roadside monitoring grids.

Key Features

• Class 1 acoustic performance per IEC 61672-1:2013 and GB/T 3785.1—2023, verified through factory calibration with NMI-traceable reference sources
• Modular power architecture supporting AC mains, solar photovoltaic panels (with MPPT charge controller), and sealed lead-acid or LiFePO₄ battery backup—enabling >30 days autonomous operation under full 24/7 logging
• Bluetooth 5.0 interface for secure local configuration, real-time parameter adjustment, and on-site electroacoustic calibration verification using handheld calibrators (e.g., AWA6221B)
• DSP-based signal processing engine delivering ≥120 dB dynamic range, <±0.2 dB linearity error across 20 Hz–12.5 kHz, and anti-aliasing filtering compliant with ANSI S1.4-2014
• Dual communication redundancy: RS-232/RS-485 serial interface for local SCADA integration + LTE Cat-1 4G module supporting MQTT, HTTP POST, and TCP/IP protocols for secure cloud transmission
• Onboard statistical engine computing L_p(t), L_Aeq,T, L_AFmax, L_AFmin, and percentile levels (L₁, L₅, L₁₀, L₅₀, L₉₀, L₉₅, L₉₉) over user-defined intervals (10-min, hourly, daily)

Sample Compatibility & Compliance

The AWA2000 is validated for ambient noise measurement in open-air environments where wind speed remains below 5 m/s (supplied with optional windscreen and rain cap). It is not intended for industrial machinery noise diagnostics, impulsive blast measurements, or infrasound (<20 Hz) applications. Regulatory alignment includes full traceability to China’s National Institute of Metrology (NIM), adherence to GB 3096–2008 (Environmental Noise Emission Standards for Urban Areas), and compatibility with municipal environmental information platforms requiring ISO/IEC 17025-compliant data streams. Firmware supports audit-log generation for GLP-aligned deployments, including timestamped calibration events, configuration changes, and sensor health diagnostics.

Software & Data Management

Data acquisition and visualization are managed via AWA Cloud—a secure, role-based web platform compliant with ISO/IEC 27001 information security standards. Raw and statistical datasets are stored in time-series databases with immutable write-once architecture. Each measurement record includes embedded metadata: GPS coordinates, microphone sensitivity factor, temperature/humidity readings (via integrated environmental sensor), and cryptographic checksums. The platform supports automated report generation per GB/T 27025–2019 requirements, export to CSV/NetCDF formats, and API access for integration with GIS layers or city-wide environmental dashboards. All remote firmware updates undergo SHA-256 signature verification prior to installation.

Applications

• Urban noise mapping and zoning compliance verification for municipal environmental protection bureaus
• Long-term monitoring of community noise exposure near transportation corridors (roads, railways, airports)
• Real-time feedback systems for public spaces—integrated with LED display modules showing L_Aeq,1h and regulatory threshold status
• Construction site noise compliance monitoring with automated exceedance alerts via SMS/email
• Academic research on diurnal/nocturnal noise patterns, traffic flow correlation, and green infrastructure attenuation studies

FAQ

Does the AWA2000 support remote calibration verification?
Yes—via Bluetooth-connected calibrator devices; full calibration certificate generation requires periodic NIM-accredited laboratory verification every 12 months.
Is the system compatible with third-party environmental data platforms?
Yes—through configurable RESTful APIs and standardized JSON payloads aligned with the European Environment Agency’s AQ e-Reporting schema.
What is the operating temperature range?
−20 °C to +55 °C, with internal thermal compensation algorithms maintaining amplitude accuracy within ±0.3 dB across the full range.
Can the system operate during extended grid outages?
Yes—when configured with ≥100 Ah battery capacity and ≥80 W solar panel, autonomy exceeds 14 days at 10-minute averaging interval.
How is data integrity ensured during 4G transmission interruptions?
Local SD card storage (up to 32 GB) retains all raw and statistical data; transmission resumes automatically with queue-based retransmission upon network recovery.
