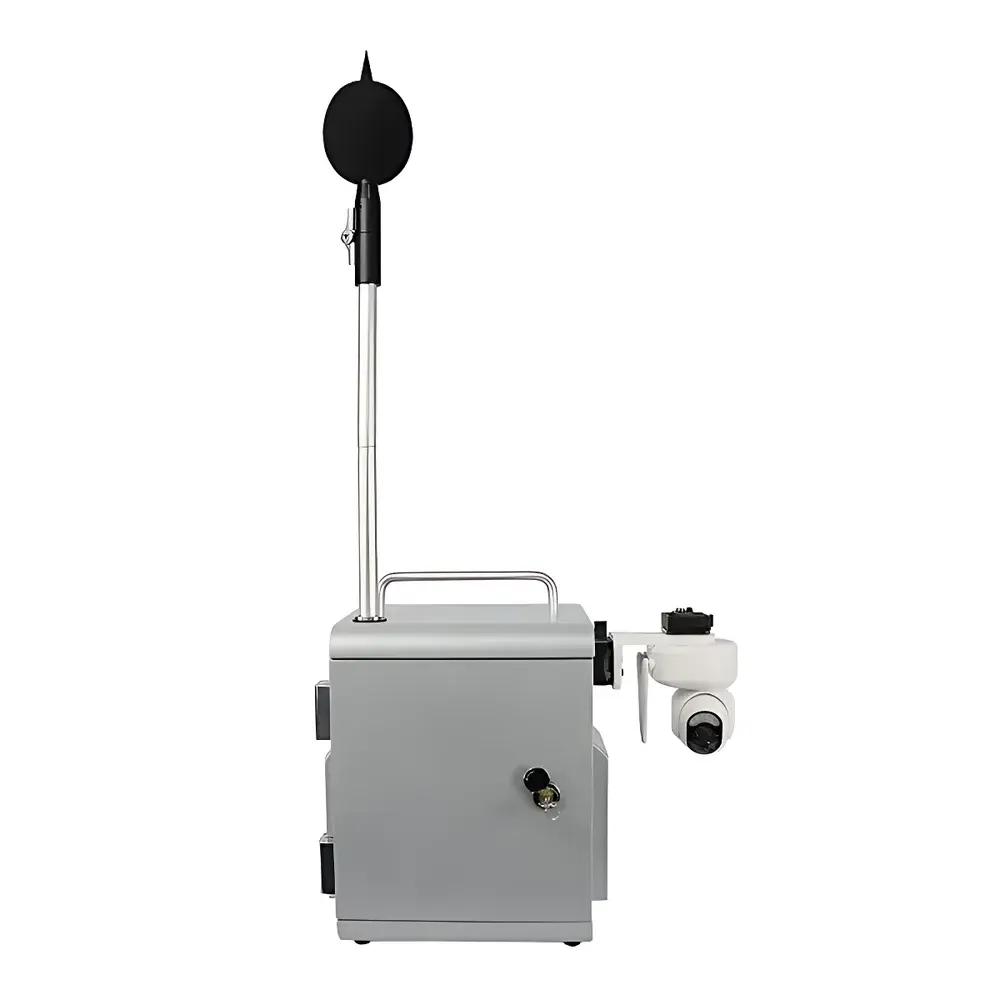

AWA4000 Multi-Function Environmental Noise Monitoring System

Overview

The AWA4000 Multi-Function Environmental Noise Monitoring System is a portable, Class 1 precision instrument engineered for short-term, site-deployable environmental noise assessment in compliance with international electroacoustic standards. It operates on the principle of digital signal processing (DSP)-enhanced microphone-based sound pressure level (SPL) measurement, utilizing a pre-polarized condenser microphone coupled with a high-stability analog-to-digital conversion chain. Designed for field flexibility rather than permanent installation, the system delivers traceable, metrologically valid acoustic data across urban, industrial, transportation, and aviation environments. Its architecture supports both instantaneous spot measurements and extended-duration logging—enabling rigorous evaluation of noise exposure dynamics over time intervals ranging from milliseconds to full 24-hour diurnal cycles. The system’s physical design prioritizes mechanical robustness and environmental resilience, with IP54-rated enclosures suitable for outdoor deployment under variable temperature and humidity conditions.

Key Features

• Class 1 accuracy certified per GB/T 3785.1–2023 and IEC 61672-1:2013, ensuring metrological equivalence with laboratory-grade reference instruments
• Wide dynamic range: 25 dB(A) to 140 dB(A), with self-noise ≤20 dB(A), enabling reliable low-level ambient monitoring and high-intensity event capture
• Full audio-frequency coverage from 20 Hz to 12.5 kHz, supporting A-, C-, and Z-frequency weightings as well as linear time weighting (Fast/Slow/Impulse)
• Multi-mode power architecture: compatible with AC mains (100–240 VAC), rechargeable sealed-lead-acid battery (≥72 h continuous operation), and optional solar charging kits for remote deployments
• Modular mounting system: accommodates pole-mounting (Ø50–114 mm), wall-bracketing, tripod integration, and vehicle-mounted configurations without structural modification
• Integrated tamper-detection logic: triggers local audible alarm and remote syslog notification upon unauthorized displacement, impact, or enclosure opening

Sample Compatibility & Compliance

The AWA4000 is validated for use in regulatory-compliant noise surveys across diverse environmental contexts—including traffic corridors, residential zones, industrial perimeters, airport approach paths, and construction sites. Its measurement algorithms fully implement ISO 1996-2:2017 for environmental noise description and assessment, and support statistical metrics (L₁₀, L₅₀, L₉₀, L_eq,T) required by national emission control frameworks. Data outputs are structured to align with China’s HJ 640–2012 technical specification for environmental noise monitoring networks and are interoperable with national platforms such as the China National Environmental Monitoring Network (CNEMN). While not FDA- or EU-MDR-regulated, its firmware architecture includes audit-trail logging and user-access controls consistent with GLP-aligned field data integrity practices.

Software & Data Management

The system interfaces with AWA6291 LabSuite v3.2 software via RS-485, Ethernet, or optional 4G LTE module, enabling real-time telemetry, remote configuration, and scheduled firmware updates. All acquired datasets are timestamped with GPS-synchronized UTC and stored in standardized .wav and .csv formats compliant with ISO 532-1:2017 for post-processing. The software supports spectral analysis (1/1-octave and 1/3-octave band), event-triggered recording (based on threshold crossing or external TTL input), and automated report generation conforming to HJ 972–2018 reporting guidelines. Data encryption (AES-128) and role-based user authentication ensure secure handling in multi-agency collaboration scenarios.

Applications

• Short-term comparative validation of fixed noise monitoring substation outputs against mobile reference instrumentation
• Rapid-response noise complaint investigations, including source localization and temporal correlation with operational schedules
• 24-hour functional zone monitoring (e.g., Class 1–4 acoustic zoning per GB 3096–2008) for municipal planning and enforcement
• Airport noise contour mapping and cumulative exposure assessment (e.g., LDEN, SEL) in accordance with ICAO Annex 16 Vol.I
• Construction site noise compliance verification during sensitive hours (e.g., nighttime restrictions)
• Baseline studies for environmental impact assessments (EIA) and post-mitigation effectiveness audits

FAQ

Does the AWA4000 meet international Class 1 requirements for field calibration?
Yes—it is type-approved to IEC 61672-1:2013 Class 1 and verified against national primary standards traceable to NIM (National Institute of Metrology, China).
Can it operate autonomously for unattended 24-hour logging?
Yes, with integrated battery or external power supply; internal memory retains up to 32 GB of raw waveform and statistical data.
Is third-party software integration supported?
Yes—via Modbus RTU/TCP and ASCII protocol documentation, enabling integration into SCADA, GIS, and centralized environmental data platforms.
What is the recommended calibration interval?
Annual field calibration using a Class 1 acoustic calibrator (e.g., AWA6221B) is advised, with documented verification before and after critical measurement campaigns.
How is data integrity ensured during transmission?
All wireless transmissions employ TLS 1.2 encryption; local storage includes CRC32 checksums and write-protected archive partitions to prevent accidental overwrites.
