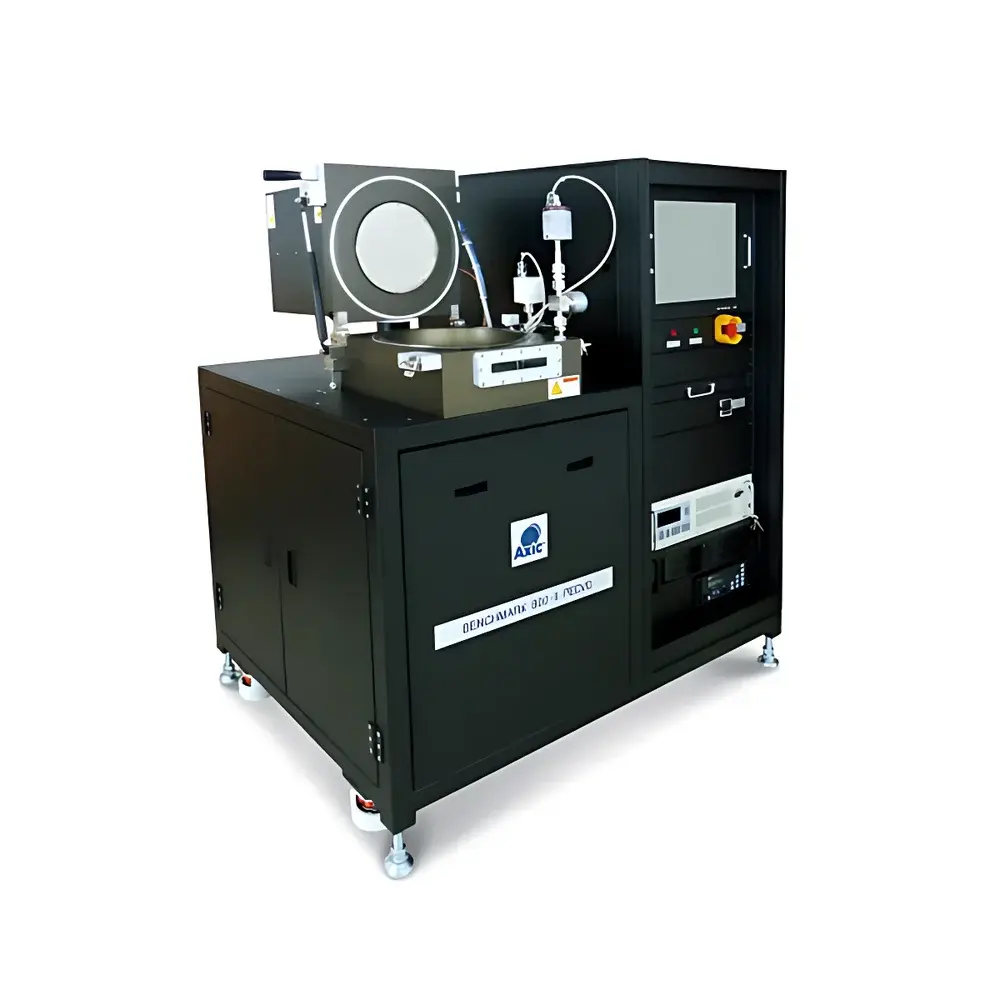

AXIC BenchMark 800 Plasma Etching and PECVD System

Overview

The AXIC BenchMark 800 is a modular, research-grade plasma processing system engineered for high-fidelity reactive ion etching (RIE) and plasma-enhanced chemical vapor deposition (PECVD) on substrates up to 200 mm in diameter. Designed explicitly for semiconductor process development, materials science research, and low-volume pilot production, the system implements fundamental plasma physics principles—including electron-impact dissociation, ion-assisted surface reactions, and sheath-controlled ion energy distribution—to deliver reproducible, controllable material removal and thin-film growth. Its architecture supports both parallel-plate capacitively coupled plasma (CCP) configurations for RIE and asymmetric electrode designs optimized for PECVD uniformity and film stoichiometry control. The system operates under vacuum conditions typically ranging from 1 mTorr to 100 mTorr, with RF power delivery at 13.56 MHz and variable forward power up to 1 kW (configurable), enabling precise tuning of plasma density, ion flux, and radical generation rates.

Key Features

• Modular chamber platform supporting interchangeable electrode assemblies: Planar (for general-purpose plasma exposure), RIE (with bias-controlled bottom electrode for directional etching), and PECVD (with heated top electrode and optimized gas distribution for conformal dielectric deposition)
• Monolithic stainless-steel vacuum chamber with integrated RF feedthroughs and ceramic-insulated electrodes, ensuring long-term vacuum integrity and minimal particle generation
• In-situ adjustable electrode gap (standard in PECVD configuration), enabling real-time optimization of plasma uniformity and film stress control
• Replaceable aluminum or quartz showerhead with precision-drilled orifices for homogeneous precursor gas distribution and reduced clogging risk
• Automatic RF impedance matching network with <100 µs response time, maintaining stable plasma ignition and operation across wide pressure and power ranges
• Downstream capacitance manometer with optional closed-loop pressure regulation for sub-mTorr stability during critical etch steps
• Optional optical endpoint detection via fiber-coupled OES (200–800 nm spectral range), supporting real-time monitoring of atomic/ionic emission lines (e.g., Si*, Cl*, F*, CO*) for endpoint determination
• Windows-based control software with password-protected user roles, full recipe parameter logging, and timestamped event history compliant with GLP documentation requirements

Sample Compatibility & Compliance

The BenchMark 800 accommodates silicon, compound semiconductors (GaAs, SiC, GaN), quartz, fused silica, and metal-coated wafers. It supports standard SEMI-compatible wafer handling protocols and integrates with manual or semi-automated load-lock interfaces. All vacuum components meet ASTM F2749-19 standards for cleanroom-compatible materials. The system’s electrical safety complies with UL 61010-1 and IEC 61000-6-4 electromagnetic compatibility requirements. For regulated environments, optional 21 CFR Part 11-compliant software add-ons provide electronic signatures, audit trails, and data integrity controls suitable for FDA-regulated R&D and qualification studies.

Software & Data Management

Control is executed through a dedicated Windows 10 IoT Enterprise interface running AXIC ProcessSuite™ v4.x. The software provides hierarchical recipe management (global, process-specific, and user-defined templates), real-time parameter visualization (RF forward/reflected power, chamber pressure, substrate temperature), and automated data export in CSV and HDF5 formats. All system events—including pump-down cycles, plasma ignition, gas valve actuation, and error states—are time-stamped and stored locally with SHA-256 hash verification. Remote diagnostics and firmware updates are supported via secure TLS 1.2 connections. Audit logs retain ≥18 months of operational history without manual intervention.

Applications

• Etching of SiO₂, Si₃N₄, and amorphous silicon using fluorocarbon (CF₄, C₄F₈) or chlorine-based (Cl₂, BCl₃) chemistries
• Low-temperature PECVD of silicon nitride (SiNₓ), silicon oxynitride (SiON), and hydrogenated amorphous silicon (a-Si:H) for MEMS, photovoltaics, and display backplanes
• Surface functionalization and ashing of photoresist layers with O₂/Ar plasmas
• Pre-deposition surface cleaning and native oxide removal prior to ALD or epitaxial growth
• Process window mapping for DOE-driven optimization of etch rate, selectivity, and anisotropy
• Qualification of new precursors and gas mixtures under controlled, repeatable plasma conditions

FAQ

What vacuum level range does the BenchMark 800 support during operation?

The system achieves base pressures below 1 × 10⁻⁶ Torr with turbomolecular pumping and operates stably between 1 mTorr and 100 mTorr during active plasma processes.
Is the system compatible with corrosive process gases such as Cl₂ or NF₃?

Yes—wetted components (showerhead, electrodes, chamber liner) are constructed from anodized aluminum or quartz; optional nickel-plated or Y₂O₃-coated parts are available for extended lifetime in aggressive halogen chemistries.
Can the BenchMark 800 be integrated into a Class 100 cleanroom environment?

Absolutely—the cabinet design meets ISO Class 5 airflow compatibility requirements and includes HEPA-filtered internal recirculation for laminar flow integration.
Does the system support remote monitoring and control?

Yes—via secure Ethernet connection with VNC-enabled operator interface and SNMP-based alarm notification to centralized facility SCADA systems.
What level of process repeatability can be expected across multiple runs?

Typical run-to-run etch rate variation is ≤2.3% (3σ) for SiO₂ in CF₄/O₂ chemistry when using factory-validated recipes and calibrated mass flow controllers.
