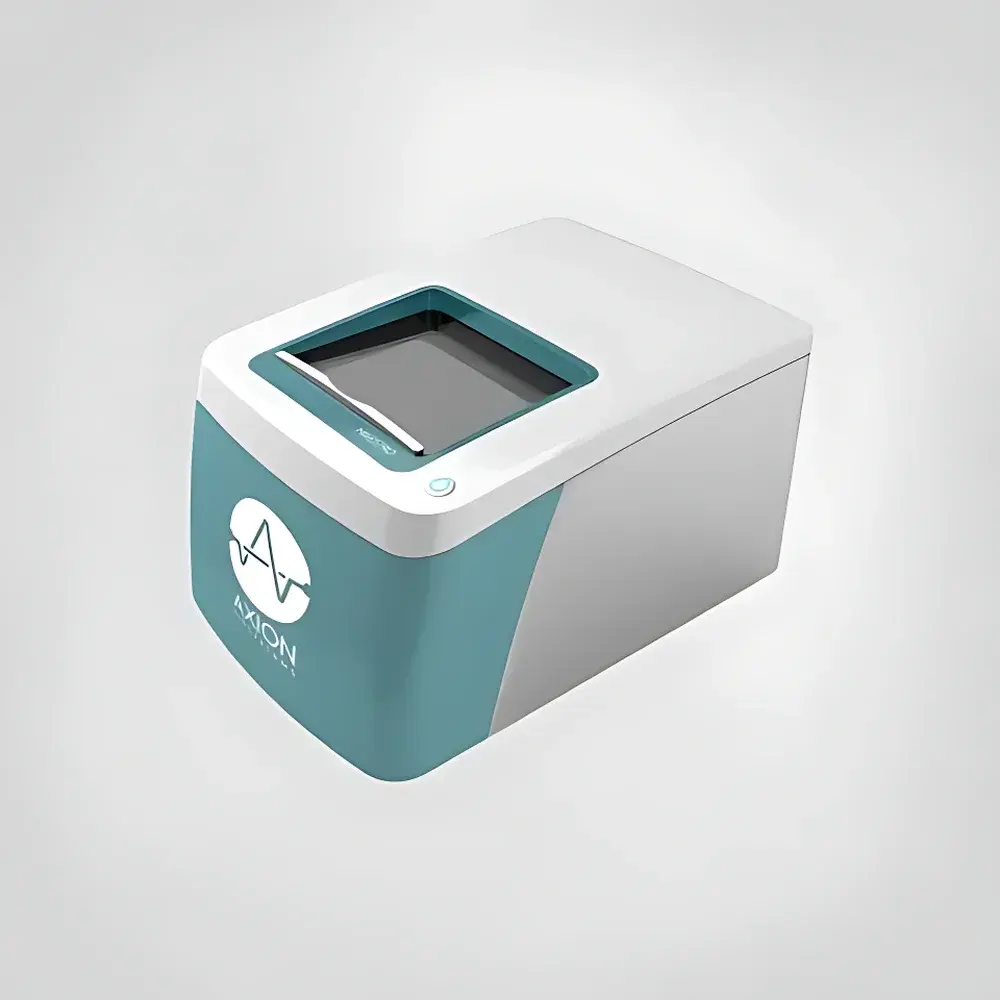

Axion BioSystems Maestro Z/ZHT High-Throughput Impedance-Based Drug Screening System

Overview

The Axion BioSystems Maestro Z/ZHT is a label-free, real-time, impedance-based platform engineered for high-throughput functional profiling of living cells in physiological conditions. Unlike endpoint assays relying on dyes or lysates, the Maestro Z employs multi-frequency alternating current (AC) impedance spectroscopy to noninvasively monitor dynamic cellular responses—including adhesion, morphology, barrier integrity, proliferation, cytotoxicity, and viral cytopathic effects—without perturbing cell viability or requiring transfection or labeling. Its core measurement principle is based on quantifying changes in electrical impedance across microelectrode arrays embedded in standard 96-well plates. As cells attach, spread, contract, or detach, they modulate the local ionic current path, generating frequency-dependent impedance signatures that reflect both structural and functional states. This enables continuous, kinetic readouts over hours to days—critical for capturing transient pharmacological responses during antiviral drug screening, such as SARS-CoV-2 inhibition kinetics in Vero E6 or Calu-3 cells.

Key Features

• True impedance technology using multi-frequency AC stimulation (10 Hz–50 kHz) to resolve distinct biological contributions—e.g., cell-substrate attachment (low-frequency dominance) versus membrane integrity and tight junction formation (high-frequency sensitivity)
• Integrated incubator-compatible design: compact footprint with thermally stabilized sample chamber; operates inside standard CO₂ incubators without external hardware or air-tight enclosures
• Electromagnetic and mechanical noise isolation: proprietary shielded well plate carrier minimizes artifacts from incubator door cycling, vibration, or ambient RF interference
• FDA 21 CFR Part 11-compliant software with full audit trail, electronic signatures, role-based access control, and data integrity safeguards for GLP/GMP environments
• Onboard data storage: all raw impedance time-series data recorded directly to internal solid-state memory—no dependency on host PC uptime or network stability
• Automated background subtraction, normalization (e.g., to pre-treatment baseline or control wells), and IC₅₀/EC₅₀ curve fitting via integrated analysis engine

Sample Compatibility & Compliance

The Maestro Z supports diverse physiologically relevant models: adherent monolayers (e.g., Vero E6, Calu-3, HEK293), suspension cells (e.g., Jurkat, PBMCs), 3D spheroids, organoids, and co-cultures. It is validated for transepithelial/endothelial electrical resistance (TEER) measurements per ISO 14155 and ASTM F2971 guidelines. All hardware and firmware comply with IEC 61010-1 (safety) and IEC 61326-1 (EMC). Software validation documentation—including IQ/OQ/PQ protocols—is available to support regulatory submissions under FDA, EMA, and PMDA frameworks.

Software & Data Management

The Maestro Software Suite provides intuitive experimental setup, real-time visualization, and reproducible analysis workflows. It supports automated plate mapping, time-synchronized dosing annotation, and batch processing across multiple plates. Raw impedance magnitude and phase data are stored in vendor-neutral HDF5 format with embedded metadata (timestamps, environmental logs, user annotations). Export options include CSV, Excel, and GraphPad Prism-compatible files. Audit trails log every parameter change, data export, and report generation event—fully traceable for FDA 21 CFR Part 11, EU Annex 11, and WHO TRS 992 compliance.

Applications

• Antiviral drug screening: Quantitative assessment of compound-mediated protection against SARS-CoV-2-induced cytopathic effect (CPE) in human airway epithelial models
• GPCR and ion channel pharmacology: Label-free detection of ligand-induced morphological remodeling and downstream signaling kinetics
• Immunooncology: Real-time monitoring of T-cell–mediated tumor cell lysis or checkpoint inhibitor efficacy
• Toxicology: Dynamic cytotoxicity profiling across concentration gradients, including delayed-onset mechanisms missed by endpoint assays
• Barrier function studies: TEER kinetics during inflammation, infection, or therapeutic modulation of tight junctions
• Wound healing and migration: Automated analysis of gap closure rates in scratch assays without image segmentation bias

FAQ

Does the Maestro Z require specialized cultureware?
No—it uses standard, sterile, tissue-culture-treated 96-well plates with integrated gold microelectrode arrays (Axion-certified plates only; catalog numbers provided upon order).
Can it distinguish between cytostatic and cytotoxic effects?
Yes—by analyzing the temporal profile of impedance decline: rapid drop indicates necrosis/apoptosis; plateaued or oscillatory patterns suggest cell cycle arrest or reversible stress.
Is remote monitoring supported?
Yes—via secure HTTPS interface; users can view live impedance traces, receive email alerts upon protocol completion, and access archived datasets from any authorized workstation.
What level of technical support is included post-purchase?
Axion provides lifetime application support, annual software updates, on-site installation & training, and dedicated assay development consultation for complex models (e.g., air-liquid interface cultures, primary organoids).
