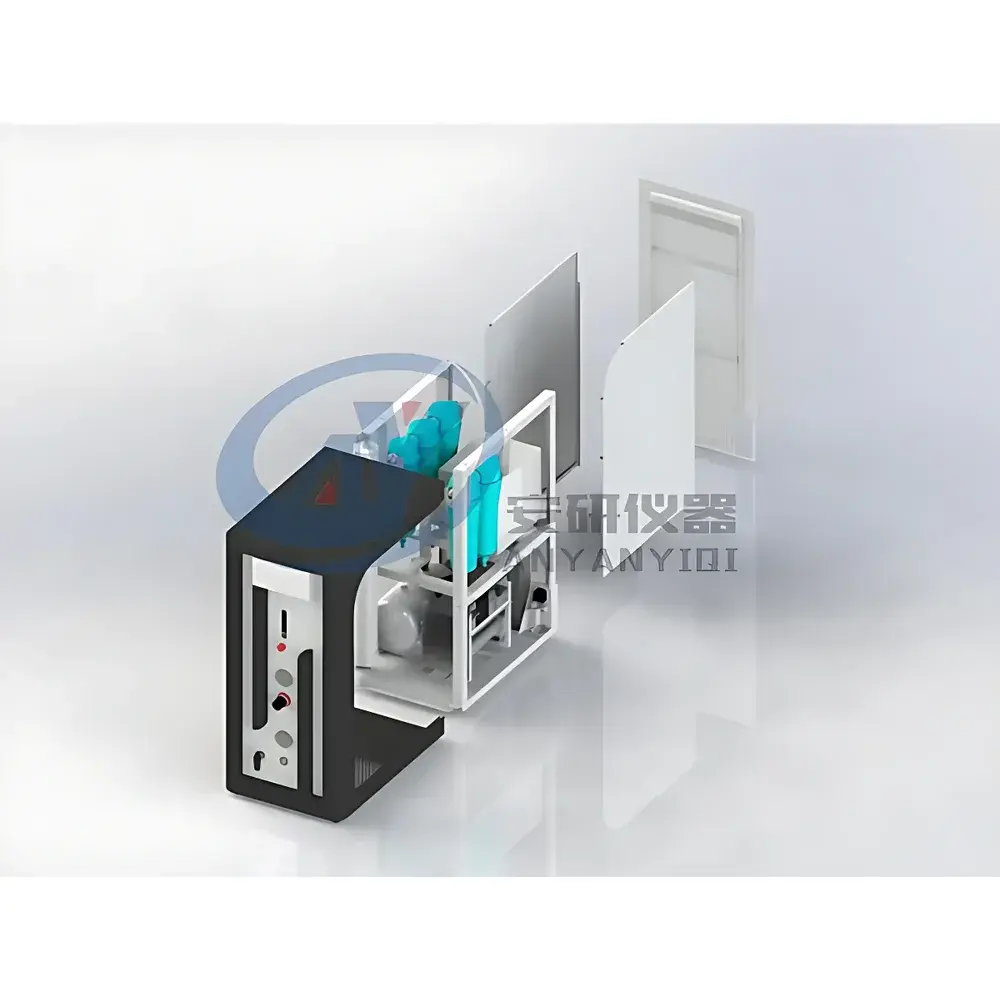

AYAN-ZA5L Zero-Air Generator
| Brand | AYAN Instruments |
|---|---|
| Origin | Zhejiang, China |
| Model | AYAN-ZA5L |
| Hydrocarbon Removal Principle | High-Temperature Catalytic Oxidation |
| Output Flow Rate | 0–5 L/min |
| Output Pressure | 0–0.5 MPa |
| Hydrocarbon Content | <0.1 ppm (C1–C6 total) |
| Dew Point | −40 °C |
Overview
The AYAN-ZA5L Zero-Air Generator is an engineered solution for laboratories requiring ultra-pure, hydrocarbon-free compressed air as a critical utility gas in analytical instrumentation. It operates on the principle of catalytic oxidation—compressing ambient air, then passing it through a high-temperature (typically >350 °C) platinum–palladium catalyst bed where trace hydrocarbons (C1–C6) are quantitatively oxidized to CO₂ and H₂O. Subsequent desiccant and coalescing filtration removes moisture, particulates, and reaction byproducts, delivering air meeting strict zero-air specifications: total hydrocarbons <0.1 ppm (v/v), dew point ≤−40 °C, and residual CO₂ <1 ppm. This performance aligns with ASTM D6216 and ISO 8573-1 Class 1:2:1 requirements for instrumental gas purity, making the AYAN-ZA5L suitable for GC-FID (flame ionization detection), GC-MS carrier gas support, and zero-gas calibration in environmental air monitoring systems.
Key Features
- Integrated oil-free diaphragm compressor with thermal overload protection and automatic pressure-cycling control—eliminates need for external air supply or lubricated compressors.
- Dual-stage purification architecture: primary catalytic oxidation module followed by dual-bed adsorption (activated carbon + molecular sieve) and ultra-low-sulfur silicone elastomer seals to prevent sulfur-induced baseline drift in sensitive detectors.
- Intelligent self-diagnostic startup sequence: performs sequential actuation and sensor validation of pressure switches, flow sensors, and temperature monitors before entering steady-state operation.
- Front-panel status indicators: green LED confirms power-on and active compression cycle; red LED signals standby/idle mode or fault-triggered shutdown.

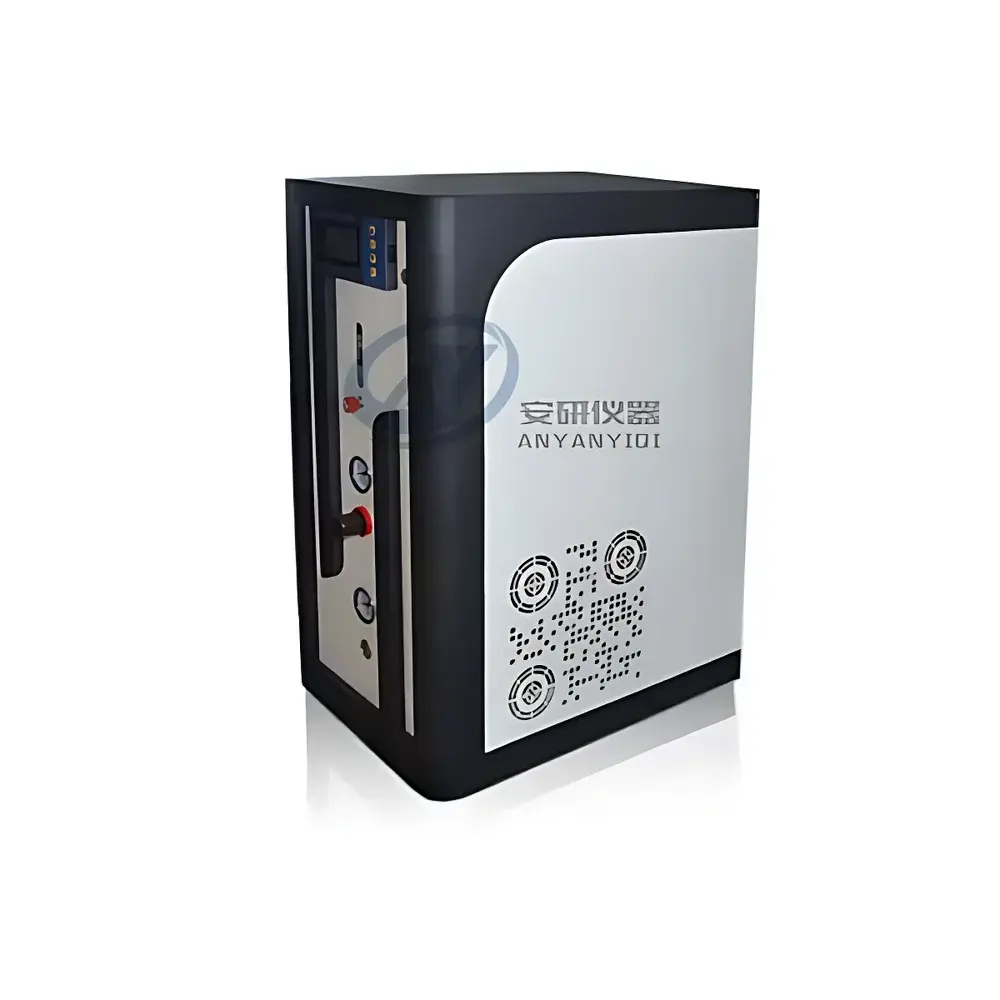

- Compact benchtop footprint (W×D×H ≈ 320 × 260 × 380 mm) with vibration-damped mounting—designed for integration into crowded GC labs or mobile analytical platforms.
- Real-time pressure regulation via adjustable mechanical regulator (0–0.5 MPa) and precision mass-flow controlled output (0–5 L/min) with ±2% full-scale repeatability across ambient temperatures from 15–30 °C.
Sample Compatibility & Compliance
The AYAN-ZA5L delivers air compatible with all major gas chromatography configurations requiring zero-air, including FID, NPD, and PFPD detectors. Its output meets the hydrocarbon and moisture thresholds specified in U.S. EPA Method TO-15, ASTM D6216-22 (Standard Specification for Zero Air), and ISO 8573-1:2010 Class 1 for particulate content, Class 2 for water, and Class 1 for oil aerosols. While not certified to FDA 21 CFR Part 11, its deterministic pressure-cycling logic and non-volatile firmware support audit-ready operation under GLP/GMP-aligned quality systems when paired with appropriate logbook documentation.
Software & Data Management
The AYAN-ZA5L operates as a standalone hardware system with no embedded software or network interface. All operational parameters—including cycle count, cumulative runtime, and pressure setpoint—are monitored via analog sensors and displayed through discrete LEDs and mechanical gauges. For laboratories requiring traceable records, optional external data loggers (e.g., Omega OM-DAQPRO-5300) may be connected to its 0–5 V analog pressure output port. No proprietary drivers or cloud connectivity are implemented, ensuring electromagnetic compatibility in RF-sensitive GC environments and eliminating cybersecurity attack surfaces.
Applications
- Primary fuel/oxidant gas for hydrogen flame ionization detectors (GC-FID) in environmental analysis (e.g., VOCs in ambient air per EPA TO-14/TO-15).
- Zero-gas standard generation for calibrating ozone analyzers, NOₓ chemiluminescence detectors, and continuous emission monitoring systems (CEMS).
- Pneumatic actuation source for automated GC sample introduction valves and purge-and-trap concentrators where oil-free, low-hydrocarbon air is mandatory.
- Benchtop alternative to cylinder-based zero-air—reducing logistical overhead, safety hazards, and long-term cost of ownership in high-throughput QC labs.
- Support gas for FTIR spectroscopy purge lines and laser cavity purging where moisture and organics induce spectral artifacts.
FAQ
What is the expected service life of the catalytic converter?
Under continuous operation at rated flow (≤5 L/min) and ambient temperatures ≤30 °C, the Pt/Pd catalyst maintains <0.1 ppm hydrocarbon removal efficiency for ≥12,000 hours. Performance degradation is indicated by rising baseline noise in FID or confirmed via periodic verification using a calibrated photoionization detector (PID).
Can the AYAN-ZA5L be used with nitrogen-purged GC ovens?
Yes—the unit supplies only air; it does not interfere with oven purge gas selection. However, ensure the zero-air line is isolated from nitrogen manifolds to prevent cross-contamination.
Is routine filter replacement required?
Yes. The pre-compressor particulate filter should be replaced every 6 months or after 2,000 hours of operation; the post-catalyst coalescing filter and desiccant cartridge require replacement annually or when dew point exceeds −35 °C (verified with a chilled-mirror hygrometer).
Does the unit comply with ISO 8573-1 Class 0?
No—it meets Class 1:2:1 (solid particles, water, oil), not Class 0 (the most stringent oil-free classification defined for critical pharmaceutical applications). For Class 0, supplemental membrane or PSA nitrogen generation is recommended.
What maintenance tools are needed for electromagnetic valve cleaning?
A #1 Phillips screwdriver, non-linting swabs, and reagent-grade isopropyl alcohol (≥99.5%) are sufficient. Do not use acetone or chlorinated solvents, which may degrade valve elastomers.
