AZ ENVILog-Kc Online Crop Coefficient Monitoring System

Overview

The AZ ENVILog-Kc Online Crop Coefficient Monitoring System is an engineered field-scale hydrological instrumentation platform designed for continuous, high-temporal-resolution quantification of the crop coefficient (K_c) in accordance with the FAO-56 dual-crop coefficient methodology: ET_c = ET₀ × K_c. It integrates controlled-soil-column hydrometry with real-time micrometeorological data acquisition to deliver scientifically defensible K_c values at 10-minute intervals—enabling rigorous water balance modeling, irrigation scheduling optimization, and ecosystem-scale evapotranspiration (ET) partitioning under variable soil, climate, and agronomic conditions.

At its core, the system employs the SoilScope Controlled Soil Column—a physically representative lysimeter subsystem that maintains in situ soil water potential and thermal gradients through two independent hydraulic control modes (water table or matric potential regulation). This ensures long-term fidelity to field conditions without soil replacement, supporting multi-year ecological monitoring campaigns. Column dimensions are configurable (height: 0.3–4 m; diameter: 0.5–1 m), allowing deployment across shallow-rooted herbs to deep-rooted trees and perennial crops.

Key Features

• Real-time, autonomous K_c derivation via synchronized measurement of actual crop evapotranspiration (ET_c) and reference evapotranspiration (ET₀) at ≤10-minute resolution
• SoilScope column with dual-mode hydraulic control (water level or matric potential feedback) for stable, field-representative boundary conditions over extended deployments

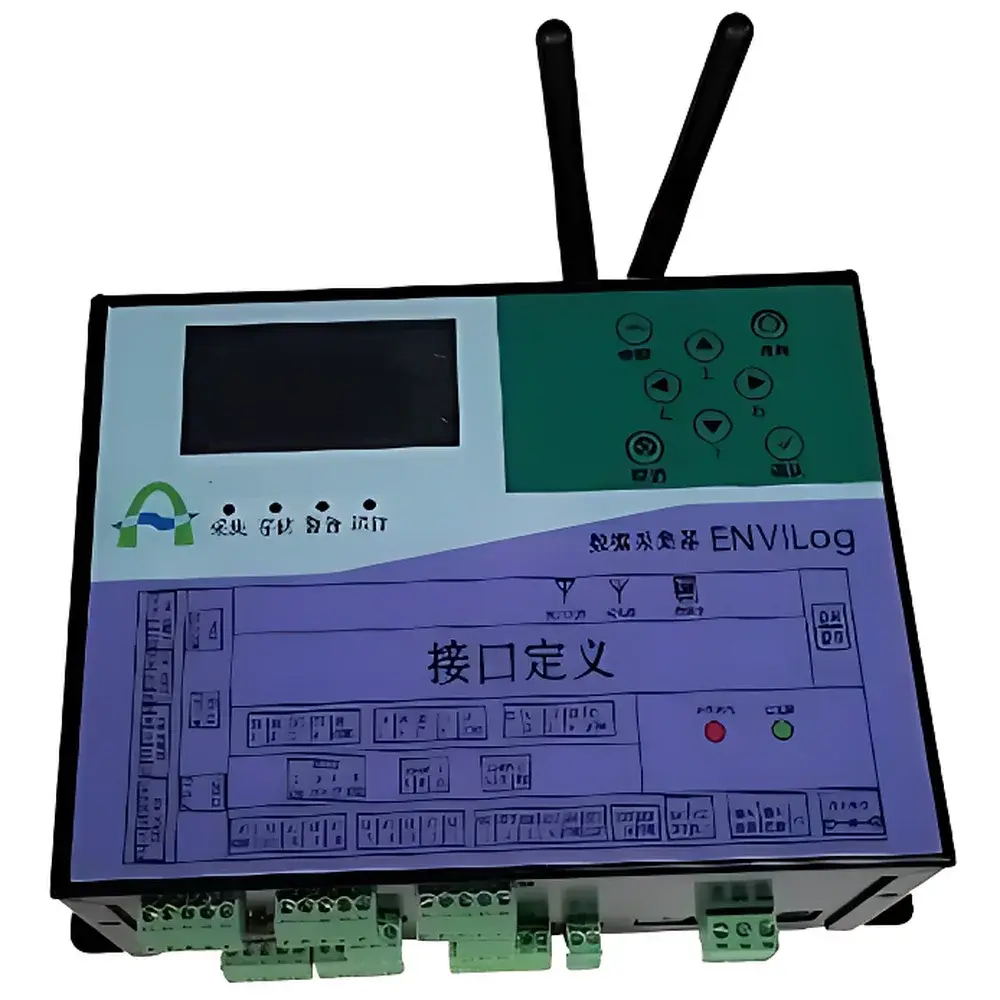

• Integrated ENVILog data logger: 24-bit A/D conversion, 8-channel high-precision analog input, embedded C-language programmability, RF-shielded metal enclosure, and temperature-compensated real-time clock
• Direct ET₀ computation using localized meteorological inputs (solar radiation, air temperature/humidity, wind speed, atmospheric pressure) per ASCE-EWRI standardized equations
• ET_c measurement range: 0.01–10.00 mm/h, with ±0.05 mm absolute accuracy (calibrated against gravimetric mass change)
• Volumetric water content (VWC) sensing: 0–60% VWC, ±1% VWC typical accuracy (standard soils), ±3% VWC in saline-mineral soils (factory-calibrated); temperature range: −40°C to +80°C, ±0.2°C typical accuracy

Sample Compatibility & Compliance

The ENVILog-Kc system is compatible with a broad spectrum of agricultural and natural vegetation types—including annual row crops (maize, wheat), horticultural species (grapevine, citrus), grasslands, and afforested plots—provided root architecture fits within configured SoilScope column dimensions. Its physical design conforms to ISO 9001:2015 quality management standards (certified since 2010, annually audited). Data integrity protocols align with GLP principles: all measurements include timestamped metadata, sensor calibration history, and environmental context tags. While not FDA 21 CFR Part 11–certified (as it is non-clinical environmental instrumentation), audit trails, user-access controls, and immutable data logging support regulatory-grade reporting for water resource management agencies and academic research compliance.

Software & Data Management

Data flows automatically from ENVILog loggers to the ENVIdata cloud-based server platform via cellular/GSM or Ethernet connectivity. ENVIdata provides secure, role-based access (username/password authentication), time-series visualization, cross-parameter correlation analysis, and GIS-integrated multi-site mapping. Users may deploy ENVIdata as an on-premise application or utilize AZ’s ISO-certified hosted infrastructure. All raw and processed datasets—including minute-level ET_c, ET₀, K_c, VWC, and soil temperature—are exportable in CSV/NetCDF formats for integration into hydrological models (e.g., SWAT, HYDRUS) or statistical analysis environments (R, Python, MATLAB). Server-side processing applies QA/QC filters (e.g., outlier detection, gap-filling via linear interpolation) prior to dashboard rendering.

Applications

• Irrigation advisory services for precision agriculture cooperatives and water user associations
• Validation of satellite-derived ET products (e.g., MOD16, SSEBop) at field-to-watershed scales
• Long-term ecological research on plant-water relations under climate change scenarios
• Calibration and parameterization of agro-hydrological models used in regional water allocation planning
• Supporting national drought monitoring systems through near-real-time K_c-based deficit indexing
• Evaluation of deficit irrigation strategies and root-zone water use efficiency metrics

FAQ

How does the SoilScope column maintain field-equivalent soil hydraulic conditions?
It uses closed-loop feedback control of either groundwater level (for shallow water tables) or soil matric potential (via tensiometers or microlysimeters), ensuring dynamic equilibrium with surrounding field soil moisture dynamics.
Can the system operate autonomously for unattended field deployments?
Yes—ENVILog loggers feature ultra-low-power operation (<1.2 W average), integrated solar charging compatibility, and robust environmental sealing (IP67), enabling >12-month continuous operation in remote locations.
Is ENVIdata compliant with international data interoperability standards?
ENVIdata supports OGC SensorThings API v1.1 for sensor metadata publishing and adheres to CF (Climate and Forecast) conventions for time-series data encoding, facilitating integration with global environmental data infrastructures.
What calibration documentation is provided with the system?
Each unit ships with NIST-traceable calibration certificates for all included sensors (VWC, temperature, load cells), plus documented uncertainty budgets per ISO/IEC 17025 guidelines.
Does the system support third-party meteorological sensors?
Yes—ENVILog offers configurable analog and SDI-12 inputs, enabling integration with certified anemometers, pyranometers, and humidity probes from Campbell Scientific, Decagon, or Vaisala.
