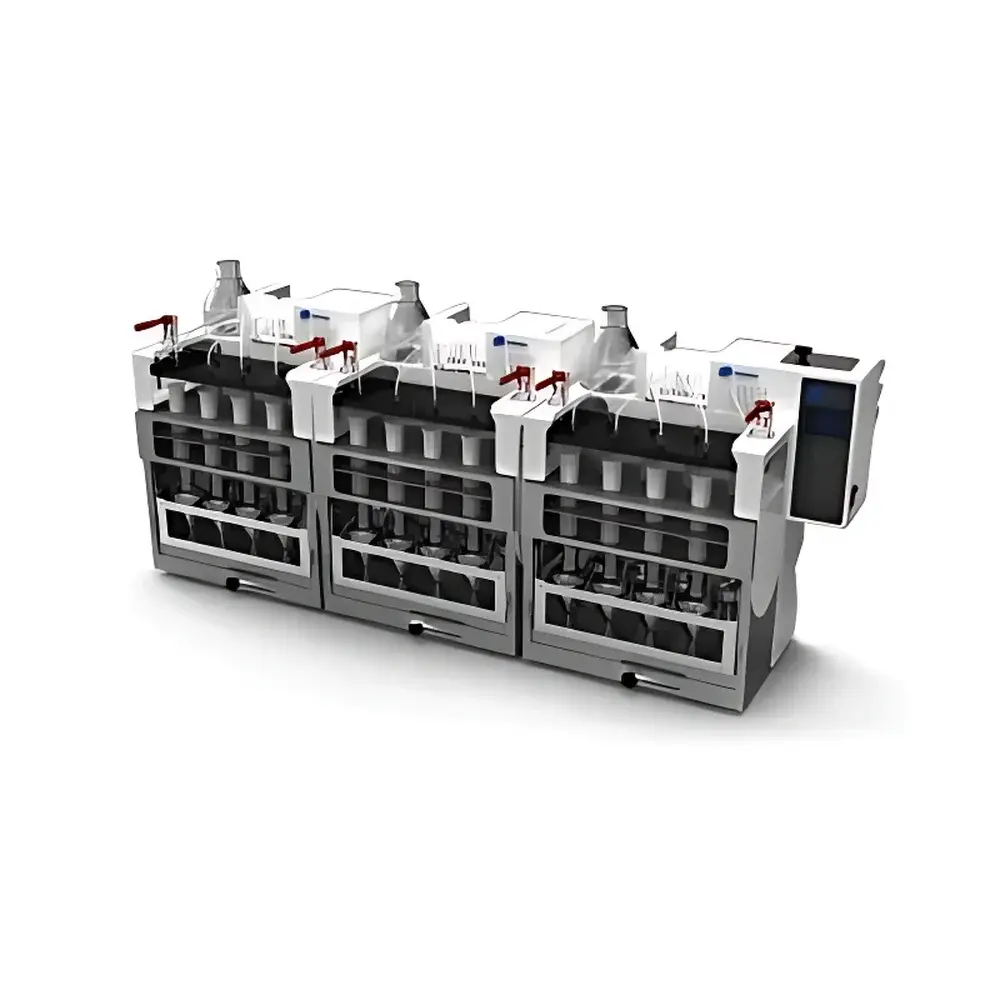

Azobenzene-Specific Solid Phase Extraction System OD-8 by BonAegeer

Overview

The BonAegeer OD-8 Azobenzene-Specific Solid Phase Extraction System is an engineered solution for the quantitative isolation and pre-concentration of aromatic amines liberated from azo dye–containing textile matrices under reductive cleavage conditions. Built explicitly to fulfill the procedural demands of GB/T 17592–2006, this system implements a column-based solid-phase extraction (SPE) workflow optimized for post-hydrolysis amine recovery—prior to subsequent derivatization and instrumental analysis (e.g., HPLC-UV or GC-MS). Its architecture integrates precision fluid handling, inert wetted-path materials, and controlled positive-pressure elution to ensure reproducible analyte retention, selective washing, and high-yield elution—without solvent evaporation or operator exposure risks.

Key Features

• Fully automated multi-channel SPE platform supporting up to 24 textile samples per batch via modular parallel staging (8 primary inlet channels × 3-stage cascade configuration)
• High-accuracy dual-piston syringe pump delivering stable flow rates between 5–8 mL/min (nominal operating point: 6 mL/min), minimizing inter-sample variability and ensuring consistent bed loading across Cleanert SLE columns
• Positive-pressure sealed manifold design eliminates ambient release of volatile solvents—including diethyl ether—enabling safe operation inside standard laboratory fume hoods without additional containment
• Chemically inert fluid path constructed entirely from PharMed® BPT tubing and PTFE-lined valves and fittings, ensuring compatibility with aggressive organic solvents and preventing leaching or adsorption artifacts
• Intuitive touchscreen interface with preloaded GB/T 17592–2006 method templates; single-button execution initiates full sequence: conditioning, sample loading, washing, drying, and elution
• Integrated pressure monitoring and real-time flow verification provide hardware-level assurance of column integrity and method fidelity

Sample Compatibility & Compliance

The OD-8 is validated for use with cotton, polyester, wool, nylon, and blended fabrics following standardized reductive cleavage per GB/T 17592–2006. It accommodates Cleanert SLE extraction columns (60 mL capacity, 14.5 g sorbent mass; catalog no. GB/T17592-2006-S), which are pre-packed with diatomaceous earth-based support material optimized for polar aromatic amine retention and low background interference. The system meets core performance criteria outlined in ISO/IEC 17025:2017 for method-controlled instrumentation and supports audit-ready documentation when paired with compliant LIMS integration. While not certified to FDA 21 CFR Part 11 out-of-the-box, its event-logged operation mode and user-accessible audit trail files enable qualification for GLP/GMP-aligned textile testing laboratories.

Software & Data Management

The embedded control software records timestamped operational events—including pump actuation cycles, pressure thresholds, and stage transitions—for each channel independently. All method parameters (flow rate, dwell times, solvent volumes) are stored as editable XML profiles, allowing traceable version control and cross-laboratory method harmonization. Raw log files export in CSV format for integration with third-party data review platforms. Optional Ethernet-enabled remote diagnostics allow service engineers to validate calibration status and firmware revision without physical access—reducing instrument downtime during routine maintenance intervals.

Applications

• Routine compliance screening of apparel, home textiles, and accessories for restricted aromatic amines (e.g., benzidine, o-tolidine, 4-aminodiphenyl)
• Method development and validation studies supporting ISO 17225, OEKO-TEX® Standard 100, and ZDHC MRSL v3.1 conformance testing
• Reference laboratory workflows requiring high-throughput, low-variance sample preparation prior to LC-MS/MS quantification
• Proficiency testing programs where inter-laboratory reproducibility depends on identical SPE execution parameters
• Academic research into dye migration kinetics and reductive cleavage efficiency across fiber types and finishing treatments

FAQ

Does the OD-8 support alternative SPE chemistries beyond Cleanert SLE columns?
Yes—the system accepts any 1/4″–28 threaded SPE column with compatible geometry and pressure rating (≤15 psi); however, method validation must be performed independently when substituting sorbents.
Is method transfer possible from legacy manual or semi-automated SPE platforms?
Method translation is feasible using flow-rate normalization and volume scaling; BonAegeer provides application notes detailing equivalence protocols for common GB/T 17592–2006 workflows.
What maintenance intervals are recommended for long-term reliability?
Pump calibration verification every 200 runs; tubing replacement every 6 months under continuous use; full manifold inspection and seal replacement annually.
Can the OD-8 be integrated into an automated sample-to-report workflow with HPLC systems?
Yes—via optional RS-232 or Modbus TCP interface, enabling trigger synchronization with autosampler injection and chromatographic data system (CDS) acquisition start commands.
Are consumables such as columns and solvents supplied directly by BonAegeer?
Cleanert SLE columns (GB/T17592-2006-S) and certified reference standards for 24 regulated amines are distributed globally through authorized partners; solvent purity specifications align with ASTM E260 and ISO 648 guidelines.
