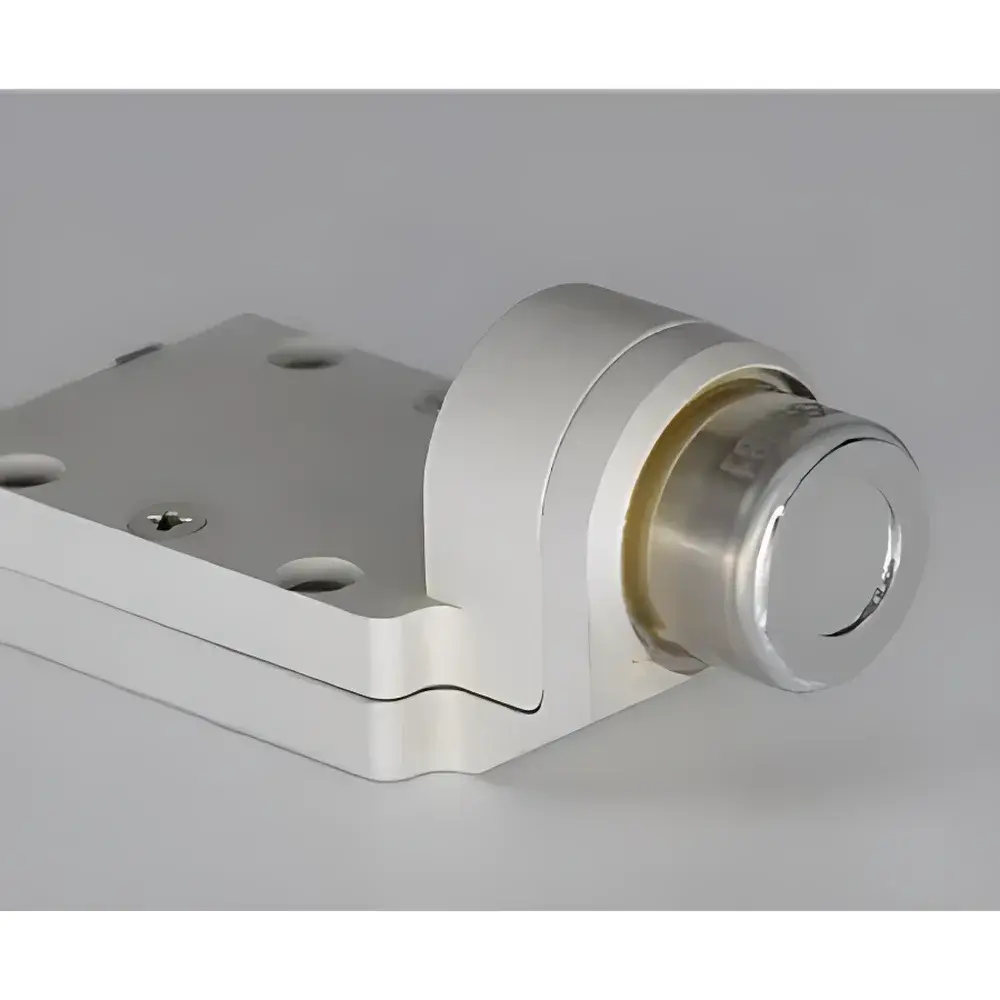

B4C SiPIN/FASTSDD X-Ray Detector Module by Amptek

Overview

The B4C SiPIN/FASTSDD is a high-performance X-ray detector module engineered by Amptek for energy-dispersive X-ray fluorescence (EDXRF) spectroscopy in portable, benchtop, and OEM-integrated systems. Unlike conventional beryllium (Be)-window detectors, this module utilizes a 25 µm thick boron carbide (B4C) entrance window—offering superior transmission for low-energy X-rays while maintaining mechanical robustness and vacuum integrity. The detector leverages either a silicon p-i-n (SiPIN) diode or Amptek’s FASTSDD architecture, both optimized for high count-rate capability, excellent energy resolution (<145 eV FWHM at Mn Kα for FASTSDD), and minimal electronic noise. Its design enables quantitative elemental analysis from sodium (Z = 11) to uranium (Z = 92) without vacuum pumping or helium purging—critical for field-deployable EDXRF instruments used in mining, scrap sorting, environmental screening, and regulatory compliance testing.

Key Features

• Boron carbide (B4C) window: Chemically inert, non-toxic, and RoHS-compliant replacement for hazardous beryllium windows; provides enhanced transmission below 1 keV (e.g., Mg Kα at 1.25 keV, Al Kα at 1.49 keV, Si Kα at 1.74 keV)
• Two detector options: High-sensitivity SiPIN (active area: 25 mm², typical resolution ~180 eV FWHM) or ultra-fast SDD (active area: 25–50 mm², 500 kcps linear count rate)
• Integrated preamplifier and shaping amplifier: Optimized for low-noise pulse processing; supports analog output and digital pulse height analysis via USB or RS-232 interface
• Compact, hermetically sealed package: Designed for integration into handheld analyzers and portable spectrometers; operates at room temperature with thermoelectric cooling (Peltier)
• Factory-calibrated energy response: Traceable to NIST standards; includes gain/offset coefficients and detector-specific dead-time correction parameters

Sample Compatibility & Compliance

The B4C SiPIN/FASTSDD detector supports direct analysis of solids, powders, and thin films without matrix-matched standards in many cases—enabled by fundamental parameter (FP) algorithms embedded in compatible spectrometer software. It complies with international regulatory frameworks governing elemental analysis instrumentation, including ASTM E1621 (standard test method for elemental analysis by EDXRF), ISO 18557 (characterization of XRF spectrometers), and EU Directive 2011/65/EU (RoHS). As a beryllium-free solution, it eliminates occupational health hazards associated with Be handling and disposal, satisfying OSHA 1910.1200 (Hazard Communication Standard) and IEC 62368-1 safety requirements. The module is qualified for GLP and GMP environments when deployed in validated instrument platforms meeting FDA 21 CFR Part 11 data integrity criteria.

Software & Data Management

Amptek provides the DP5 Digital Pulse Processor firmware and配套 PC software (XRF Analyzer Suite) supporting real-time spectrum acquisition, peak deconvolution (using iterative least-squares fitting), and quantitative analysis via empirical calibration or FP modeling. All spectral data are stored in standard formats (e.g., .spe, .csv, .edx) with full metadata—including acquisition time, live time, detector temperature, and high-voltage settings. Audit trails, user authentication, and electronic signatures can be implemented through third-party LIMS or QA/QC platforms compliant with ISO/IEC 17025. Firmware updates are delivered via secure USB interface and include cryptographic signature verification to ensure traceability and integrity.

Applications

• Field-based geochemical exploration: Rapid quantification of base metals (Cu, Zn, Pb), precious metals (Au, Ag), and pathfinder elements (As, Sb, Bi) in soil and rock samples
• Recycling and scrap metal sorting: Discrimination of alloy grades (e.g., stainless steels, aluminum series, titanium alloys) based on minor and trace element fingerprints
• Consumer product safety: Screening for restricted substances (Pb, Cd, Hg, Cr⁶⁺, Br) per CPSIA, EN71-3, and China RoHS
• Cultural heritage analysis: Non-invasive pigment identification and corrosion layer characterization on artifacts and paintings
• Industrial QA/QC: Coating thickness measurement (via attenuation of substrate lines) and plating bath monitoring in electroplating facilities

FAQ

Is the B4C window suitable for vacuum operation?
Yes—the B4C window maintains structural integrity under differential pressure up to 1 atm and is rated for continuous vacuum operation down to 10⁻⁶ Torr when integrated with appropriate flange seals.
How does B4C compare to polymer windows in terms of low-energy sensitivity?
B4C offers significantly higher thermal conductivity and radiation hardness than polyimide or Mylar windows, enabling stable performance at elevated count rates and extended measurement durations without window degradation.
Can this detector be retrofitted into existing handheld XRF analyzers?
Retrofitting is possible only if the host instrument’s mechanical interface, power supply, cooling system, and signal processing architecture match Amptek’s published integration specifications (see Amptek Application Note AN-112).
What is the typical lifetime under continuous operation?
Based on accelerated life testing, the B4C SiPIN/FASTSDD module demonstrates >50,000 hours MTBF when operated within specified temperature (−10°C to +50°C) and humidity (≤80% RH, non-condensing) limits.
Does Amptek provide OEM support for volume integration?
Yes—Amptek offers custom configuration, batch calibration certificates, mechanical CAD models, and technical documentation packages under NDA for qualified OEM partners.
