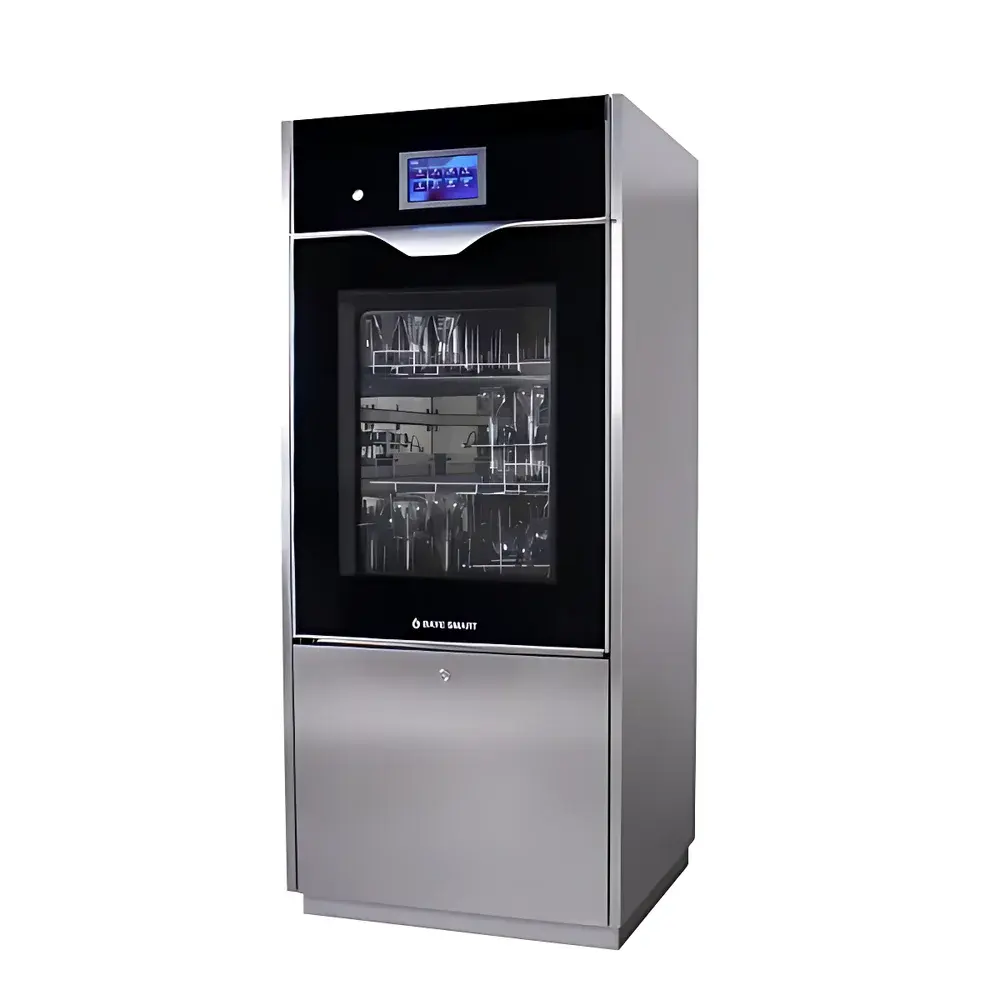

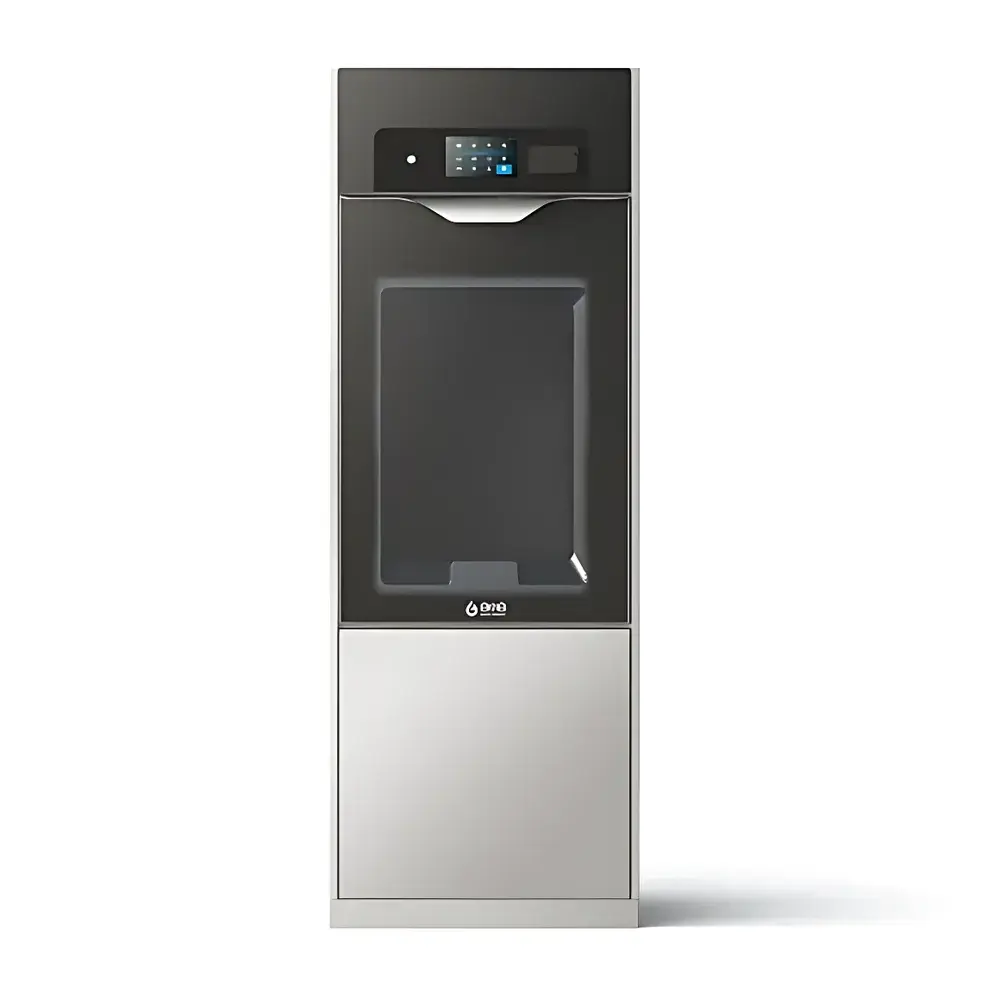

BAYE SMART BS580D Laboratory Bottle Washer

Overview

The BAYE SMART BS580D Laboratory Bottle Washer is an industrial-grade, fully automated cleaning system engineered for high-throughput, reproducible decontamination of glassware, plastic containers, volumetric flasks, pipettes, and other reusable laboratory vessels. Designed around a low-pressure, high-frequency recirculating rinse principle, the BS580D employs variable-frequency drive (VFD) control of its primary circulation pump to ensure soft-start hydraulic delivery—eliminating pressure surges during system initialization. This controlled ramp-up prevents mechanical stress on delicate or thermally sensitive labware while maintaining consistent kinetic energy across repeated wash cycles. The unit operates at a maximum thermal setpoint of 93 °C, enabling effective removal of organic residues, protein films, and particulate contaminants without requiring aggressive solvents or manual scrubbing. Its 360-liter stainless-steel chamber accommodates large batches of heterogeneous vessel types, supporting centralized cleaning workflows in QC labs, pharmaceutical R&D facilities, and academic core facilities.

Key Features

• Variable-frequency pump control for soft-start operation and stable low-pressure (≤0.3 MPa), high-cycle (≥120 cycles/hour) spray dynamics
• Stainless-steel 316L wash chamber with integrated heating element (9 kW) and precise PID temperature regulation (±1 °C accuracy from ambient to 93 °C)
• Dual-detergent dosing system compatible with both acidic and alkaline liquid formulations—programmable per cycle stage

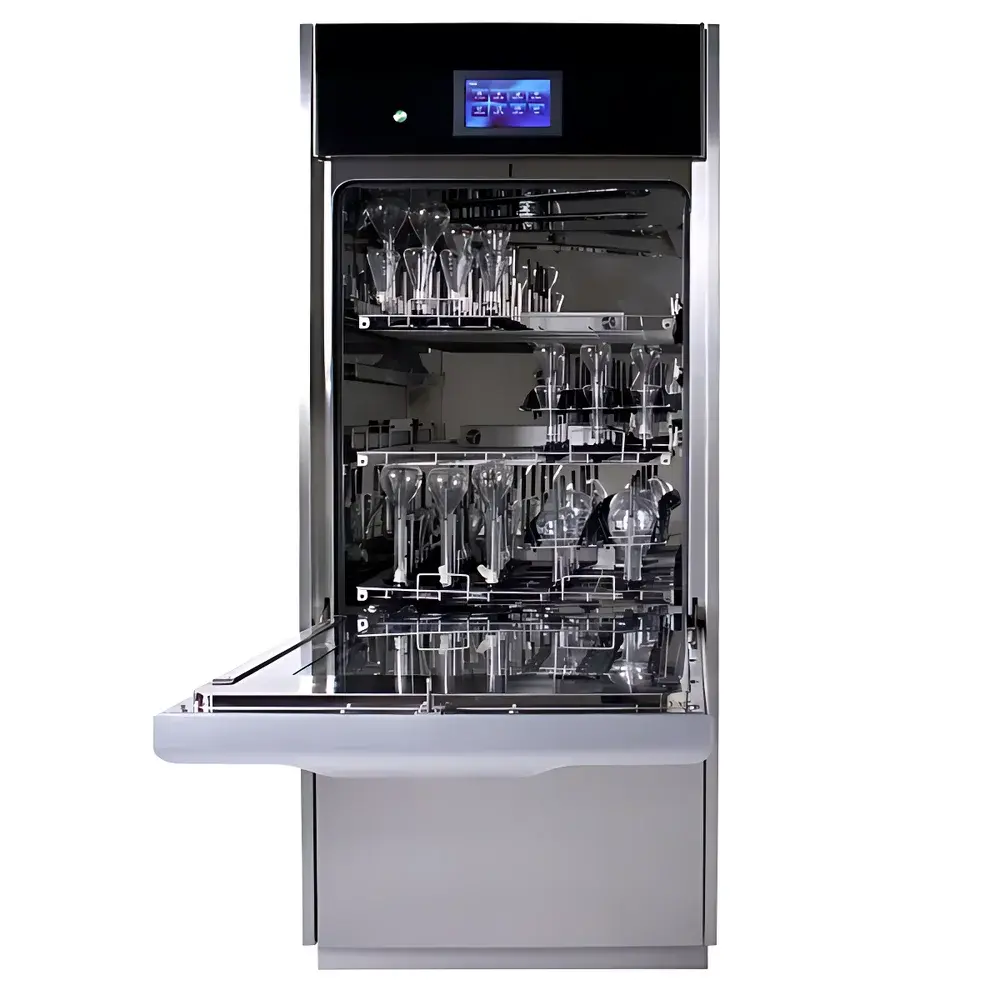

• Modular rack system with adjustable holders for bottles (up to 2 L), conical flasks, graduated cylinders, and narrow-necked vessels
• Integrated pre-rinse, main wash, neutralization, final rinse, and hot-air drying stages—all programmable via touchscreen HMI
• Self-diagnostic firmware with real-time monitoring of water conductivity, temperature, detergent concentration, and pump performance

Sample Compatibility & Compliance

The BS580D supports a broad spectrum of laboratory consumables and apparatus, including borosilicate glassware (e.g., Pyrex®, Duran®), polypropylene and polycarbonate containers, silicone tubing, and metal components such as stainless-steel funnels and filter housings. It is validated for residue removal per ISO 15883-1:2019 (washer-disinfectors for medical devices) and aligns with key principles of ASTM E3049-16 (Standard Guide for Validation of Automated Laboratory Glassware Washers). While not certified for sterile processing, its thermal and chemical efficacy meets GLP-compliant cleaning validation requirements for non-sterile analytical sample preparation environments. All cycle logs—including time-stamped temperature profiles, detergent dosage records, and door interlock status—are stored locally with optional export to CSV or networked LIMS integration.

Software & Data Management

The BS580D runs on embedded Linux-based firmware with a 7-inch capacitive touchscreen interface supporting multilingual UI (English, German, Spanish, Chinese). Up to 99 customizable cleaning protocols can be saved, each with independent parameters for temperature ramp rate, dwell time, spray duration, and drying duration. Cycle execution data—including start/stop timestamps, peak temperature, total water consumption, and detergent usage—is retained for ≥12 months. Audit trail functionality complies with FDA 21 CFR Part 11 requirements when paired with optional user authentication modules (PIN + RFID badge). Remote monitoring and firmware updates are supported via Ethernet (TCP/IP) or optional Wi-Fi module (IEEE 802.11n), with secure HTTPS access and TLS 1.2 encryption.

Applications

• Pre-analytical cleaning of HPLC vials, GC autosampler tubes, and ICP-MS sample containers to prevent cross-contamination and spectral interference
• Routine decontamination of volumetric glassware in pharmaceutical QC labs prior to USP , , and EP 2.6.27 compliance testing
• Removal of biofilm and residual culture media from microbiology labware (e.g., Petri dishes, fermentation bottles)
• High-volume cleaning of reaction vessels and distillation apparatus in synthetic chemistry laboratories
• Supporting ISO/IEC 17025-accredited testing labs requiring documented, repeatable cleaning validation evidence

FAQ

Does the BS580D meet regulatory requirements for GMP or GLP environments?

Yes—when configured with audit trail, user access control, and electronic record retention, it satisfies core data integrity expectations outlined in FDA 21 CFR Part 11 and EU Annex 11 for non-sterile cleaning processes.
Can it handle delicate items like burettes or graduated pipettes?

Yes—the low-pressure, high-frequency spray pattern combined with custom-fit rack inserts minimizes mechanical impact while ensuring full surface coverage and drainage efficiency.
Is validation support documentation available?

BAYE SMART provides IQ/OQ templates, test protocols for temperature uniformity mapping, detergent residue testing, and cycle development guidance aligned with ASTM E3049-16.
What maintenance intervals are recommended?

Routine inspection of spray arms, filters, and temperature sensors every 200 cycles; annual calibration of thermal sensors and conductivity probes by authorized service personnel.
Is hot-air drying integrated into the standard configuration?

Yes—drying is achieved via recirculated, filtered air heated to 70–85 °C, with programmable duration up to 60 minutes per cycle.
