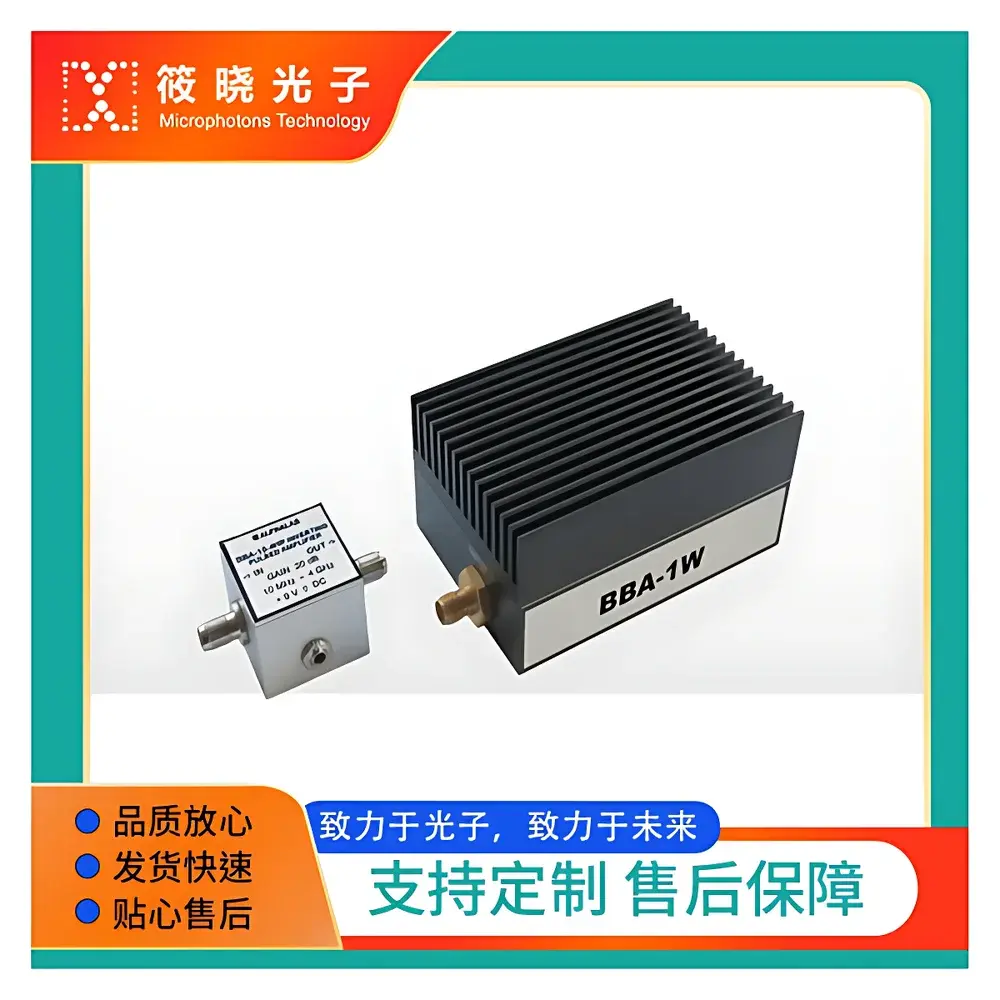

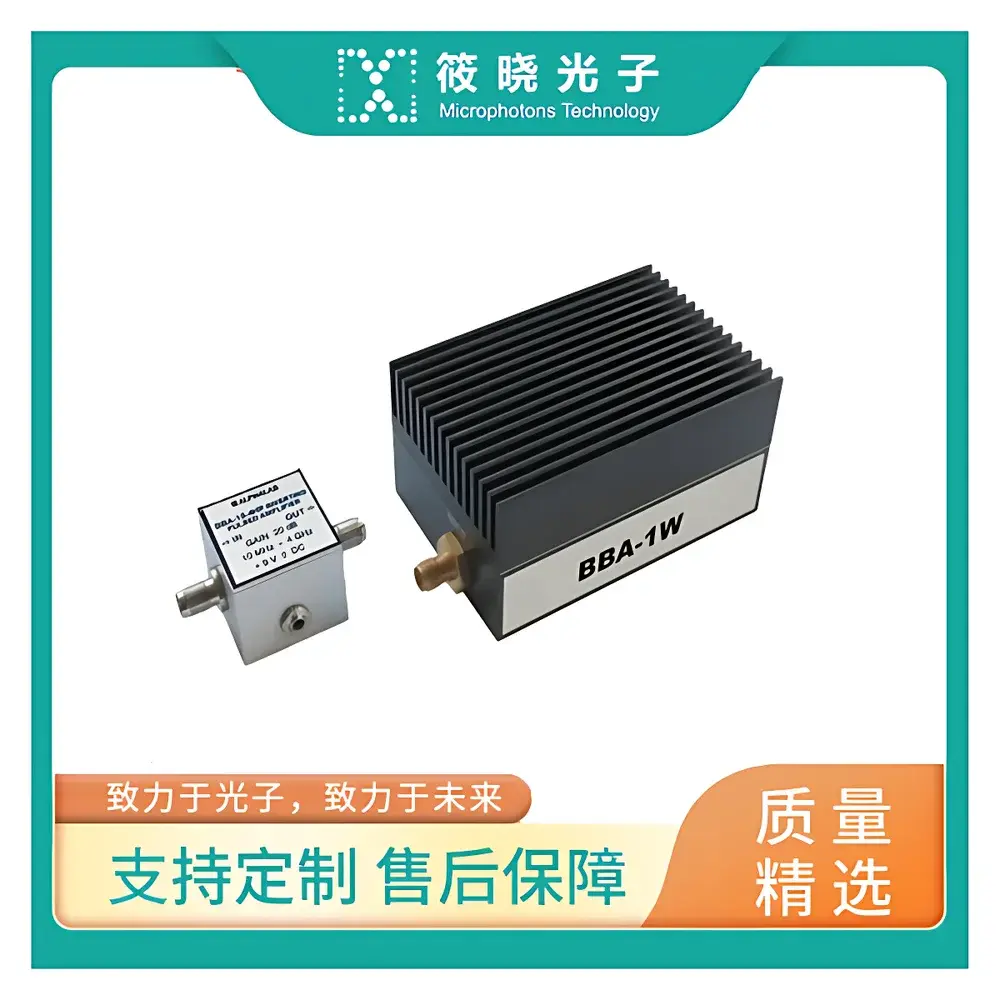

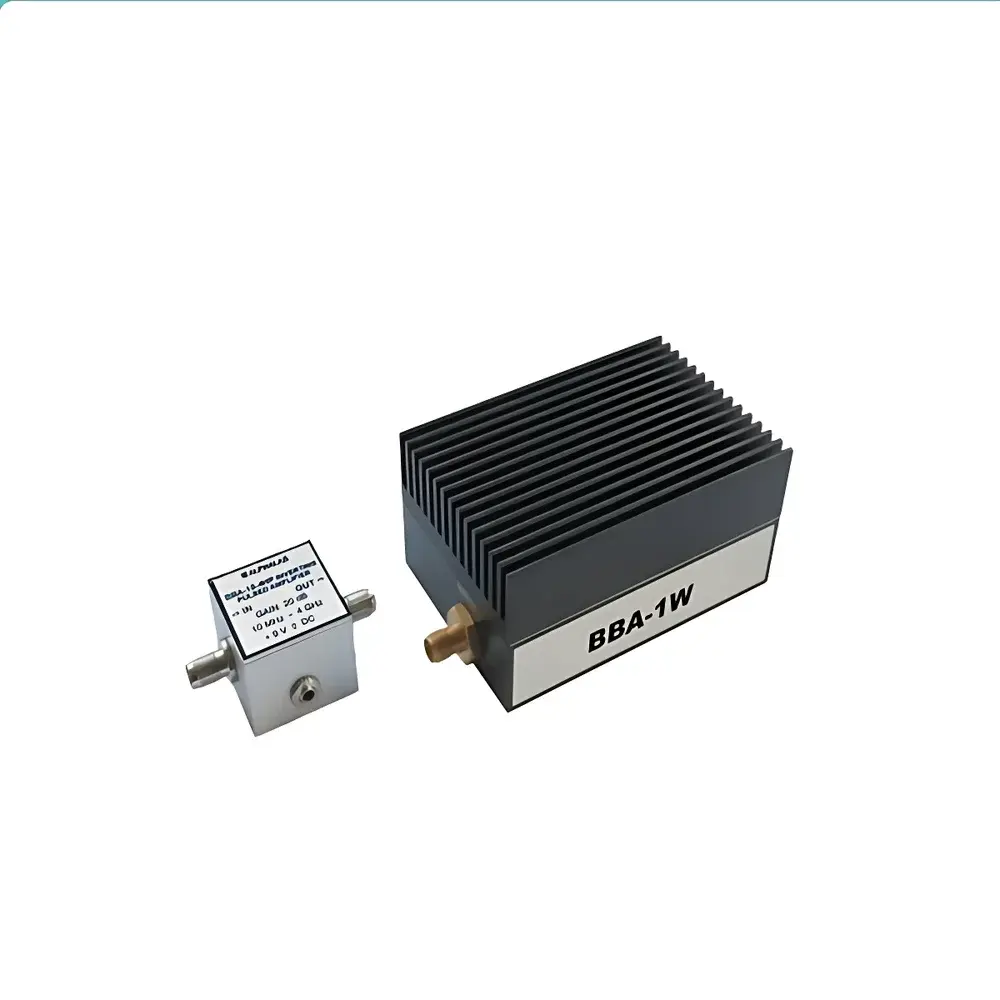

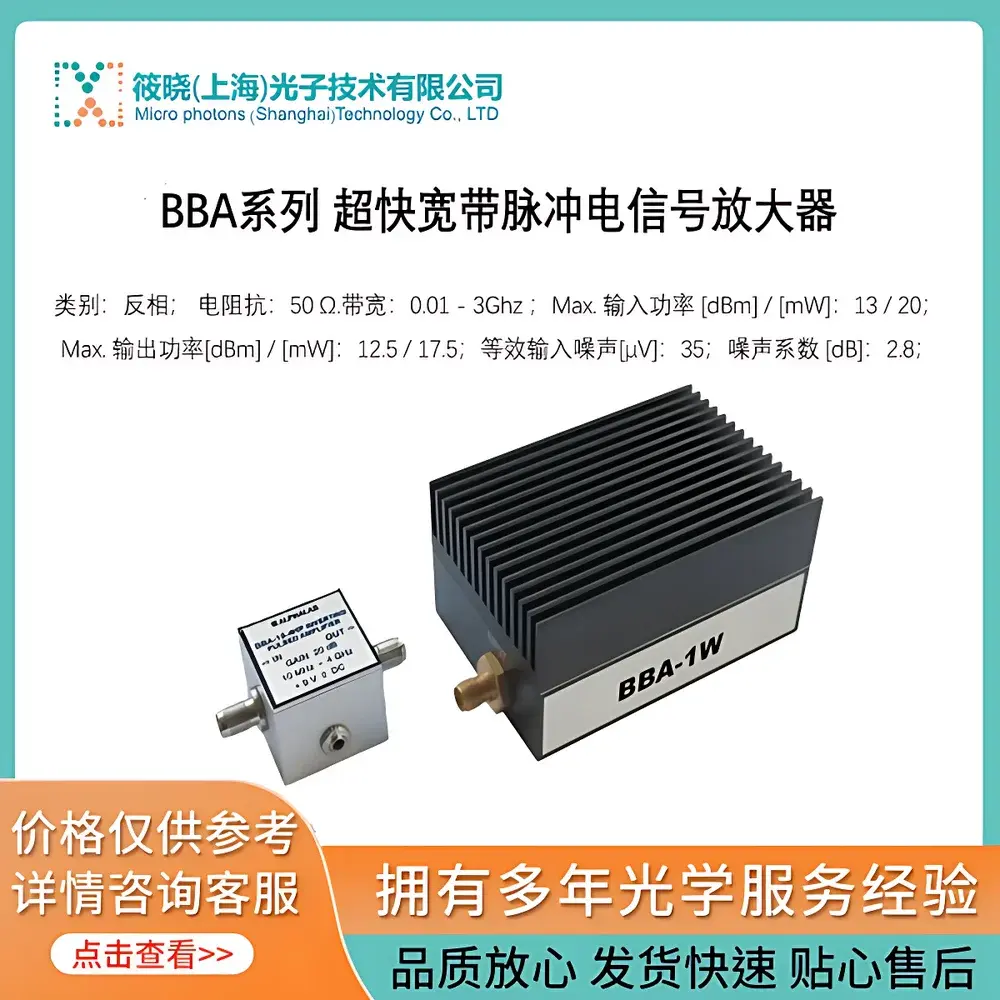

BBA-10 Ultra-Fast Broadband Pulse Electrical Signal Amplifier by Alphalas

Overview

The Alphalas BBA-10 is a high-performance, ultra-fast broadband pulse electrical signal amplifier engineered for precision amplification of transient and nanosecond-scale electrical waveforms in demanding scientific and industrial applications. Based on a fully DC-coupled, low-noise, wideband analog architecture, the BBA-10 employs optimized RF-grade circuit topology and matched 50 Ω transmission-line design to preserve signal integrity across its full bandwidth—from DC to beyond 1 GHz. Its sub-350 ps rise time enables faithful reproduction of fast-rising edges typical in photodetector outputs, laser pulse diagnostics, time-of-flight measurements, and ultrafast electronics characterization. Designed and manufactured in Germany, the amplifier meets stringent electromagnetic compatibility (EMC) and thermal stability requirements for integration into vacuum chambers, cryogenic setups, and automated test environments.

Key Features

• DC to >1 GHz small-signal bandwidth with flat frequency response (±1 dB), ensuring minimal phase distortion across ultrafast pulse trains
• Adjustable gain from 10× to 100× (20–40 dB), calibrated via front-panel precision potentiometer with detent positioning
• Low input-referred noise density of <1.2 nV/√Hz at 100 MHz, critical for amplifying weak signals from high-impedance photodiodes or RF probes
• Fast settling time (<5 ns to 0.1% of final value) and negligible overshoot (<3%), supporting repetitive pulse acquisition at multi-MHz repetition rates
• Rugged aluminum housing with SMA female I/O connectors, EMI-shielded internal layout, and thermal management optimized for continuous operation
• Compliant with IEC 61000-4 series EMC standards and CE marking per EU Directive 2014/30/EU (EMC Directive) and 2011/65/EU (RoHS)

Sample Compatibility & Compliance

The BBA-10 is compatible with standard 50 Ω signal sources including fast photodiodes (e.g., Si, InGaAs, GaP), avalanche photodiodes (APDs), RF sampling oscilloscopes, time-correlated single-photon counting (TCSPC) modules, and pulsed laser drivers. It supports both single-shot and high-duty-cycle pulse operation without gain compression or thermal drift. The device conforms to ISO/IEC 17025-relevant traceability practices for calibration documentation upon request. While not a medical or safety-critical device, its design adheres to general-purpose laboratory instrument requirements under IEC 61010-1:2010 for electrical safety and pollution degree 2 environments. No special regulatory certifications (e.g., FDA, UL) apply, as it functions solely as a signal conditioning component within larger measurement systems.

Software & Data Management

The BBA-10 operates as a fully analog, stand-alone hardware module with no embedded firmware or digital control interface. As such, it requires no driver installation, software configuration, or network connectivity—ensuring deterministic latency and immunity to software-induced jitter or timing artifacts. All operational parameters are set manually via calibrated front-panel controls. For system-level traceability in GLP/GMP-compliant labs, users may document amplifier settings (gain, bias state if applicable) alongside raw waveform acquisitions in their data acquisition software (e.g., MATLAB, LabVIEW, Keysight PathWave, or Tektronix DPO/MSO platforms). Calibration certificates—including amplitude accuracy (±0.3 dB at 100 MHz), rise time verification, and channel-to-channel matching—are available upon request and conform to ISO/IEC 17025-accredited procedures when issued by authorized Alphalas calibration partners.

Applications

• Amplification of low-amplitude, short-duration pulses from ultrafast photodetectors in pump-probe spectroscopy and THz time-domain systems
• Signal conditioning prior to digitization in high-speed oscilloscope-based time-of-flight (TOF) measurements for particle detection or LIDAR development
• Driving 50 Ω loads such as RF switches, modulators, or sampling gates in synchronized laser timing architectures
• Front-end amplification in quantum optics experiments requiring preservation of temporal fidelity and minimal added jitter
• Benchmarking and validation of custom-designed high-speed electronics, including PCB interconnects and active probe interfaces
• Integration into automated optical alignment systems where real-time feedback loops demand sub-nanosecond signal propagation consistency

FAQ

Is the BBA-10 suitable for amplifying signals with DC offset?

Yes—the fully DC-coupled design maintains signal fidelity from 0 Hz, enabling accurate amplification of pulses superimposed on static bias voltages.
Can the BBA-10 be used in cryogenic environments?

It is rated for operation between 0 °C and 50 °C; extended low-temperature use below 0 °C is not validated and may affect gain stability and noise performance.
Does the amplifier support differential input or output?

No—the BBA-10 features single-ended 50 Ω input and output; for differential applications, external baluns or dedicated differential amplifiers are recommended.
What is the warranty coverage and service policy?

Alphalas provides a 12-month limited warranty covering material and workmanship defects under normal laboratory use conditions; warranty exclusions include physical damage, unauthorized modification, improper power supply, or use outside specified environmental limits.
Is factory recalibration available after purchase?

Yes—traceable recalibration services are offered through Alphalas-certified service centers, with optional ISO/IEC 17025-compliant calibration reports available upon request.
