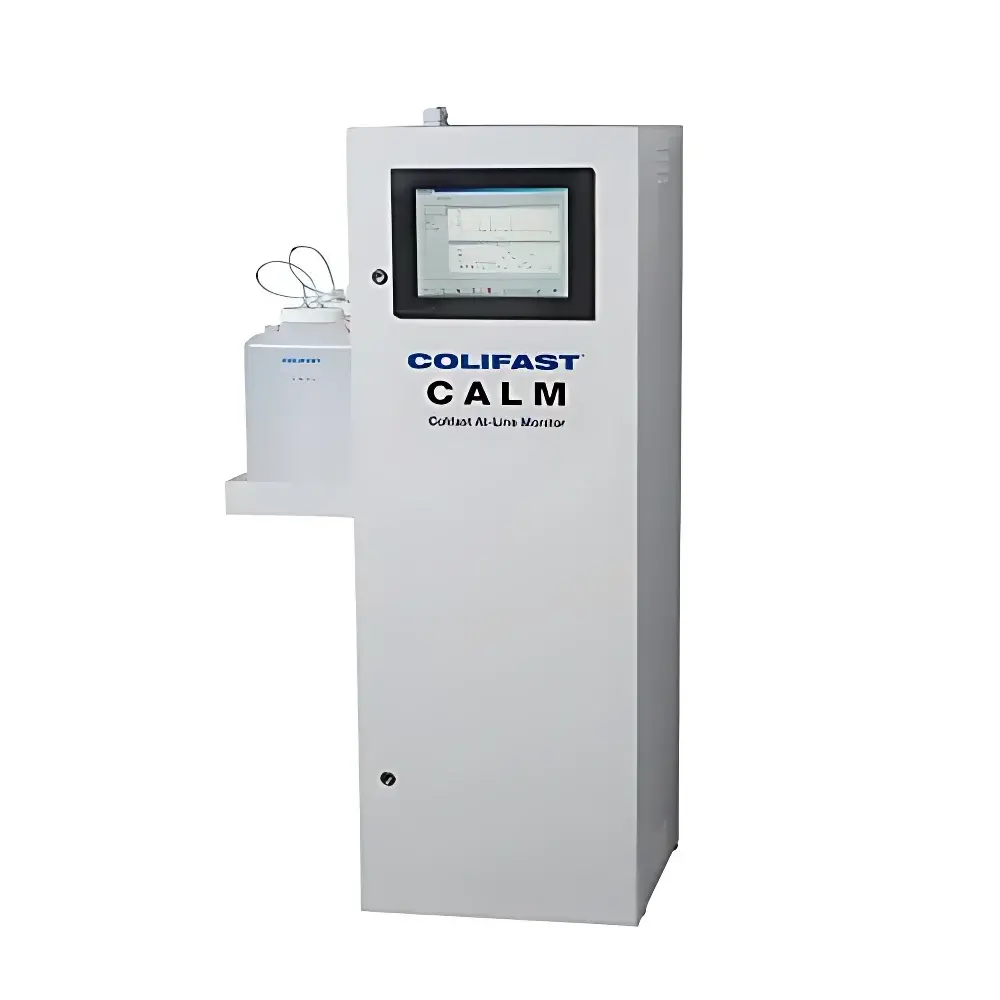

BBE Colifast CALM Online Microbial Water Analyzer

Overview

The BBE Colifast CALM Online Microbial Water Analyzer is an automated, real-time early-warning system engineered for the rapid detection and quantification of Escherichia coli, total coliforms, thermotolerant coliforms (including E. coli), and Pseudomonas aeruginosa in water matrices. It operates on enzymatic fluorogenic substrate principles—specifically monitoring β-glucuronidase activity (for E. coli) and β-galactosidase activity (for total and thermotolerant coliforms), while detecting P. aeruginosa via aminopeptidase-mediated hydrolysis. The instrument integrates proprietary pre-filled multi-well culture plates with a precision optical detection module capable of measuring fluorescence kinetics in real time. Unlike conventional membrane filtration or standard plate count methods requiring 24–48 h incubation, Colifast CALM delivers quantitative results within 2–12 hours—enabling proactive response to microbial contamination events in source water, process streams, wastewater effluents, and reclaimed water systems. Its design eliminates dependency on laboratory infrastructure or microbiological expertise, making it suitable for deployment at remote pumping stations, treatment plant control rooms, or distributed monitoring nodes.

Key Features

• Fully automated operation with integrated sample aspiration, reagent dispensing, temperature-controlled incubation (37 °C for total coliforms/E. coli; 44 °C for thermotolerant coliforms), and fluorescence-based endpoint detection.
• Two complementary quantification modes: (1) Most Probable Number (MPN) method using 4–6 well dilution series with growth-based endpoint detection (11–12 h); (2) Rapid enzymatic assay providing quantitative results in 1–2 h based on initial enzyme activity kinetics.
• Adaptive sampling volume selection: automatically adjusts from 0.2 mL (for high-concentration samples ≥500 CFU/100 mL) to up to 10 mL (for low-concentration applications), ensuring optimal signal-to-noise ratio across dynamic concentration ranges.
• Pre-sterilized, lyophilized, pre-filled multi-well culture plates eliminate manual media preparation and reduce cross-contamination risk; shelf life maintained under refrigerated storage.
• Onboard data logging with timestamped results, configurable alarm thresholds, and seamless integration into SCADA, LIMS, or enterprise-level network environments via Ethernet (TCP/IP) or optional RS-485 interface.
• Self-diagnostic routines, automatic calibration verification using internal reference standards, and audit-trail-enabled operation compliant with GLP and ISO/IEC 17025 documentation requirements.

Sample Compatibility & Compliance

The Colifast CALM is validated for use with raw surface water, groundwater, drinking water, secondary-treated wastewater, tertiary-treated effluent, and recycled/reclaimed water. It meets performance criteria aligned with ISO 9308-1 (for E. coli and coliforms), ISO 16266 (for P. aeruginosa), and EPA Method 1604 (for total coliforms and E. coli). While not a replacement for regulatory confirmation testing, its rapid output supports operational decision-making under ISO 22000, HACCP, and WHO Guidelines for Drinking-water Quality. Instrument firmware supports 21 CFR Part 11-compliant electronic signatures and audit trails when deployed in GMP-regulated utilities or pharmaceutical water systems.

Software & Data Management

Colifast Control Software (v5.x or later) provides intuitive configuration of test protocols, alarm logic, reporting templates (PDF/CSV), and trend visualization. All measurement data—including raw fluorescence curves, MPN calculations, detection times, and QC flagging—are stored locally with encrypted backup capability. Remote access is supported via secure HTTPS or VPN tunneling. Data export conforms to ASTM E1469 (Standard Practice for Electronic Transfer of Laboratory Data) and supports direct ingestion into cloud-based environmental monitoring platforms. Software validation documentation (IQ/OQ/PQ) is available upon request for regulated installations.

Applications

• Early warning monitoring at intake points for surface water abstraction systems.
• Real-time verification of disinfection efficacy in chlorine/chloramine contact basins.
• Process control during tertiary filtration and UV irradiation stages.
• Compliance support for EU Bathing Water Directive (2006/7/EC) and US EPA Total Coliform Rule (TCR) trigger-response protocols.
• Monitoring of decentralized wastewater reuse systems in industrial parks or smart cities.
• Emergency response screening during flood events or pipeline break incidents.

FAQ

What regulatory standards does Colifast CALM comply with?
It aligns with ISO 9308-1, ISO 16266, and EPA Method 1604 for method performance; full regulatory acceptance depends on local authority validation requirements.
Can Colifast CALM replace traditional lab-based enumeration methods?
It serves as a rapid screening and early-warning tool—not a primary compliance method—but reduces reliance on off-site labs for operational decisions.
How often must consumables be replaced?
Pre-filled culture plates are replaced weekly for high-frequency monitoring or monthly for intermittent surveillance, depending on sample load and protocol configuration.
Is remote diagnostics and software update capability supported?
Yes—firmware updates and remote troubleshooting are enabled via secure authenticated connections through the Colifast Service Portal.
Does the system require external calibration standards or daily maintenance?
No routine calibration is required; built-in optical reference checks and automated fluidic self-cleaning cycles minimize operator intervention.
