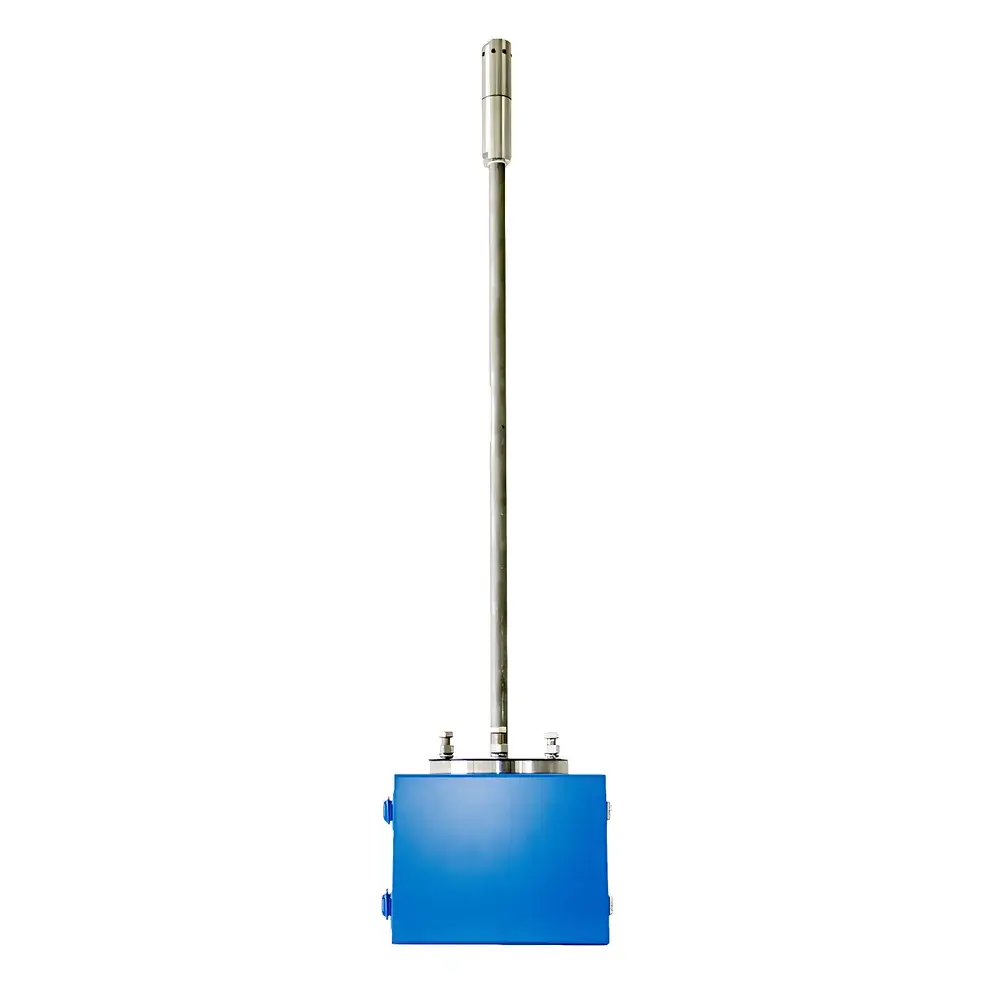

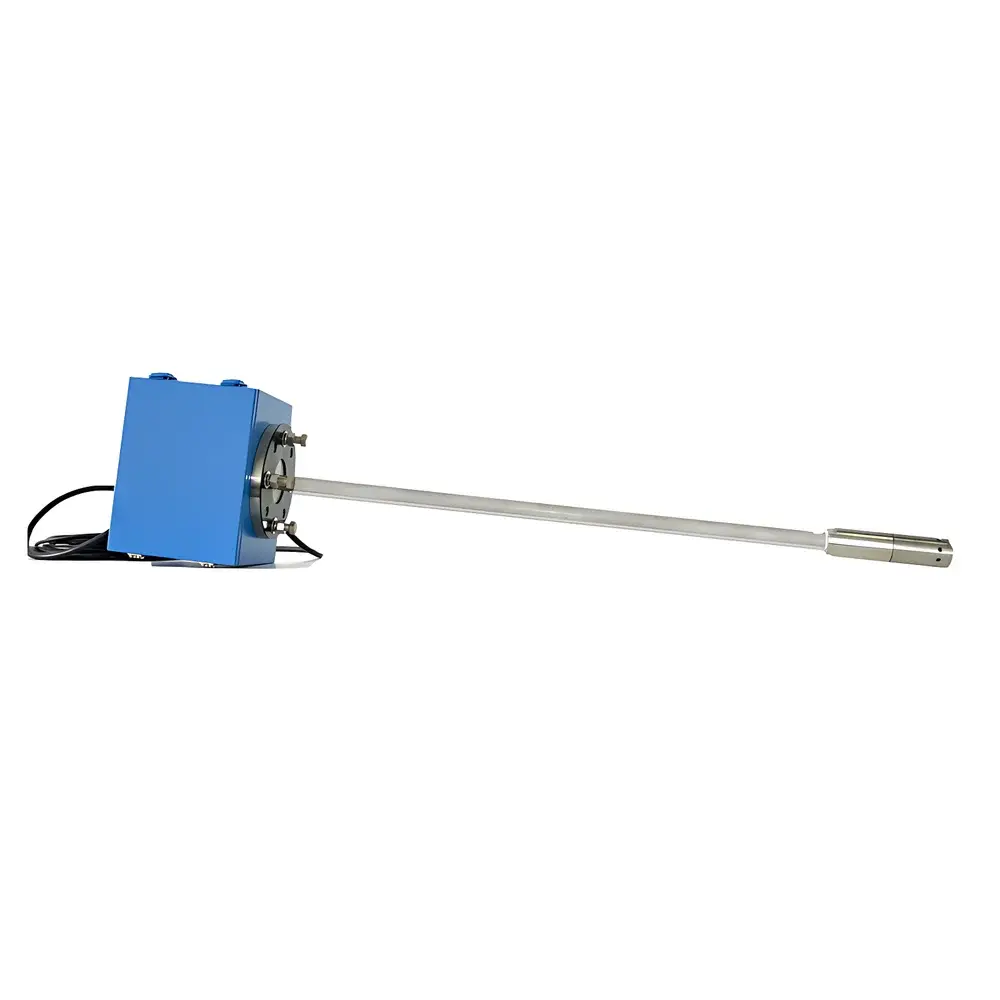

BCC KSD-1000 High-Stability Polymer Capacitive Humidity Sensor

Overview

The BCC KSD-1000 is a high-reliability, industrial-grade relative humidity (RH) sensor engineered for continuous, in-situ monitoring of ambient or process gas moisture content under demanding environmental conditions. It employs a calibrated polymer thin-film capacitive sensing element—whose dielectric constant varies predictably with water vapor adsorption—to directly transduce RH into a stable analog output. Unlike dew point or chilled-mirror hygrometers, this method eliminates intermediate thermodynamic calculations and associated propagation errors, delivering traceable, repeatable measurements across the full 0–100% RH range. Designed for integration into HVAC control systems, cleanroom environmental monitoring, pharmaceutical storage validation, and industrial drying processes, the KSD-1000 meets fundamental metrological requirements for routine environmental surveillance where long-term stability and resistance to particulate and chemical exposure are critical.

Key Features

• Polymer capacitive sensing technology ensures low hysteresis (<±0.8% RH), minimal drift (<±2% RH/year), and rapid response time (t₉₀ < 15 s in still air)
• Robust stainless steel or reinforced ABS housing rated to IP65—certified dust-tight and protected against low-pressure water jets—enabling deployment in high-dust manufacturing zones or chemically aggressive storage areas
• Factory-calibrated against NIST-traceable reference standards; calibration certificate optionally available per ISO/IEC 17025 requirements
• 4–20 mA current loop output provides noise-immune signal transmission over distances up to 600 m without repeaters
• Wide operating temperature envelope (−20 to +50 °C) supports use in unconditioned utility corridors, outdoor enclosures, and thermal cycling environments
• No moving parts or consumables—designed for maintenance-free operation exceeding 5 years under typical industrial duty cycles

Sample Compatibility & Compliance

The KSD-1000 is intended for measurement of relative humidity in non-condensing, non-explosive gaseous media—including ambient air, compressed air, nitrogen blanketing streams, and inert process gases. It is not suitable for direct immersion in liquids, saturated steam, or corrosive vapors exceeding ISO 12944 C3 classification (e.g., concentrated HCl or HF). The device complies with electromagnetic compatibility (EMC) requirements per EN 61326-1:2013 and safety standards per EN 61010-1:2010. While not intrinsically safe certified, its 220 VAC supply configuration is compatible with standard industrial power distribution panels. For regulated environments—including FDA-regulated pharmaceutical facilities—the sensor supports configurable documentation packages aligned with 21 CFR Part 11 data integrity expectations when paired with compliant data acquisition systems.

Software & Data Management

As a standalone analog transmitter, the KSD-1000 does not incorporate embedded firmware, touchscreen interfaces, or onboard data logging. Its 4–20 mA output is designed for seamless integration into programmable logic controllers (PLCs), distributed control systems (DCS), SCADA platforms, or third-party environmental monitoring software (e.g., Siemens Desigo, Honeywell Experion, or custom LabVIEW-based DAQ solutions). When integrated into validated systems, it supports audit trail generation, alarm thresholding, and periodic calibration verification logs—fulfilling GLP and GMP documentation prerequisites for environmental qualification studies (e.g., ICH Q5C stability chambers or EU Annex 15 commissioning protocols).

Applications

• Real-time RH monitoring in pharmaceutical warehouse storage zones (per WHO TRS 992 and EU GDP Annex 9)
• Environmental qualification of cleanrooms (ISO 14644-1 Class 5–8) and isolators
• Process air drying verification in food dehydration and powder coating lines
• Condition monitoring of transformer oil breathers and switchgear enclosures
• Baseline environmental logging for museum artifact conservation and archival vaults
• Commissioning support for HVAC balancing in hospital critical care units (ASHRAE Standard 170)

FAQ

What is the recommended recalibration interval for the KSD-1000 in continuous industrial use?
For applications requiring regulatory compliance (e.g., GxP), annual recalibration against traceable references is advised; for non-critical monitoring, biennial verification suffices.
Can the KSD-1000 be used in outdoor weather stations?
Yes—provided the probe is installed within an aspirated radiation shield and protected from direct precipitation; extended exposure to UV or salt-laden air may accelerate polymer film aging.
Does the sensor require zero/span adjustment in the field?
No—factory calibration is sealed and non-user-adjustable; field verification requires comparison against a portable reference hygrometer (e.g., Rotronic HC2-S or Vaisala HMP155).
Is the 4–20 mA output linear across the full 0–100% RH range?
Yes—output is strictly linear: 4 mA = 0% RH, 20 mA = 100% RH, with ≤±0.5% linearity error over the specified operating temperature range.
What mounting options are supported?
Standard ½” NPT male thread enables direct insertion into ducts or wall-mounted brackets; optional flange kits and remote probe extensions (up to 3 m) are available for inaccessible locations.
