BCC MGA-3000 Multicomponent Infrared Gas Analyzer

Overview

The BCC MGA-3000 is a fixed-mount, multicomponent gas analyzer engineered for continuous, real-time quantification of multiple gaseous species in industrial process streams, ambient air monitoring stations, and emission compliance applications. It operates on the principle of non-dispersive infrared (NDIR) absorption spectroscopy—leveraging characteristic mid-infrared absorption bands of target molecules (e.g., CO, CO₂, CH₄, SO₂, NO, NO₂, NH₃, hydrocarbons) to deliver selective, interference-resistant measurements. Unlike single-gas NDIR analyzers, the MGA-3000 integrates multiple optical channels with thermopile or photodiode detectors and temperature-stabilized reference cells, enabling simultaneous analysis of up to eight gases without cross-sensitivity artifacts. Its dual-range auto-switching architecture ensures high resolution at trace levels (ppb–ppm) while maintaining linearity and dynamic range up to 100% volume concentration—critical for applications spanning leak detection, combustion efficiency control, biogas composition monitoring, and regulatory stack testing.

Key Features

• Auto-ranging dual-scale measurement: Seamlessly transitions between low-concentration (e.g., 0–10 ppm) and high-concentration (e.g., 0–100%) ranges without manual intervention or hardware reconfiguration.
• Proprietary thermal management system: Actively stabilized optical path and detector housing minimize thermal drift, achieving ≤ ±1 % FS / 24 h baseline stability—essential for unattended operation in fluctuating ambient environments.
• Embedded automatic zero/span calibration: Supports scheduled or event-triggered calibration using internal reference gas reservoirs or external certified standards; eliminates need for field technician intervention during routine maintenance cycles.

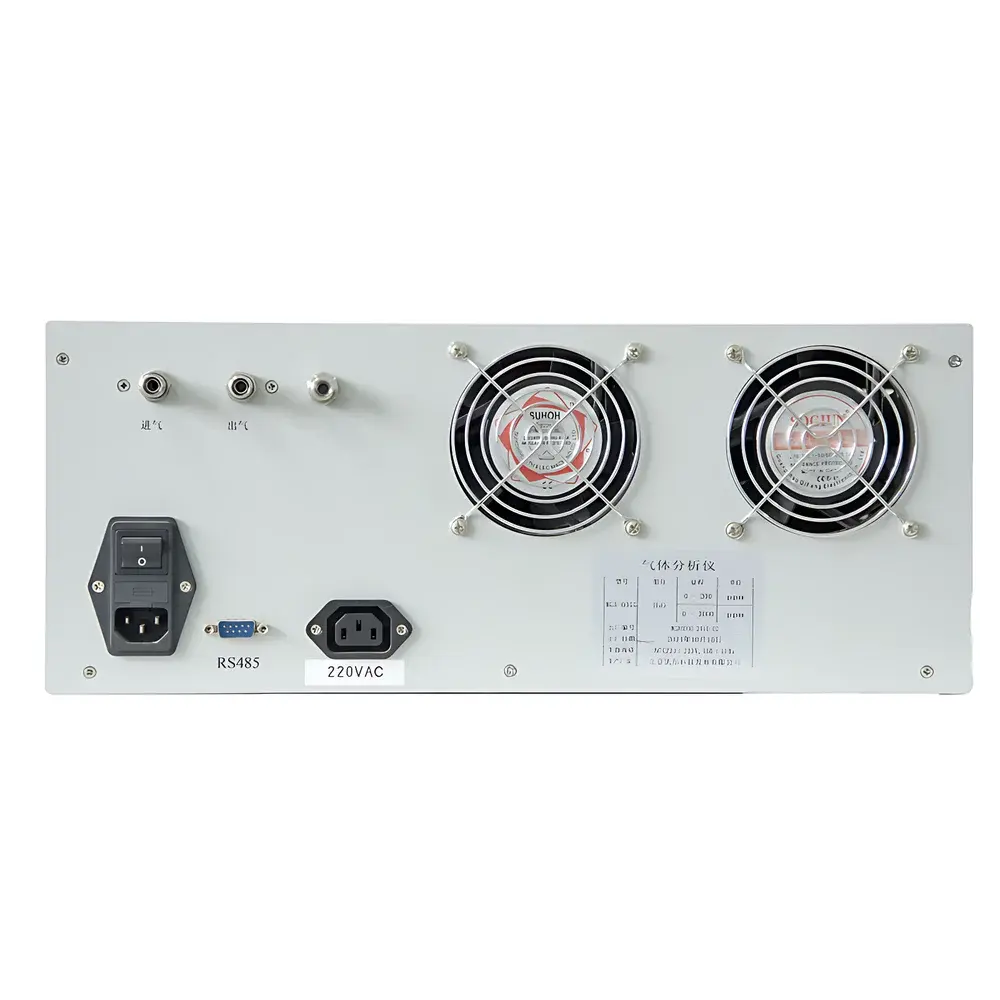

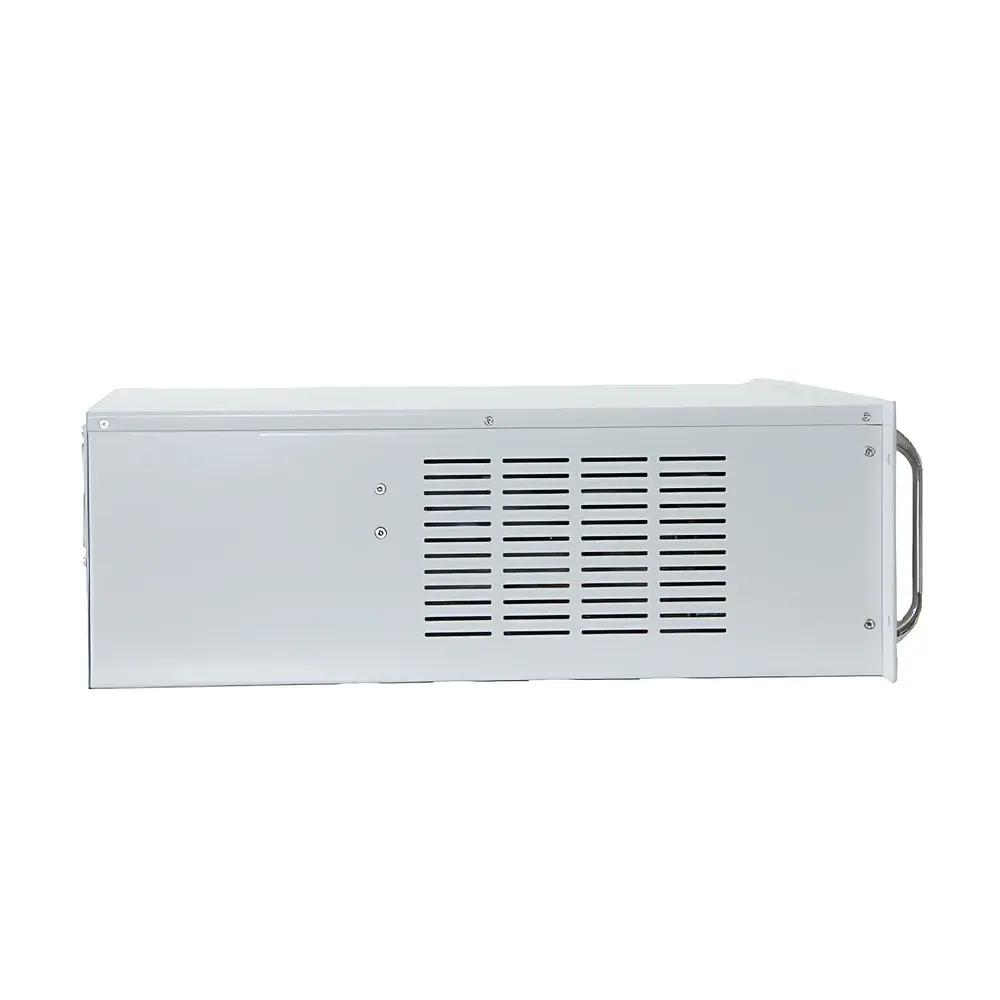

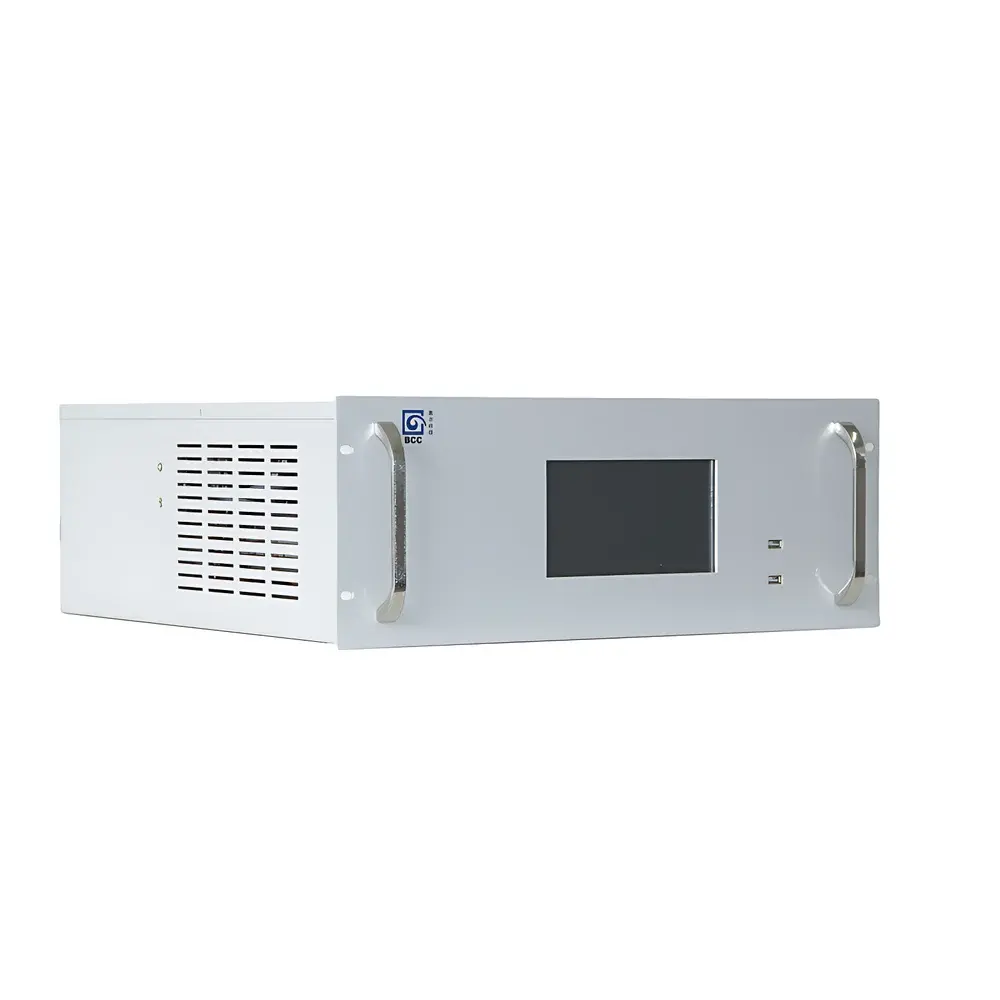

• Multi-form factor design: Available in three mechanical configurations—19″ 3U rack-mount (for centralized control rooms), benchtop (for laboratory verification or mobile lab deployment), and ruggedized portable (for field surveys and emergency response).
• Robust environmental rating: IP54-rated enclosure standard; optional conformal coating and heated sample inlet available for high-humidity or particulate-laden sample streams.

Sample Compatibility & Compliance

The MGA-3000 is compatible with dry, filtered, non-corrosive gas matrices across ambient temperatures (−20 °C to +50 °C) and pressures (70–106 kPa). For wet or reactive samples, optional integrated sample conditioning systems—including particle filters, Nafion™ dryers, and catalytic scrubbers—are supported. The analyzer complies with key international performance standards including EN 15267-3 (QAL1 certification readiness), ISO 12039 (for CO/CO₂ in flue gas), and EPA Method 10/3A for stationary source emissions. Its firmware architecture supports audit-trail logging and user-access controls aligned with GLP and GMP data integrity requirements per FDA 21 CFR Part 11 when deployed in regulated manufacturing environments.

Software & Data Management

The embedded Linux-based operating system hosts BCC’s GasVision™ firmware, providing local HMI via a 7″ capacitive touchscreen or remote access via secure HTTPS/SSH. All measurement data—including raw absorbance values, calibrated concentrations, diagnostic flags, and calibration logs—are timestamped and stored onboard (8 GB internal flash, expandable via microSD). Standard communication protocols include Modbus TCP/RTU, MQTT over TLS, and OPC UA (compliant with IEC 62541), facilitating integration into SCADA, DCS, and cloud-based IIoT platforms (e.g., Azure IoT Hub, AWS IoT Core). Data export supports CSV, JSON, and XML formats; historical trends are visualizable via built-in web dashboard or third-party tools such as Grafana or PI System.

Applications

• Continuous emissions monitoring (CEMS) for thermal power plants, cement kilns, and waste incinerators.
• Biogas upgrading control: Real-time tracking of CH₄, CO₂, H₂S, and O₂ to optimize membrane separation or amine scrubbing efficiency.
• Indoor air quality (IAQ) management in smart buildings and cleanrooms—monitoring CO₂, VOCs (via surrogate hydrocarbon detection), and NOₓ.
• Process safety: Leak detection and accumulation monitoring in semiconductor fabrication fabs, chemical storage areas, and hydrogen refueling stations.
• Environmental research: Mobile mapping of urban pollutant gradients (NO, NO₂, CO) using vehicle-mounted portable units.

FAQ

Does the MGA-3000 support custom gas configurations beyond the standard eight-channel setup?
Yes—hardware channel count can be extended to twelve via optional optical module expansion; custom spectral filter sets and calibration curves are developed per client specification and validated per ISO 17025 procedures.
Is factory calibration traceable to NIST or other national metrology institutes?
All factory calibrations are performed using NIST-traceable certified gas standards (±1 % uncertainty); full calibration certificates—including uncertainty budgets and gas lot traceability—are supplied with each unit.
Can the analyzer operate continuously without scheduled maintenance?
With proper sample conditioning and quarterly verification checks, the MGA-3000 achieves ≥ 8,760 hours/year uptime; mean time between failures (MTBF) exceeds 25,000 hours under typical industrial conditions.
How is cybersecurity addressed in remote data transmission?
Firmware includes TLS 1.2/1.3 encryption, certificate-based authentication, disabled default credentials, and configurable firewall rules—all auditable against IEC 62443-3-3 Level 1 requirements.
What is the warranty and service support structure outside China?
BCC provides a 24-month global limited warranty; authorized service partners in EU, North America, and APAC offer on-site diagnostics, spare parts logistics, and firmware update support through a secure customer portal.
