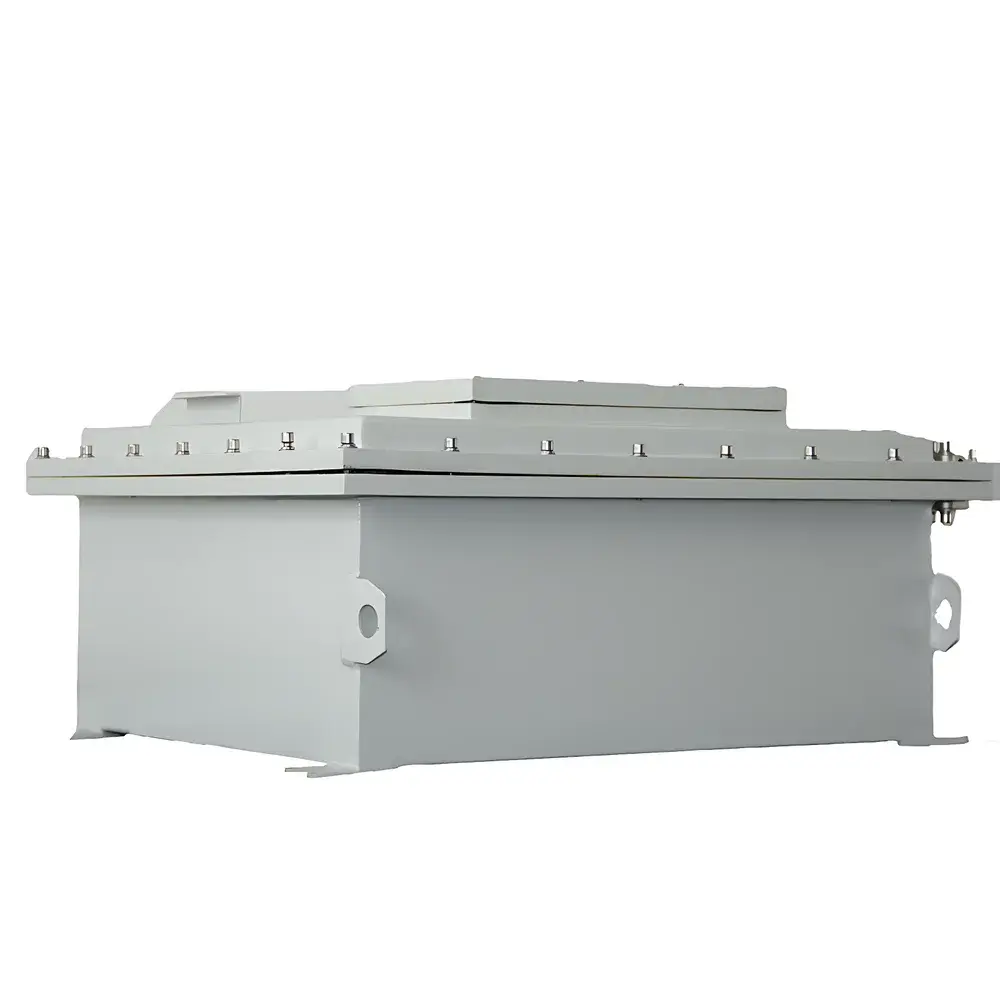

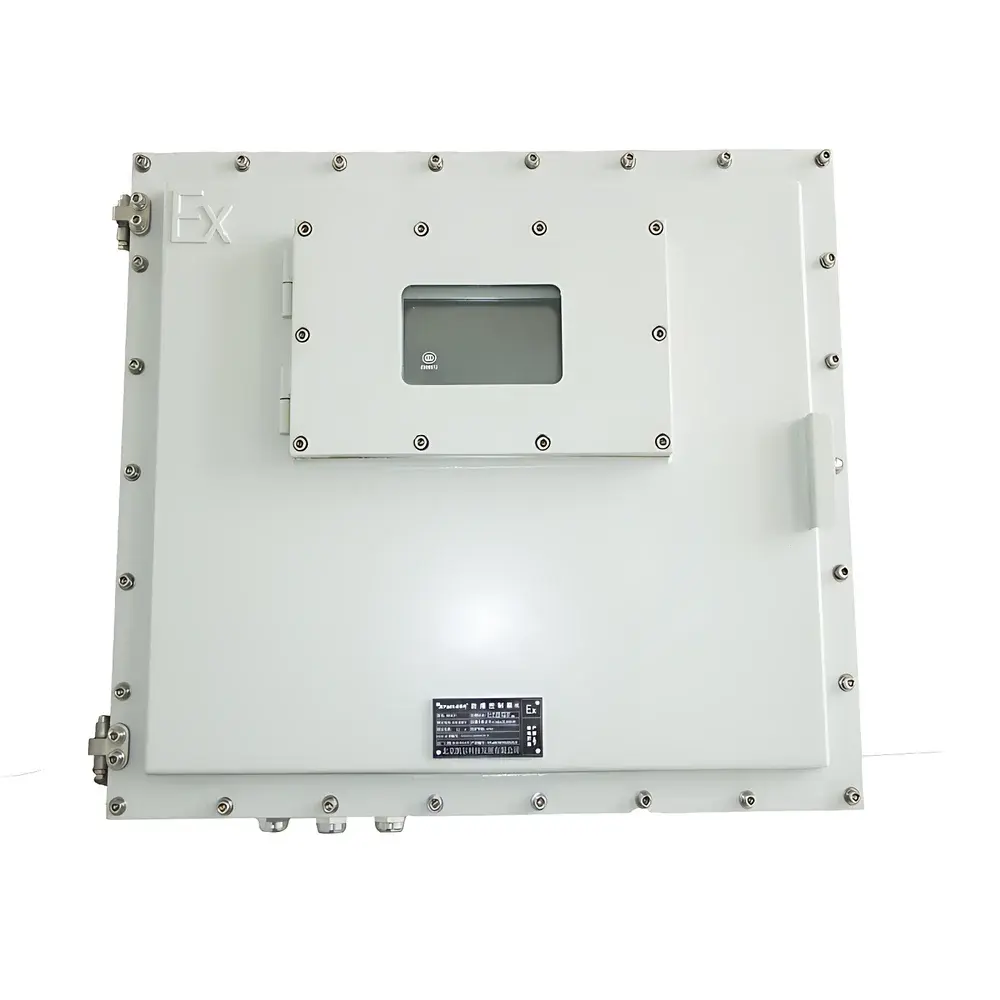

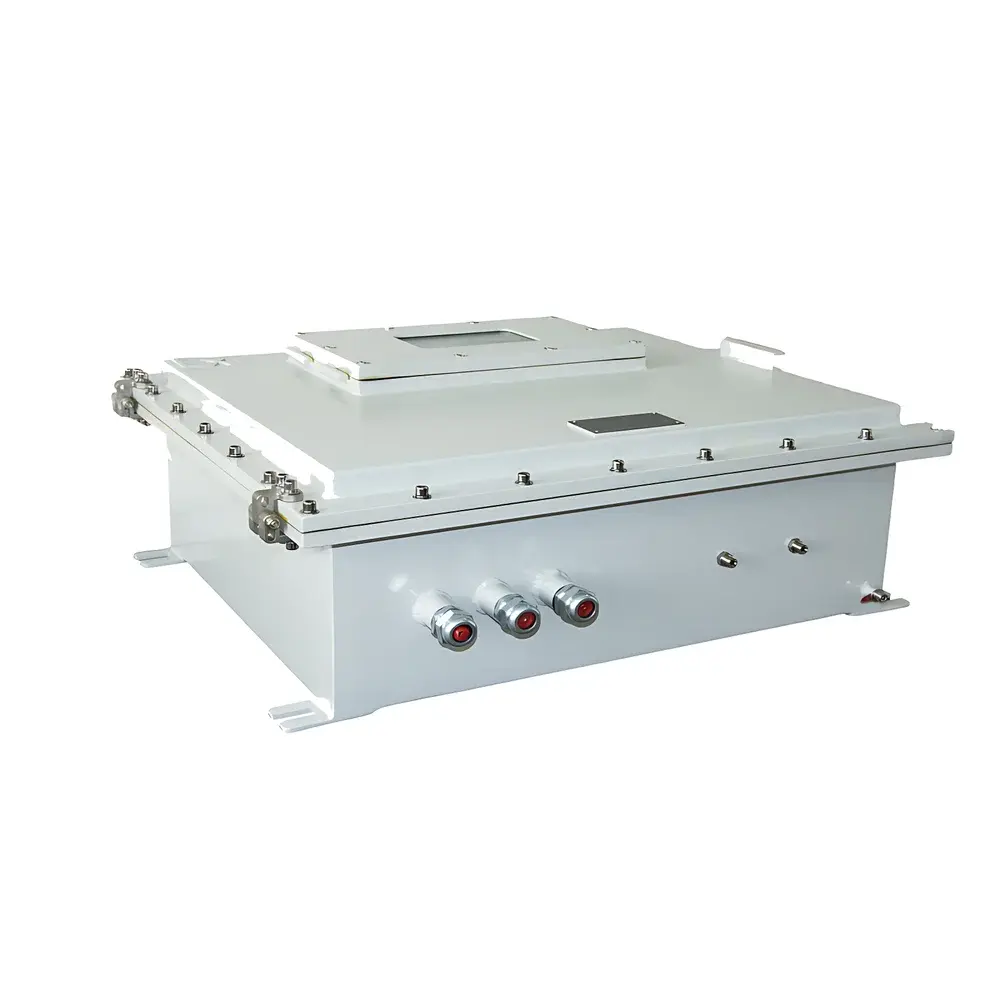

BCC MGA-3000Ex Intrinsically Safe Multicomponent Gas Analyzer

Overview

The BCC MGA-3000Ex is an intrinsically safe, fixed-position multicomponent gas analyzer engineered for continuous, real-time monitoring of hazardous industrial environments—including chemical processing plants, biogas facilities, semiconductor cleanrooms, and landfill gas recovery systems. It operates on the principle of non-dispersive infrared (NDIR) absorption spectroscopy, leveraging gas-specific mid-infrared absorption bands to quantify up to 17 target analytes simultaneously without cross-interference from common background gases. Each optical channel employs thermopile detectors with temperature-stabilized light sources and precision interference filters, ensuring high spectral selectivity and long-term stability under fluctuating ambient conditions. The analyzer’s explosion-proof design complies fully with IEC 60079 series standards for Zone 1/21 applications, making it suitable for installation in classified areas where flammable vapors, dusts, or fibers may be present.

Key Features

• Intrinsically safe and flameproof certified (Ex d IIB T4 Gb / Ex tb IIIC T130°C Db) for deployment in hazardous locations per ATEX and IECEx directives.
• Simultaneous quantification of up to 17 gases—including CO, CO₂, CH₄, NO, N₂O, NH₃, HF, HCl, H₂S, SO₂, ¹³CO₂, H₂O, O₂, C₂H₂, C₃H₈, CF₄, and C₂F₆—via dedicated NDIR channels with optimized path lengths and spectral filtering.
• Ultra-low detection limit of 1 ppb for key trace gases (e.g., HF, NH₃), enabling compliance with stringent occupational exposure limits (OELs) and environmental emission standards (e.g., EU Industrial Emissions Directive 2010/75/EU).
• Wide dynamic measurement range spanning 1 ppb to 100% volume concentration—eliminating the need for range switching or dilution systems across diverse operational scenarios.
• Fast T90 response time ≤ 60 s, achieved through low-volume sample cells (< 50 mL), heated sample lines (optional), and optimized flow control—critical for process safety interlocks and rapid leak detection.
• Integrated auto-calibration routines: programmable zero calibration using certified zero air and full-scale calibration with span gases; configurable cycle intervals (e.g., every 6–24 h) to maintain metrological traceability without manual intervention.
• Dual mechanical enclosure options: compact 19″ rack-mount chassis (4U height) for centralized control rooms and ruggedized benchtop variant for field-mounted enclosures or mobile monitoring stations.

Sample Compatibility & Compliance

The MGA-3000Ex accepts conditioned sample gas streams at temperatures between 0–50°C and pressures from 80–110 kPa (abs), with particulate filtration (≤ 0.3 µm) and moisture removal (dew point ≤ −10°C) recommended upstream. It is compatible with both dry and humidified samples, and optional heated sample handling modules mitigate condensation for high-H₂O matrices (e.g., biogas, flue gas). Regulatory compliance includes IEC 61508 SIL2 readiness for safety-related applications, adherence to ISO 14644-3 for cleanroom air monitoring, and alignment with EPA Method TO-15 and EN 15267-3 for automated emissions monitoring systems (CEMS). All firmware and calibration logs support audit-ready data integrity per FDA 21 CFR Part 11 requirements when deployed in regulated manufacturing environments.

Software & Data Management

The embedded Linux-based firmware supports local configuration via web GUI (HTTPS) and remote management through secure SSH or Modbus TCP. Real-time concentration data, diagnostic flags (e.g., optical power drift, cell contamination warning), and calibration event timestamps are logged internally with 32 GB onboard storage (retention ≥ 18 months at 1-min intervals). Standard export formats include CSV and XML; integration with SCADA, DCS, or cloud platforms (e.g., AWS IoT Core, Azure IoT Hub) is enabled via MQTT or RESTful API. Audit trails record all user actions—including parameter changes, calibration initiations, and firmware updates—with immutable timestamps and operator ID binding.

Applications

• Continuous emission monitoring (CEM) of stack gases in thermal power plants and incinerators, targeting SO₂, NOₓ, CO, and CO₂ per EN 14181 and EPA PS-15 protocols.
• Biogas quality assurance in anaerobic digestion facilities—tracking CH₄, CO₂, H₂S, and siloxanes to optimize upgrading efficiency and protect downstream equipment.
• Semiconductor fab ambient air monitoring for ultra-trace HF, HCl, and NH₃ to prevent wafer contamination and ensure ISO Class 1–5 cleanroom compliance.
• Landfill and wastewater treatment off-gas analysis for CH₄ oxidation control, odorant (H₂S, NH₃) abatement verification, and greenhouse gas reporting (GHGRP, UNFCCC).
• Process safety instrumentation for hydrocarbon leak detection in petrochemical refineries—supporting ISA-84/IEC 61511-compliant SIS loops with <100 ms alarm latency.

FAQ

What certifications does the MGA-3000Ex hold for hazardous area installation?

It carries IECEx and ATEX certification for Group II (industrial) equipment: Ex d IIB T4 Gb for gas atmospheres and Ex tb IIIC T130°C Db for combustible dust environments.
Can the analyzer be configured for custom gas combinations beyond the standard list?

Yes—BCC provides configurable NDIR module sets; additional gases (e.g., ethylene oxide, formaldehyde) may be added subject to spectral uniqueness and minimum detection limit validation.
Is remote firmware update supported over Ethernet?

Yes, authenticated over-the-air (OTA) updates are supported via HTTPS with SHA-256 signature verification and rollback capability.
How is measurement traceability maintained during extended unattended operation?

Auto-calibration events are timestamped and stored with reference gas certificate IDs; raw detector voltage logs and temperature-compensated absorbance values are retained for metrological reprocessing.
Does the system meet cybersecurity requirements for industrial control networks?

It implements TLS 1.2 encryption, role-based access control (RBAC), disabled default accounts, and regular CVE vulnerability patching aligned with IEC 62443-3-3 SL2 recommendations.
