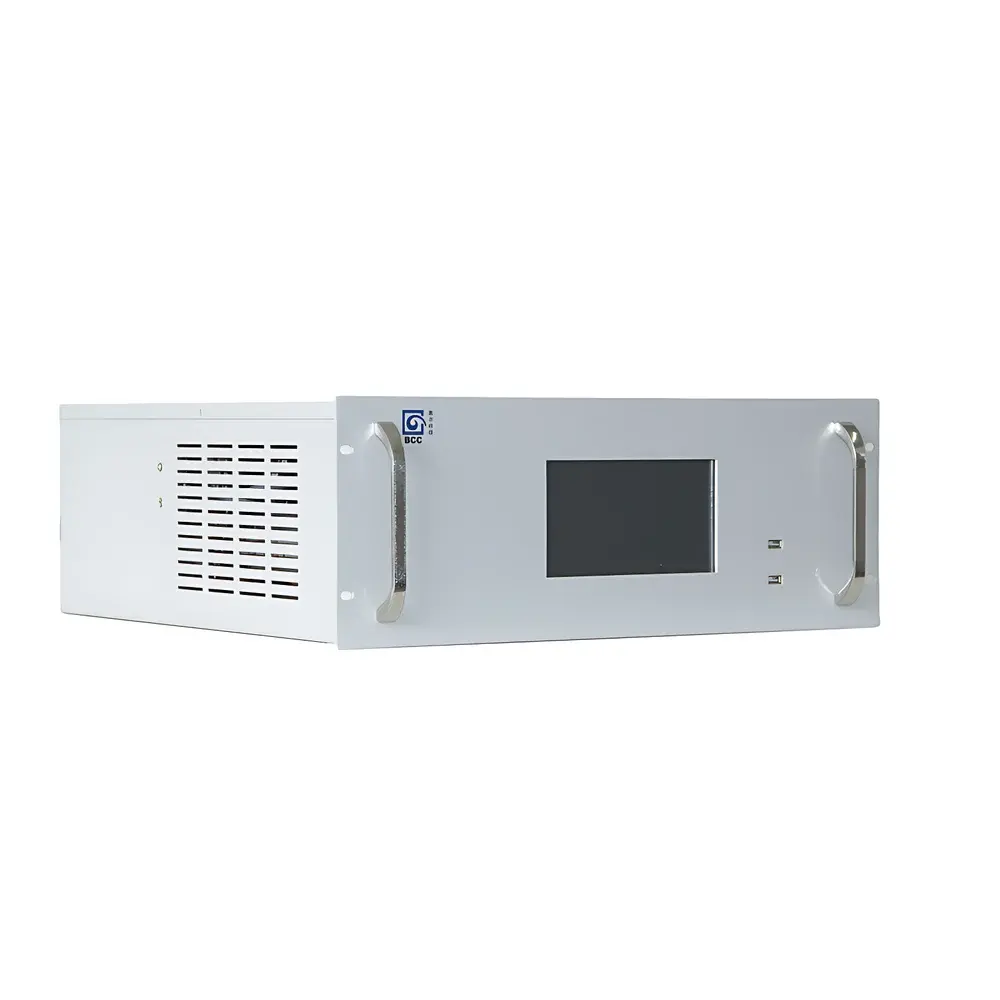

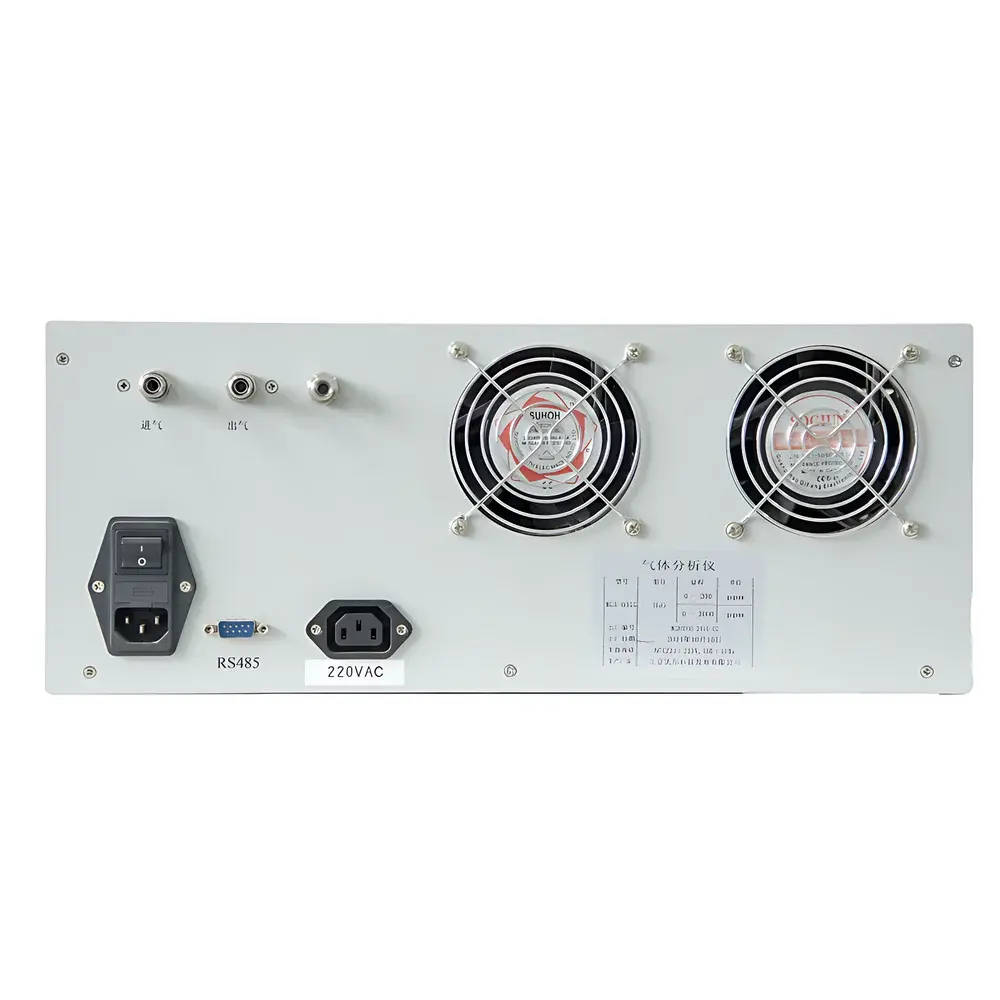

BCC MGA-6000 High-Purity Oxygen Analyzer (Paramagnetic Type)

Overview

The BCC MGA-6000 is a high-purity oxygen analyzer engineered for continuous, real-time measurement of oxygen concentration in inert gas streams, nitrogen blanketing systems, and ultra-high-purity (UHP) industrial gases where trace-level oxygen contamination must be tightly controlled. It employs a robust paramagnetic detection principle—based on the strong magnetic susceptibility of molecular oxygen—to deliver inherently selective, drift-resistant measurements without consumables or catalytic interference. Unlike electrochemical or zirconia-based sensors, the paramagnetic method provides absolute quantification of O₂ partial pressure independent of background gas composition (e.g., N₂, Ar, He, CO₂), making it ideal for applications demanding metrological traceability and long-term stability in demanding process environments.

Key Features

• Paramagnetic sensing core with dual-chamber differential pressure transduction for high signal-to-noise ratio and immunity to flow fluctuations
• User-configurable measurement span across two standard ranges: 80–99.99% O₂ or 98–99.99% O₂—optimized for purity verification in bulk gas supply and final product release testing
• High-resolution digital output: 0.01% O₂ resolution enables detection of sub-100 ppm deviations from nominal purity specifications
• T₉₀ response time ≤ 15 seconds ensures rapid feedback for closed-loop control of purging or inerting processes
• Thermally stabilized sensor housing and integrated temperature-compensated electronics maintain ±0.02% FS baseline stability over 30-day intervals under continuous operation
• Compact modular design (W × H × D: 240 × 120 × 320 mm; weight < 4.2 kg) facilitates panel mounting or integration into skid-mounted analyzer shelters

Sample Compatibility & Compliance

The MGA-6000 is designed for clean, dry, non-corrosive gas streams with particulate filtration (≤ 5 µm) and dew point ≤ –20 °C. It supports sample flow rates of 400 ± 50 mL/min via built-in mass flow regulation and includes optional heated sample line interface for dew point control. The analyzer complies with IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emission) standards. Its analog and digital outputs support integration into SIL-2-capable safety instrumented systems (SIS) when deployed with certified redundancy architecture. While not intrinsically safe, it meets ATEX Category 3G (Zone 2) requirements when installed in ventilated enclosures per EN 60079-15.

Software & Data Management

Embedded firmware supports scheduled data logging (intervals from 1 second to 24 hours) with timestamped storage on internal flash memory (≥ 30 days at 1-min intervals). All communication protocols—including Modbus RTU over RS485, ASCII commands over RS232, and HTTP/JSON API over Ethernet—are documented in the open protocol manual for seamless SCADA, DCS, or MES integration. Audit trail functionality records configuration changes, calibration events, and alarm triggers with user ID and timestamp—supporting GLP/GMP documentation requirements under FDA 21 CFR Part 11 when paired with validated host software.

Applications

• Final purity verification of medical-grade oxygen (USP , ISO 8573-1 Class 1) and electronic-grade nitrogen (SEMI F57)
• Inert gas monitoring in semiconductor wafer fabrication gloveboxes and annealing furnaces
• Leak detection and purge validation in pharmaceutical lyophilization chambers and API synthesis reactors
• Quality assurance of cryogenic liquid oxygen (LOX) vaporizers and high-pressure cylinder filling stations
• Process optimization in aluminum welding shielding gas mixtures (e.g., Ar + O₂ blends)

FAQ

Does the MGA-6000 require periodic zero/span calibration?
Yes—recommended every 30 days for critical applications; automated calibration sequence supported via front-panel menu or remote command.
Can it measure oxygen in hydrogen-rich atmospheres?
No—hydrogen’s diamagnetic properties interfere with paramagnetic field homogeneity; use only in non-reactive, non-magnetic carrier gases.
Is the sensor lifetime limited by exposure to ambient air?
No—the paramagnetic cell has no consumable elements; typical operational lifespan exceeds 10 years with routine particulate filtration.
What is the minimum detectable change in O₂ concentration?
At 99.99% range, the 0.01% resolution corresponds to ±10 ppm detection limit relative to full scale.
Does it support HART protocol?
No—4–20 mA output is analog-only; digital communication relies on RS485 (Modbus RTU) or Ethernet (HTTP/JSON).
