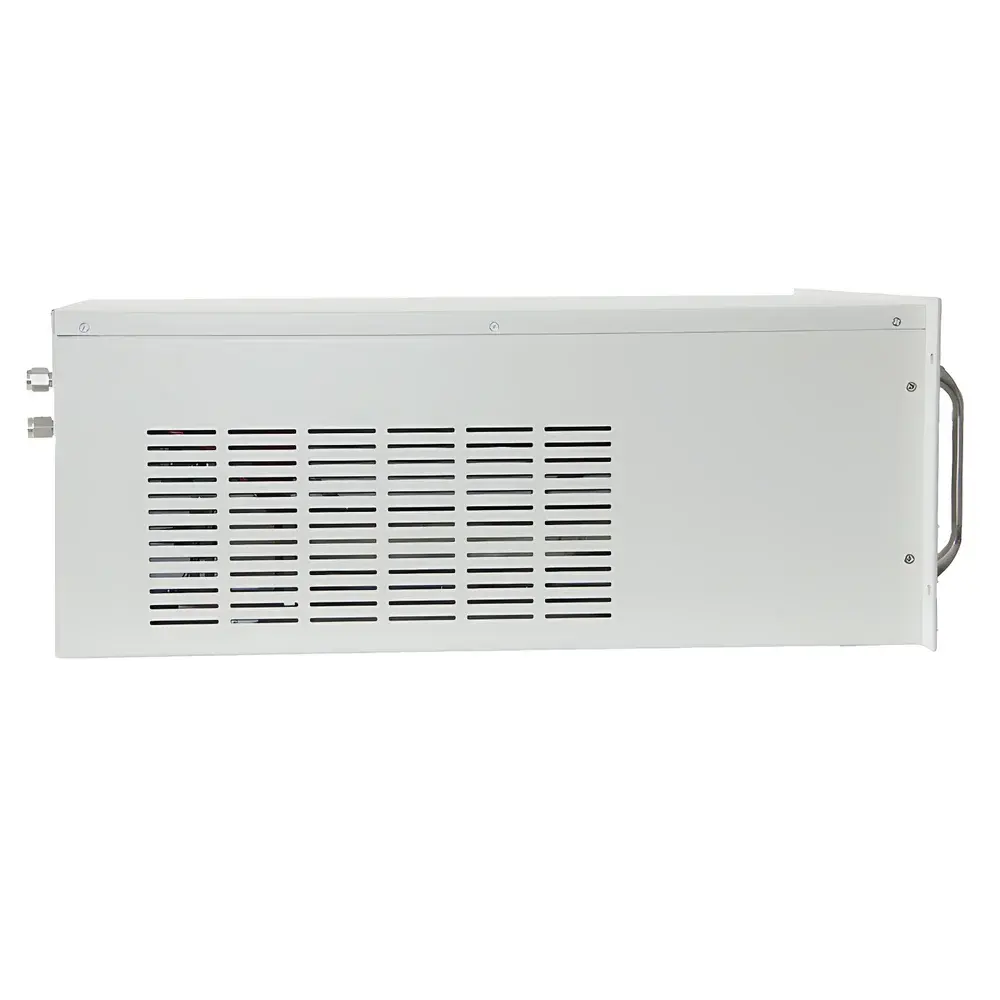

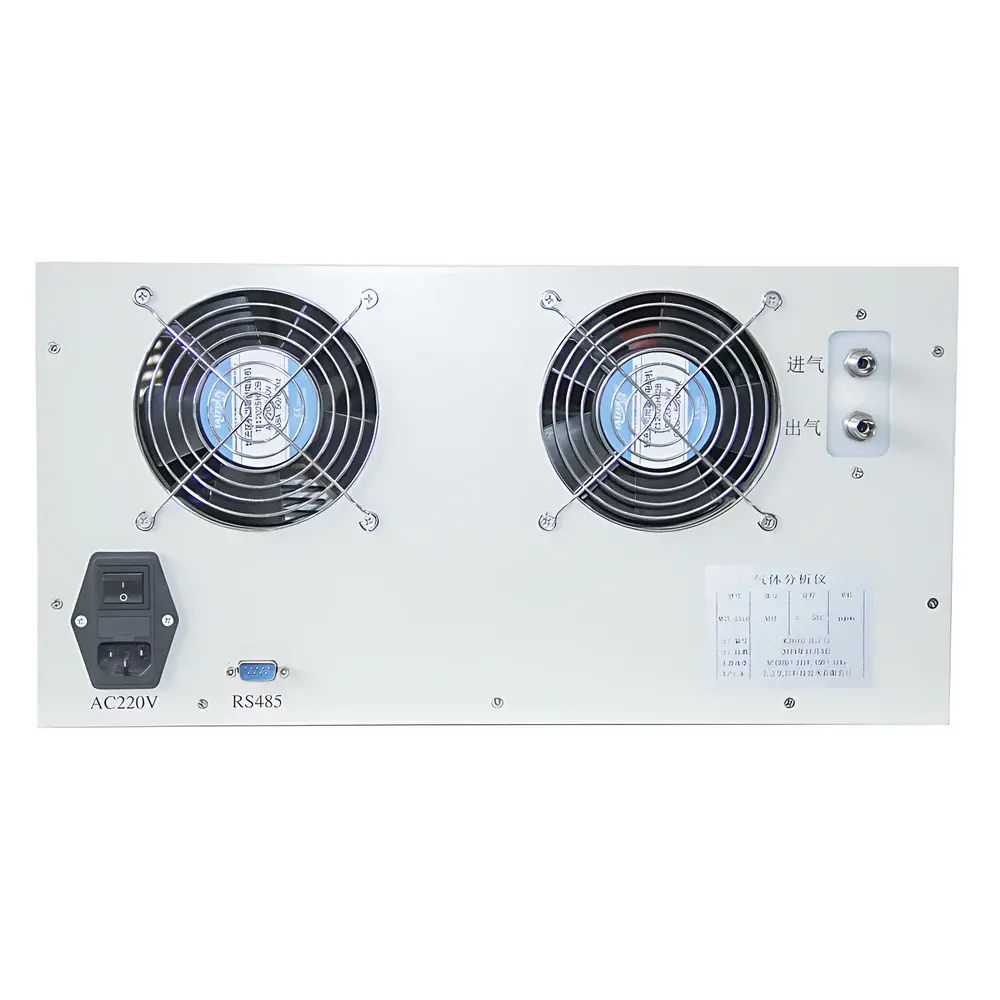

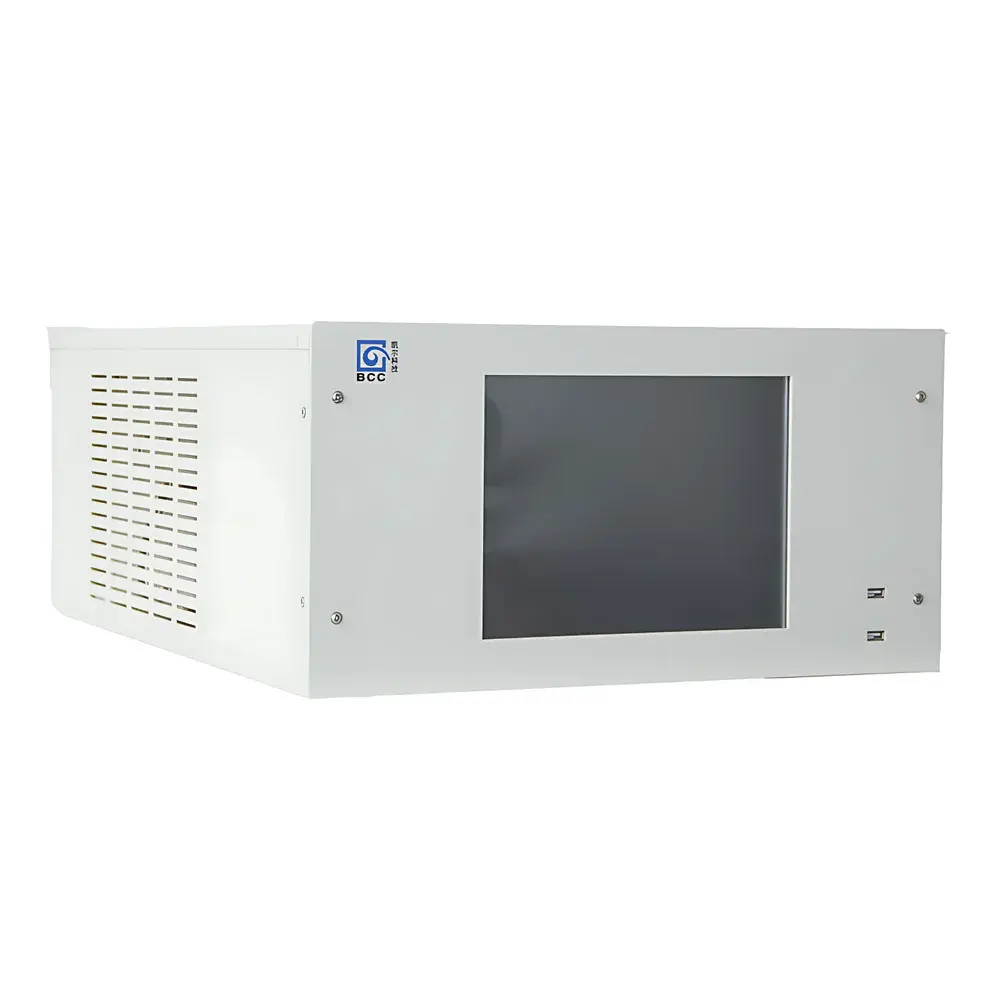

BCC MGA6000 TDLAS-Based Moisture Analyzer

Overview

The BCC MGA6000 is a fixed-installation, high-precision moisture analyzer engineered for continuous, real-time quantification of water vapor concentration in industrial process and environmental gas streams. It operates on the physical principle of Tunable Diode Laser Absorption Spectroscopy (TDLAS), a well-established, physics-based optical technique that exploits the unique near-infrared absorption fingerprint of H₂O molecules. Unlike electrochemical or capacitive sensors, TDLAS delivers absolute, calibration-stable measurements without drift—enabled by wavelength-scanned laser diodes locked to a specific rotational-vibrational transition line of water (typically around 1368 nm or 1877 nm, depending on configuration). The MGA6000 is designed for unattended operation in demanding environments including natural gas dehydration units, semiconductor purge lines, hydrogen fuel purity monitoring, and biogas upgrading facilities—where trace-level moisture control directly impacts catalyst lifetime, pipeline integrity, and product specification compliance.

Key Features

• High-stability tunable laser diode source with active wavelength locking ensures long-term spectral accuracy and eliminates baseline drift from thermal or mechanical perturbations.
• Peak-locking algorithm dynamically tracks and centers on the target H₂O absorption line, compensating for minor pressure, temperature, and optical alignment variations—enabling robust baseline reproducibility independent of mirror reflectivity loss over time.
• Multi-range detection capability (0–10 ppm to 0–100% H₂O) is achieved via configurable optical path length and signal processing gain, allowing a single instrument platform to serve applications from ultra-trace (<1 ppm) to saturated humidity measurement.
• Gas-phase interference rejection is implemented through spectral line selection and second-harmonic detection (2f-WMS), minimizing cross-sensitivity to CO₂, CH₄, H₂S, NH₃, and other common background gases—eliminating the need for sample dilution or pre-conditioning.
• Modular hardware architecture enables field-replaceable optical modules, electronics trays, and power supplies—reducing mean time to repair (MTTR) and supporting phased lifecycle upgrades without full system replacement.
• No consumables, no reagents, and no moving parts ensure minimal operational overhead and compliance with ISO 5667-3 and ASTM D7217 for unattended, long-interval calibration verification.

Sample Compatibility & Compliance

The MGA6000 is validated for direct in-situ or extractive measurement of moisture in non-corrosive, particulate-free gas matrices—including air, N₂, O₂, H₂, CO₂, natural gas, syngas, and compressed dry air. Sample conditioning (e.g., particulate filtration, pressure regulation) is recommended when inlet gas contains aerosols, condensables, or exceeds 10 bar(g) or 60 °C. The analyzer meets IP65 enclosure rating for outdoor mounting and complies with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Its measurement traceability aligns with ISO/IEC 17025 requirements when operated within defined environmental and installation constraints (e.g., stable ambient temperature ±5 °C, vibration <0.5 g RMS). Optional ATEX/IECEx certification kits are available for Zone 1/21 hazardous area deployment.

Software & Data Management

Embedded firmware supports dual-mode operation: local front-panel navigation via high-contrast OLED display and remote supervision via TCP/IP Ethernet or RS-485 Modbus RTU. All raw absorbance spectra, processed concentration values, diagnostic flags (e.g., laser health, signal-to-noise ratio, optical alignment status), and environmental metadata (pressure, temperature, flow) are timestamped and stored on an industrial-grade solid-state drive (SSD) with ≥5 years of continuous logging capacity at 1-second resolution. Data export follows CSV and XML formats compatible with SCADA historians and LIMS platforms. Audit trail functionality records all configuration changes, user logins, and calibration events—supporting GLP/GMP-aligned workflows and FDA 21 CFR Part 11 compliance when deployed with external identity management and electronic signature integration.

Applications

• Natural gas transmission: Monitoring dew point compliance per ISO 8573-3 and GPA 2166 to prevent hydrate formation and pipeline corrosion.
• Semiconductor manufacturing: Ensuring sub-ppb moisture control in bulk gas cabinets and tool purge lines per SEMI F57 standards.
• Hydrogen energy infrastructure: Verifying PEM electrolyzer outlet gas purity and fuel cell feedstock compliance with ISO 8573-8 Class 1 (≤0.1 ppmv).
• Pharmaceutical lyophilization: Real-time chamber moisture tracking during primary drying to optimize cycle time and product stability.
• Biogas upgrading: Quantifying residual H₂O post-drying to protect amine scrubbers and membrane separation units from hydrolytic degradation.
• Research laboratories: Providing reference-grade moisture data for kinetic studies, sorption isotherm validation, and sensor cross-calibration.

FAQ

Does the MGA6000 require periodic calibration with certified gas standards?
No—TDLAS is an absolute spectroscopic method; factory calibration remains valid for the instrument’s service life under specified operating conditions. Optional annual performance verification using NIST-traceable moisture standards is recommended for regulated environments.
Can the MGA6000 measure moisture in corrosive gas streams such as wet HCl or Cl₂?
Not without additional gas conditioning. The standard optical module is rated for inert and mildly acidic gases only. For aggressive chemistries, consult BCC for custom quartz-lined sample cells and corrosion-resistant wetted materials.
Is remote firmware update supported over Ethernet?
Yes—secure OTA (over-the-air) updates are enabled via authenticated HTTPS interface with SHA-256 signature verification and rollback capability.
What is the minimum detectable water concentration in high-purity nitrogen?
At optimal signal averaging and path length configuration, the instrument achieves a verified limit of detection (LOD) of 10 ppb (v/v) with ≤2% relative standard deviation over 24 hours.
How does the peak-lock technology handle rapid pressure fluctuations during transient process events?
The real-time wavelength feedback loop updates at 1 kHz, enabling dynamic compensation for pressure-induced line broadening and shift—maintaining measurement fidelity even during step changes exceeding 1 bar/s.
